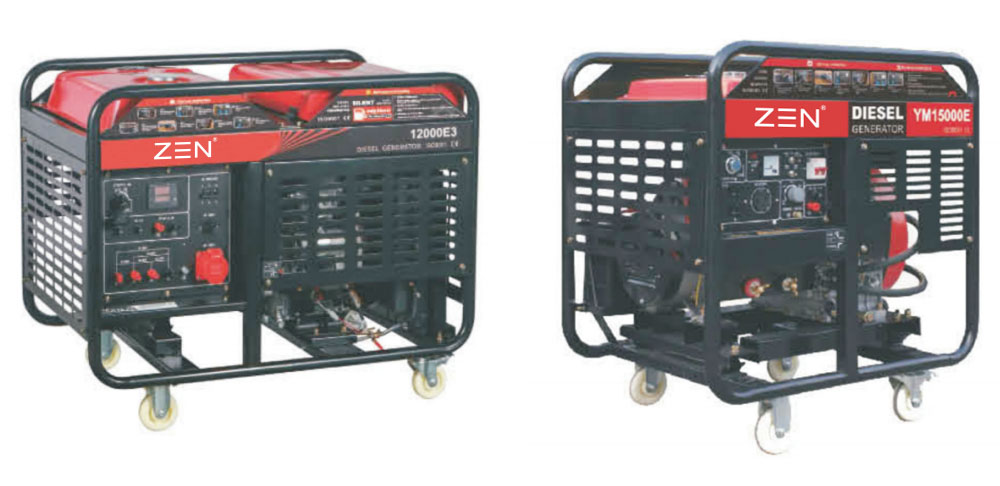

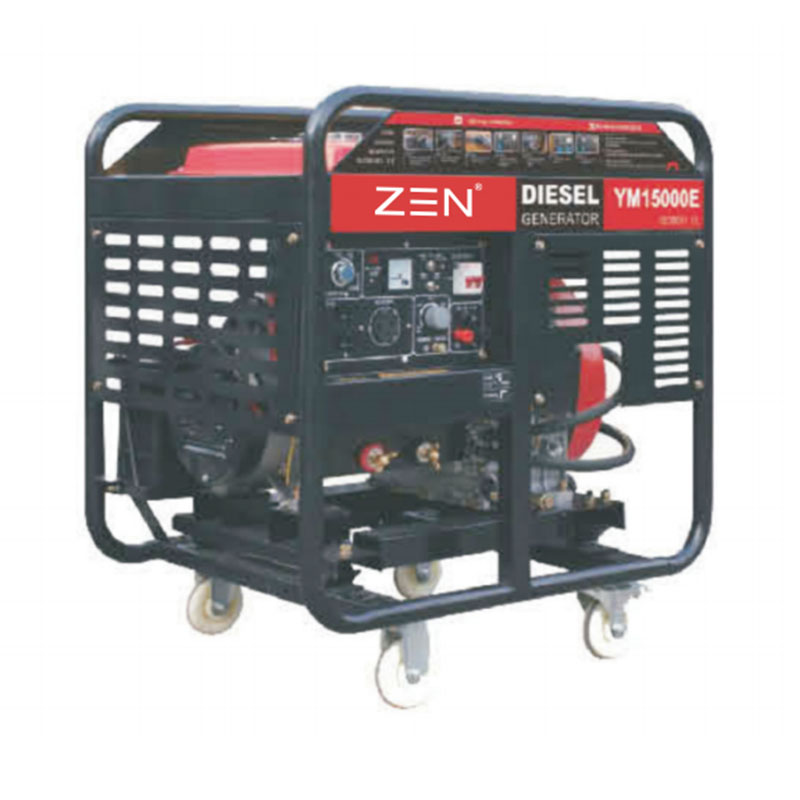

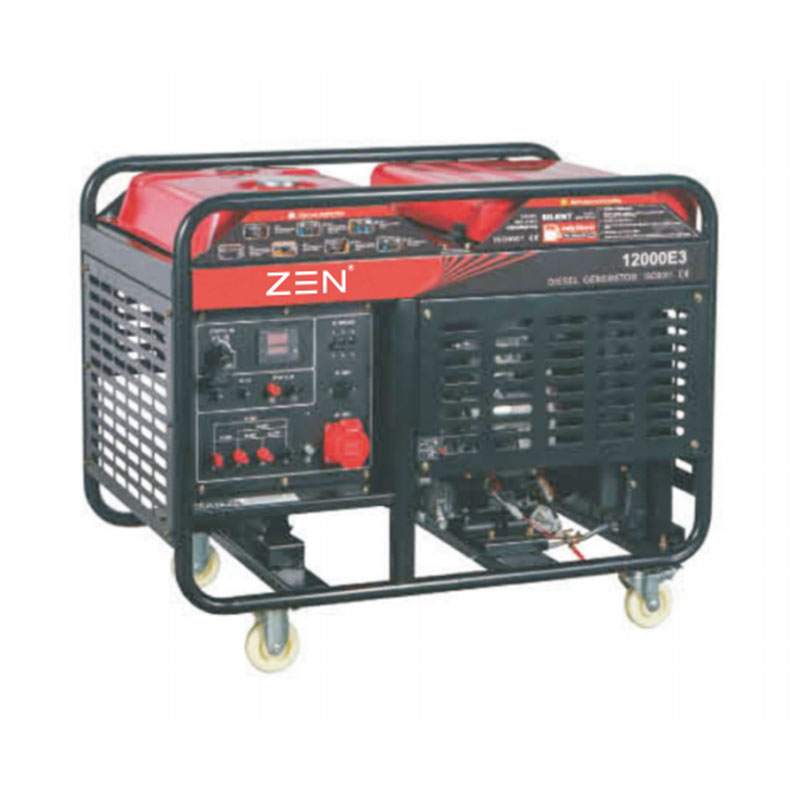

As a professional manufacturer, ZEN offers you high quality Open Type Double Cylinder Diesel Generator.
ZEN is a leading Chinese generator supplier and exporter of Open Type Double Cylinder Diesel Generator.
Our Open Type Double Cylinder Diesel Generator not only features high performance, but is also compact in size, allowing easy movement between job sites, and supports special configurations tailored to specific applications (such as meeting different voltage requirements or adding additional power ports) to meet different needs.
The generator is based on high-performance YARMAX engines, ensuring stable and long-term operation even in harsh environmental conditions or industrial plants.
| Model | ZD12000E | ZD13000E | ZD16000E | ZD16500E | ZD17000E | ZD18000E |
| Rated frequency(Hz) | 5060 | |||||
| Rated power(kW) | 8.59.5 | 9.010.0 | 11.011.0 | 11.5115 | 12.012.0 | 14.5145 |
| Maximum performance(km) | 9.510.5 | 10.011.0 | 12.012.0 | 12.512.5 | 13.013.0 | 15.5155 |
| Rated Voltage(M) | 110N/220V/230V/240V/380V/400V | |||||
| Rated current(A) | 38.641.3 | 40.943.5 | 50.050.0 | 52.352.3 | 54.554.5 | 659659 |
| Rated rotation speed(r/min) | 3000/3600 | |||||
| Number of phases | Single-phase/Three-phase/Three-phase with equal power |
|||||
| Power Factor(Cos) | 1 | |||||
| Insulation class | F | |||||
| Number of poles | 2 | |||||
| Excitation mode | Self-excited constant voltage (AVR) | |||||
| Dimensions (L×W×H)(mm) | 1150*770*900 | 1080*680*850 | 980*680*880 | 980*680*800 | 1070*680*880 | 1070*680*880 |
| Gross weight(kg) | 230 | 215 | 220 | 245 | 235 | 240 |
| Noise level/7m [dB(A)] | 85 | 85 | 85 | 85 | 85 | 85 |
| Construction type | open type | |||||
| Engine model | YM2V80 | YM2V88 | YM292 | YM295 | YM2V92 | YM2V95 |
| Engine type |
Liquid-cooled, two-cylinder V-twin engine, four-stroke, direct injection | Air-cooled two-cylinder V-twin engine, four-stroke, direct fuel injection |
Two-cylinder L-twin engine, air-cooled, four-stroke, direct fuel injection |
Air-cooled two-cylinder V-twin engine, four-stroke, direct fuel injection | ||
| cylinder No. - diameter * piston stroke (mm) | 2-80*79 | 2-88*72 | 2-88*72 | 3-92*75 | 2-92*80 | 2-95*75 |
| Offset(ml) | 794 | 870 | 996 | 1063 | 1064 | 1247 |
| Rated power[kW(r/min)] | 12.0/300013.0/3600 | 13.0/300014.0/3600 | 13.5/300014.5/3600 | 14.5/300015.0/3600 | 15/300016.5/3600 | 19.0/300021.0/3600 |
| Starting system | Electric starter | |||||
| Fuel type | diesel fuel 0# (summer) - 10# (winter) - 35# (frost-resistant) diesel fuel | |||||
| Lube oil grade | Class CD or SAE10W-30, 15W-40 | |||||
| Battery capacity(V-Ah) | 12V 36Ah | 12V 45Ah | ||||
| Fuel consumption(glkw"h) | ≤245 | |||||
| Fuel tank capacity(L) | 25 | |||||
| continuous working time(h) | 7 | 6 | 5.5 | 5.5 | 4.5 | |

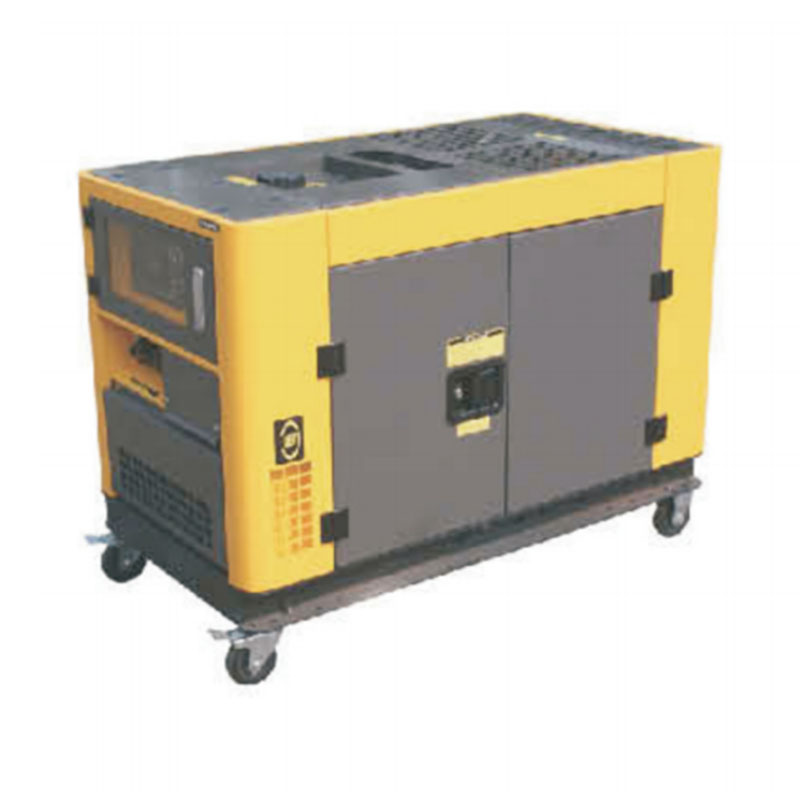

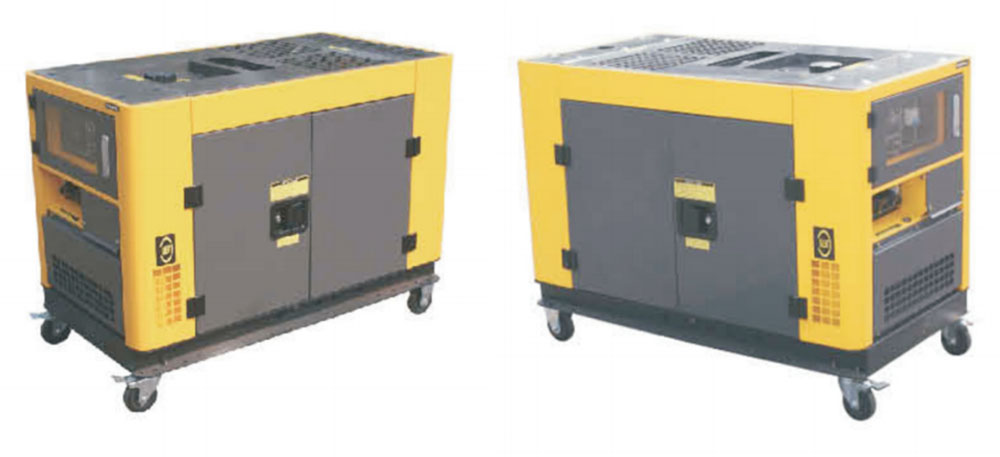

| Model | ZD12000T | ZD13000T | ZD16000T | ZD65000T | LZDI7000T | Marca de aceite de motor |
| Rated frequency(Hz) | 5060 | |||||
| Rated power(kW) | 8.59.5 | 9.0 10.0 | 11.011.0 | 11.511.5 | 12.012.0 | 14514.5 |
| Maximum performance(kw) | 9.510.5 | 10.011.0 | 12.012.0 | 12.5125 | 13.013.0 | 15.515.5 |
| Rated Voltage(M) | Single-phase/Three-phase/Three-phase with equal power | |||||
| Rated current(A) | 38.641.3 | 40.943.5 | 50.050.0 | 52.352.3 | 54554.5 | 65.965.9 |
| Rated rotation speed(r/min) | 3000/3600 | |||||
| Number of phases | 110V/220V/230N/240N/380V/400V | |||||
| Power Factor(Cos) | 1 | |||||
| Insulation class | F | |||||
| Number of poles | 2 | |||||
| Excitation mode | Self-excited constant voltage (AVR) | |||||
| Dimensions (L×W×H)(mm) | 1300*700*880 | 1300*700*880 | 1350*730*890 | 1300*730*890 | 1200*720*880 | 1250*720*880 |
| Gross weight(kg) | 310 | 245 | 340 | 345 | 335 | 340 |
| Noise level/7m [dB(A)] | 74 | |||||
| Construction type | silent type | |||||
| Engine model | YM2V80 | YM2V88 | YM292 | YM295 | YM2V92 | YM2V95 |
| Engine type | Liquid-cooled, two-cylinder V-twin engine, four-stroke, direct injection | Air-cooled two-cylinder V-twin engine, four-stroke, direct fuel injection | Two-cylinder L-twin engine, air-cooled, four-stroke, direct fuel injection | Air-cooled two-cylinder V-twin engine, four-stroke, direct fuel injection | ||
| cylinder No. - diameter * piston stroke (mm) | 2-80*79 | 2.88*72 | 2 ·92*75 | 2-88*72 | 2-92*80 | 2.95*88 |
| Offset(ml) | 794 | 870 | 996 | 1063 | 1064 | 1247 |
| Rated power[kW(r/min)] | 12.0/300013.0/3600 | 13.0/300014.0/3600 | 13.5/300014.5/3600 | 145/300015.0/3600 | 14.8/300015.3/3600 | 19.0/300019.0/3600 |
| Starting system | Electric starter | |||||
| Fuel type | diesel fuel 0# (summer) - 10# (winter) - 35# (frost-resistant) diesel fuel | |||||
| Lube oil grade | Class CD or SAE10W-30, 15W-40 | |||||
| Battery capacity(V-Ah) | 12V 36Ah | 12V 45Ah | ||||
| Fuel consumption(glkw"h) | ≤245 | |||||
| Fuel tank capacity(L) | 25 | |||||
| continuous working time(h) | 7 | 6 | 5.5 | 5.5 | 4.5 | |
