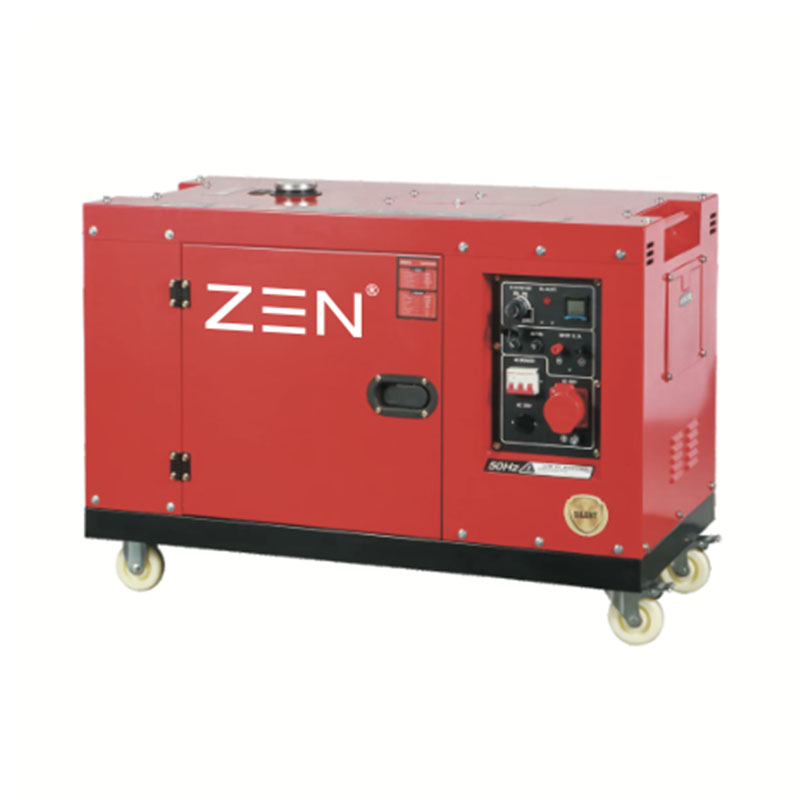

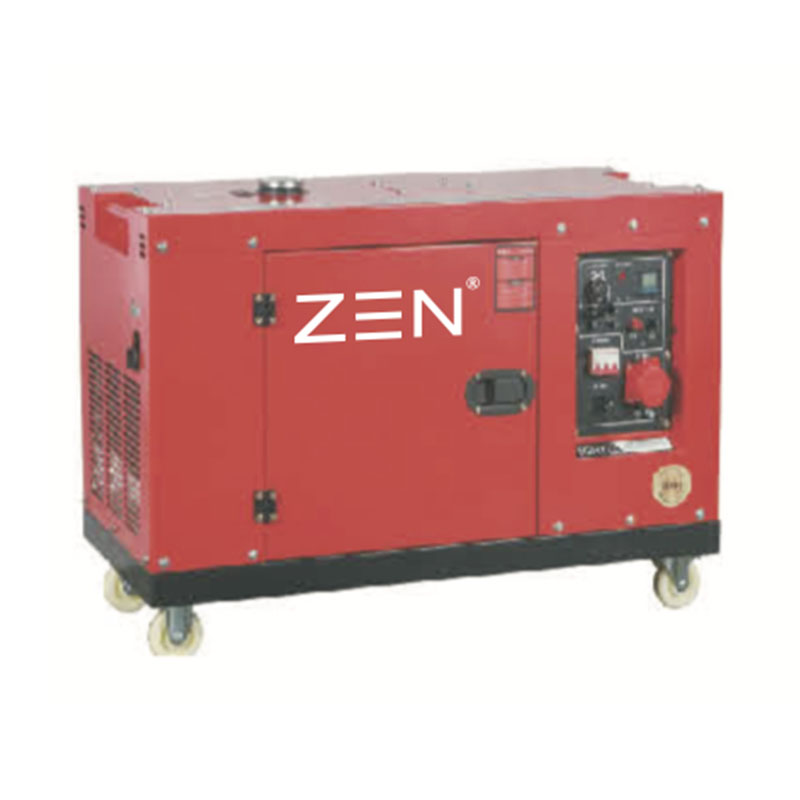

High Quality ZEN Generator The new silent diesel generator is practical and ready to use: it is equipped with high-performance YARMAX engines that provide high power and torque, ensuring trouble-free operation of heavy loads and stable power output, ensuring trouble-free operation of tools and equipment
As a professional manufacturer, ZEN brings you a high-quality tool, the new silent diesel generator, which also features a portable and compact design that allows it to be easily moved between jobsites, even in limited space, and comes in special configurations for various use cases.
To ensure safe operation, this new type of silent diesel generator is equipped with a new automatic voltage regulator (AVR) for overload protection that operates to prevent damage when the load is too heavy, as well as a built-in short circuit protection that responds quickly to prevent electrical problems.
| Model | ZD11000T | ZD13800T | ZD16800T |
| Rated frequency(Hz) | 50 60 | ||
| Rated power(kW) | 8.08.0 | 9.0 9.0 | 11.011.0 |
| Maximum performance(kw) | 8.88.8 | 9.8 9.8 | 12.012.0 |
| Rated Voltage(V) |
110V/220V/230V/240V/380V/400V | ||
| Rated current(A) |
36.436.4 | 40.9 40.9 | 50.050.0 |
| Rated rotation speed(r/min) | 3000/3600 | ||
| Number of phases | Single-phase/Three-phase/Three-phase with equal power | ||
| Power Factor(Cos) | 1 | ||
| Insulation class | F | ||
| Number of poles | 2 | ||
| Dimensions (L×W×H)(mm) | 790*598*715 | 790*595*750 | 910*660*885 |
| Gross weight(kg) | 140 | 165 | 210 |
| Sorting work by weight(kg) | 150 | 175 | 225 |
| Noise level/7m [dB(A)] | 85 | 85 | 85 |
| Construction type | open type |
||
| Engine model |
YM1100FE | YM1105FE | In115fe |
| Engine type | Single-cylinder, vertical, four-stroke, direct injection, air-cooled engine | ||
| cylinder No. - diameter * piston stroke (mm) | 1-100*85 | 1-105*85 | 1-115*88 |
| Offset(ml) | 667 | 736 | 914 |
| Rated power[kW(r/min)] | 10.5/300011/3600 | 12/300012.5/3600 | 13.5/3000 |
| Fuel type | diesel fuel 0# (summer) - 10# (winter) - 35# (frost-resistant) diesel fuel | ||
| Lube oil grade | Class CD or SAE10W-30, 15W-40 | ||
| Battery capacity(V-Ah) | 12V 36AH | 12V 36AH | 12V 36AH |
| Fuel consumption(glkw"h) | ≤300 | ≤300 | ≤300 |
| Fuel tank capacity(L) | 15 | 25 | 25 |
| continuous working time(h) | 4 | 6 | 5 |
