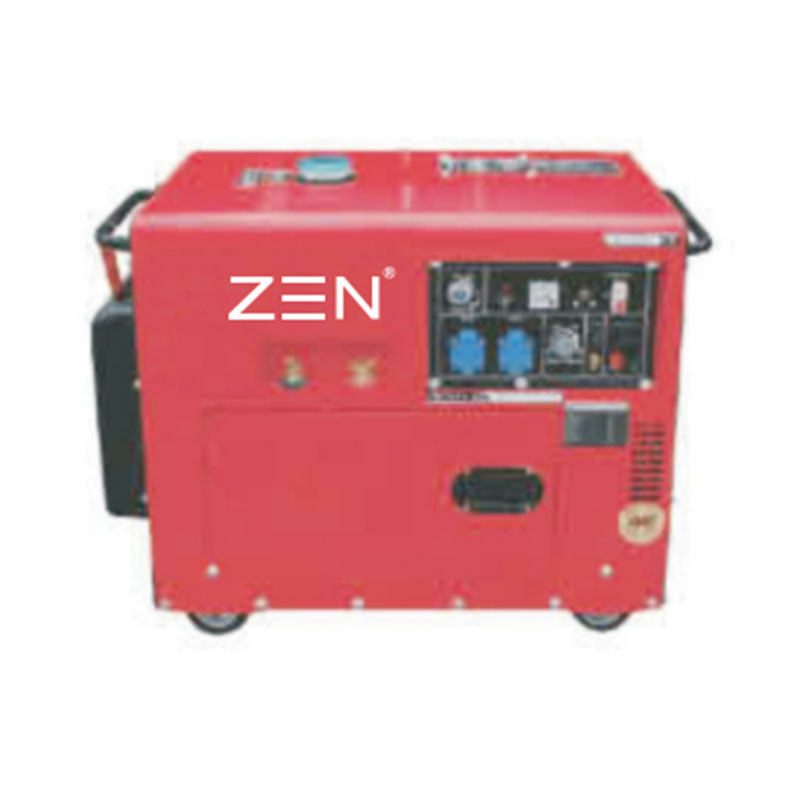

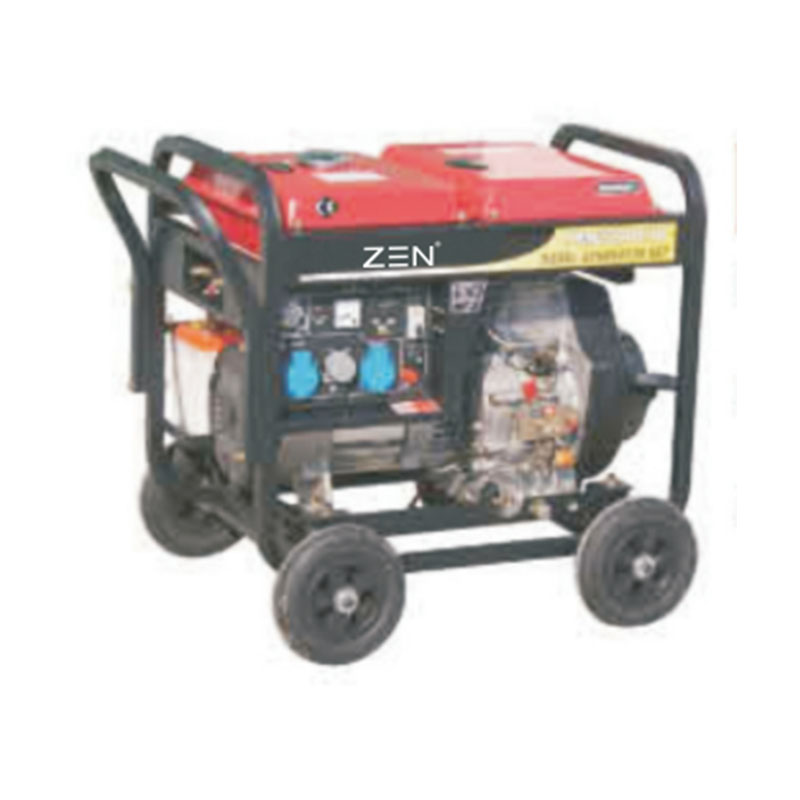

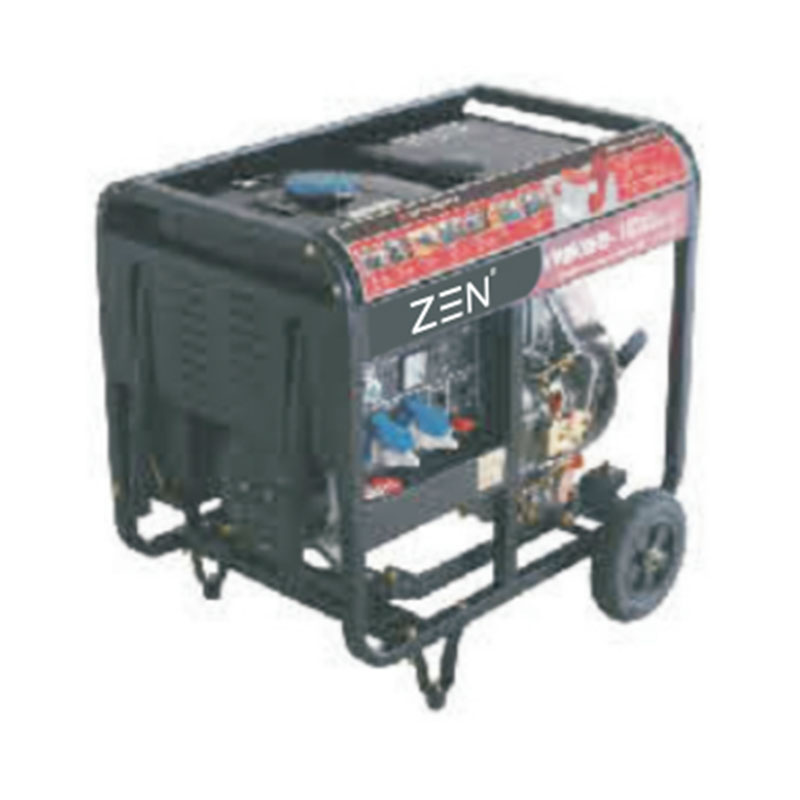

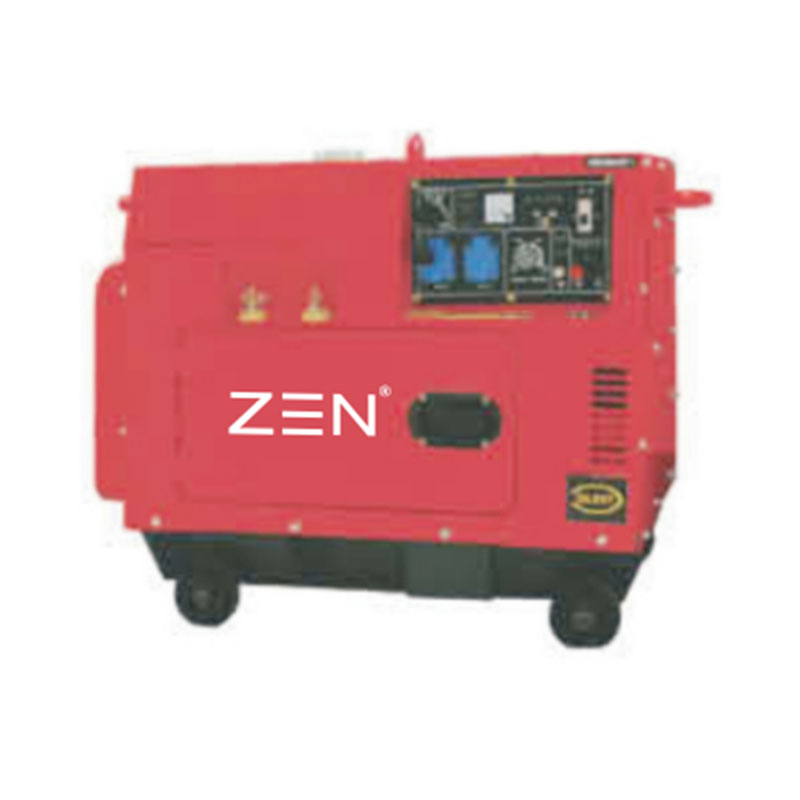

The high-quality ZEN diesel welding generator is multi-purpose, making it a flexible tool for both welding work and periodic recharging.
As a professional manufacturer, ZEN offers you a high-quality diesel generator welding machine that provides high current and high welding power, easily handling metal materials of various thicknesses without compromising welding quality.
1. The machine is a diesel welding generator powered by high-performance YARMAX diesel engines, ensuring stable operation even during long welding sessions.
2. 100% copper motor improves reliability and energy efficiency, reducing wear and prolonging service life.
The diesel welding generator is suitable for home welding (for small metal work), special service station welding (for equipment repair), outdoor pipe welding (for infrastructure work), construction site welding (for steel structures), professional sheet metal welding (for industrial production) and rail welding (for railway maintenance).
One device for multiple tasks
Easy and fast launch
Convenient control
High welding current and high welding productivity
Equipped with high-performance YARMAX diesel engines
100% copper motor
Welding at home
Welding at service stations

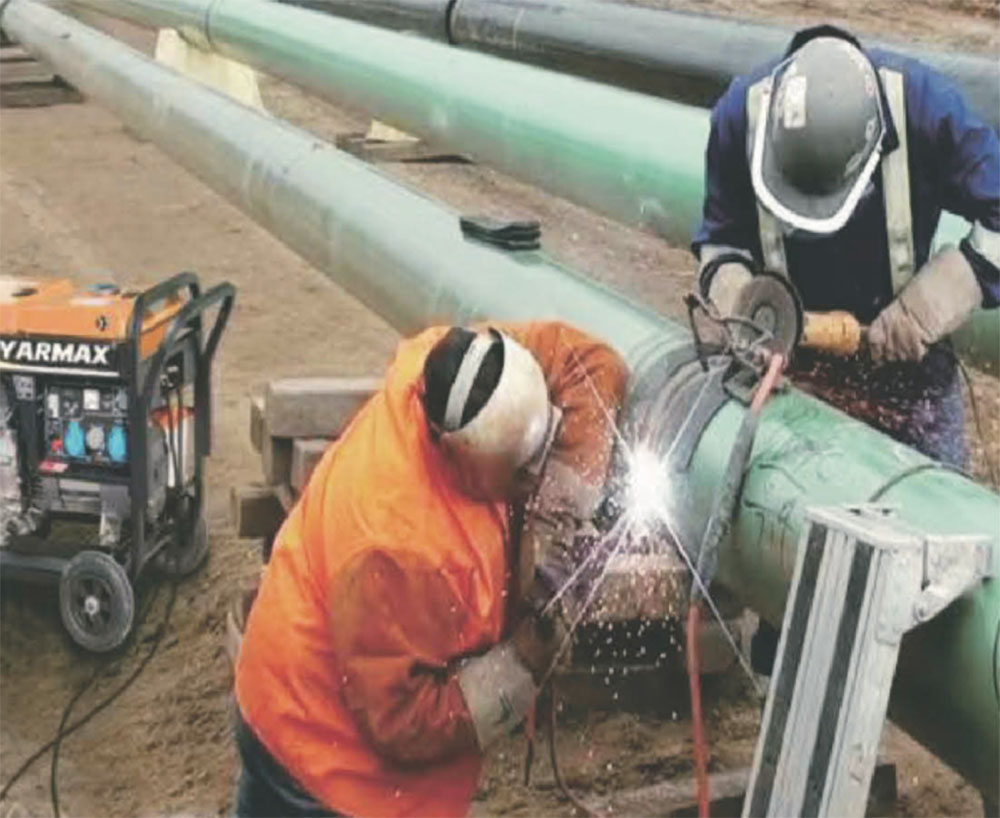

Welding pipelines outdoors
Welding work on construction sites
Professional sheet metal welding
Rail welding
| Generator Welding-Pro | Welding generator | |||||||
| Model | zD6700EWP | zD7700EWP | zD8700EWP | zD9700EWP | [ZD11000EWPI | ZD6700EW | ZD8700EW | |
| ZD6700TWP | ZD7700TWP」 | ZD8700TWP」 | ZD9700TWP | zD11000TWP | LZD6700TWI | ZD8700TWI | ||
| Rated frequency(Hz) | 5060 | |||||||
| Rated power(kW) | 22.2 | 2.22.4 | 33.2 | 3.53.8 | 4.04.3 | 4.55.0 | 5.56.0 | |
| Rated Voltage(M) | 110V/220V or upon request | |||||||
| Rated current(A) | 9.110.0 | 9.110.0 | 13.614.5 | 15.912.3 | 18.219.5 | 20.422.7 | 25.027.3 | |
| Rated speed(r/min) | 3000 3600 | |||||||
| Number of phases | Single phase | |||||||
| Power factor(cosφ) | 1 | |||||||
| Open circuit voltage(M) | 65-70 | |||||||
| Continuous working time(h) | 50-180 | 50-190 | 50-220 | 50-250 | 50-260 | 50-180 | 70-220 | |
| Welding voltage(V) | 25-30 | |||||||
| Continuous operation factor under load | 60% | |||||||
| Electrode diameter(mm) | 2.4-4.0 | 2.4-4.0 | 2.5-5.0 | 6.0 | 6.0 | 2.4-4.0 | 2.5-5.0 | |
| Excitation mode | ||||||||
| Straightening mode | Diode | |||||||
| Connection method | Drive bearing, rigid connection | |||||||
| Insulation class | F | |||||||
| Number of poles | 2 | |||||||
| Engine model | YM186FA E | YM188FE | YM192FE | YM195FE | YM1100FE | In186fae | YM192FE | |
| Rated power(kW) | 5.76.5 | 6.57.2 | 7.68.2 | 8.18.7 | 10.510.5 | 5.76.5 | 7.68.2 | |
| Lubrication system | Pressure lubrication | |||||||
| Engine oil brand | Class CD or SAE10W-30, 15W-40 | |||||||
| Oil volume(L) | 1.65 | 1.65 | 1.65 | 1.65 | 2.0 | 1.65 | 1.65 | |
| Starting system | Recoil starter or 12V electric starter | |||||||
| Battery capacity(V-Ah) | 12V-30Ah | |||||||
| Fuel type | Recoil starter or 12V electric starter | |||||||
| Fuel consumption(g/kW.h) | ≤280 | |||||||
| Fuel tank capacity(L) | 15 | |||||||
| Continuous working time(h) | 6.5 | 6 | 5 | 4.5 | 4 | 6 | 5 | |
| Noise level/7m [dB(A)] | 77 | |||||||
| Construction type | Rated welding current(A) | |||||||
| Dimensions(mm) | 730*495*655 open type/945*555*700silent type | 790*598*715 | 730*495*655 open type | |||||
| Gross weight(kg) | 105 kg open/160 kg silent | 115 kg open/162 kg silent | 115 kg open/165 kg silent | 120 kg open/170 kg silent | 150 kg open/215 kg silent | 105 kg open/160 kg silent | 115 kg open/165 kg silent | |
