ZEN offers a high quality open type single cylinder diesel generator that is a reliable solution for challenging applications.
With its portable, compact design, ZEN's high quality open type single cylinder diesel generator pump is easy to carry and move between jobsites, and special configurations allow it to be tailored to different job needs.
Whether you choose an open type model for ease of maintenance or a silent model for low noise environments, the ZEN single cylinder open type diesel generator will remain reliable, making it an excellent choice for jobs that require a stable and safe power supply.

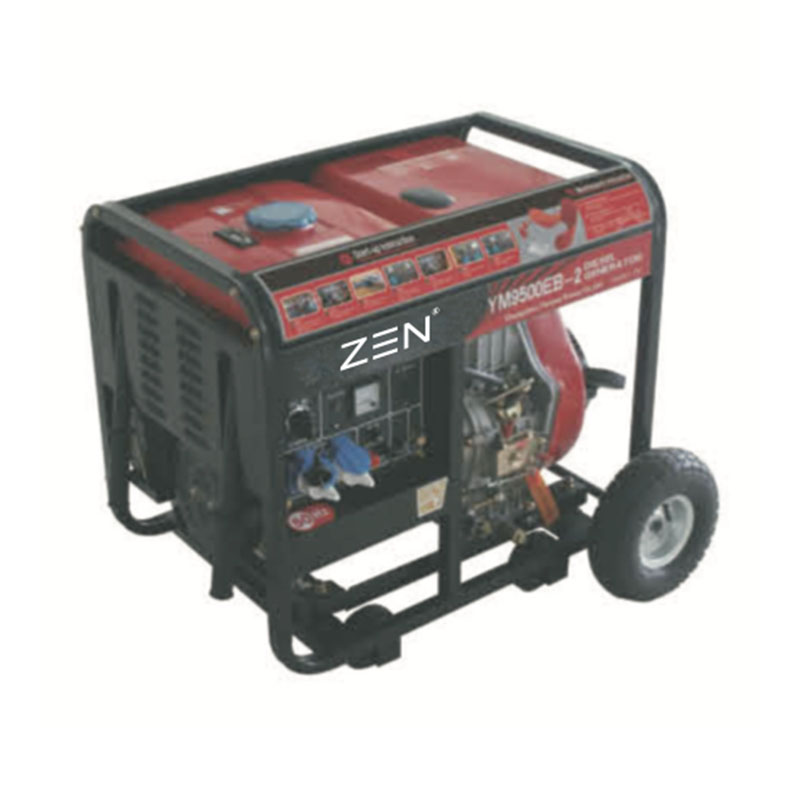

Square steel frame
Two hidden handles
Four 4" wheels and two 10" wheels
Arc plate to protect the fuel tank

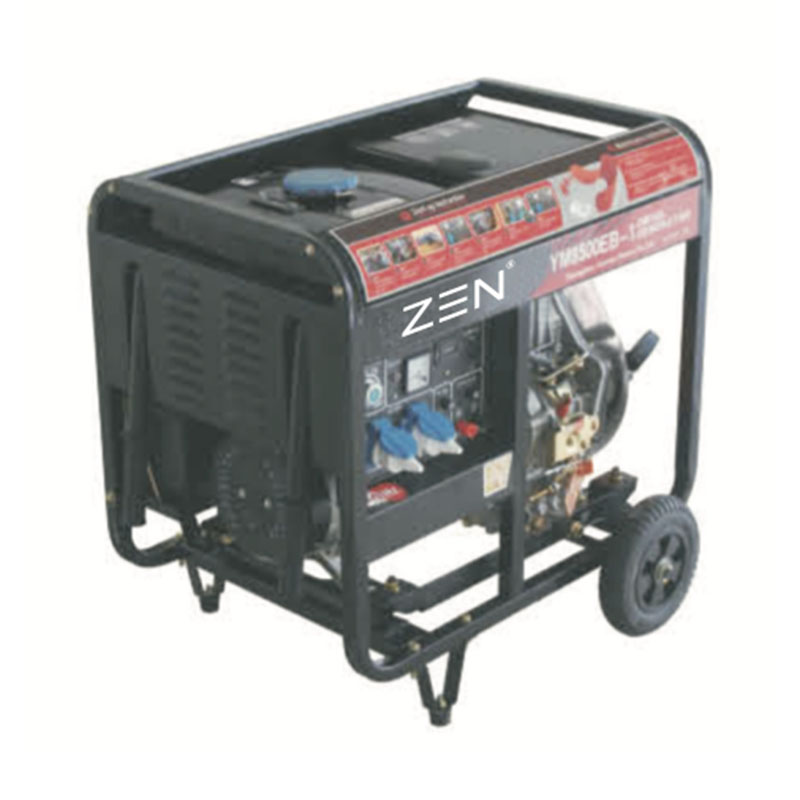

Square steel frame
Two hidden handles
Arc plate to protect the fuel tank
Two holders and two 9"
Wheels

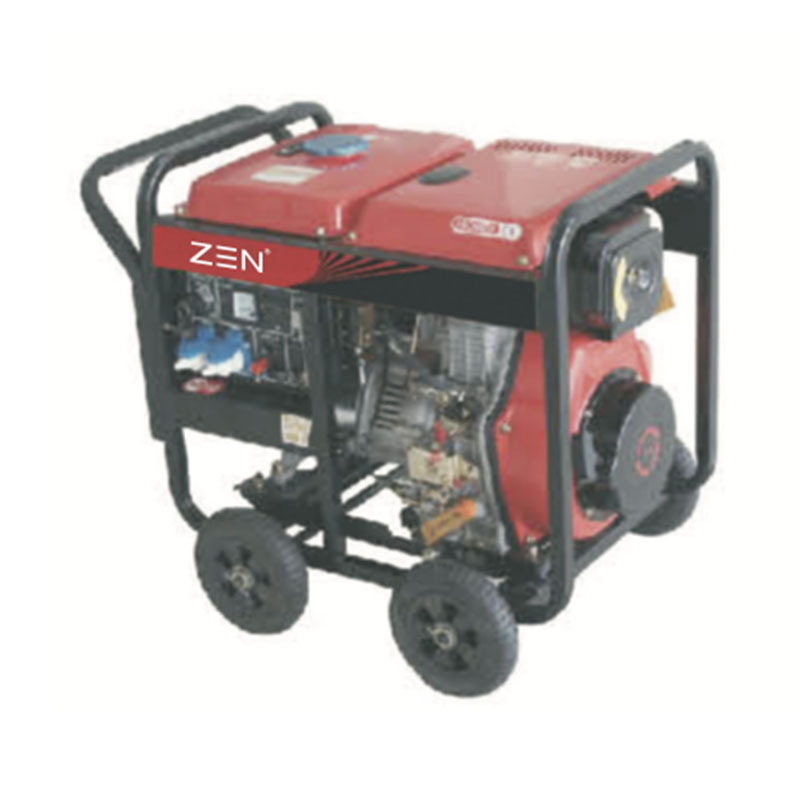

Square steel frame
Four wheels 9"
U-type handrails

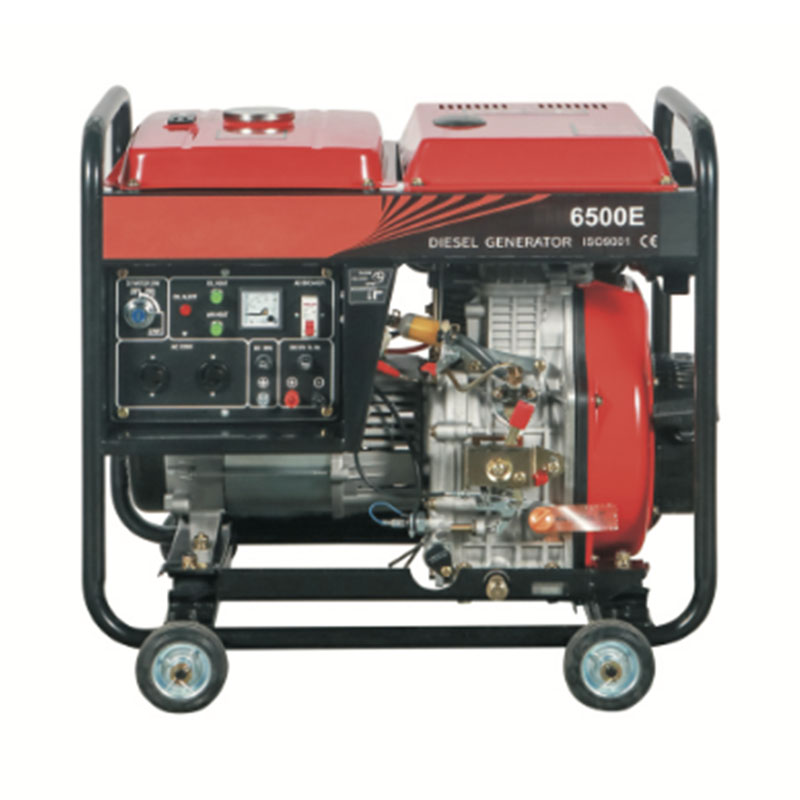

Round steel frame
Four wheels "4"
Strong power and large torque
Stable output power
Portable and compact design
Design of special configurations
Low running noise
Powerful YARMAX motors
New AVR provides overload protection
Short circuit protection
Outdoor power supply
light tower
Water mist gun/spray gun for dust suppression
Car power supply
Unmanned charging pole
Construction site power supply
Powering a boat or home
| Model | ZD2700E | ZD3700E | ZD6700E | ZD7700E | ZD8700E | ZD9700E |
| Rated frequency | 5060 | |||||
| Nominal output | 1.82.0 | 2.52.8 | 4.55.0 | 5.05.2 | 6.06.3 | 6.56.8 |
| Maximum output (kW) | 2.02.2 | 3.03.3 | 5.05.5 | 5.55.7 | 6.57.2 | 7.07.7 |
| Rated Voltage(M) | 110V/220V/230V/240V/380V/400V | |||||
| Nominal currency(A) | 8.28.7 | 11.312.2 | 21.821.7 | 22.722.6 | 27.227.3 | 29.529.6 |
| Rated rotation speed(r/min) | 3000/3600 | |||||
| Stage no. | Single phase/three phase/three phase equal power | |||||
| Power factor(Cos φ) | 1 | |||||
| Insulation degree | F | |||||
| Pole number | 2 | |||||
| Exciting fashion | Self-excitation and constant voltage (AVR) | |||||
| Overall size(L×W×H)(mm) | 690*480*590 | 690*480*590 | 730*495*650 | 730*495*630 | 730*495*630 | 730*495*655 |
| Dry weight (kg) | 53 | 70 | 100 | 102 | 105 | 110 |
| Working sorting weight(kg) | 66 | 83 | 110 | 112 | 115 | 120 |
| Noise level(7m){d B(A)] | 77 | 77 | 77 | 77 | 77 | 77 |
| Structure type | Open type/open type | |||||
| Engine model | YM170F | YM178F | YM186FA | In188f | YM192F | YM195F |
| Engine type | Single-cylinder, vertical, four-stroke, direct injection, air-cooled | |||||
| cylinder NO- bores × strokes | 1-70*55 | 1-78*62 | 1-78*62 | 88*75 | 1-92*75 | 1-95*75 |
| Moving | 211 | 296 | 418 | 456 | 498 | 532 |
| [kW(/min)] | 2.5/30002.8/3600 | 3.7/30004.0/3600 | 5.7/30006.3/3600 | 6.5/30007.2/3600 | 7.6/30008.2/3600 | 8.1/30008.7/3600 |
| Fuel type | 0#(summer)-10#(winter)-35#(cool) diesel | |||||
| Lube oil brand | Class CD or SAE 10W-30, 15W-40 | |||||
| Battery capacity(v-Ah) | 12V 20Ah | 12V 30Ah | 12V 30Ah | |||
| Fuel consumption(glkw"h) | ≤280 | |||||
| Fuel tank capacity(L) | 15 | |||||
| Continuous operating time (hr) | 14 | 9.5 | 6.5 | 6 | 5 | 4.5 |
Note: The above specifications are for single phase generators, three phase generators and three phase generators of equal power available upon request.
