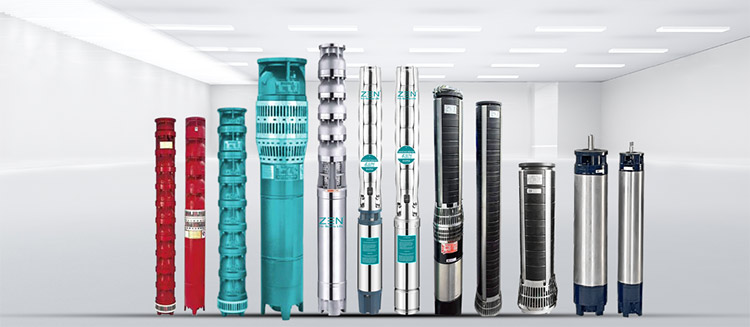

Superior Durability: The ZΞN Brand 8'' Cast Iron Deep Well Pump is made from high quality cast iron, providing exceptional durability and corrosion resistance, providing long-term reliability in challenging downhole conditions.
The cast iron deep well pump is a water intake unit that combines a submersible motor and a submersible pump.
Direct integration into the kit, work in deep water. Mainly used for irrigation of agricultural land, water supply and sewerage of cities, industrial and mining enterprises.
Can be used to develop underground hot water below 100°C, with heat resistance, corrosion resistance, aging resistance and other characteristics.
Flow: 2 - 1000 m3/h
Load: 10m - 1000m
Motor power: 0.55kW-600kW
Rated voltage: 380V/660V
1. The underwater electric pump is composed of five parts: water pump, motor, water line, waterproof cable and control switch. The pumps are single-suction multistage vertical centrifugal three-cylinder pumps.
2. The submersible motor uses YQS type water-filled wet design, filled with clean water in the cavity, mainly for cooling the motor and lubricating the bearings. During operation, since changes in temperature may cause changes in water filling, pressure regulators are installed in the engine for calibration.
3. To prevent sand from entering the motor, the upper motor is equipped with a sandproof sealing mechanism, consisting of a sand punch and a mechanical seal, which forms a sandproof structure, and the entire motor is well sealed through its sealed structure.
4. There are water injection holes and exhaust holes on the top of the engine, and drainage holes on the bottom.
5. The thrust bearings and thrust rings are installed at the bottom of the motor and mainly bear the axial force of the electric pump.
6. The motor stator winding uses waterproof electromagnetic line with good insulation and waterproof performance, the rotor uses mouse cage structure.
7. Stainless steel underwater pumps are used for corrosive water quality.
Number |
Model Minimum well diameter (mm) QJ (flow rate (m3 / h) - flow pressure (m) / impeller level |
Deep well pump | Submarine electric motor | Rotational speed | outlet pipe diameter |
Cable Specification Compliance |
Maximum pump outer diameter |
|||
Height | Weight | Power | Height | Weight | ||||||
(mm) | (kg) | (kW) | (mm) | (kg) | (rpm) | (") |
|
(mm) | ||
1 | 200QJ10-47/3 | 400 | 29 | 4 | 670 | 67 | 2850 | 2 | 3×2.5 | 184 |
2 | 200QJ10-62/4 | 505 | 39 | 5.5 | 690 | 70 | 3×2.5 | |||
3 | 200QJ10-78/5 | 728 | 54 | 7.5 | 705 | 72 | 3×4 | |||
4 | 200QJ10-93/6 | 833 | 64 | 7.5 | 705 | 72 | 3×4 | |||
5 | 200QJ10-109/7 | 938 | 74 | 9.2 | 750 | 79 | 3×6 | |||
6 | 200QJ10-124/8 | 1043 | 84 | 9.2 | 750 | 79 | 3×6 | |||
7 | 200QJ10-140/9 | 1148 | 94 | 11 | 765 | 85 | 3×6 | |||
8 | 200QJ10-155/10 | 1253 | 104 | 13 | 780 | 87 | 3×6 | |||
9 | 200QJ10-171/11 | 1358 | 114 | 13 | 780 | 87 | 3×10 | |||
10 | 200QJ10-186/12 | 1463 | 124 | 15 | 815 | 90 | 3×10 | |||
11 | 200QJ10-202/13 | 1568 | 134 | 15 | 815 | 90 | 3×10 | |||
12 | 200QJ10-217/14 | 1673 | 144 | 18.5 | 870 | 107 | 3×16 | |||
13 | 200QJ10-233/15 | 1778 | 154 | 18.5 | 870 | 107 | 3×16 | |||
14 | 200QJ10-248/16 | 1883 | 164 | 18.5 | 870 | 107 | 3×16 | |||
15 | 200QJ10-264/17 | 1988 | 174 | 22 | 1030 | 124.5 | 3×25 | |||
16 | 200QJ10-279/18 | 2093 | 184 | 22 | 1030 | 124.5 | 3×25 | |||
17 | 200QJ10-295/19 | 2198 | 194 | 22 | 1030 | 124.5 | 3×25 | |||
18 | 200QJ10-310/20 | 2303 | 204 | 25 | 1100 | 131.5 | 3×25 | |||
19 | 200QJ10-326/21 | 2408 | 214 | 25 | 1100 | 131.5 | 3×25 | |||
20 | 200QJ10-341/22 | 2513 | 224 | 25 | 1100 | 131.5 | 3×25 | |||
21 | 200QJ10-355/23 | 2618 | 234 | 30 | 1165 | 145.5 | 3×35 | |||
22 | 200QJ10-372/24 | 2828 | 244 | 30 | 1165 | 145.5 | 3×35 | |||
23 | 200QJ10-388/25 | 2933 | 254 | 30 | 1165 | 145.5 | 3×35 | |||
24 | 200QJ10-403/26 | 3038 | 264 | 30 | 1165 | 145.5 | 3×50 | |||
25* | 200QJ10-419/27 | 3143 | 274 | 37 | 1620 | 183 | 3×50 | |||
26* | 200QJ10-434/28 | 3248 | 284 | 37 | 1620 | 183 | 3×50 | |||
27* | 200QJ10-450/29 | 3353 | 294 | 37 | 1620 | 183 | 2850 | 2 | 3×50 | 184 |
28* | 200QJ10-465/30 | 3458 | 304 | 37 | 1620 | 183 | 3×50 | |||
29* | 200QJ10-481/31 | 3563 | 314 | 37 | 1620 | 183 | 3×70 | |||
30* | 200QJ10-496/32 | 3668 | 324 | 37 | 1620 | 183 | 3×70 | |||
31* | 200QJ10-512/33 | 3773 | 334 | 37 | 1620 | 183 | 3×70 | |||
32* | 200QJ10-527/34 | 3878 | 344 | 45 | 1725 | 202 | 3×70 | |||
33* | 200QJ10-543/35 | 3983 | 354 | 45 | 1725 | 202 | 3×70 | |||
34* | 200QJ10-558/36 | 4088 | 364 | 45 | 1725 | 202 | 3×95 | |||
35* | 200QJ10-574/37 | 4193 | 374 | 45 | 1725 | 202 | 3×95 | |||
36* | 200QJ10-589/38 | 4945 | 384 | 45 | 1725 | 202 | 3×95 | |||
37* | 200QJ10-605/39 | 5065 | 394 | 45 | 1725 | 202 | 3×95 | |||
38* | 200QJ10-620/40 | 5185 | 404 | 45 | 1725 | 202 | 3×95 | |||
39* | 200QJ10-636/41 | 5305 | 414 | 55 | 1885 | 217 | 3×120 | |||
40* | 200QJ10-651/42 | 5545 | 424 | 55 | 1885 | 217 | 3×120 | |||
41* | 200QJ10-667/43 | 5665 | 434 | 55 | 1885 | 217 | 3×120 | |||
42* | 200QJ10-682/44 | 5785 | 444 | 55 | 1885 | 217 | 3×120 | |||
43* | 200QJ10-698/45 | 5905 | 454 | 55 | 1885 | 217 | 3×120 | |||
44* | 200QJ10-713/46 | 6025 | 464 | 55 | 1885 | 217 | 3×120 | |||
45* | 200QJ10-729/47 | 6145 | 474 | 55 | 1885 | 217 | 3×120 | |||
46* | 200QJ10-744/48 | 6265 | 484 | 55 | 1885 | 217 | 3×150 | |||
47* | 200QJ10-760/49 | 6385 | 494 | 55 | 1885 | 217 | 3×150 | |||
48* | 200QJ10-775/50 | 6505 | 504 | 63 | 2232 | 283 | 3×150 | |||
49* | 200QJ10-791/51 | 6625 | 514 | 63 | 2232 | 283 | 3×150 | |||
50* | 200QJ10-806/52 | 6745 | 524 | 63 | 2232 | 283 | 3×150 | |||
51* | 200QJ10-822/53 | 6865 | 534 | 63 | 2232 | 283 | 3×150 | |||
52* | 200QJ10-837/54 | 6985 | 544 | 63 | 2232 | 283 | 3×150 | |||
53* | 200QJ10-853/55 | 7105 | 554 | 63 | 2232 | 283 | 3×185 | |||
54* | 200QJ10-868/56 | 7225 | 564 | 63 | 2232 | 283 | 3×185 | |||
55* | 200QJ10-884/57 | 7345 | 574 | 75 | 2332 | 304 | 3×185 | |||
56* | 200QJ10-899/58 | 7465 | 584 | 75 | 2332 | 304 | 3×240 | |||
57* | 200QJ10-915/59 | 7585 | 594 | 75 | 2332 | 304 | 3×240 | |||
58* | 200QJ10-930/60 | 7705 | 604 | 75 | 2332 | 304 | 3×240 | |||
59* | 200QJ10-946/61 | 7945 | 614 | 75 | 2332 | 304 | 3×240 | |||
60* | 200QJ10-961/62 | 8065 | 624 | 75 | 2332 | 304 | 3×240 | |||
61* | 200QJ10-977/63 | 8185 | 634 | 75 | 2332 | 304 | 3×240 | |||
62* | 200QJ110-992/64 | 8305 | 644 | 75 | 2332 | 304 | 3×240 | |||
63* | 200QJ10-1008/65 | 8425 | 654 | 75 | 2332 | 304 | 2850 | 2 | 3×240 | 184 |
64* | 200QJ10-1023/66 | 8545 | 664 | 75 | 2332 | 304 | 3×240 | |||
65 | 200QJ20-40/3 | 436 | 42 | 4 | 670 | 67 | 3×2.5 | |||
66 | 200QJ20-54/4 | 554 | 48 | 5.5 | 690 | 70 | 3×2.5 | |||
67 | 200QJ20-67/5 | 672 | 55 | 7.5 | 705 | 72 | 3×4 | |||
68 | 200QJ20-81/6 | 908 | 63 | 7.5 | 705 | 72 | 3×4 | |||
69 | 200QJ20-93/7 | 1026 | 72 | 9.2 | 750 | 79 | 3×6 | |||
70 | 200QJ20-108/8 | 1144 | 81 | 11 | 765 | 85 | 3×6 | |||
71 | 200QJ20-121/9 | 1262 | 90 | 13 | 780 | 87 | 3×6 | |||
72 | 200QJ20-133/10 | 1380 | 99 | 15 | 815 | 90 | 3×6 | |||
73 | 200QJ20-148/11 | 1498 | 108 | 15 | 815 | 90 | 3×6 | |||
74 | 200QJ20-160/12 | 1616 | 117 | 18.5 | 870 | 107 | 3×10 | |||
75 | 200QJ20-175/13 | 1734 | 126 | 18.5 | 870 | 107 | 3×10 | |||
76 | 200QJ20-186/14 | 1852 | 135 | 18.5 | 870 | 107 | 3×10 | |||
77 | 200QJ20-202/15 | 1970 | 144 | 22 | 1030 | 124.5 | 3×16 | |||
78 | 200QJ20-212/16 | 2088 | 153 | 22 | 1030 | 1030 | 3×16 | |||
79 | 200QJ20-226/17 | 2206 | 162 | 25 | 1100 | 131.5 | 3×25 | |||
80 | 200QJ20-243/18 | 2324 | 171 | 25 | 1100 | 131.5 | 3×25 | |||
81 | 200QJ20-252/19 | 2442 | 180 | 25 | 1100 | 131.5 | 2.5 | 3×25 | ||
82 | 200QJ20-270/20 | 2560 | 189 | 30 | 1165 | 145.5 | 3×25 | |||
83 | 2000120-283/21 | 2678 | 198 | 30 | 1165 | 145.5 | 3×25 | |||
84 | 200QJ20-297/22 | 2914 | 207 | 30 | 1165 | 145.5 | 3×35 | |||
85 | 200QJ20-305/23 | 3032 | 216 | 30 | 1165 | 145.5 | 3×35 | |||
86 | 200QJ20-320/24 | 3150 | 225 | 37 | 1245 | 163 | 3×35 | |||
87 | 200QJ20-338/25 | 3268 | 234 | 37 | 1245 | 163 | 3×50 | |||
88 | 200QJ20-350/26 | 3386 | 243 | 37 | 1245 | 163 | 3×50 | |||
89 | 200QJ20-363/27 | 3504 | 252 | 37 | 1245 | 163 | 3×50 | |||
90 | 200QJ20-372/28 | 3622 | 261 | 37 | 1245 | 163 | 3×50 | |||
91* | 200QJ20-385/29 | 3740 | 270 | 45 | 1725 | 202 | 3×50 | |||
92* | 200QJ20-400/30 | 3858 | 279 | 45 | 1725 | 202 | 3×70 | |||
93* | 200QJ20-413/31 | 3976 | 288 | 45 | 1725 | 202 | 3×70 | |||
94* | 200QJ20-425/32 | 4094 | 297 | 45 | 1725 | 202 | 3×70 | |||
95* | 200QJ20-437/33 | 4212 | 306 | 45 | 1725 | 202 | 3×70 | |||
96* | 200QJ20-450/34 | 1330 | 315 | 45 | 1725 | 202 | 3×70 | |||
97* | 200QJ20-465/35 | 4448 | 324 | 55 | 1885 | 217 | 3×95 | |||
98* | 200QJ20-478/36 | 4566 | 333 | 55 | 1885 | 217 | 3×95 | |||
99* | 200QJ20-490/37 | 4684 | 342 | 55 | 1885 | 217 | 2850 | 2.5 | 3×95 | 184 |
100* | 200QJ20-505/38 | 4945 | 351 | 55 | 1885 | 217 | 3×95 | |||
101* | 200QJ20-519/39 | 5062 | 360 | 55 | 1885 | 217 | 3×95 | |||
102* | 200QJ20-532/40 | 5185 | 369 | 63 | 2232 | 283 | 3×95 | |||
103* | 200QJ20-545/41 | 5305 | 378 | 63 | 2232 | 283 | 3×120 | |||
104* | 200QJ20-558/42 | 5545 | 387 | 63 | 2232 | 283 | 3×120 | |||
105* | 200QJ20-572/43 | 5665 | 396 | 63 | 2232 | 283 | 3×120 | |||
106* | 200QJ20-585/44 | 5785 | 405 | 63 | 2232 | 283 | 3×120 | |||
107* | 200QJ20-598/45 | 5905 | 414 | 63 | 2232 | 283 | 3×120 | |||
108* | 200QJ20-612/46 | 6025 | 423 | 75 | 2332 | 304 | 3×150 | |||
109* | 200QJ20-625/47 | 6145 | 432 | 75 | 2332 | 304 | 3×150 | |||
110* | 200QJ20-638/48 | 6265 | 441 | 75 | 2332 | 304 | 3×150 | |||
111* | 200QJ20-652/49 | 6385 | 450 | 75 | 2332 | 304 | 3×150 | |||
112* | 200QJ20-665/50 | 6505 | 459 | 75 | 2332 | 304 | 3×150 | |||
113* | 200QJ20-678/51 | 6625 | 468 | 75 | 2332 | 304 | 3×150 | |||
114* | 200QJ20-692/52 | 6745 | 477 | 75 | 2332 | 304 | 3×150 | |||
115* | 200QJ20-705/53 | 6865 | 486 | 90 | 2422 | 323 | 3×185 | |||
116* | 200QJ20-718/54 | 6985 | 495 | 90 | 2422 | 323 | 3×185 | |||
117* | 200QJ20-732/55 | 7105 | 504 | 90 | 2422 | 323 | 3×185 | |||
118* | 200QJ20-745/56 | 7225 | 513 | 90 | 2422 | 323 | 3×240 | |||
119* | 200QJ20-758/57 | 7345 | 522 | 90 | 2422 | 323 | 3×240 | |||
120* | 200QJ20-771/58 | 7465 | 531 | 90 | 2422 | 323 | 3×240 | |||
121* | 200QJ20-785/59 | 7585 | 540 | 90 | 2422 | 323 | 3×240 | |||
122* | 200QJ20-798/60 | 7825 | 549 | 90 | 2422 | 323 | 3×240 | |||
123* | 200QJ20-811/61 | 7945 | 568 | 90 | 2422 | 323 | 3 | 3×240 | ||
124* | 200QJ20-825/62 | 8065 | 577 | 90 | 2422 | 323 | 3×240 | |||
125* | 200QJ20-838/63 | 8185 | 586 | 90 | 2422 | 323 | 3×240 | |||
126* | 200QJ20-851/64 | 8305 | 595 | 100 | 2492 | 338 | 3×240 | |||
127* | 200QJ20-865/65 | 8425 | 604 | 100 | 2492 | 338 | 3×240 | |||
128* | 200QJ20-878/66 | 8545 | 613 | 100 | 2492 | 338 | 3×240 | |||
129* | 200QJ20-891/67 | 8665 | 622 | 100 | 2492 | 338 | 3×240 | |||
130* | 200QJ20-904/68 | 8785 | 631 | 100 | 2492 | 338 | 3×240 | |||
131* | 200QJ20-918/69 | 8905 | 640 | 100 | 2492 | 338 | 3×240 | |||
132* | 200QJ20-931/70 | 9025 | 649 | 100 | 2492 | 338 | 3×240 | |||
133* | 200QJ20-944/71 | 9145 | 658 | 110 | 2542 | 349 | 3×300 | |||
134* | 200QJ20-958/72 | 9265 | 667 | 110 | 2542 | 349 | 3×300 | |||
135* | 200QJ20-971/73 | 9385 | 676 | 110 | 2542 | 349 | 2850 | 3 | 3×300 | 184 |
136* | 200QJ20-984/74 | 9505 | 685 | 110 | 2542 | 349 | 3×300 | |||
137* | 200QJ20-998/75 | 9625 | 694 | 110 | 2542 | 349 | 3×400 | |||
138 | 200QJ32-26/2 | 350 | 24 | 4 | 670 | 67 | 2.5 | 3×2.5 | ||
139 | 200QJ32-39/3 | 485 | 33 | 5.5 | 690 | 70 | 3×4 | |||
140 | 200QJ32-52/4 | 620 | 42 | 7.5 | 705 | 72 | 3×4 | |||
141 | 200QJ32-65/5 | 755 | 51 | 11 | 765 | 85 | 3×6 | |||
142 | 200QJ32-78/6 | 1008 | 60 | 11 | 765 | 85 | 3×6 | |||
143 | 200QJ32-91/7 | 1143 | 76 | 13 | 780 | 87 | 3×6 | |||
144 | 200QJ32-104/8 | 1278 | 82 | 15 | 815 | 90 | 3×6 | |||
145 | 200QJ32-117/9 | 1413 | 91 | 18.5 | 870 | 107 | 3×10 | |||
146 | 200QJ32-130/10 | 1548 | 104 | 18.5 | 870 | 107 | 3×10 | |||
147 | 200QJ32-143/11 | 1683 | 113 | 22 | 1030 | 124.5 | 3×10 | |||
148 | 200QJ32-156/12 | 1818 | 122 | 25 | 1100 | 131.5 | 3×16 | |||
149 | 200QJ32-169/13 | 1953 | 131 | 25 | 1100 | 131.5 | 3×16 | |||
150 | 200QJ32-182/14 | 2088 | 140 | 30 | 1165 | 145.5 | 3×16 | |||
151 | 200QJ32-195/15 | 2223 | 149 | 30 | 1165 | 145.5 | 3×25 | |||
152 | 200QJ32-208/16 | 2358 | 158 | 37 | 1245 | 163 | 3×25 | |||
153 | 200QJ32-221/17 | 2493 | 167 | 37 | 1245 | 163 | 3×25 | |||
154 | 200QJ32-234/18 | 2628 | 175 | 37 | 1245 | 163 | 3×25 | |||
155 | 200QJ32-247/19 | 2898 | 184 | 37 | 1245 | 163 | 3×35 | |||
156* | 200QJ32-260/20 | 3033 | 193 | 45 | 1725 | 202 | 3×35 | |||
157* | 200QJ32-273/21 | 3168 | 202 | 45 | 2542 | 349 | 3×35 | |||
158* | 200QJ32-286/22 | 3303 | 211 | 45 | 2542 | 349 | 3×50 | |||
159* | 200QJ32-299/23 | 3438 | 220 | 55 | 1885 | 217 | 3×50 | |||
160* | 200QJ32-312/24 | 3573 | 229 | 55 | 1885 | 217 | 3×50 | |||
161* | 200QJ32-325/25 | 3708 | 238 | 55 | 1885 | 217 | 3×70 | |||
162* | 200QJ32-338/26 | 3843 | 247 | 55 | 1885 | 217 | 3×70 | |||
163* | 200QJ32-351/27 | 4040 | 256 | 63 | 2232 | 283 | 3 | 3×70 | ||
164* | 200QJ32-364/28 | 4175 | 265 | 63 | 2232 | 283 | 3×70 | |||
165* | 200QJ32-377/29 | 4310 | 274 | 63 | 2232 | 283 | 3×70 | |||
166* | 200QJ32-390/30 | 4445 | 283 | 63 | 2232 | 283 | 3×70 | |||
167* | 200QJ32-403/31 | 4580 | 292 | 63 | 2232 | 283 | 3×95 | |||
168* | 200QJ32-416/32 | 4715 | 301 | 75 | 2332 | 304 | 3×95 | |||
169* | 200QJ32-429/33 | 4850 | 310 | 75 | 2332 | 304 | 3×95 | |||
160* | 200QJ32-442/34 | 4985 | 319 | 75 | 2332 | 304 | 3×95 | |||
171* | 200QJ32-455/35 | 5120 | 328 | 75 | 2332 | 304 | 2850 | 3 | 3×95 | 184 |
172* | 200QJ32-468/36 | 5390 | 337 | 75 | 2332 | 304 | 3×120 | |||
173* | 200QJ32-481/37 | 5525 | 346 | 90 | 2422 | 323 | 3×120 | |||
174* | 200QJ32-494/38 | 5660 | 355 | 90 | 2422 | 323 | 3×150 | |||
175* | 2000132-507/39 | 5795 | 364 | 90 | 2422 | 323 | 3×150 | |||
176* | 2000132-520/40 | 5930 | 373 | 90 | 2422 | 323 | 3×150 | |||
177* | 200QJ32-533/41 | 6065 | 382 | 90 | 2422 | 323 | 3×150 | |||
178* | 200QJ32-546/42 | 6200 | 391 | 90 | 2422 | 323 | 3×150 | |||
179* | 200QJ32-559/43 | 6335 | 400 | 90 | 2422 | 323 | 3×150 | |||
180* | 200QJ32-572/44 | 6470 | 409 | 100 | 2492 | 338 | 3×150 | |||
181* | 200QJ32-585/45 | 6605 | 418 | 100 | 2492 | 338 | 3×150 | |||
182* | 200QJ32-598/46 | 6740 | 427 | 100 | 2492 | 338 | 3×150 | |||
183* | 200QJ32-611/47 | 6875 | 436 | 100 | 2492 | 338 | 3×185 | |||
184* | 200QJ32-624/48 | 7010 | 445 | 110 | 2492 | 338 | 3×240 | |||
185* | 200QJ32-637/49 | 7145 | 454 | 110 | 2492 | 338 | 3×240 | |||
186* | 200QJ32-650/50 | 7280 | 463 | 110 | 2492 | 338 | 3×240 | |||
187 | 200QJ40-26/2 | 350 | 20 | 5.5 | 690 | 70 | 2.5 | 3×4 | ||
188 | 200QJ40-39/3 | 485 | 30 | 7.5 | 705 | 72 | 3×4 | |||
189 | 200QJ40-52/4 | 620 | 40 | 9.2 | 750 | 79 | 3×6 | |||
190 | 200QJ40-65/5 | 755 | 50 | 13 | 780 | 87 | 3×6 | |||
191 | 200QJ40-78/6 | 1008 | 67 | 15 | 815 | 90 | 3×6 | |||
192 | 200QJ40-91/7 | 1143 | 77 | 18.5 | 870 | 107 | 3×6 | |||
193 | 200QJ40-104/8 | 1278 | 87 | 22 | 1030 | 124.5 | 3×10 | |||
194 | 200QJ40-117/9 | 1413 | 97 | 22 | 1030 | 124.5 | 3×10 | |||
195 | 200QJ40-130/10 | 1548 | 107 | 25 | 1100 | 131.5 | 3×10 | |||
196 | 200QJ40-143/11 | 1683 | 117 | 25 | 1100 | 131.5 | 3×10 | |||
197 | 200QJ40-156/12 | 1818 | 127 | 30 | 1165 | 145.5 | 3×16 | |||
198 | 200QJ40-169/13 | 1953 | 137 | 30 | 1165 | 145.5 | 3×16 | |||
199 | 200QJ40-182/14 | 2088 | 147 | 37 | 1245 | 163 | 3×25 | |||
200 | 200QJ40-195/15 | 2223 | 157 | 37 | 1245 | 163 | 3×25 | |||
201 | 200QJ40-208/16 | 2358 | 167 | 37 | 1245 | 163 | 3×35 | |||
202* | 200QJ40-221/17 | 2493 | 177 | 45 | 1725 | 202 | 3 | 3×35 | ||
203* | 200QJ40-234/18 | 2628 | 187 | 45 | 1725 | 202 | 3×35 | |||
204* | 200QJ40-247/19 | 2898 | 197 | 45 | 1725 | 202 | 3×50 | |||
205* | 200QJ40-260/20 | 3033 | 207 | 55 | 1885 | 217 | 3×50 | |||
206* | 200QJ40-273/21 | 3168 | 217 | 55 | 1885 | 217 | 3×50 | |||
207* | 200QJ40-286/22 | 3303 | 227 | 63 | 2232 | 283 | 2850 | 3 | 3×70 | 184 |
208* | 200QJ40-299/23 | 3438 | 237 | 63 | 2232 | 283 | 3×70 | |||
209* | 200QJ40-312/24 | 3573 | 247 | 63 | 2232 | 283 | 3×70 | |||
210* | 200QJ40-325/25 | 3708 | 257 | 75 | 2332 | 304 | 3×70 | |||
211* | 200QJ40-338/26 | 3843 | 267 | 75 | 2332 | 304 | 3×95 | |||
212* | 200QJ40-351/27 | 4040 | 277 | 75 | 2332 | 304 | 3×95 | |||
213* | 200QJ40-364/28 | 4175 | 287 | 75 | 2332 | 304 | 3×95 | |||
214* | 200QJ40-377/29 | 4310 | 297 | 90 | 2422 | 323 | 3×95 | |||
215* | 200QJ40-390/30 | 4445 | 307 | 90 | 2422 | 323 | 3×120 | |||
216* | 200QJ40-403/31 | 4580 | 317 | 90 | 2422 | 323 | 3×120 | |||
217* | 200QJ40-416/32 | 4715 | 327 | 90 | 2422 | 323 | 3×120 | |||
218* | 200QJ40-429/33 | 4850 | 337 | 90 | 2422 | 323 | 3×120 | |||
219* | 200QJ40-442/34 | 4985 | 347 | 90 | 2422 | 323 | 3×120 | |||
220* | 200QJ40-455/35 | 5120 | 357 | 100 | 2492 | 338 | 3×150 | |||
221* | 200QJ40-468/36 | 5390 | 367 | 100 | 2492 | 338 | 3×150 | |||
222* | 200QJ40-481/37 | 5525 | 377 | 100 | 2492 | 338 | 3×150 | |||
223* | 200QJ40-494/38 | 5660 | 387 | 110 | 2542 | 349 | 3×185 | |||
224* | 200QJ40-507/39 | 5795 | 397 | 110 | 2542 | 349 | 3×185 | |||
225* | 200QJ40-520/40 | 5930 | 407 | 110 | 2542 | 349 | 3×185 | |||
226* | 200QJ40-533/41 | 6065 | 417 | 110 | 2542 | 349 | 3×185 | |||
227 | 200QJ50-13/1 | 220 | 14 | 4 | 670 | 67 | 3×2.5 | |||
228 | 200QJ50-26/2 | 365 | 25 | 5.5 | 690 | 70 | 3×4 | |||
229 | 200QJ50-39/3 | 510 | 36 | 9.2 | 750 | 79 | 3×4 | |||
230 | 200QJ50-52/4 | 655 | 44 | 11 | 765 | 85 | 3×6 | |||
231 | 200QJ50-65/5 | 800 | 55 | 15 | 815 | 90 | 3×6 | |||
232 | 200QJ50-78/6 | 1080 | 69 | 18.5 | 870 | 107 | 3×6 | |||
233 | 200QJ50-91/7 | 1225 | 81 | 22 | 1030 | 124.5 | 3×10 | |||
234 | 200QJ50-104/8 | 1370 | 92 | 25 | 1100 | 131.5 | 3×10 | |||
235 | 200QJ50-117/9 | 1515 | 103 | 30 | 1165 | 145.5 | 3×16 | |||
236 | 200QJ50-130/10 | 1660 | 114 | 30 | 1165 | 145.5 | 3×16 | |||
237 | 200QJ50-143/11 | 1805 | 125 | 30 | 1165 | 145.5 | 3×16 | |||
238 | 200QJ50-156/12 | 1950 | 136 | 37 | 1245 | 163 | 3×25 | |||
239 | 200QJ50-169/13 | 2095 | 147 | 37 | 1245 | 163 | 3×25 | |||
240 | 200QJ50-182/14 | 2240 | 158 | 45 | 1350 | 182 | 3×25 | |||
241 | 200QJ50-195/15 | 2385 | 169 | 45 | 1350 | 182 | 3×25 | |||
242* | 200QJ50-208/16 | 2530 | 180 | 55 | 1885 | 217 | 3×35 | |||
243* | 200QJ50-221/17 | 2675 | 191 | 55 | 1885 | 217 | 2850 | 3 | 3×50 | 184 |
244* | 200QJ50-234/18 | 2965 | 202 | 55 | 1885 | 217 | 3×50 | |||
245* | 200QJ50-247/19 | 3280 | 213 | 63 | 2232 | 283 | 4 | 3×50 | ||
246* | 200QJ50-260/20 | 3430 | 224 | 63 | 2232 | 283 | 3×50 | |||
247* | 200QJ50-273/21 | 3580 | 235 | 63 | 2232 | 283 | 3×50 | |||
248* | 200QJ50-286/22 | 3730 | 246 | 75 | 2332 | 304 | 3×70 | |||
249* | 200QJ50-299/23 | 3880 | 257 | 75 | 2332 | 304 | 3×70 | |||
250* | 200QJ50-312/24 | 4030 | 268 | 75 | 2332 | 304 | 3×70 | |||
251* | 200QJ50-325/25 | 4180 | 279 | 75 | 2332 | 304 | 3×70 | |||
252* | 200QJ50-338/26 | 4330 | 290 | 90 | 2422 | 323 | 3×95 | |||
253* | 200QJ50-351/27 | 4480 | 301 | 90 | 2422 | 323 | 3×95 | |||
254* | 200QJ50-364/28 | 4630 | 312 | 90 | 2422 | 323 | 3×95 | |||
255* | 200QJ50-377/29 | 4780 | 323 | 90 | 2422 | 323 | 3×95 | |||
256* | 200QJ50-390/30 | 4930 | 334 | 100 | 2492 | 338 | 3×120 | |||
257* | 200QJ50-403/31 | 5080 | 345 | 100 | 2492 | 338 | 3×120 | |||
258* | 200QJ50-416/32 | 5230 | 356 | 100 | 2492 | 338 | 3×120 | |||
259* | 200QJ50-429/33 | 5380 | 367 | 100 | 2492 | 338 | 3×120 | |||
260* | 200QJ50-442/34 | 5530 | 378 | 100 | 2492 | 338 | 3×120 | |||
261* | 200QJ50-455/35 | 5680 | 389 | 110 | 2542 | 349 | 3×150 | |||
262* | 200QJ50-468/36 | 5830 | 400 | 110 | 2542 | 349 | 3×150 | |||
263* | 200QJ50-481/37 | 5980 | 411 | 110 | 2542 | 349 | 3×185 | |||
264 | 200QJ63-12/1 | 220 | 12 | 4 | 670 | 67 | 3 | 3×2.5 | ||
265 | 200QJ63-24/2 | 365 | 22 | 7.5 | 705 | 72 | 3×4 | |||
266 | 200QJ63-36/3 | 510 | 31 | 11 | 765 | 85 | 3×6 | |||
267 | 200QJ63-48/4 | 655 | 42 | 15 | 815 | 90 | 3×6 | |||
268 | 200QJ63-60/5 | 800 | 54 | 18.5 | 870 | 107 | 3×6 | |||
269 | 200QJ63-72/6 | 1080 | 76 | 22 | 1030 | 124.5 | 3×10 | |||
270 | 200QJ63-84/7 | 1225 | 94 | 25 | 1100 | 131.5 | 3×10 | |||
271 | 200QJ63-96/8 | 1370 | 116 | 30 | 1165 | 145.5 | 3×16 | |||
272 | 200QJ63-105/5 | 1028 | 138 | 30 | 1165 | 145.5 | 3×16 | |||
273 | 200QJ63-126/6 | 1173 | 160 | 37 | 1245 | 163 | 3×16 | |||
274 | 200QJ63-147/7 | 1318 | 182 | 45 | 1350 | 172 | 3×25 | |||
275 | 200QJ63-168/8 | 1463 | 204 | 55 | 1510 | 197 | 3×35 | |||
276 | 200QJ63-189/9 | 1690 | 226 | 55 | 1510 | 197 | 3×35 | |||
277* | 200QJ63-210/10 | 1840 | 248 | 63 | 2232 | 283 | 4 | 3×50 | ||
278* | 200QJ63-231/11 | 1990 | 270 | 75 | 2332 | 304 | 3×50 | |||
279* | 200QJ63-252/12 | 2140 | 292 | 75 | 2332 | 304 | 2850 | 4 | 3×70 | 184 |
280* | 200QJ63-273/13 | 2290 | 314 | 90 | 2422 | 323 | 3×70 | |||
281* | 200QJ63-294/14 | 2440 | 336 | 90 | 2422 | 323 | 3×95 | |||
282* | 200QJ63-315/15 | 2590 | 358 | 90 | 2422 | 323 | 3×95 | |||
283* | 200QJ63-336/16 | 2740 | 380 | 100 | 2492 | 338 | 3×120 | |||
284* | 200QJ63-357/17 | 2890 | 402 | 110 | 2542 | 349 | 3×120 | |||
285 | 200QJ80-18/1 | 298 | 35 | 7.5 | 705 | 72 | 3×4 | |||
286 | 200QJ80-36/2 | 443 | 45 | 13 | 780 | 87 | 3×6 | |||
287 | 200QJ80-54/3 | 588 | 55 | 18.5 | 870 | 107 | 3×10 | |||
288 | 200QJ80-72/4 | 883 | 69 | 25 | 1100 | 131.5 | 3×10 | |||
289 | 200QJ80-90/5 | 1028 | 91 | 30 | 1165 | 145.5 | 3×16 | |||
290 | 200QJ80-108/6 | 1173 | 113 | 37 | 1245 | 163 | 3×16 | |||
291 | 200QJ80-126/7 | 1318 | 135 | 45 | 1350 | 182 | 3×25 | |||
292 | 200QJ80-144/8 | 1463 | 157 | 55 | 1510 | 197 | 3×25 | |||
293* | 200QJ80-162/9 | 1690 | 179 | 63 | 2232 | 283 | 3×35 | |||
294* | 200QJ80-180/10 | 1840 | 201 | 75 | 2332 | 304 | 3×50 | |||
295* | 200QJ80-198/11 | 1990 | 223 | 75 | 2332 | 304 | 3×50 | |||
296* | 200QJ80-216/12 | 2140 | 245 | 90 | 2422 | 323 | 3×70 | |||
297* | 200QJ80-234/13 | 2290 | 267 | 90 | 2422 | 323 | 3×70 | |||
298* | 200QJ80-252/14 | 2440 | 289 | 100 | 2492 | 338 | 3×70 | |||
299* | 200QJ80-270/15 | 2590 | 311 | 100 | 2492 | 338 | 3×70 | |||
300* | 200QJ80-288/16 | 2740 | 333 | 110 | 2542 | 349 | 3×95 | |||
301 | 200QJ80-11/1 | 308 | 32 | 4 | 670 | 67 | 3×2.5 | |||
302 | 200QJ80-22/2 | 463 | 42 | 7.5 | 705 | 72 | 3×4 | |||
303 | 200QJ80-33/3 | 618 | 52 | 11 | 765 | 85 | 3×6 | |||
304 | 200QJ80-44/4 | 773 | 62 | 15 | 815 | 90 | 3×6 | |||
305 | 200QJ80-55/5 | 928 | 72 | 18.5 | 870 | 107 | 3×10 | |||
306 | 200QJ80-66/6 | 1083 | 82 | 22 | 1030 | 124.5 | 3×10 | |||
307 | 200QJ80-77/7 | 1396 | 93 | 30 | 1165 | 145.5 | 3×16 | |||
308 | 200QJ80-88/8 | 1551 | 114 | 30 | 1165 | 145.5 | 3×16 | |||
309 | 200QJ80-99/9 | 1706 | 135 | 37 | 1245 | 163 | 3×16 | |||
310 | 200QJ80-110/10 | 1861 | 156 | 37 | 1245 | 163 | 3×16 | |||
311 | 200QJ80-121/11 | 2016 | 177 | 45 | 1350 | 182 | 3×16 |
