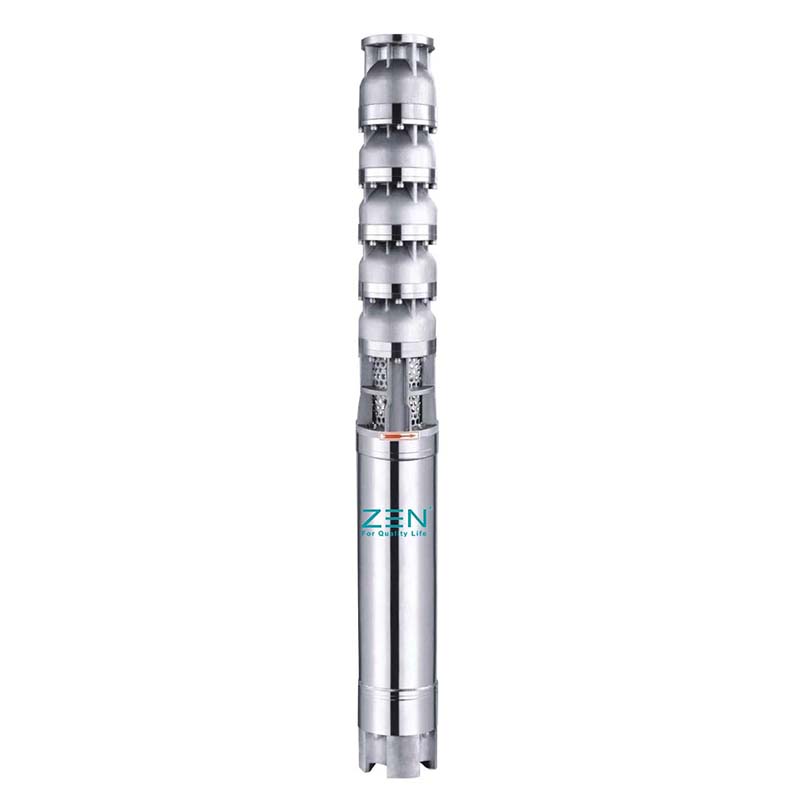

10QJS Stainless Steel Water Filled Deep Well Pump is made of 50TW 400-600 grade silicon steel, which features small temperature rise, good energy-saving effect and long service life.
1. Suitable for deep wells with a diameter of more than 250 mm.
2. Whole pump and motor: stainless steel precision casting
Characteristics: corrosion resistance, stable performance, long service life.
3. Suitable for starting and running the frequency converter without damaging the motor winding.
4. Customization supported: cold or hot water can be selected
5. Customization support: Optional materials: 304 - 316 - 316L - 2205 stainless steel and other materials.
Flow can reach: 230 m³/h
Water height: 270 meters
* Wide voltage design, 300V - 420V safe and stable operation.
* Electric motor: 50TW 400 - 600 silicon steel plates, small temperature rise, good energy-saving effect, long service life.
* Motor electromagnetic connection: 180C. Insulation class: level H
* Electrical lines: F46 High temperature waterproof materials.
* Main bearing gasket: Morgan brand (from UK), material: high purity graphite alloy, continuously working for 80,000 hours without failure.
*Electromagnetic design: The axle load is set to 1.35 times the axle power.
*Motor main axis: 40Cr/42Cr - Mo to avoid engine damage.
* Processing accuracy class: first accuracy level B.
| Model | Wheel |
Maximum course m³/h |
Maximum effort (m) |
Power the engine |
Maximum pump O.D |
Export size | ||
| KW | HP | mm | Inch | mm | ||||
| 10QJS80T-30/1 | 1 | 80 | 30 | 11 | 15 | 233 | 4" | 100 |
| 10QJS80T-60/2 | 2 | 80 | 60 | 22 | 30.0 | 4" | 100 | |
| 10QJS80T-90/3 | 3 | 80 | 90 | 30 | 40.0 | 4" | 100 | |
| 10QJS80T-120/4 | 4 | 80 | 120 | 45 | 60.0 | 4" | 100 | |
| 10QJS80T-150/5 | 5 | 80 | 150 | 55 | 75.0 | 4" | 100 | |
| 10QJS80T-180/6 | 6 | 80 | 180 | 63 | 84.0 | 4" | 100 | |
| 10QJS80T-210/7 | 7 | 80 | 210 | 75 | 100.0 | 4" | 100 | |
| 10QJS80T-240/8 | 8 | 80 | 240 | 90 | 120.0 | 4" | 100 | |
| 10QJS80T-270/9 | 9 | 80 | 270 | 110 | 150.0 | 4" | 100 | |
| 10QJS80T-300/10 | 10 | 80 | 300 | 110 | 150.0 | 4" | 100 | |
| 10QJS100T-30/1 | 1 | 100 | 30 | 15 | 20.0 | 5" | 125 | |
| 10QJS100T-60/2 | 2 | 100 | 60 | 25 | 33.5 | 5" | 125 | |
| 10QJS100T-90/3 | 3 | 100 | 90 | 45 | 60.0 | 5" | 125 | |
| 10QJS100T-120/4 | 4 | 100 | 120 | 55 | 75.0 | 5" | 125 | |
| 10QJS100T-150/5 | 5 | 100 | 150 | 75 | 100.0 | 5" | 125 | |
| 10QJS100T-180/6 | 6 | 100 | 180 | 90 | 120.0 | 5" | 125 | |
| 10QJS100T-210/7 | 7 | 100 | 210 | 110 | 150.0 | 5" | 125 | |
| 10QJS100T-240/8 | 8 | 100 | 240 | 110 | 150.0 | 5" | 125 | |
| 10QJS100T-270/9 | 9 | 100 | 270 | 125 | 167.0 | 5" | 125 | |
| 10QJS125T-30/1 | 1 | 125 | 30 | 18.5 | 25.0 | 5" | 125 | |
| 10QJS125T-60/2 | 2 | 125 | 60 | 37 | 50.0 | 5" | 125 | |
| 10QJS125T-90/3 | 3 | 125 | 90 | 55 | 75.0 | 5" | 125 | |
| 10QJS125T-120/4 | 4 | 125 | 120 | 75 | 100.0 | 5" | 125 | |
| 10QJS125T-150/5 | 5 | 125 | 150 | 90 | 120.0 | 5" | 125 | |
| 10QJS125T-180/6 | 6 | 125 | 180 | 110 | 150.0 | 5" | 125 | |
| 10QJS125T-210/7 | 7 | 125 | 210 | 125 | 167.0 | 5" | 125 | |
| 10QJS140T-30/1 | 1 | 140 | 30 | 22 | 30.0 | 5" | 125 | |
| 10QJS140T-90/3 | 3 | 1 40 | 90 | 63 | 84.0 | 5" | 125 | |
| 10QJS140T-120/4 | 4 | 140 | 120 | 90 | 120.0 | 5" | 125 | |
| Model | Wheel |
Maximum course m³/h |
Maximum effort (m) |
Power the engine |
Maximum pump O.D |
Export size | ||
| KW | HP | mm | Inch | mm | ||||
| 10QJS140T-150/5 | 5 | 140 | 150 | 110 | 150 | 233 | 5" | 125 |
| 10QJS140T-180/6 | 6 | 140 | 180 | 125 | 167.0 | 5" | 125 | |
| 10QJS160T-25/1 | 1 | 160 | 25 | 18.5 | 25.0 | 6" | 150 | |
| 10QJS160T-50/2 | 2 | 160 | 50 | 37 | 50.0 | 6" | 150 | |
| 10QJS160T-75/3 | 3 | 160 | 75 | 55 | 75.0 | 6" | 150 | |
| 10QJS160T-100/4 | 4 | 160 | 100 | 75 | 100.0 | 6" | 150 | |
| 10QJS160T-125/5 | 5 | 160 | 125 | 90 | 120.0 | 6" | 150 | |
| 10QJS160T-150/6 | 6 | 160 | 150 | 110 | 150.0 | 6" | 150 | |
| 10QJS160T-175/7 | 7 | 160 | 175 | 140 | 187.0 | 6" | 150 | |
| 10QJS160T-200/8 | 8 | 160 | 200 | 160 | 213.5 | 6" | 150 | |
| 10QJS160T-225/9 | 9 | 160 | 225 | 180 | 240.0 | 6" | 150 | |
| 10QJS180T-25/1 | 1 | 180 | 25 | 22 | 30.0 | 6" | 150 | |
| 10QJS180T-50/2 | 2 | 180 | 50 | 45 | 60.0 | 6" | 150 | |
| 10QJS180T-75/3 | 3 | 180 | 75 | 75 | 100.0 | 6" | 150 | |
| 10QJS180T-100/4 | 4 | 180 | 100 | 90 | 120.0 | 6" | 150 | |
| 10QJS180T-125/5 | 5 | 180 | 125 | 110 | 150.0 | 6" | 150 | |
| 10QJS180T-150/6 | 6 | 180 | 150 | 125 | 167.0 | 6" | 150 | |
| 10QJS200T-25/1 | 1 | 200 | 25 | 25 | 33.5 | 6" | 150 | |
| 10QJS200T-50/2 | 2 | 200 | 50 | 55 | 75.0 | 6" | 150 | |
| 10QJS200T-75/3 | 3 | 200 | 75 | 75 | 100.0 | 6" | 150 | |
| 10QJS200T-100/4 | 4 | 200 | 100 | 110 | 150.0 | 6" | 150 | |
| 10QJS200T-125/5 | 5 | 200 | 125 | 125 | 167.0 | 6" | 150 | |
| 10QJS230T-40/2 | 2 | 230 | 40 | 45 | 60.0 | 6" | 150 | |
| 10QJS230T-60/3 | 3 | 230 | 60 | 63 | 84.0 | 6" | 150 | |
| 10QJS230T-80/4 | 4 | 230 | 80 | 90 | 120.0 | 6" | 150 | |
| 10QJS230T-100/5 | 5 | 230 | 100 | 110 | 150.0 | 6" | 150 | |
| 10QJS230T-120/6 | 6 | 230 | 120 | 125 | 167.0 | 6" | 150 | |
| 10QJS230T-160/8 | 8 | 230 | 160 | 160 | 213.5 | 6" | 150 | |
