Компания ZEN, профессиональный производитель насосов в Китае, предлагает полный ассортимент моделей серии Центробежный насос с торцевым всасыванием XA, полностью удовлетворяющих различным эксплуатационным требованиям. Его основное преимущество заключается в стабильности работы, обеспечивающей надежную работу в любых условиях. В качестве источника питания используется высокоэффективный двигатель YE3 со степенью защиты IP55 и изоляцией класса F. Корпус насоса имеет профессиональное антикоррозионное покрытие, а по запросу на корпуса подшипников может быть нанесена индивидуальная маркировка литья. Кроме того, в насосе ZEN XA используются высококачественные подшипники NSK и износостойкие торцевые уплотнения, что в совокупности обеспечивает его долговечность.
◆Полный ассортимент насосов с торцевым всасыванием
◆Highest reliability in all operating conditions
◆High efficiency YE3 motor with IP55 F rating
◆Pump housing with anti-corrosion coating
◆Customized injection molded logo printing on the bearing housing is available upon request
◆Качественные подшипники NSK, износостойкое торцевое уплотнение

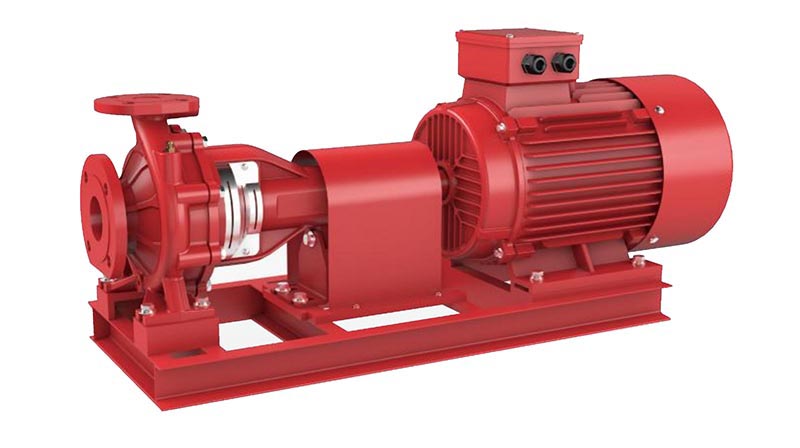

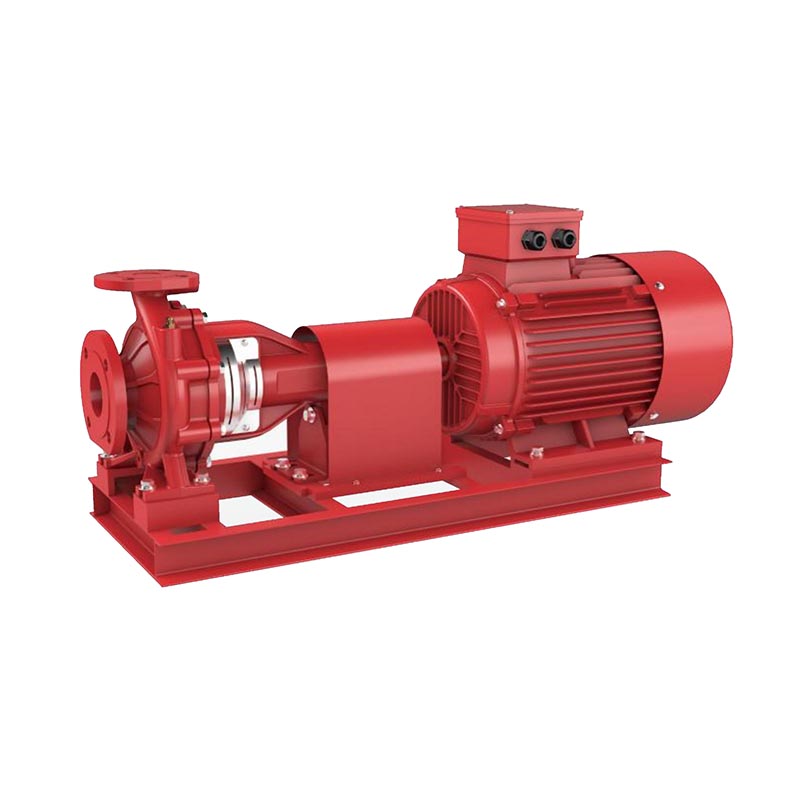

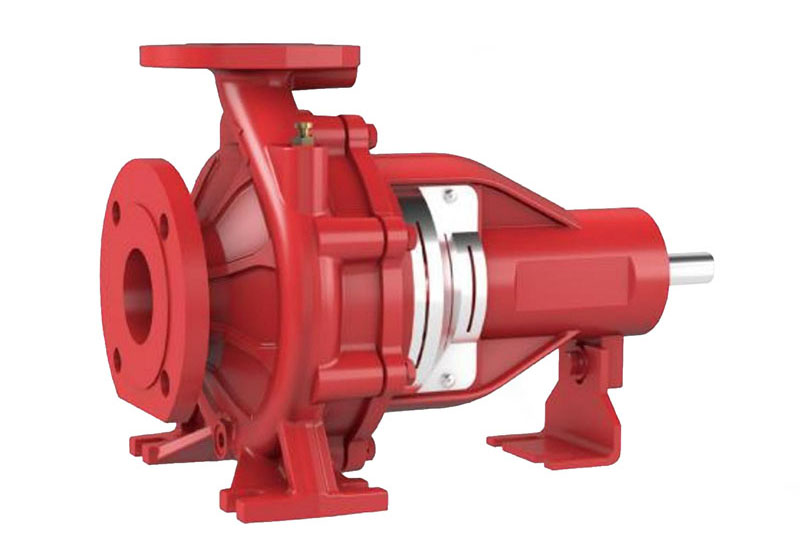

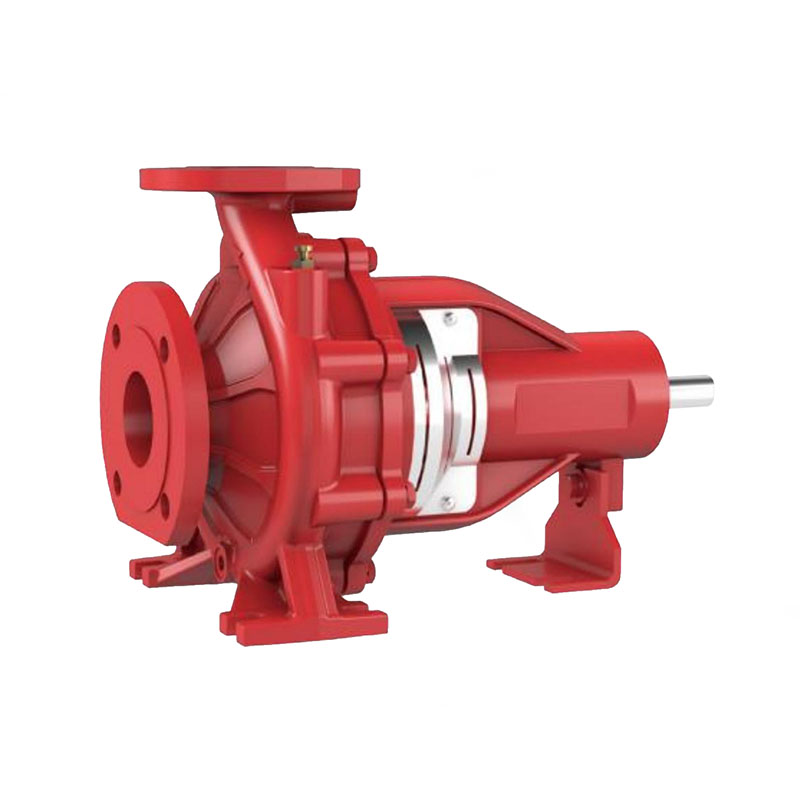

ZEN Центробежный насос с торцевым всасыванием XA – впечатляющий модельный ряд насосов с торцевым всасыванием, совместимый с различными областями применения, включая водозабор, отопление, промышленное повышение давления, перекачку промышленных жидкостей, кондиционирование воздуха, централизованное холодоснабжение, орошение, пожаротушение и многое другое.
Температура жидкости от -10°C до +120°C
Ambient temperature -10°C to +50°C
Maximum operating pressure 20 bar
Continuous operation S1
| Model | SN |
| Емкость | 0-1000 m³/h |
| Head | 0-164 m |
| DN | 32-150 mm |
| Speed | 2900 rpm |
| Тмакс | 120℃ |
| Power | 1.5-315 kW |
| Корпус | Gray cast iron |
| Impeller | Чугун/AISI 304/Латунь |
| Shaft | Steel 45#/AISI 304 |
| Уплотнение вала | Mechanical seal |
| Bearing | Grease lubricated rolling bearing |
| MODEL | DN | Implr F | Power | Q=DELIVERY | |||||||||||||||||||
| us gpm 0 | 26 | 40 | 66 | 79 | 106 | 119 | 159 | 185 | 211 | 238 | 317 | 370 | 396 | 476 | 529 | 608 | 793 | 925 | |||||
| l/min 0 | 100 | 150 | 250 | 300 | 400 | 450 | 600 | 700 | 800 | 900 | 1200 | 1400 | 1500 | 1800 | 2000 | 2300 | 3000 | 3500 | |||||
| m³/h 0 | 6 | 9 | 15 | 18 | 24 | 27 | 36 | 42 | 48 | 54 | 72 | 84 | 90 | 108 | 120 | 138 | 180 | 210 | |||||
| mm | mm | kw | hp | H=Напор(м) | |||||||||||||||||||

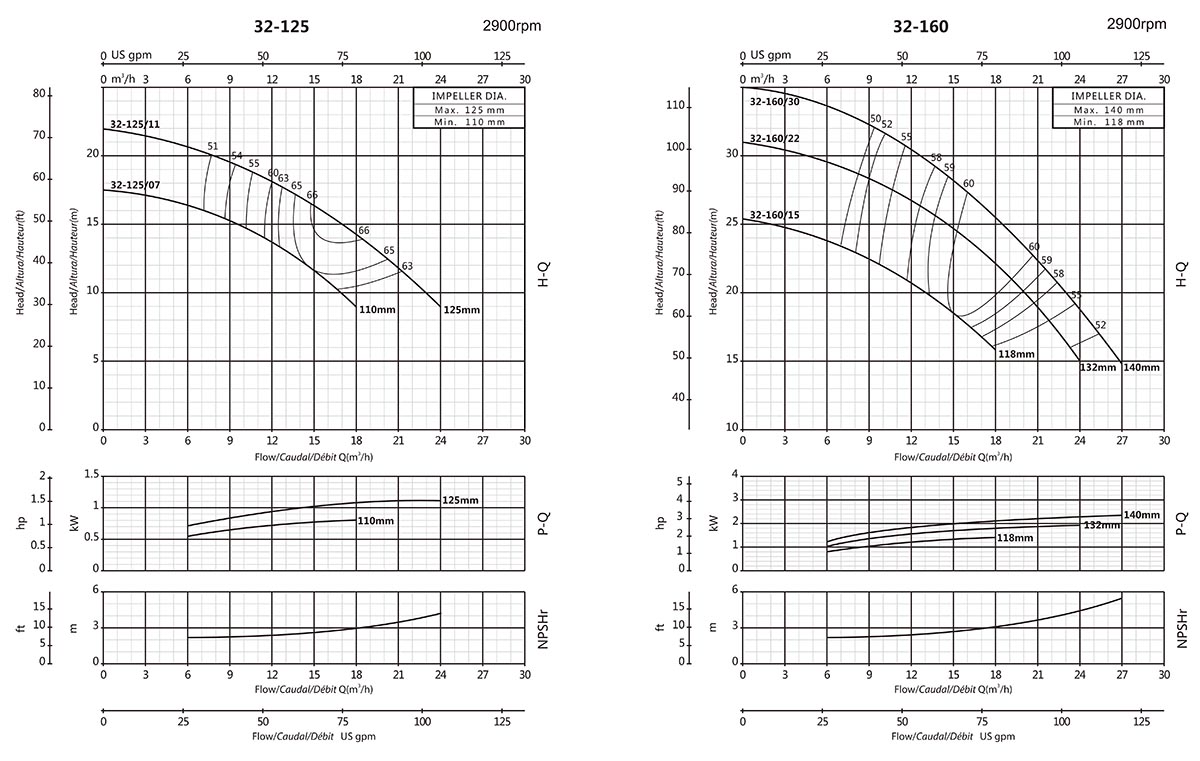

| XA 32-160/15 | 50x32 | 142 | 1.5 | 2 | 25.4 | 23.7 | 22.5 | 18.5 | 15.8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-160/22 | 50x32 | 158 | 2.2 | 3 | 31 | 29.6 | 28.5 | 24.5 | 22 | 15 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-160/30 | 50x32 | 168 | 3 | 4 | 35 | 34.3 | 32.5 | 28 | 25.5 | 19 | 15 | - | - | - | - | - | - | - | - | - | - | - | - |

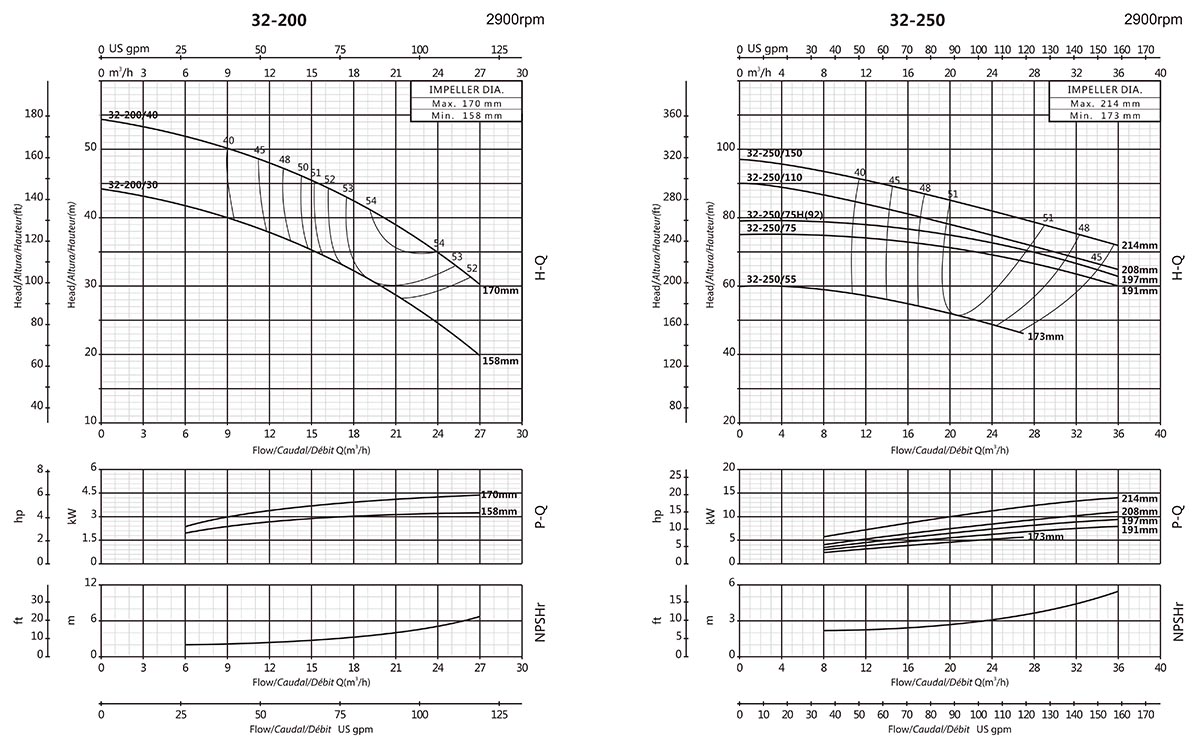

| XA32-200/30 | 50x32 | 190 | 3 | 4 | 44.2 | 42 | 39.8 | 35.2 | 32.2 | 24.6 | 19.8 | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-200/40 | 50x32 | 204 | 4 | 5.5 | 54.5 | 52 | 50 | 45.5 | 42.3 | 35 | 30.3 | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-250/55 | 50x32 | 208 | 5.5 | 7.5 | 60 | 59.5 | 59 | 55 | 50.2 | 34.5 | - | - | - | - | - | - | - | - | - | - | - | - | - |

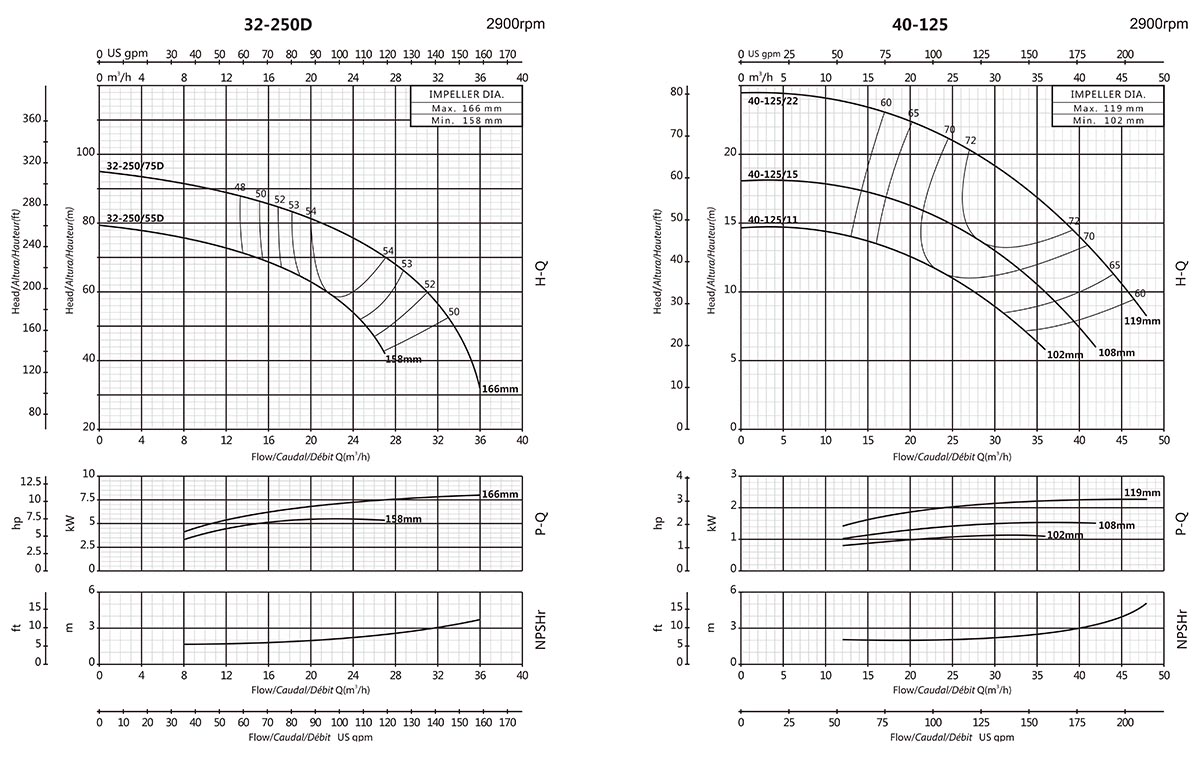

| XA 32-250/75 | 50x32 | 230 | 7.5 | 10 | 69.5 | 69 | 68.5 | 66 | 63 | 53 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-250/92 | 50x32 | 237 | 9.2 | 12.5 | 75 | 75 | 74.5 | 72 | 69 | 59 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-250/110 | 50x32 | 250 | 11 | 15 | 90 | 89.5 | 88 | 82 | 78 | 66 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA32-250/150 | 50x32 | 258 | 15 | 20 | 97 | 96.5 | 96 | 90 | 86 | 73 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA40-160/30 | 65x40 | 160 | 3 | 4 | 31.8 | - | - | - | 29.5 | 27.5 | 26.3 | 21.5 | 17.5 | - | - | - | - | - | - | - | - | - | - |

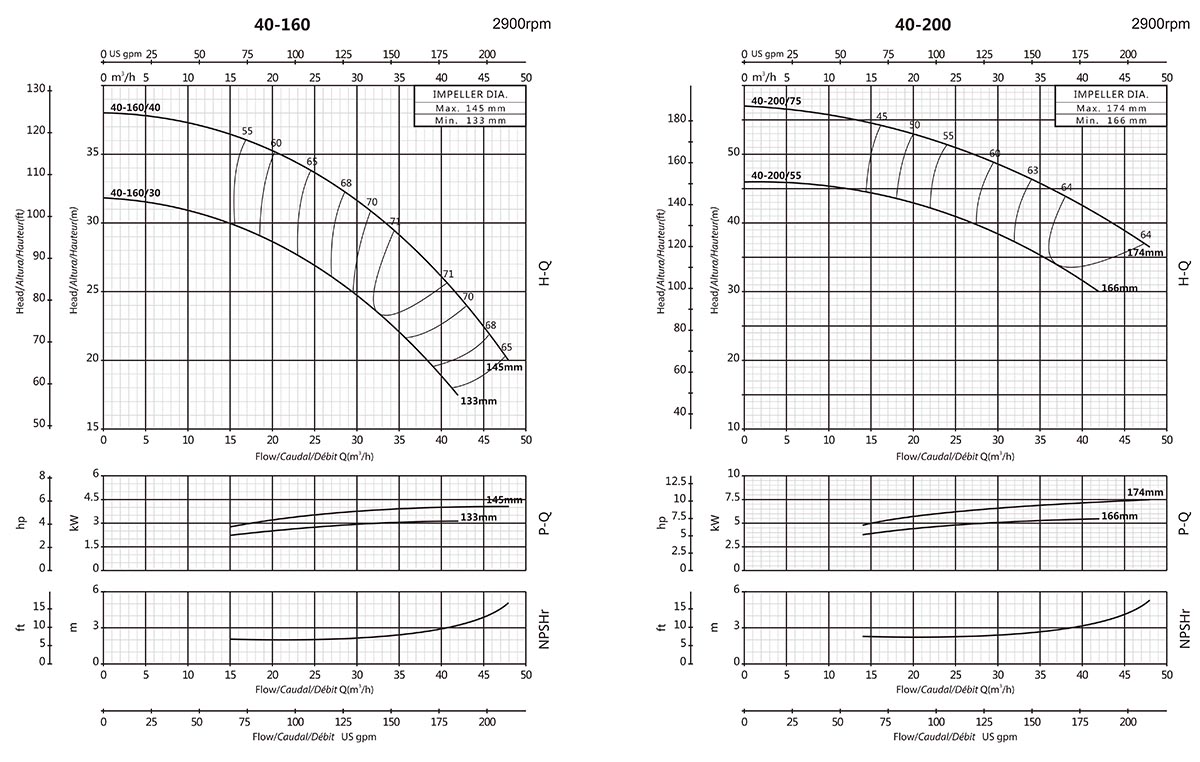

| XA40-160/40 | 65x40 | 170 | 4 | 5.5 | 38 | - | - | - | 36 | 34 | 33 | 28.5 | 25 | 20.1 | - | - | - | - | - | - | - | - | - |
| XA40-200/55 | 65x40 | 195 | 5.5 | 7.5 | 46 | - | - | - | 43.8 | 41.3 | 40.1 | 35 | 30 | - | - | - | - | - | - | - | - | - | - |
| XA40-200/75 | 65x40 | 209 | 7.5 | 10 | 57 | - | - | - | 53.6 | 51.5 | 50 | 45 | 41 | 36.5 | - | - | - | - | - | - | - | - | - |

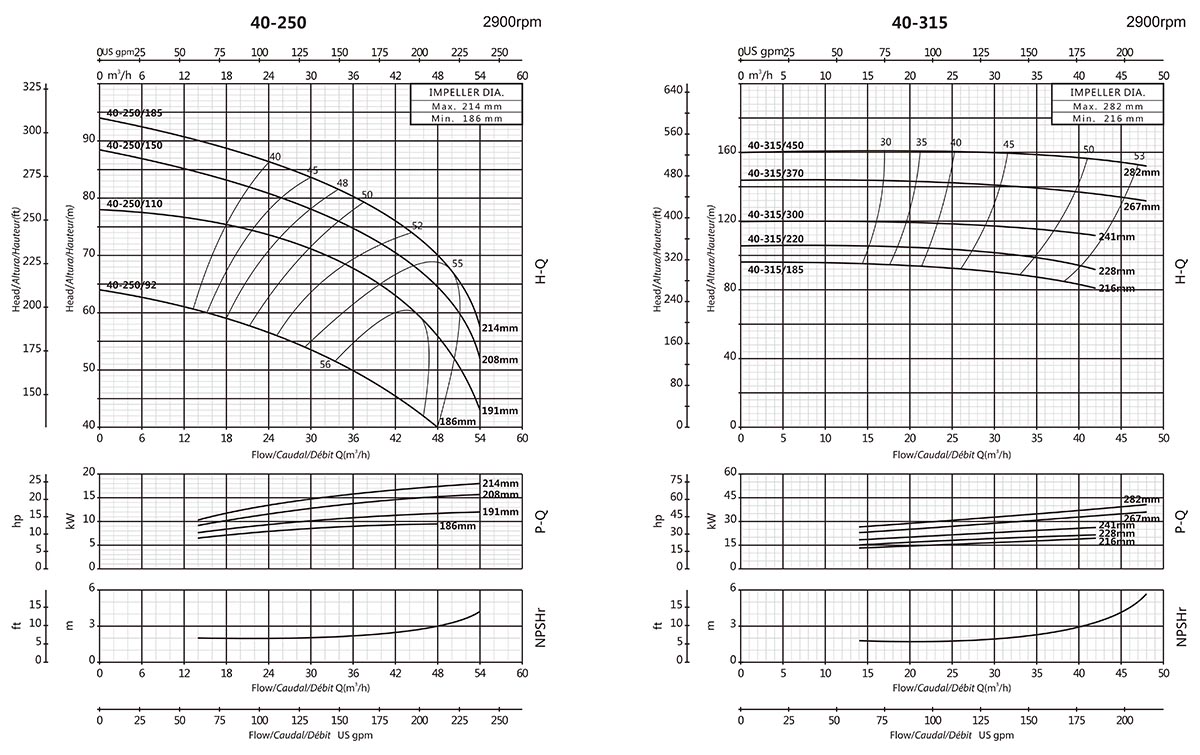

| XA40-250/92 | 65x40 | 224 | 9.2 | 12.5 | 64 | - | - | - | 59 | 56.5 | 55 | 49.5 | 45 | 39.8 | - | - | - | - | - | - | - | - | |
| XA40-250/110 | 65x40 | 230 | 11 | 15 | 72 | - | - | - | 67.5 | 65 | 63.5 | 57.5 | 52.2 | 47 | - | - | - | - | - | - | - | - | - |
| XA40-250/150 | 65x40 | 250 | 15 | 20 | 84.5 | - | - | - | 79.3 | 77.3 | 75.2 | 70 | 66 | 61 | - | - | - | - | - | - | - | - | - |
| XA40-250/185 | 65x40 | 258 | 18.5 | 25 | 90 | - | - | - | 85.5 | 82.8 | 80.7 | 75.8 | 70.5 | 66.5 | - | - | - | - | - | - | - | - | - |

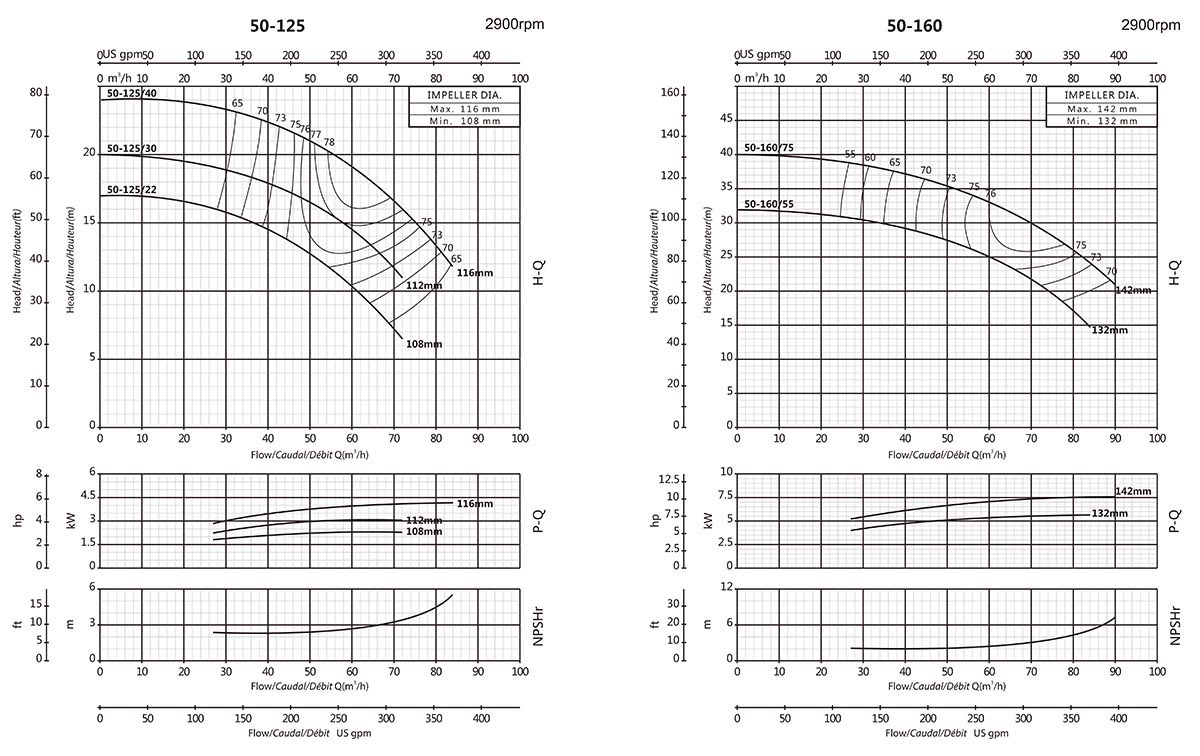

| XA 50-125/22 | 65x50 | 123 | 2.2 | 3 | 17 | - | - | - | - | - | - | 15.4 | 14 | 12.8 | 11.5 | 6.5 | - | - | - | - | - | - | - |
| XA 50-125/30 | 65x50 | 130 | 3 | 4 | 20 | - | - | - | - | - | - | 18.8 | 18 | 17 | 15.6 | 11 | - | - | - | - | - | - | - |
| XA 50-125/40 | 65x50 | 139 | 4 | 5.5 | 24 | - | - | - | - | - | - | 23.1 | 23 | 21.5 | 20.3 | 15.8 | 11.8 | - | - | - | - | - | - |
| XA50-160/55 | 65x50 | 158 | 5.5 | 7.5 | 32 | - | - | - | - | - | - | 30.6 | 30 | 28 | 26.6 | 20.5 | 14.8 | - | - | - | - | - | - |
| XA 50-160/75 | 65x50 | 170 | 7.5 | 10 | 40 | - | - | - | - | - | - | 38 | 37 | 36 | 34.4 | 29 | 24 | 21 | - | - | - | - | - |

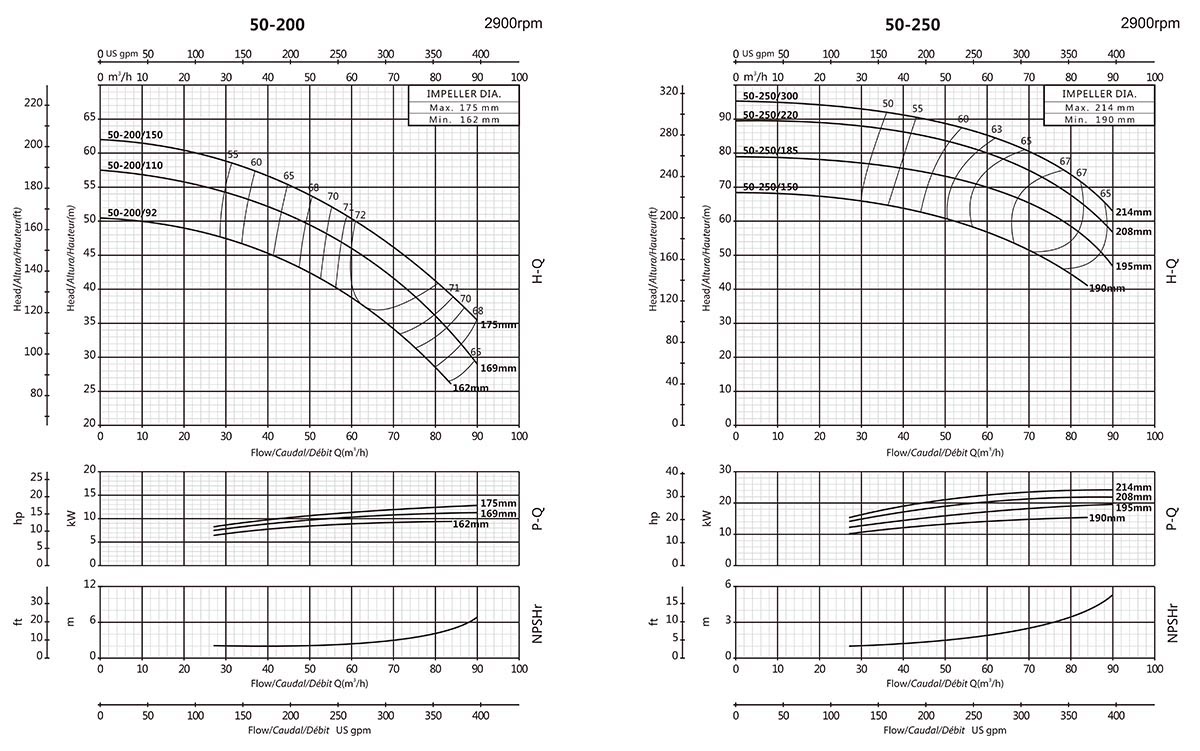

| XA 50-200/92 | 65x50 | 195 | 9.2 | 12.5 | 50.5 | - | - | - | - | - | - | 46.8 | 45 | 43 | 40.9 | 32.5 | 26.7 | - | - | - | - | - | - |
| XA50-200/110 | 65x50 | 204 | 11 | 15 | 57.5 | - | - | - | - | - | - | 53.5 | 52 | 50 | 47.5 | 40 | 34 | 29 | - | - | - | - | - |
| XA50-200/150 | 65x50 | 209 | 15 | 20 | 62 | - | - | - | - | - | - | 58 | 56.5 | 54.5 | 52 | 44.5 | 39 | 35.5 | - | - | - | - | - |
| XA50-250/150 | 65x50 | 228 | 15 | 20 | 68.5 | - | - | - | - | - | - | 64 | 63 | 61.5 | 59 | 50 | 41 | - | - | - | - | - | - |
| XA50-250/185 | 65x50 | 235 | 18.5 | 25 | 79 | - | - | - | - | - | - | 75.8 | 74.8 | 74 | 71.5 | 63.5 | 55.5 | 47 | - | - | - | - | - |
| XA 50-250/220 | 65x50 | 250 | 22 | 30 | 89.5 | - | - | - | - | - | - | 86 | 85.3 | 84 | 81.5 | 73.5 | 63.5 | 57 | - | - | - | - | - |
| XA50-250/300 | 65x50 | 258 | 30 | 40 | 95.5 | - | - | - | - | - | - | 92 | 91.3 | 90 | 87.5 | 79.5 | 70 | 63 | - | - | - | - | - |

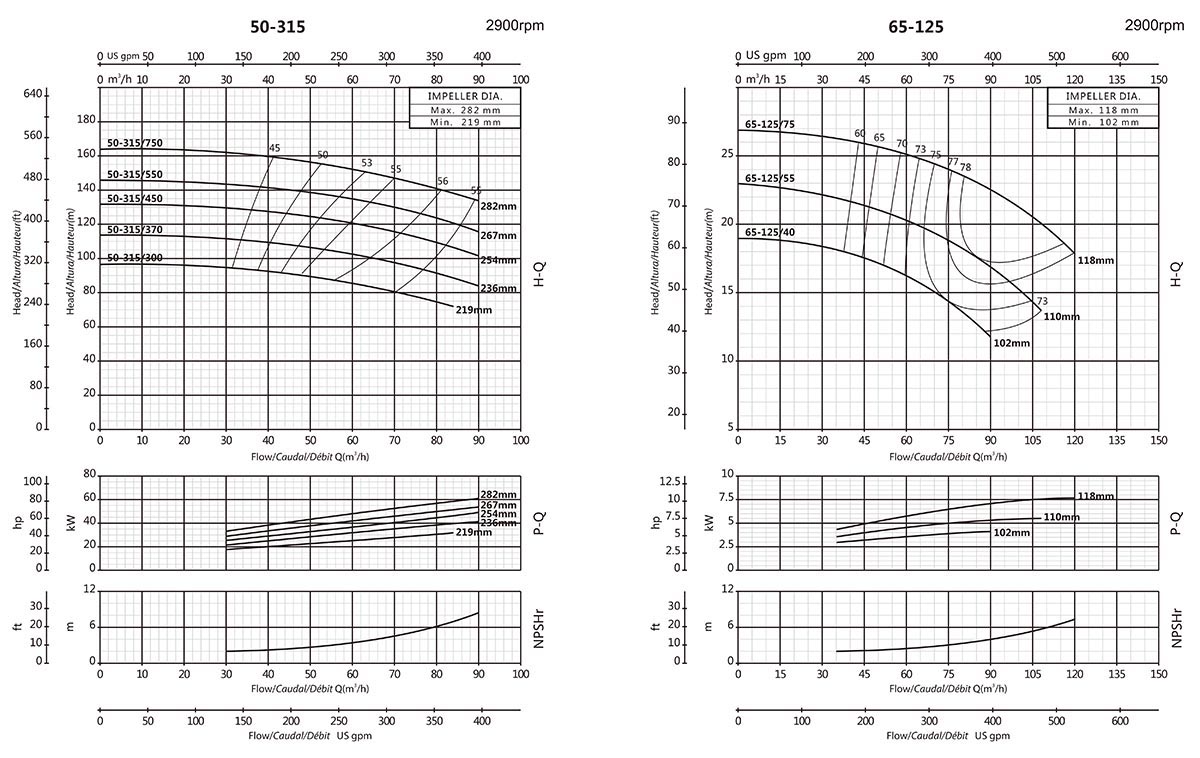

| XA65-125/40 | 80x65 | 122 | 4 | 5.5 | 19 | - | - | - | - | - | - | - | - | 17.3 | 16.8 | 14.5 | 13 | 11.8 | - | - | - | - | - |
| XA65-125/55 | 80x65 | 132 | 5.5 | 7.5 | 23 | - | - | - | - | - | - | 21.3 | 20.9 | 19 | 17.5 | 16.7 | 13.7 | - | - | - | - | ||
| XA65-125/75 | 80x65 | 142 | 7.5 | 10 | 27 | - | - | - | - | - | - | - | - | 26 | 25.6 | 24.5 | 23 | 22.5 | 20 | 18 | - | - | - |

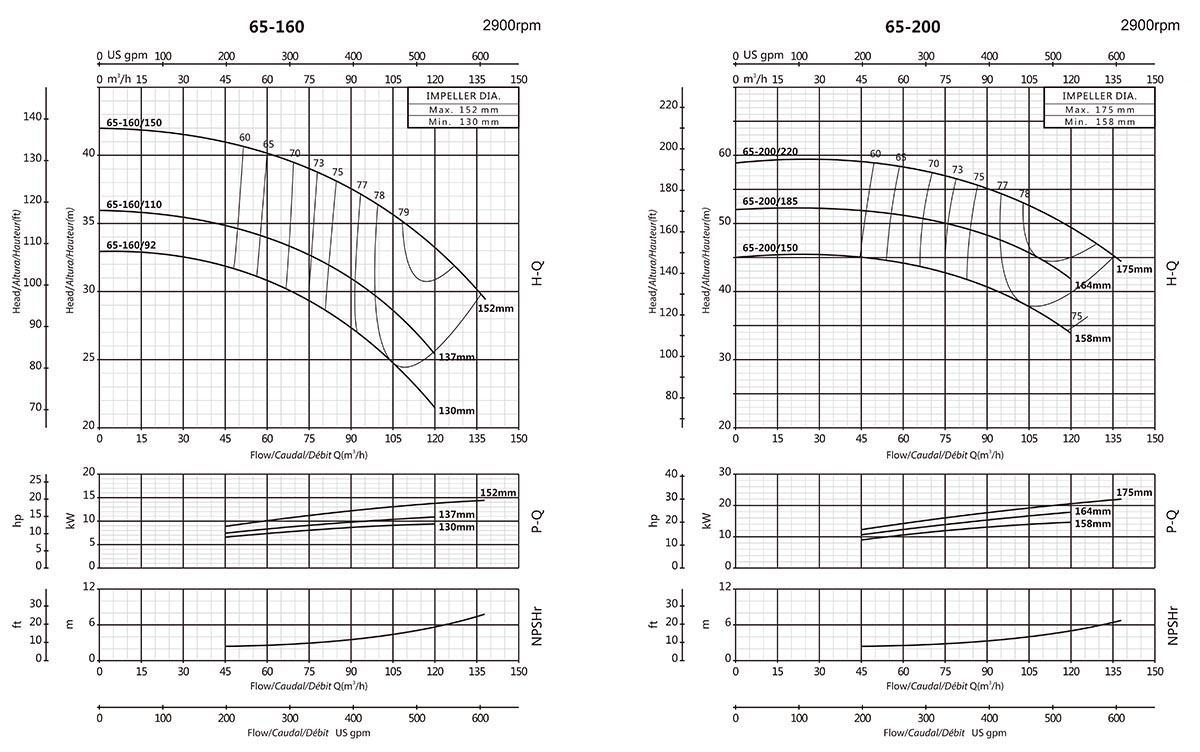

| XA65-160/92 | 80x65 | 155 | 9.2 | 12.5 | 33 | - | - | - | - | - | - | - | - | - | 31.5 | 30 | 28 | 27.1 | 24 | 21.5 | - | - | - |
| XA65-160/110 | 80x65 | 164 | 11 | 15 | 36 | - | - | - | - | - | - | - | - | - | 34.5 | 33 | 31.5 | 30.8 | 28 | 25.5 | - | - | - |
| XA65-160/150 | 80x65 | 183 | 15 | 20 | 42 | - | - | - | - | - | - | - | - | - | 41 | 40 | 38.5 | 37.8 | 35 | 33 | 29.5 | - | - |
| XA65-200/150 | 80x65 | 190 | 15 | 20 | 45 | - | - | - | - | - | - | - | - | - | 45.5 | 43 | 41 | 40.2 | 36.5 | 34 | - | - | - |
| XA65-200/185 | 80x65 | 198 | 18.5 | 25 | 52 | - | - | - | - | - | - | - | - | - | 52.3 | 51 | 49 | 48.2 | 44.5 | 42 | - | - | - |
| XA65-200/220 | 80x65 | 212 | 22 | 30 | 59 | - | - | - | - | - | - | - | - | - | 59.5 | 58 | 56 | 55 | 52 | 49.5 | 44.5 | - | - |

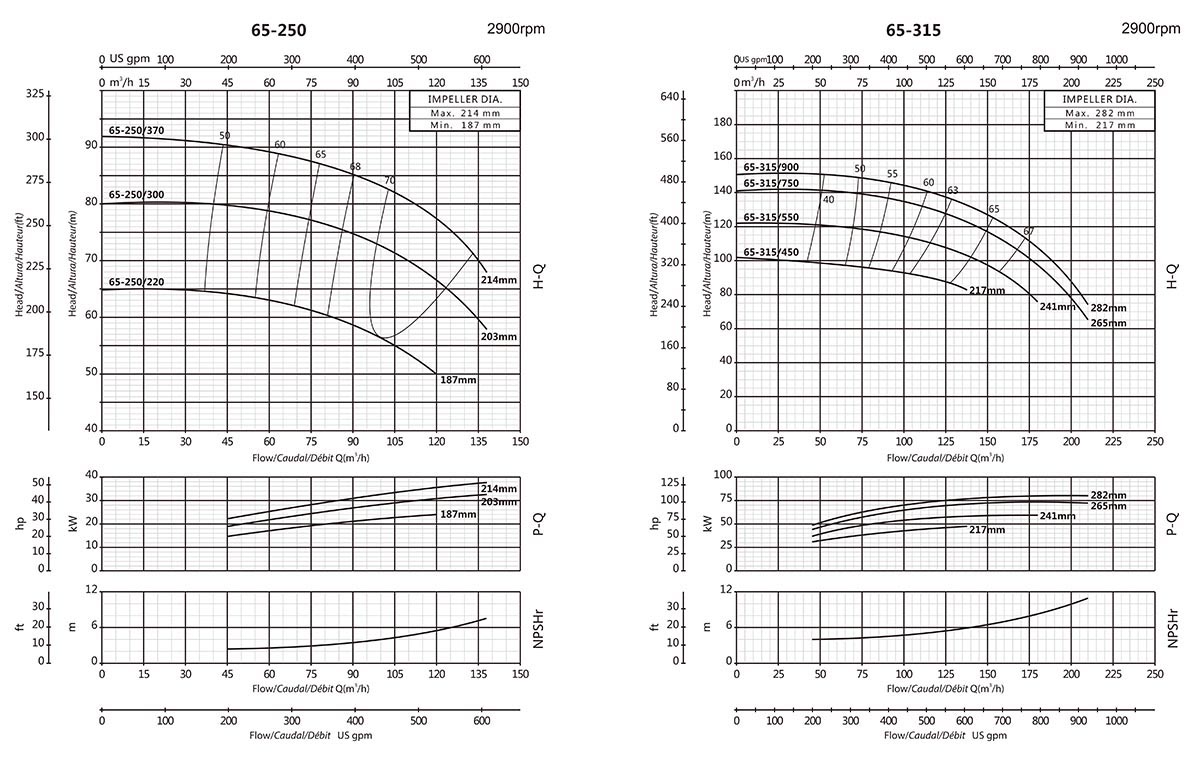

| XA65-250/220 | 80x65 | 225 | 22 | 30 | 64.8 | - | - | - | - | - | - | - | - | 64.7 | 62 | 60 | 58.5 | 53 | 50 | - | - | - | |
| XA65-250/300 | 80x65 | 244 | 30 | 40 | 80 | - | - | - | - | - | - | - | - | - | 79.8 | 77.5 | 75.5 | 74.5 | 70 | 66 | 58 | - | - |
| XA65-250/370 | 80x65 | 258 | 37 | 50 | 92 | - | - | - | - | - | - | - | - | - | 90.5 | 88.5 | 87 | 85 | 80.5 | 78 | 68 | - | - |
| XA65-315/450 | 80x65 | 262 | 45 | 60 | 102 | - | - | - | - | - | - | - | - | - | 99.2 | 97 | 95 | 94.5 | 92.4 | 90 | 83 | - | - |
| XA65-315/550 | 80x65 | 290 | 55 | 75 | 122 | - | - | - | - | - | - | - | - | - | 119.2 | 117.4 | 115.7 | 114.5 | 112.5 | 110 | 103 | 76 | - |
| XA65-315/750 | 80x65 | 317 | 75 | 100 | 141 | - | - | - | - | - | - | - | - | - | 139.8 | 137.3 | 135.6 | 134.5 | 132.5 | 130 | 122 | 96 | 65.5 |
| XA65-315/900 | 80x65 | 328 | 90 | 125 | 151 | - | - | - | - | - | - | - | - | 149.8 | 147.3 | 145.6 | 144.5 | 142.5 | 140 | 132 | 106 | 75.5 | |

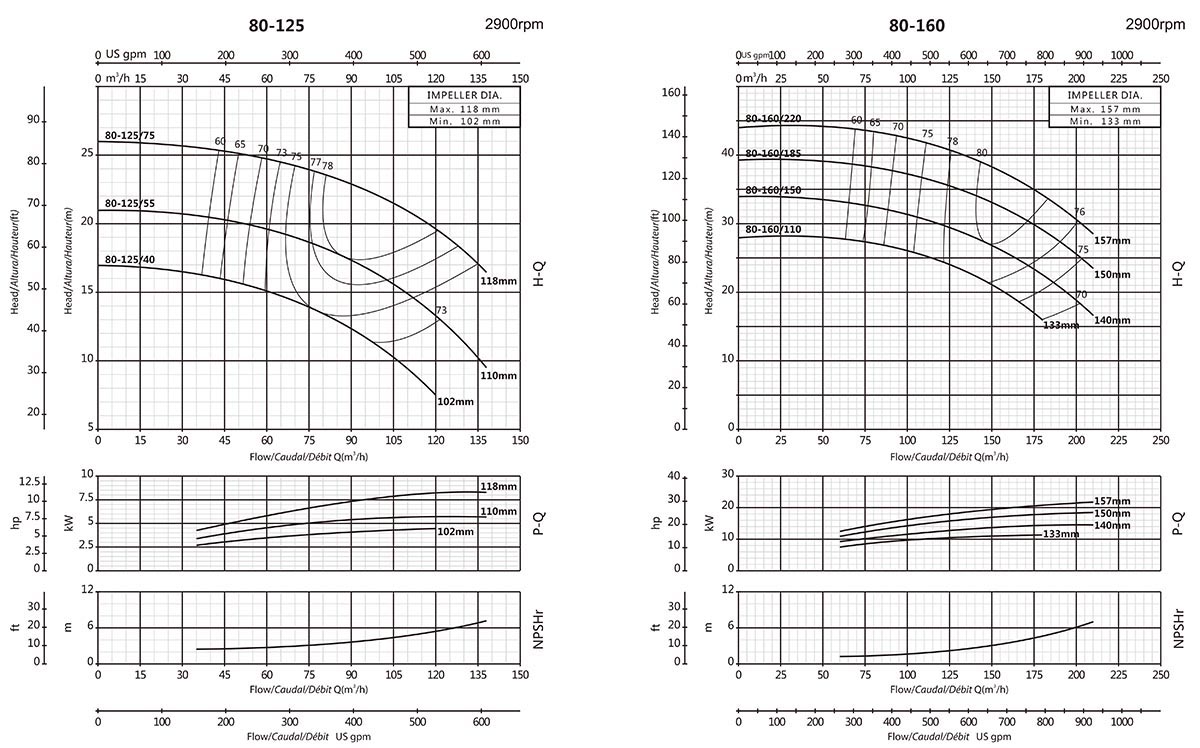

| XA80-125/40 | 100x80 | 122 | 4 | 5.5 | 17 | - | - | - | - | - | - | - | - | 16.5 | 15.9 | 14.3 | 13.5 | 11.6 | 10 | 7.5 | - | - | - |
| XA80-125/55 | 100x80 | 132 | 5.5 | 7.5 | 21 | - | - | - | - | - | - | - | - | 20.5 | 20 | 19 | 18 | 16.5 | 15 | 12.5 | 9.5 | - | - |
| XA80-125/75 | 100x80 | 142 | 7.5 | 10 | 26 | - | - | - | - | - | - | - | - | 25 | 25 | 24.5 | 23.8 | 22.5 | 21.5 | 19.5 | 16.5 | - | - |
| MODEL | DN | Implr F | Power | Q=DELIVERY | |||||||||||||||||||
| us gpm 0 | 264 | 396 | 529 | 634 | 793 | 881 | 925 | 969 | 1057 | 1233 | 1322 | 1586 | 1762 | 2203 | 2643 | 2907 | 3524 | 4405 | |||||
| l/min 0 | 1000 | 1500 | 2000 | 2400 | 3000 | 3333 | 3500 | 3667 | 4000 | 4667 | 5000 | 6000 | 6667 | 8333 | 10000 | 11000 | 13333 | 16667 | |||||
| m³/h 0 | 60 | 90 | 120 | 144 | 180 | 200 | 210 | 220 | 240 | 280 | 300 | 360 | 400 | 500 | 600 | 660 | 800 | 1000 | |||||
| mm | mm | kw | hp | H=Напор(м) | |||||||||||||||||||
| XA 80-160/110 | 100x80 | 160 | 11 | 15 | 28 | 27 | 27.3 | 24.5 | 21.1 | 16 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-160/150 | 100x80 | 168 | 15 | 20 | 34 | 32.6 | 32.5 | 30.2 | 27 | 22.1 | 18.5 | 16.7 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-160/185 | 100x80 | 180 | 18.5 | 25 | 39 | 38.5 | 38 | 36.7 | 33.6 | 28.8 | 25.3 | 23.5 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-160/220 | 100x80 | 190 | 22 | 30 | 44 | 43.5 | 43 | 41.7 | 38.6 | 33.8 | 30.3 | 28.5 | - | - | - | - | - | - | - | - | - | - | - |

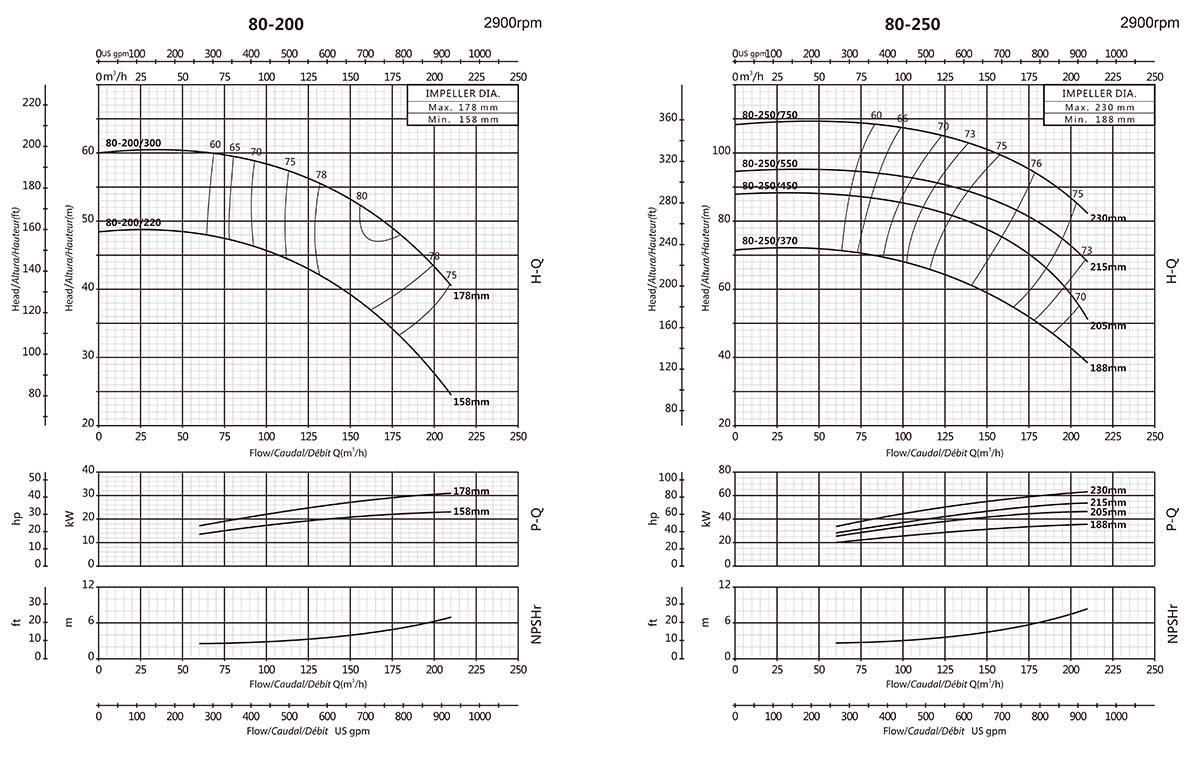

| XA 80-200/220 | 100x80 | 190 | 22 | 30 | 48 | 47.7 | 47.5 | 43.5 | 39.2 | 32.5 | 27.2 | 24.5 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-200/300 | 100x80 | 215 | 30 | 40 | 60 | 59.7 | 59.5 | 57 | 53.1 | 47 | 42.7 | 40.5 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-250/370 | 100x80 | 226 | 37 | 50 | 71.5 | 70.9 | 70.5 | 65.5 | 59.3 | 51 | 43.2 | 38.5 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-250/450 | 100x80 | 240 | 45 | 60 | 88 | 86.7 | 86 | 83.6 | 78.5 | 70.5 | 60 | 51 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-250/550 | 100x80 | 258 | 55 | 75 | 94.5 | 94.5 | 94.5 | 91.8 | 87 | 79.5 | 72.1 | 68.3 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-250/750 | 100x80 | 276 | 75 | 100 | 108.5 | 108.5 | 108.5 | 105.8 | 101 | 93.5 | 86.1 | 82.3 | - | - | - | - | - | - | - | - | - | - | |

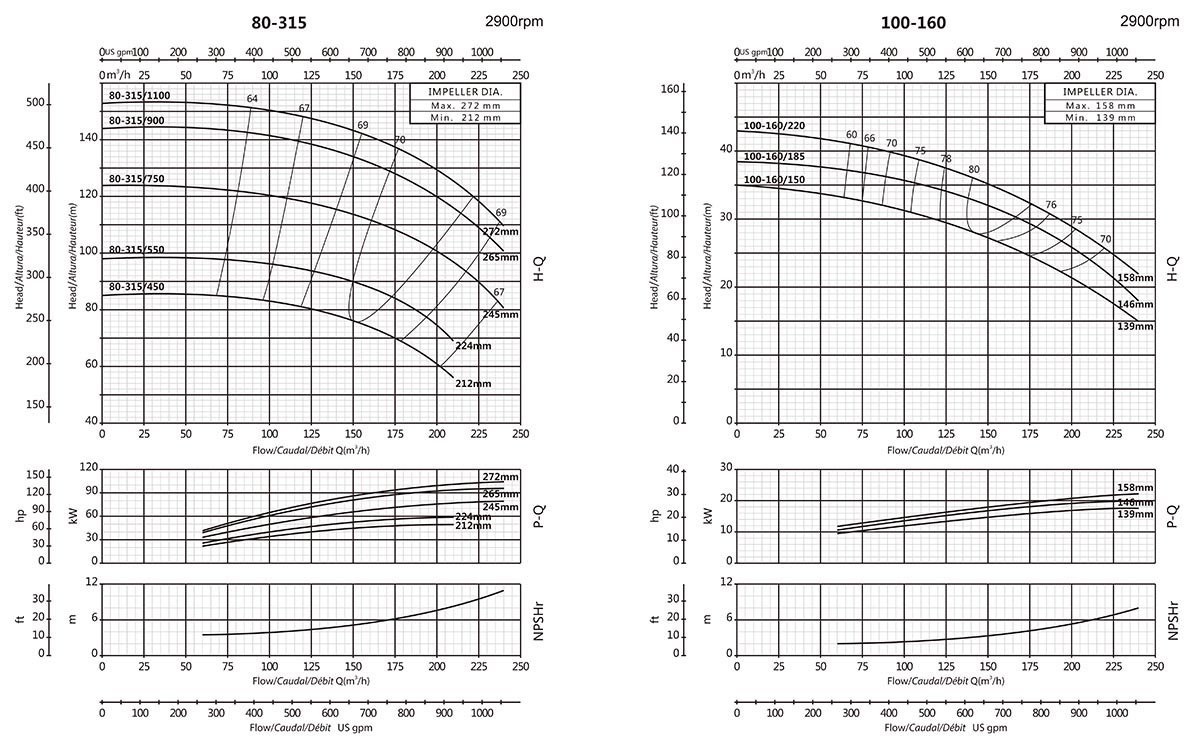

| XA 80-315/450 | 100x80 | 255 | 45 | 60 | 85 | 84 | 82.6 | 82 | 78 | 68.3 | 61 | 56 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-315/550 | 100x80 | 270 | 55 | 75 | 98 | 97 | 95.6 | 95 | 91 | 81.3 | 74 | 69 | - | - | - | - | - | - | - | - | - | - | - |
| XA 80-315/750 | 100x80 | 295 | 75 | 100 | 124 | 123 | 121.6 | 121 | 117 | 107.3 | 100 | 95 | 90 | 80.8 | - | - | - | - | - | - | - | - | - |
| XA 80-315/900 | 100x80 | 320 | 90 | 125 | 144 | 143 | 141.6 | 141 | 137 | 127.3 | 120 | 115 | 110 | 100.8 | - | - | - | - | - | - | - | - | - |
| XA 80-315/1100 | 100x80 | 328 | 110 | 150 | 153 | 152 | 150.6 | 150 | 146 | 136.3 | 129 | 124 | 119 | 109.8 | - | - | - | - | - | - | - | - | - |
| XA 100-160/150 | 125x100 | 167 | 15 | 20 | 35 | 33.5 | 32.5 | 30 | 27.8 | 24.5 | 21.5 | 20 | 18.3 | 15 | - | - | - | - | - | - | - | - | - |
| XA 100-160/185 | 125x100 | 176 | 18.5 | 25 | 38.5 | 37.5 | 36.5 | 34.3 | 32.2 | 29 | 25.7 | 24 | 22 | 18 | - | - | - | - | - | - | - | - | - |
| XA 100-160/220 | 125x100 | 190 | 22 | 30 | 43 | 41 | 40 | 37.6 | 35.2 | 31.5 | 28.5 | 27 | 25.3 | 22 | - | - | - | - | - | - | - | - | - |

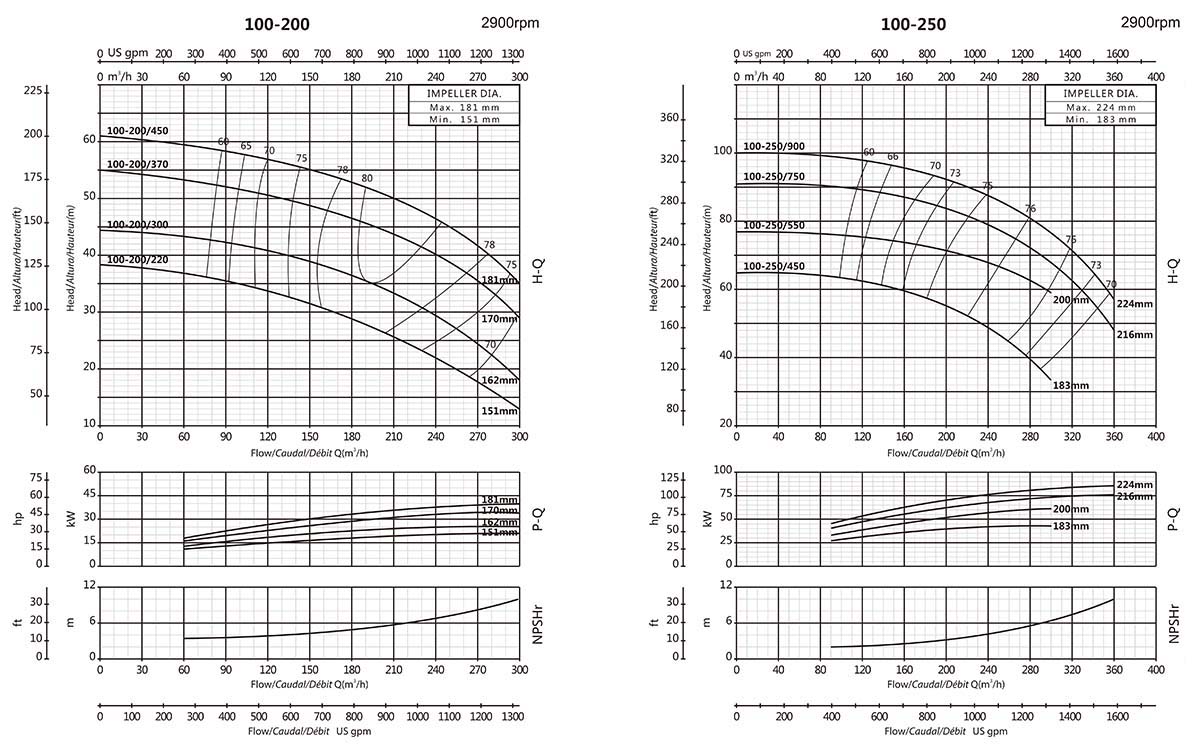

| XA 100-200/220 | 125x100 | 185 | 22 | 30 | 38.5 | 36.7 | 35.7 | 33.8 | 31.7 | 28.5 | 26.8 | 26 | 25 | 22.9 | 16.3 | 13 | - | - | - | - | - | - | - |
| XA 100-200/300 | 125x100 | 195 | 30 | 40 | 44.5 | 42.5 | 42 | 40.2 | 38.8 | 36.7 | 34.2 | 33 | 31.7 | 29 | 21.7 | 18 | - | - | - | - | - | ||
| XA 100-200/370 | 125x100 | 208 | 37 | 50 | 55 | 53 | 51 | 50.6 | 49.2 | 47 | 45 | 44 | 42.8 | 40.5 | 32.8 | 29 | - | - | - | - | - | - | - |
| XA 100-200/450 | 125x100 | 218 | 45 | 60 | 61 | 59 | 57 | 56.6 | 55.2 | 53 | 51 | 50 | 48.8 | 46.5 | 38.8 | 35 | - | - | - | - | - | - | - |
| XA 100-250/450 | 125x100 | 220 | 45 | 60 | 65 | 65 | 64 | 63 | 61 | 58 | 56 | 55 | 53.3 | 50 | 39 | 33.5 | - | - | - | - | - | - | - |
| XA 100-250/550 | 125x100 | 240 | 55 | 75 | 77 | 76 | 75.5 | 75 | 73.8 | 72 | 71.7 | 71.5 | 70.7 | 69 | 62.3 | 59 | - | - | - | - | - | - | - |
| XA 100-250/750 | 125x100 | 257 | 75 | 100 | 91 | 91 | 90.5 | 89.7 | 88 | 85.5 | 84 | 83.3 | 81.5 | 78 | 71.7 | 68.5 | 48 | - | - | - | - | - | - |
| XA 100-250/900 | 125x100 | 270 | 90 | 125 | 100 | 100 | 99.5 | 98.7 | 97 | 94.5 | 93 | 92.3 | 90.5 | 87 | 80.7 | 77.5 | 57 | - | - | - | - | - | |

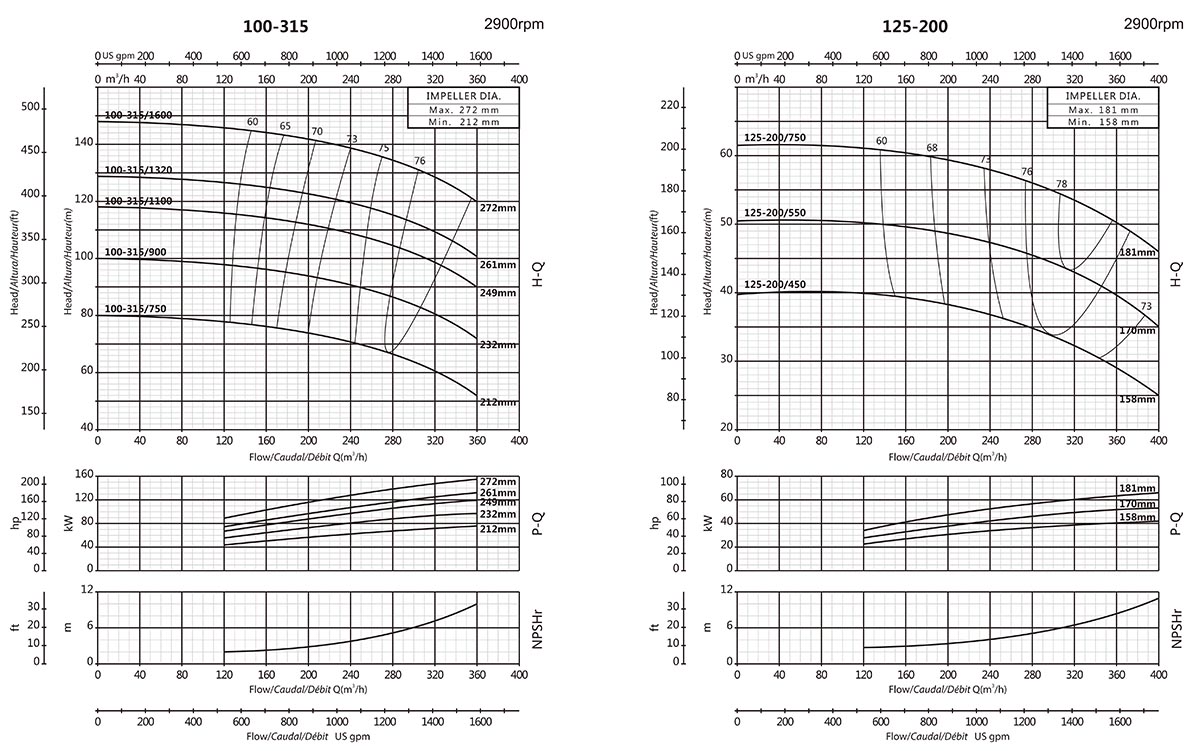

| XA 100-315/750 | 125x100 | 255 | 75 | 100 | 80 | - | - | 78.5 | 76.7 | 74 | 73 | 72.8 | 72.5 | 70.7 | 68 | 64 | 52 | - | - | - | - | - | - |
| XA 100-315/900 | 125x100 | 280 | 90 | 125 | 100 | - | - | 98.5 | 96.7 | 94 | 93 | 92.8 | 92.5 | 90.7 | 88 | 84 | 72 | - | - | - | - | - | - |
| XA 100-315/1100 | 125x100 | 300 | 110 | 150 | 118 | - | - | 116.5 | 114.7 | 112 | 111 | 110.8 | 110.5 | 108.7 | 106 | 102 | 90 | - | - | - | - | - | - |
| XA 100-315/1320 | 125x100 | 315 | 132 | 180 | 129 | - | - | 127.5 | 125.7 | 123 | 122 | 121.8 | 121.5 | 119.7 | 117 | 112 | 101 | - | - | - | - | - | - |
| XA 100-315/1600 | 125x100 | 328 | 160 | 220 | 148 | - | - | 146.5 | 144.7 | 142 | 141 | 140.8 | 140.5 | 138.7 | 136 | 132 | 120 | - | - | - | - | - | - |
| XA 125-200/450 | 150x125 | 190 | 45 | 60 | 39.8 | - | - | 39.3 | 39.2 | 39 | 38.9 | 38.9 | 38.8 | 37.5 | 35 | 34 | 28.6 | 25 | - | - | - | - | - |
| XA 125-200/550 | 150x125 | 205 | 55 | 75 | 50.5 | - | - | 49.3 | 49.2 | 49 | 48.9 | 48.9 | 48.8 | 47.5 | 45 | 44 | 38.6 | 35 | - | - | - | - | - |
| XA 125-200/750 | 150x125 | 218 | 75 | 100 | 61.5 | - | - | 60.3 | 60.2 | 60 | 59.9 | 59.9 | 59.8 | 58.5 | 56 | 55 | 49.6 | 46 | - | - | - | - | - |

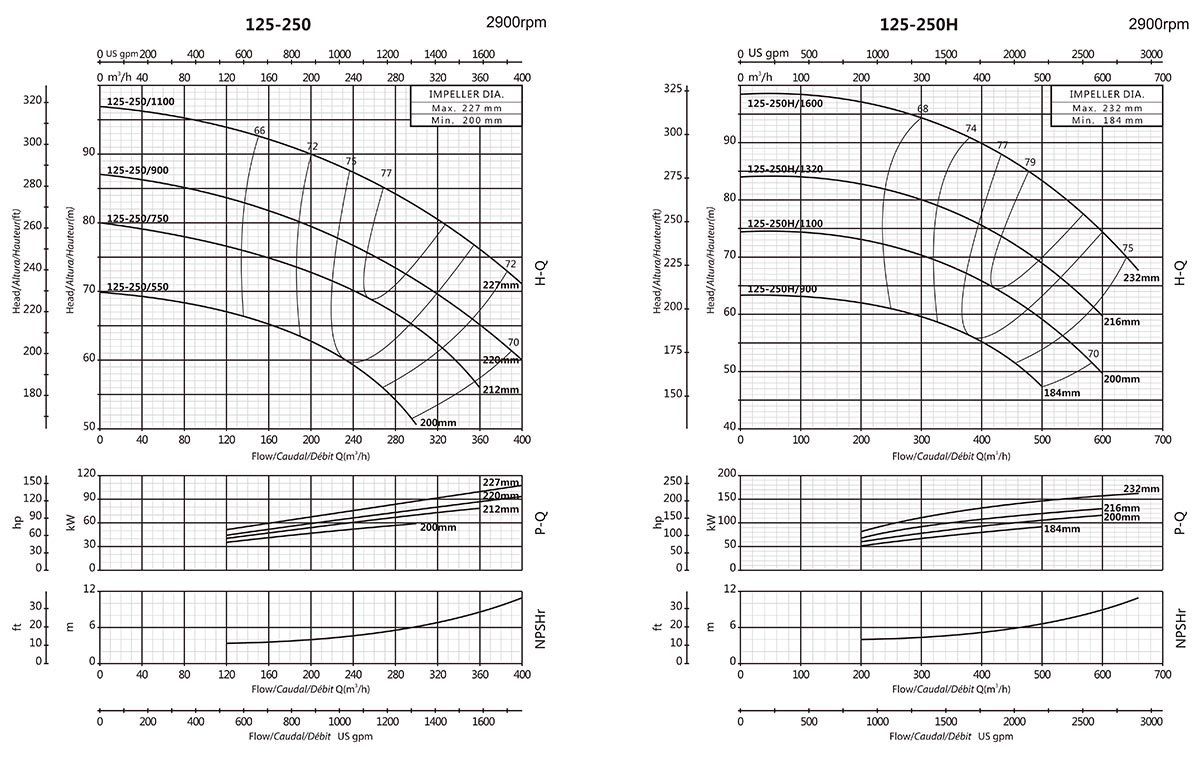

| XA 125-250/550 | 150x125 | 240 | 55 | 75 | 70 | - | - | 67 | 66 | 64 | 63 | 62 | 61 | 59.5 | 54 | 50.5 | - | - | - | - | - | - | - |
| XA 125-250/750 | 150x125 | 255 | 75 | 100 | 80 | - | - | 76.5 | 75.5 | 74 | 73 | 72 | 71.5 | 70 | 67 | 65 | 56 | - | - | - | - | - | - |
| XA 125-250/900 | 150x125 | 265 | 90 | 125 | 87 | - | - | 84 | 82.5 | 81 | 79.5 | 79 | 78 | 77 | 73.5 | 71.5 | 65 | 60 | - | - | - | - | - |
| XA 125-250/1100 | 150x125 | 274 | 110 | 150 | 97 | - | - | 94 | 92.8 | 91 | 90 | 89.3 | 88.7 | 87.4 | 84 | 83.5 | 76 | 71 | - | - | - | - | - |
| XA 125-250H/900 | 150x125 | 220 | 90 | 125 | 63.2 | - | - | 62.4 | 62 | 61.6 | 61.2 | 61.2 | 61.2 | 60.8 | 60 | 59.6 | 57.2 | 55.2 | 47.2 | - | - | - | - |
| XA 125-250H/1100 | 150x125 | 240 | 110 | 150 | 74 | - | - | 73.2 | 72.8 | 72.4 | 72 | 72 | 72 | 71.6 | 70.8 | 70.4 | 68 | 66 | 58 | 49.6 | - | - | - |
| XA 125-250H/1320 | 150x125 | 260 | 132 | 180 | 84 | - | - | 83.2 | 82.8 | 82.4 | 82 | 82 | 82 | 81.6 | 80.8 | 80.4 | 78 | 76 | 68 | 59.6 | - | - | - |
| XA 125-250H/1600 | 150x125 | 280 | 160 | 220 | 98 | - | - | 97.2 | 96.8 | 96.4 | 96 | 96 | 96 | 95.6 | 94.8 | 94.4 | 92 | 90 | 82 | 73.6 | 67.6 | - | - |

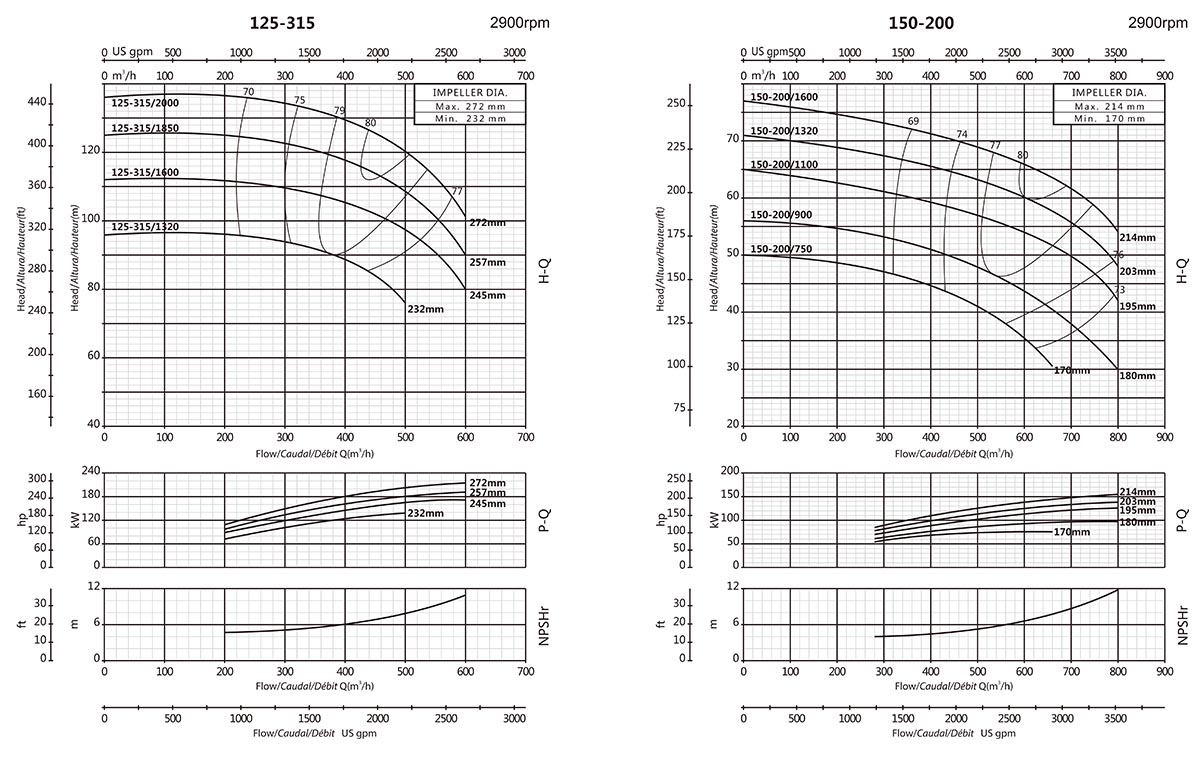

| XA 125-315/1320 | 150x125 | 280 | 132 | 180 | 96 | - | - | - | - | - | 95.2 | 95.1 | 95 | 94.8 | 94 | 93.5 | 91.8 | 88.5 | 76 | - | - | - | - |
| XA 125-315/1600 | 150x125 | 295 | 160 | 220 | 112 | - | - | - | - | - | 111.2 | 111.1 | 111 | 110.8 | 110 | 109.5 | 107.8 | 106 | 97.5 | 80 | - | - | - |
| XA 125-315/1850 | 150x125 | 310 | 185 | 250 | 125 | - | - | - | - | - | 124.2 | 124.1 | 124 | 123.8 | 123 | 122.5 | 120.8 | 119 | 109 | 90 | - | - | - |
| XA 125-315/2000 | 150x125 | 328 | 200 | 270 | 136 | - | - | - | - | - | 135.2 | 135.1 | 135 | 134.8 | 134 | 133.5 | 31.8 | 130 | 120 | 101 | - | - | - |
| XA 150-200/750 | 200x150 | 205 | 75 | 100 | 50 | - | - | - | - | - | - | - | 48 | 47.9 | 47.6 | 47.2 | 45.8 | 44.6 | 41 | 35.5 | 30.5 | - | - |
| XA 150-200/900 | 200x150 | 217 | 90 | 125 | 56 | - | - | - | - | - | - | - | 54 | 53.9 | 53.6 | 53.2 | 52.7 | 52.4 | 48 | 42.8 | 39.2 | 30 | - |
| XA 150-200/1100 | 200x150 | 235 | 110 | 150 | 65.2 | - | - | - | - | - | - | - | 62 | 61.7 | 61.2 | 60.8 | 59.8 | 59.2 | 57.2 | 54 | 51.6 | 42 | - |
| XA 150-200/1320 | 200x150 | 245 | 132 | 180 | 71 | - | - | - | - | - | - | - | 68.5 | 67.7 | 67.2 | 66.8 | 65.8 | 65.2 | 63.2 | 60 | 57.6 | 48 | - |
| XA 150-200/1600 | 200x150 | 258 | 160 | 220 | 77 | - | - | - | - | - | - | - | 74 | 74 | 73.2 | 72.8 | 71.8 | 71.2 | 69.2 | 66 | 63.6 | 54 | - |

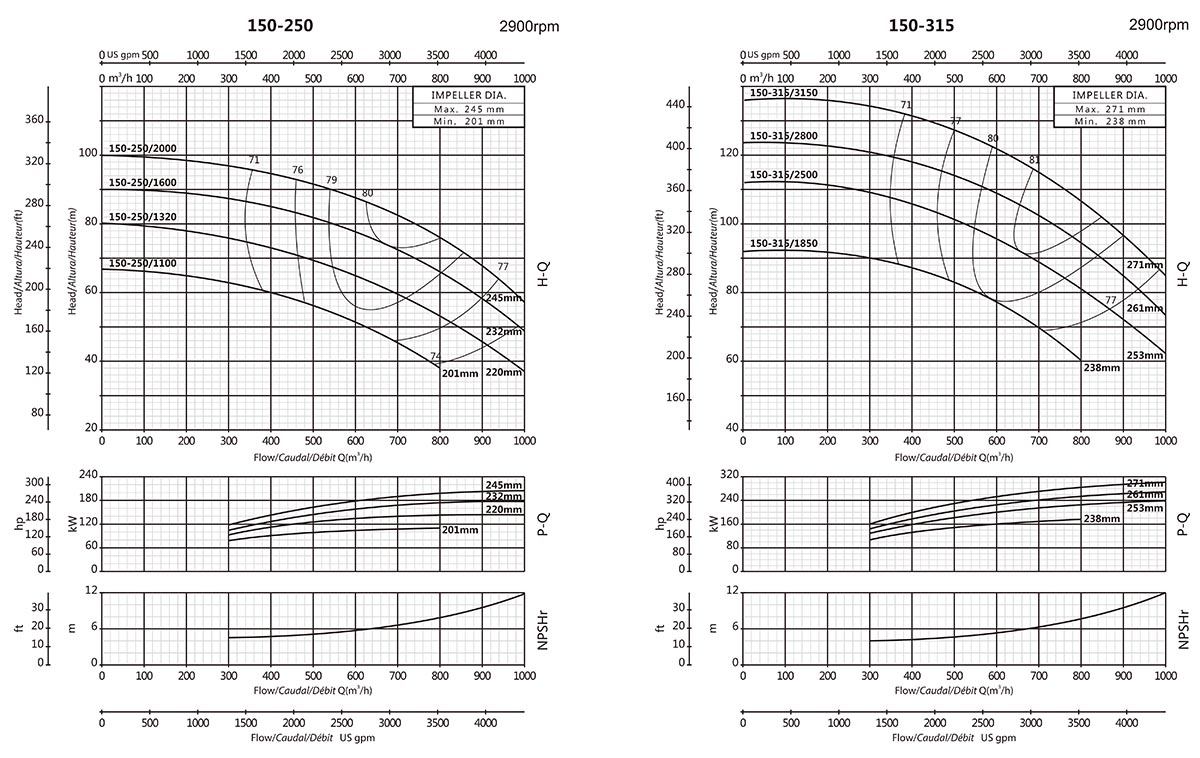

| XA 150-250/1100 | 200x150 | 242 | 110 | 150 | 67 | - | - | - | - | - | - | - | - | - | - | 63 | 61.7 | 60 | 55.8 | 51.8 | 48 | 37.8 | - |
| XA 150-250/1320 | 200x150 | 265 | 132 | 180 | 80.2 | - | - | - | - | - | - | - | - | - | - | 78 | 76.3 | 73.5 | 70 | 65 | 62 | 53 | 37.8 |
| XA 150-250/1600 | 200x150 | 280 | 160 | 220 | 90 | - | - | - | - | - | - | - | - | - | 88 | 86 | 85 | 82 | 77.2 | 75 | 66 | 48 | |
| XA 150-250/2000 | 200x150 | 295 | 200 | 270 | 100 | - | - | - | - | - | - | - | - | - | - | 97 | 96 | 95 | 92 | 87.2 | 85 | 76 | 57 |
| XA 150-315/1850 | 200x150 | 287 | 185 | 250 | 92 | - | - | - | - | - | - | - | - | - | - | 90 | 88.3 | 87.2 | 82.8 | 77.8 | 72 | 60 | - |
| XA 150-315/2500 | 200x150 | 305 | 250 | 340 | 111 | - | - | - | - | - | - | - | - | - | - | 110 | 108 | 106 | 102 | 96 | 92 | 81 | 62.2 |
| XA 150-315/2800 | 200x150 | 315 | 280 | 380 | 124 | - | - | - | - | - | - | - | - | - | - | 121 | 119 | 118 | 114 | 109 | 105 | 94 | 73.6 |
| XA 150-315/3150 | 200x150 | 327 | 315 | 430 | 135 | - | - | - | - | - | - | - | - | - | - | 134 | 133 | 132 | 128 | 122 | 118 | 106 | 85 |
