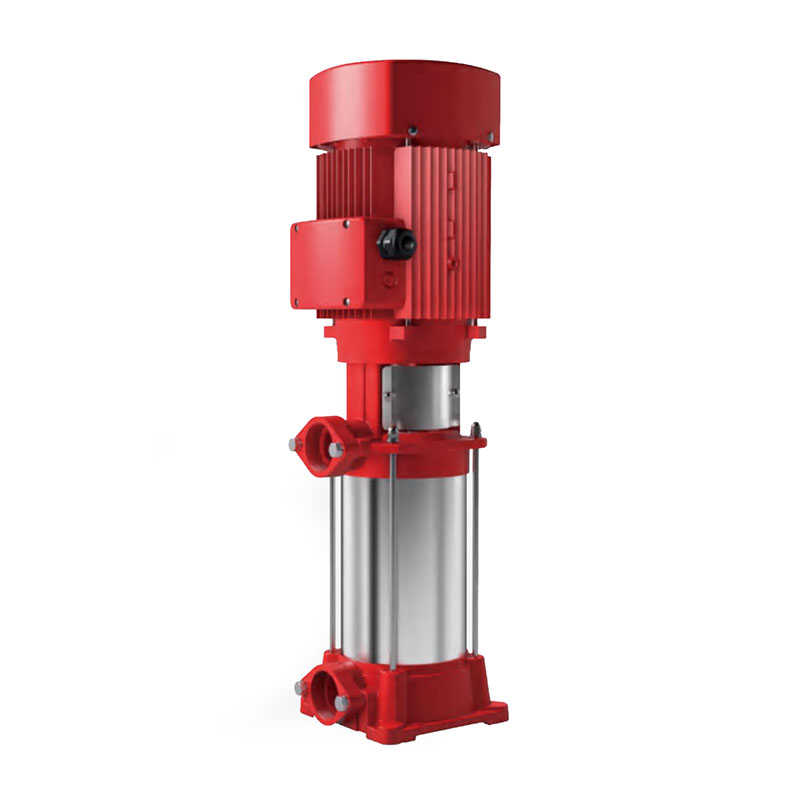

Вертикальный многоступенчатый центробежный насос SVP

High Quality ZEN Pump The SVP vertical multistage centrifugal pump features a new low noise and energy efficient design. Providing durability and ease of use, this wide range meets a wide range of needs. It is equipped with a highly efficient YE3 motor (protection rating IP55, insulation class F) and an innovative polymer impeller and G20 cast iron threaded connection. The main components are equipped with NSK bearings and wear-resistant mechanical seals, which, combined with a compact and symmetrical design, ensures stable and silent operation of ZEN SVP pumps, providing long-term energy savings.

Send Inquiry

Product Description

ОБЛАСТЬ ПРИМЕНЕНИЯ

High efficiency and quiet operation allow the high quality ZEN SVP Vertical Multistage Centrifugal Pump to be used in home applications, irrigation systems, car washes, fire suppression systems, air conditioning and lifting installations, and pressurized water systems.

LIMITATIONS ON USE

Температура жидкости от -10°C до +120°C

Ambient temperature -10°C to +50°C

Максимальное рабочее давление 25 бар

Непрерывный режим работы S1

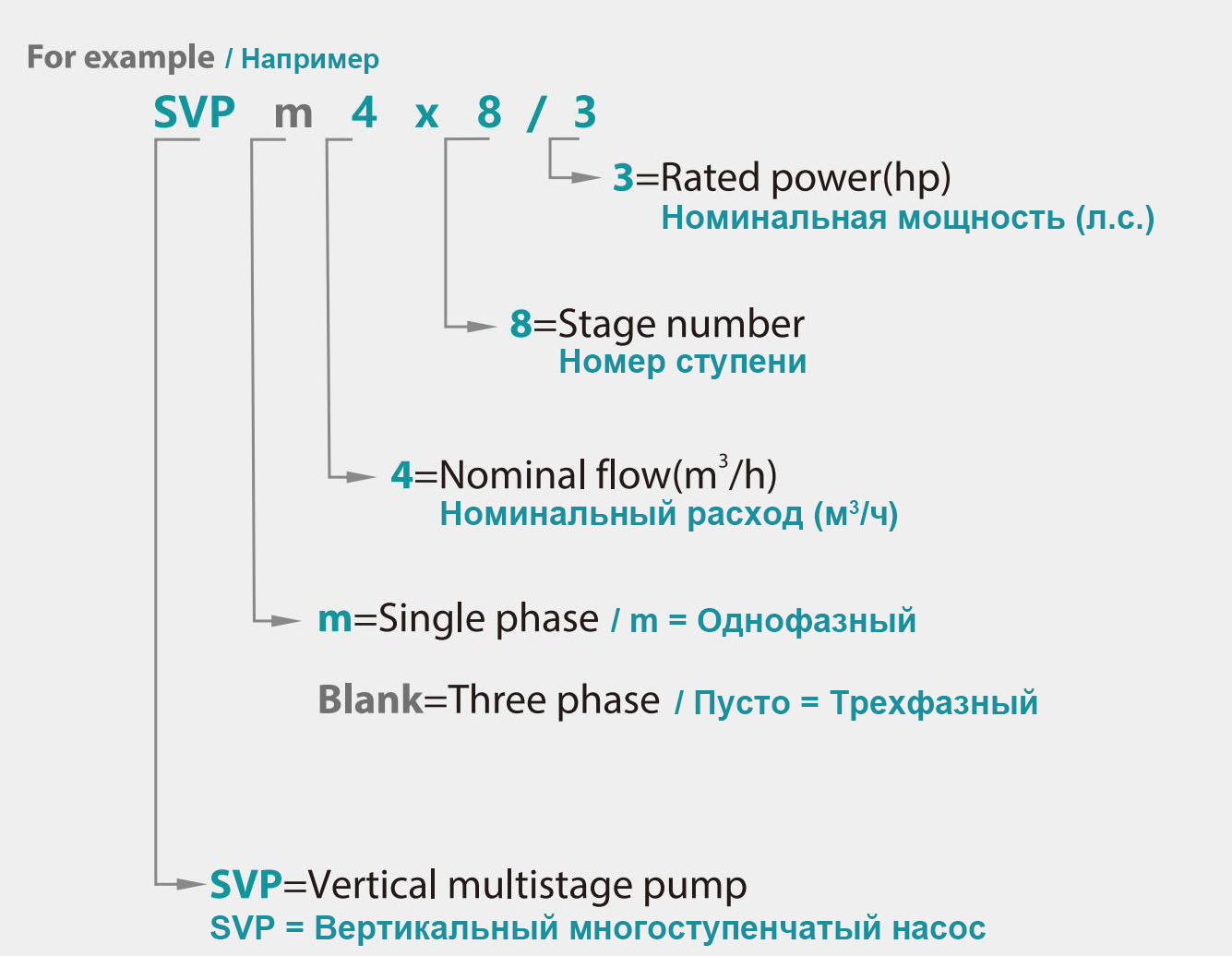

CODE MODELS

TECHNICAL SHEET

Модель	SVP
Емкость	0-48 m³/h
Голова	0-224m
DN	25-65mm
Speed	2900rpm
T max	120℃
Власть	1.1-11kW
Voltage	220/380/400/440V
HZ	60
Class	Class F
IP	IP55
Долг	S1 continuous
Frame	Gray cast iron
Impeller	Пластик
Вал	SS304
Уплотнение вала	Mechanical seal

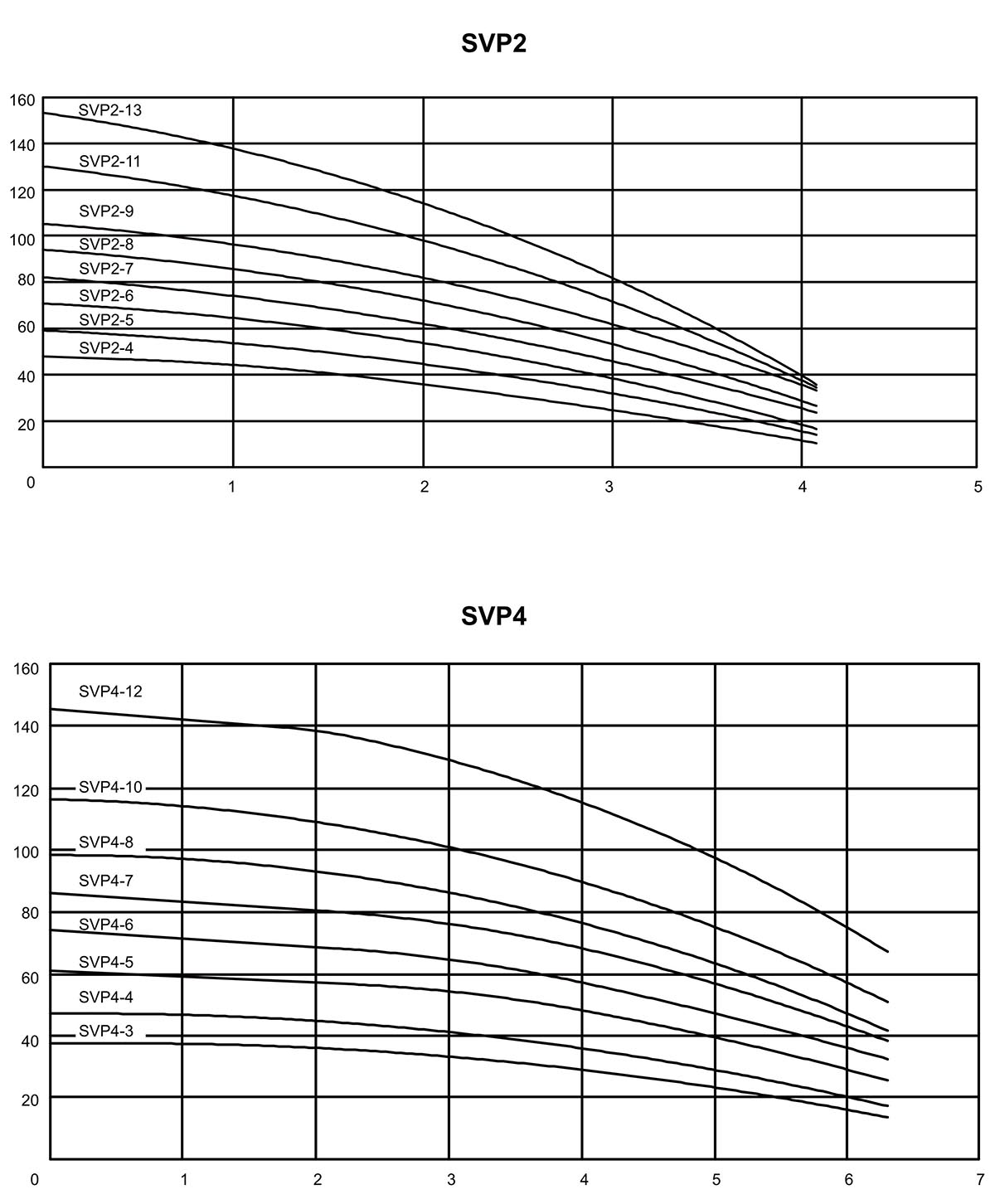

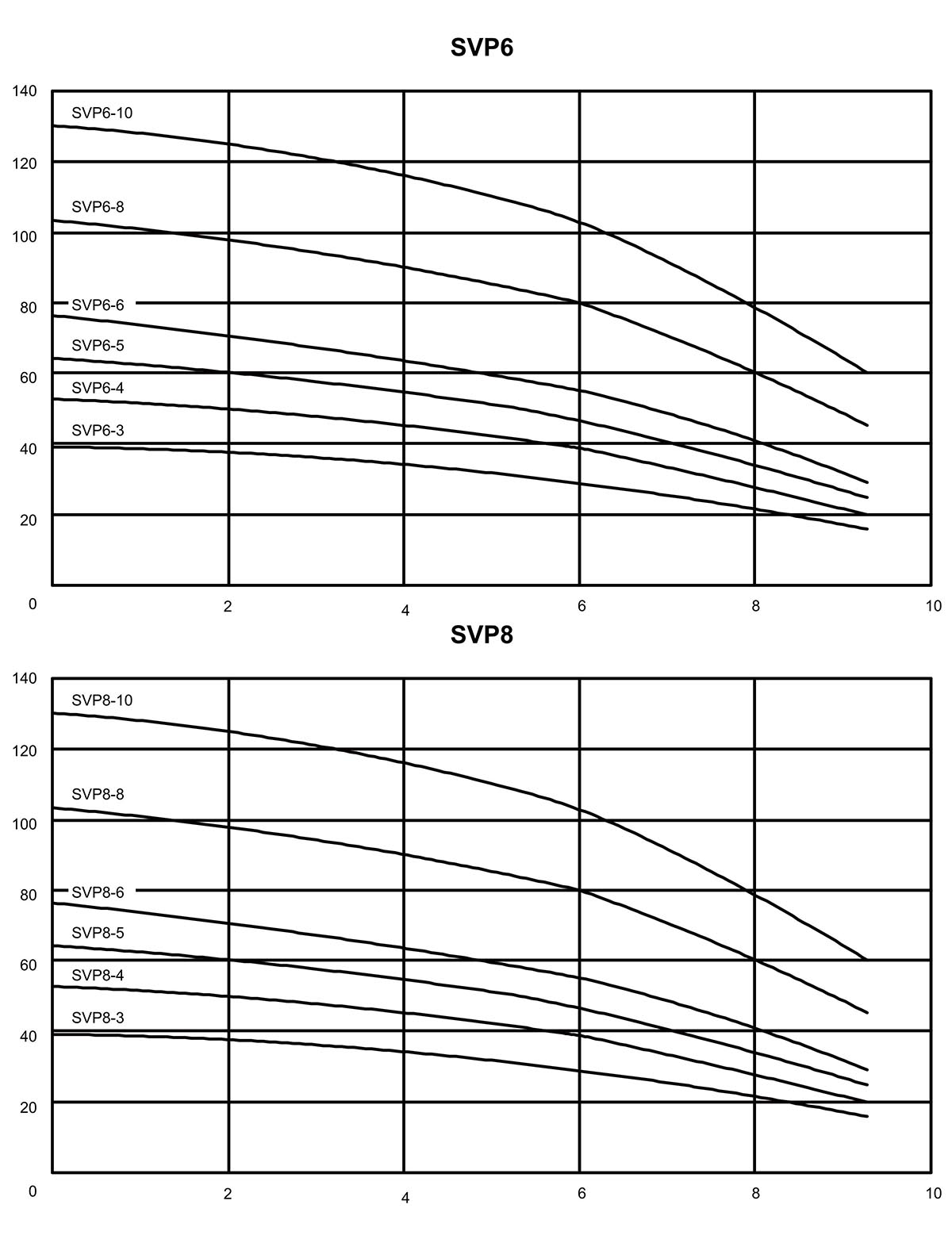

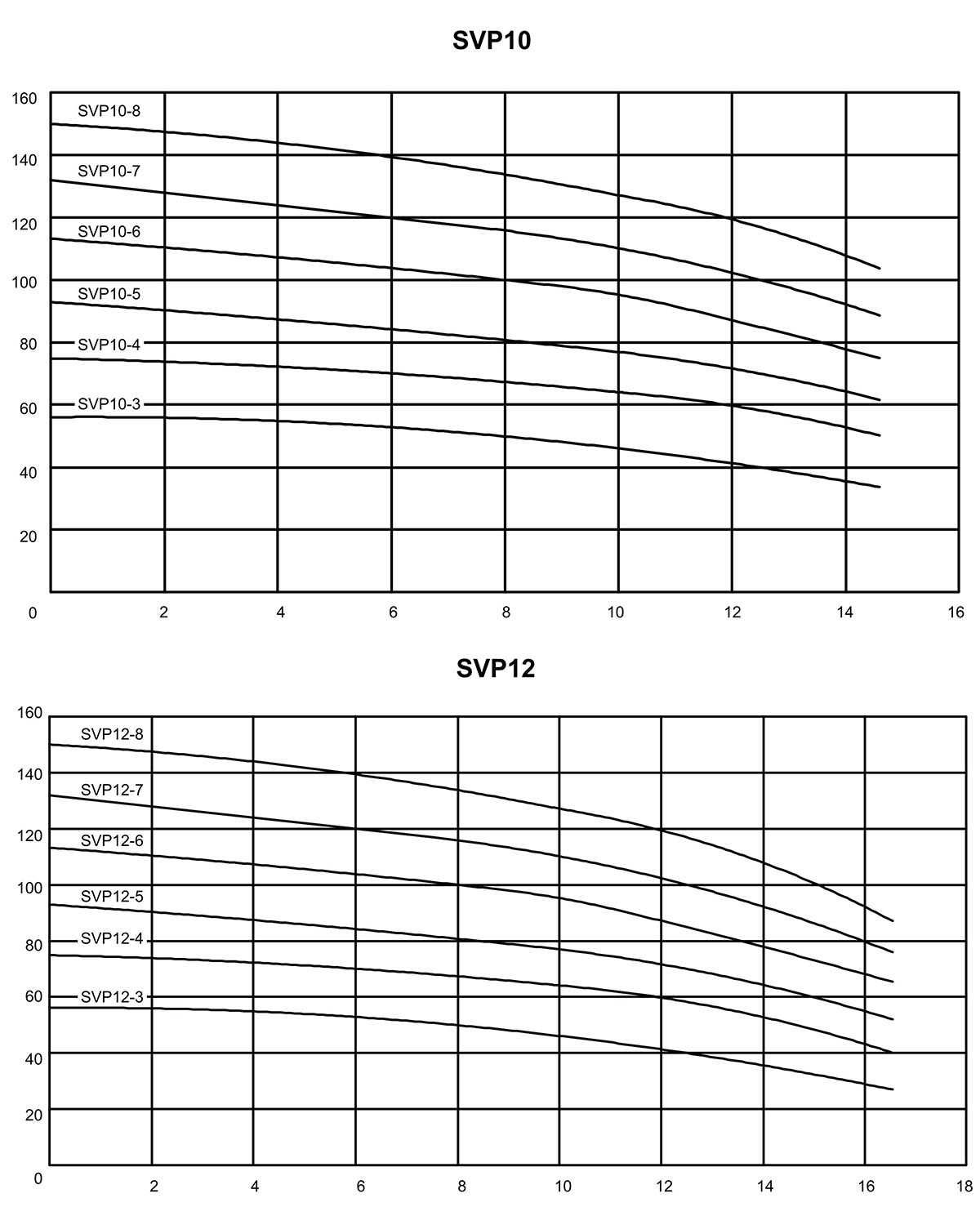

Модель	DN	Власть		Q=DELIVERY/CAUDAL/DEBIT
				us gpm O	5	11	13	16	19	21	24	26	29	32	37	42	48	53	58	63	69	74
				I/min O	20	40	50	60	70	80	90	100	110	120	140	160	180	200	220	240	260	280
				m³/h O	1.2	2.4	3	3.6	4.2	4.8	5.4	6	6.6	7.2	8.4	9.6	10.8	12	13.2	14.4	15.6	16.8
	mm	kw	hp	H=Высота/Голова/Высота (м)
SVP2-4	25×25	0.75	1	48	41	32	26	15	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SVP2-5	25×25	1.1	1.5	59	50	41	33	18	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SVP2-6	25×25	1.1	1.5	69	48	47	37	25	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SVP2-7	25×25	1.1	1.5	82	73	60	45	28	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SVP2-8	25×25	1.5	2	94	85	71	52	35	-	-		-	-	-	-	-	-	-	-	-	-	-
SVP2-9	25×25	1.5	2	105	94	80	62	37	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SVP2-11	25×25	1.8	2.5	130	115	95	73	39	-	-	-	-	-	-	-	-	-	-	-	-		-
SVP2-13	25×25	2.2	3	153	134	112	82	45	-	-	-	-	-	-	-		-	-	-	-	-	-
SVP4-3	25×25	0.75	1	37	35	32	33	31	29	24	18	16	-	-	-	-	-	-	-	-	-	-
SVP4-4	25×25	1	1.5	47	45	41	41	38	36	28	25	20	-	-	-	-	-	-	-	-	-	-
SVP4-5	25×25	1.5	2	61	57	55	55	52	48	39	34	29	-	-	-	-	-	-	-	-	-	-
SVP4-6	25×25	1.5	2	74	70	65	66	59	57	47	41	36	-	-	-	-	-	-	-	-	-	-
SVP4-7	25×25	2.2	3	86	-	79	77	71	68	57	48	43	-	-	-	-	-	-	-	-	-	-
SVP4-8	25×25	2.2	3	98	94	89	86	82	76	63	54	47	-	-	-	-	-	-	-		-
SVP4-10	25×25	2.2	3	116	113	108	102	98	90	73	68	57	-	-	-	-	-	-	-	-	-	-
SVP4-12	25×25	3	4	145	140	137	131	123	115	97	80	75	-	-	-	-	-	-	-	-	-	-
SVP6-3	32×32	1.1	1.5	39	-	-	-	-	-	33	32	29	27	24	20	17	-	-	-	-	-	-
SVP6-4	32×32	1.5	2	52	-	-	-	-	-	44	42	39	36	32	28	20	-	-	-	-	-	-
SVP6-5	32×32	1.8	2.5	64	-	-	-	-	-	54	51	47	42	38	34	25	-		-	-	-	-
SVP6-6	32×32	2.2	3	76	-	-	-	-	-	63	59	56	51	45	37	29	-	-	-	-	-	-
SVP6-8	32×32	3	4	103	-	-	-	-	-	90	86	80	74	66	52	43	-	-	-	-	-	-
SVP6-10	32×32	4	5.5	130	-	-	-	-	-	114	109	103	92	86	73	60	-	-	-	-	-	-
SVP8-3	40×40	1.1	1.5	40	-	-	-	-	-	33	32	30	28	23	22	19	-	-	-	-	-	-
SVP8-4	40×40	1.5	2	53	-	-	-	-	-	44	43	41	39	32	30	22	-	-	-	-	-	-
SVP8-5	40×40	1.8	2.5	66	-	-	-	-	-	55	53	49	47	38	36	26	-	-	-	-	-	-
SVP8-6	40×40	2.2	3	79	-	-	-	-	-	64	61	59	56	47	39	32	-	-	-	-	-	-
SVP8-8	40×40	3	4	105	-	-	-	-	-	89	87	82	79	65	54	45	-	-	-	-	-	-
SVP8-10	40×40	4	5.5	132	-	-		-	-	114	109	103	100	88	75	62	-	-	-	-	-	-
SVP10-3	50×50	3	4	56	-	-	-	-	-	54	53	52	51	50	49	46	44	42	37	-	-	-
SVP10-4	50×50	4	5.5	75	-	-	-	-	-	72	71	70	69	68	67	64	62	60	53	-	-	-
SVP10-5	50×50	5.5	7.5	93	-	-	-	-	-	87	86	84	83	82	81	77	73	72	64	-	-	-
SVP10-6	50×50	5.5	7.5	113	-	-	-	-	-	107	106	104	102	101	100	96	90	87	78	-	-	-
SVP10-7	50×50	7.5	10	132	-	-	-	-	-	124	123	120	115	117	116	110	108	103	93	-	-	-
SVP10-8	50×50	7.5	10	150	-	-	-	-	-	143	141	139	138	136	134	127	125	120	108	-	-	-
SVP12-3	50×50	3	4	58	-	-	-	-	-	-	-	53	52	51	50	47	45	42	40	38	29	27
SVP12-4	50×50	4	5.5	77	-	-	-	-	-	-	-	72	71	70	69	66	63	60	58	55	43	38
SVP12-5	50×50	5.5	7.5	94	-	-	-	-	-	-	-	85	84	83	82	78	74	72	67	65	55	49
SVP12-6	50×50	5.5	7.5	115	-	-	-	-	-	-	-	106	105	103	102	98	95	87	85	80	68	60
SVP12-7	50×50	7.5	10	133	-	-	-	-	-	-	-	121	119	118	117	111	108	103	96	93	80	72
SVP12-8	50×50	7.5	10	152	-	-	-	-	-	-	-	141	140	138	136	129	124	120	117	110	92	83
