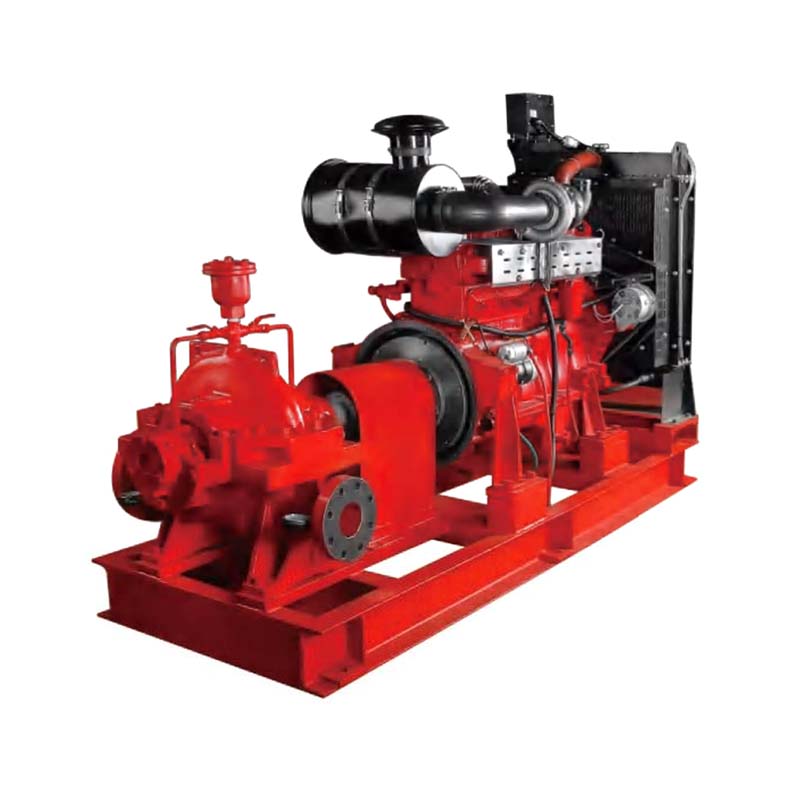

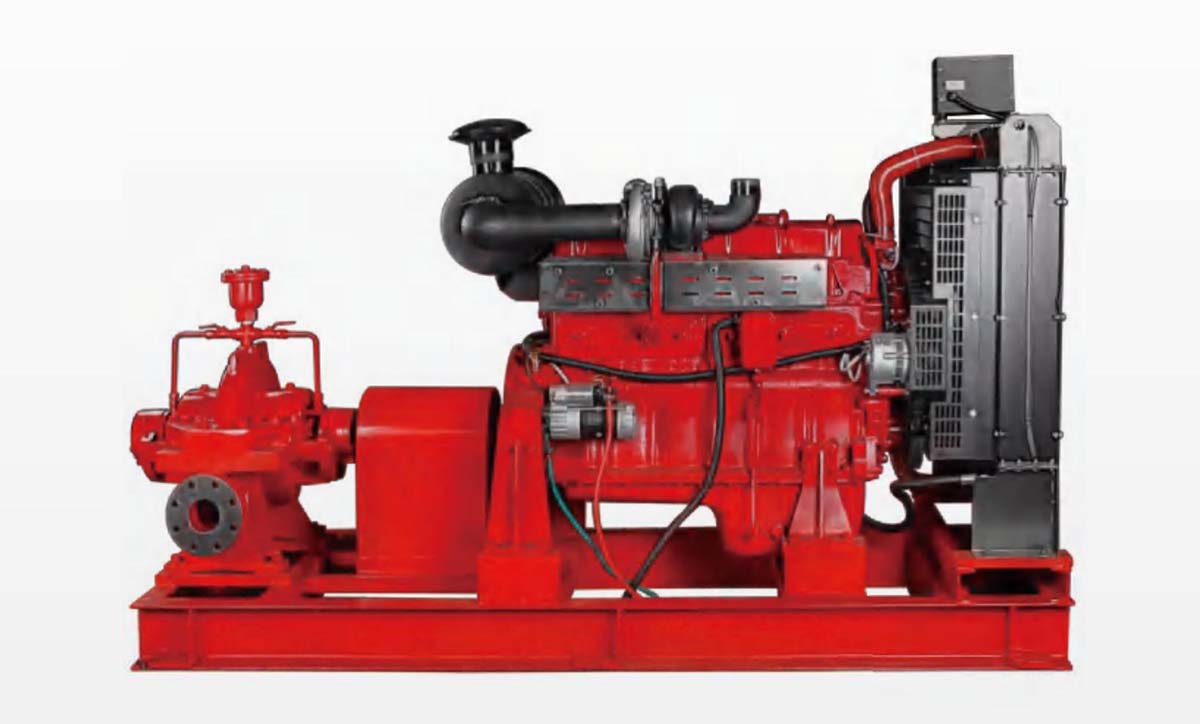

High Quality ZEN Pump The SSCD double suction split casing pump is driven by diesel engine, which has the advantages of large capacity, high efficiency and easy maintenance. The diesel engine is connected to a horizontal shaft pump using flexible couplings. To connect to vertical shaft fire pumps, bevel gears and universal joints are used. The SSCD pump is designed to supply water to standpipes, sprinkler systems, chemical suppression systems and fire hydrants in industrial and commercial applications.
As a professional manufacturer, ZEN brings you high quality SSCD Double Suction Split Casing Pump. Here are some of its features:
1. Design of axial split volute pump casing
2. Pump body with HT250 anti-corrosion coating
3. Double entry radial impeller made of AlSl 304 or HT250
4. Защитные втулки вала в зоне уплотнения
5. Доступны как торцевое уплотнение, так и сальниковая набивка
6. Подшипники качения с консистентной смазкой, рассчитанные на весь срок службы
7. Надежная совместимость с дизельным топливом для обеспечения пожаробезопасности и т.д.
1. Liquid temperature from -10°C to +120°C
2. Температура окружающей среды от -10°C до +50°C
3. Max. operating pressure 20 bar/continuous operation S1

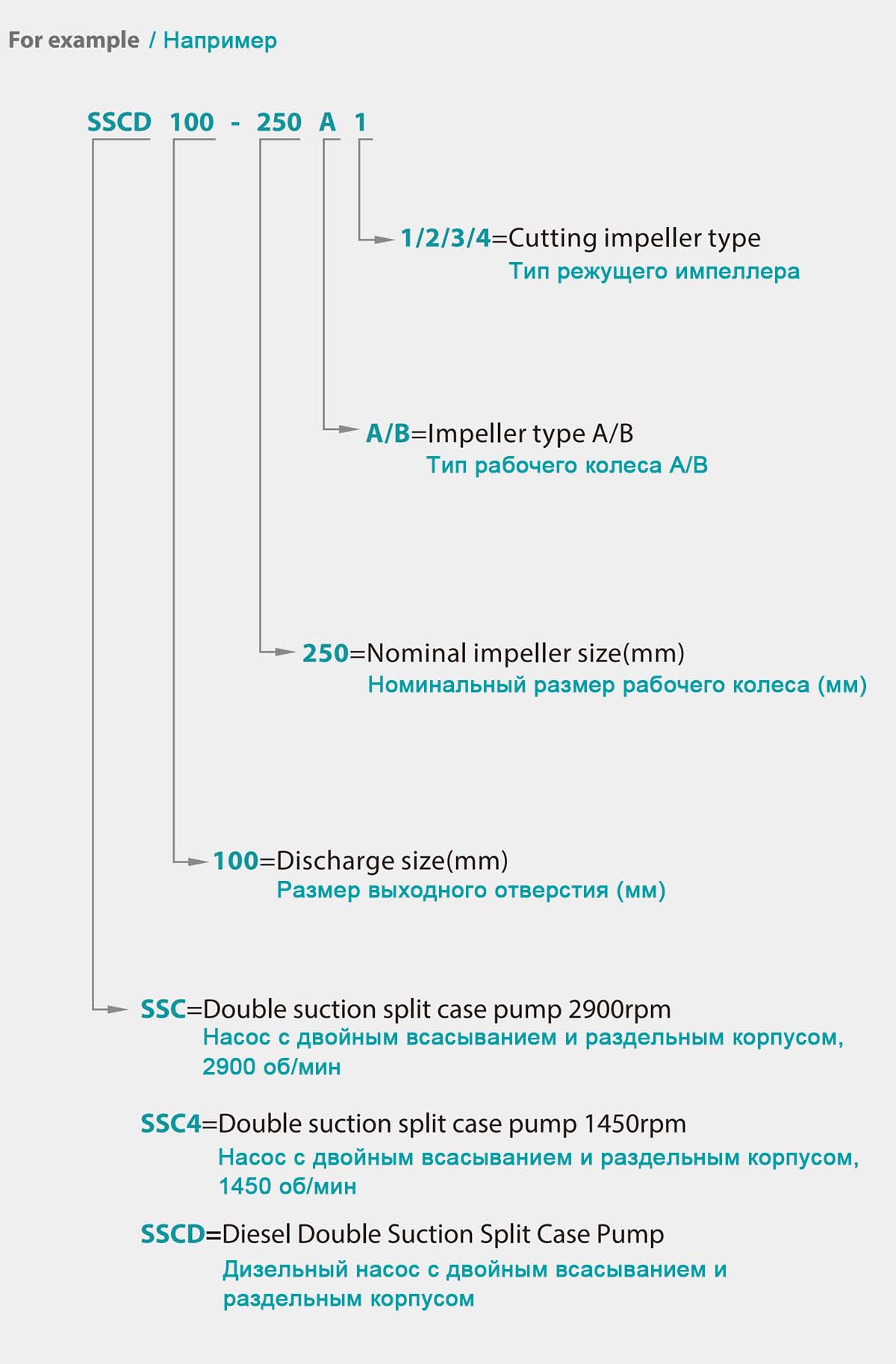

| Model | SSCD |
| Performance | 0-4500 m³/h |
| Напор | 1-185 m |
| DN | 80-500 mm |
| Speed | 3000/1500 rpm |
| Tmax. | 100 ℃ |
| Мощность | 2.2-1250 kW |
| Hz | 50 |
| Class | Класс F |
| Рабочий режим | S1 (continuous) |
| Frame |
Чугун |
| Рабочее колесо | Cast iron/ss304 |
|
Вал |
45#сталь/ ss304 |
| Shaft seal | Mechanical seal / Packing seal |
| Подшипник | Grease lubricated rolling bearing |
