Area of actionMaximum consumption: 31m³ / h
Maximum pressure: 120m

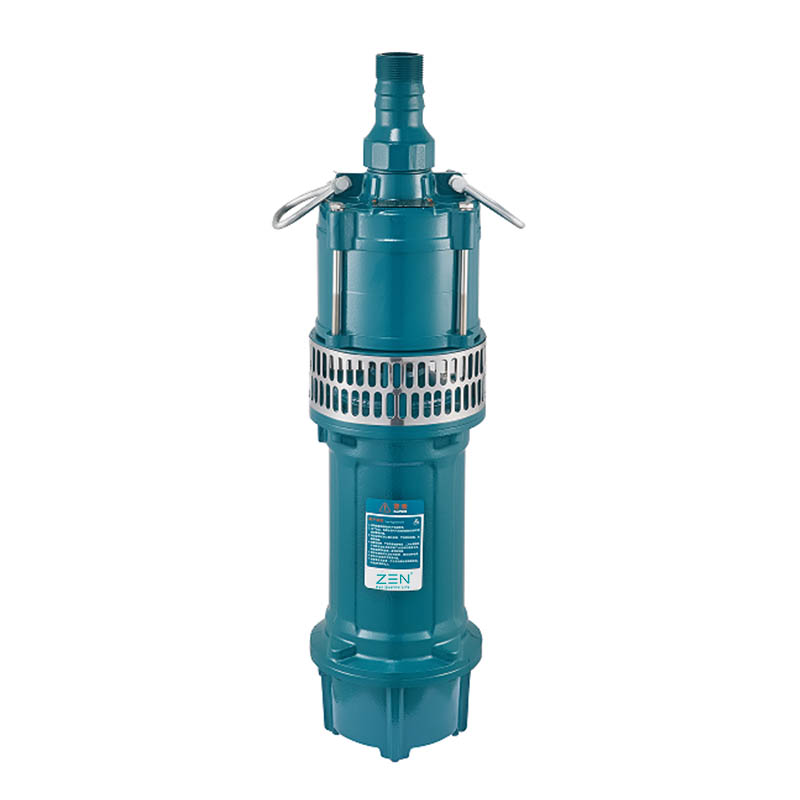

Qd submersible pump made of thick -walled cast iron, which provides exceptional strength, resistance to abrasion and durability, are suitable for draining clean or slightly contaminated water.
They are distinguished by their strength and reliability in automatic operating conditions in stationary installations. As portable electric drainage and irrigation devices, QDs of a submersible pump with lower water consumption are widely suitable for water cargo boxes, agricultural lands, industrial and mining enterprises, construction sites, vessels and families and are characterized by a lower volume, lightweight and ease of operation, etc.
Maximum fluid temperature + 40 ° C
PH 6.5 - 8.5 value
The maximum sand content is 0.1%. A suspended solid body passes 0.2 mm
Power rate 50 Hz. A single -phase nominal voltage is 220 Higher School, a three -phase rated voltage - 380 Higher Schools, a range from 10% to 10%.
Dive depth from 0.5 to 5 m
High pressure pumps Q (D) have a multi -stage structure and are widely used in areas such as agricultural irrigation, irrigation, irrigation in the garden, water supply of wells, water supply of reservoirs, aquaculture, etc.
Multi -stage centrifugal pumping pump
The design is compact, occupies a small area, mobile use is convenient
Corner contact ball bearing, an increase in service life
Other voltages or frequencies 60 Hz
| Power (KW) | 0.75 | 1.1 | 1.5 | 1.8 | 2.2 | 3 | 5.5 | 7.5 | |
| 1 | Capacitor (ICF) (Only for a single -phase version) |
25 uF 450V AC |
25 uF 450V AC |
35 uF 450V AC |
50 uF 450V AC |
60 uF 450V AC |
一 | 一 | 一 |
| 2 | Lower bearing | 6203-2Rz | 720B-2RS | 720B-2RS | 720B-2RS | 720B-2RS | 720B-2RS | 7307ac | 7307ac |
| 3 | Hull | HT200 | |||||||
| 4 | Engine | Dry engine | |||||||
| 5 | Upper bearing | 6203-2Rz | 6203-2Rz | 6203-2Rz | 6204-2Rz | 6204-2Rz | 6204-2Rz | 6307-2rz | 6307-2rz |
| 6 | Mechanical seal | 208-16/38 B:A/S:A (PTC) |
208-16/38 B:A/S:A (PTC) |
208-16/38 B:A/S:A (PTC) |
208-20/40 B:A/S:A (PTC) |
208-20/40 B:A/S:A (PTC) |
208-20/40 B:A/S:A (PTC) |
208-30/51 W:S/W:S (F) |
208-30/51 W:S/W:S (F) |
| B - ceramic a - graphite S - silicon carbide | |||||||||
| 7 | Working wheel | ZL102/HT200 | |||||||
| 8 | Pump body | HT200 | |||||||
| 9 | Engine shaft | Steel 45#+Aisi304 (with type P)/steel 45# | |||||||
| 10 | Exit | HT200 | |||||||
| 11 | The screen of the installer |
AISI430, AISI304 (with type P) | Q235a | ||||||
| Model |
Dim.(mm) | N.W. (kg) |
|||
| Single -phase |
Three -phase |
Φ | B | DN | |
| QD3-30 / 9-0.75 | 一 | 192 | 488 | 25 | 22 |
| QD3-45/3-1.1J | 一 | 192 | 520 | 25 | 25 |
| QD6-32/2-1.1J | 一 | 200 | 475 | 38 | 25 |
| QD6-32/2-1.1P | 一 | 200 | 475 | 38 | 22 |
| QD3-55/4-1.5J | 一 | 192 | 595 | 25 | 30 |
| QD6-35 / 2-1.5J | 一 | 200 | 520 | 38 | 28 |
| QD10-26/2-1.5J | 一 | 200 | 510 | 51 | 28 |
| QD10-30/3-1.5J | 一 | 200 | 555 | 51 | 30 |
| Qd10-30 / 3-1.5p | 一 | 200 | 555 | 51 | 27 |
| QD15-20/2-1.5J | 一 | 200 | 515 | 64 | 29 |
| QD3-82 / 5-1.8J | 一 | 195 | 667 | 25 | 37 |
| QD12-36/3-1.8J | 一 | 200 | 590 | 51 | 34 |
| QD3-96/6-2.2j | 一 | 195 | 735 | 25 | 41 |
| QD10-40 / 3-2.2J | 一 | 200 | 630 | 51 | 36 |
| 一 | Q3-30/2-0.75 | 192 | 470 | 25 | 20 |
| 一 | Q3-30/2-0.75p | 192 | 485 | 25 | 22 |
| 一 | Q3-45/3-1.1J | 192 | 512 | 25 | 24 |
| 一 | Q6-32/2-1.1J | 200 | 470 | 38 | 25.5 |
| 一 | Q6-32/2-1.1p | 200 | 470 | 38 | 21 |
| 一 | Q3-55/4-1.5J | 192 | 545 | 25 | 27 |
| 一 | Q6-35/2-1.5J | 200 | 470 | 38 | 26 |
| 一 | Q10-26 / 2-1.5J | 200 | 470 | 51 | 26 |
| 一 | Q10-30 / 3-1.5j | 199 | 505 | 51 | 28 |
| 一 | Q10-30/3-1.5P | 199 | 505 | 51 | 24 |
| 一 | Q15-20/2-1.5J | 200 | 465 | 64 | 25 |
| 一 | Q3-82/5-1.8j | 195 | 630 | 25 | 33 |
| 一 | Q12-36/3-18.J | 200 | 550 | 51 | 32 |
| 一 | Q12-36/3-1.8P | 200 | 550 | 51 | 28 |
| 一 | Q3-96/6-2.2j | 195 | 660 | 25 | 36 |
| Q10-40/3-2.2J | 200 | 550 | 51 | 32 | |
| 一 | Q3-112/7-3J | 195 | 731 | 25 | 42 |
| 一 | Q12.5-80 / 4-5L1 | 230 | 750 | 51 | 82 |
| 一 | Q14-100 / 5-7.5l1 | 230 | 825 | 51 | 95 |
| Model |
Power |
Nominal Current (A) |
MAX. FLOW (m³/h) |
Max (m) |
Range heads (m) |
Cable line (m) |
Dim.mm (L×W×H) |
G.W. (kg) |
20' -loading Cole-in (St.) |
||
| Single -phase |
Three -phase | KW | HP | ||||||||
| QD3-30 / 9-0.75 | 0.75 | 1 | 5.2 | 5 | 33 | 0~33 | 3*0.75-15 | 495x220x235 | 24 | 1170 | |
| QD3-45/3-1.1J | 1.1 | 1.5 | 7.3 | 5 | 53 | 0~47 | 3*1-15 | 535x220x235 | 27 | 900 | |
| QD6-32/2-1.1J | 14 | 37 | 20~35 | 3*1-15 | 535x220x235 | 27 | 900 | ||||
| QD6-32/2-1.1P | 14 | 37 | 20~35 | 3*1-15 | 535x220x235 | 24 | 900 | ||||
| QD3-55/4-1.5J | 1.5 | 2 | 9.5 | 5 | 64 | 0~62 | 3*1-18 | 610x220x235 | 32 | 810 | |
| QD6-35 / 2-1.5J | 15 | 40 | 20~37 | 3*1-18 | 580x220x235 | 30 | 900 | ||||
| QD10-26/2-1.5J | 20 | 29 | 0~29 | 3*1-18 | 580x220x235 | 30 | 900 | ||||
| QD10-30/3-1.5J | 20 | 38 | 20~36 | 3*1-18 | 610x220x235 | 33 | 810 | ||||
| Qd10-30 / 3-1.5p | 20 | 38 | 20~36 | 3*1-18 | 610x220x235 | 29 | 810 | ||||
| QD15-20/2-1.5J | 23 | 28 | 0~29 | 3*1-18 | 570x220x215 | 30 | 1000 | ||||
| QD3-82 / 5-1.8J | 一 | 1.8 | 2.5 | 11.3 | 8 | 85 | 50~85 | 3*2-15 | 705x220x273 | 41 | 640 |
| QD12-36/3-1.8J | 21 | 43 | 10~40 | 3*2-15 | 670x205x275 | 38 | 640 | ||||
| QD3-96/6-2.2j | 2.2 | 3 | 13.8 | 8 | 104 | 55~104 | 3*2-15 | 770x220x273 | 45 | 560 | |
| QD10-40 / 3-2.2J | 22 | 44 | 0~43 | 3*2-15 | 705x220x273 | 40 | 640 | ||||
| 一 | QD3-30 / 9-0.75 | 0.75 | 1 | 2 | 5 | 33 | 0~33 | 4*0.75-15 | 495x220x235 | 22 | 990 |
| 一 | QD3-30/2-0.75p | 5 | 33 | 0~33 | 4*0.75-15 | 495x220x235 | 23 | 990 | |||
| 一 | QD3-45/3-1.1J | 1.1 | 1.5 | 2.7 | 5 | 53 | 0~47 | 4*0.75-15 | 535x220x235 | 25 | 900 |
| 一 | QD6-32/2-1.1J | 14 | 37 | 20~35 | 4*0.75-15 | 535x220x235 | 24 | 900 | |||
| 一 | QD6-32/2-1.1P | 14 | 37 | 20~35 | 4*0.75-15 | 535x220x235 | 23 | 900 | |||
| 一 | QD3-55/4-1.5J | 1.5 | 2 | 3.6 | 5 | 64 | 0~62 | 4*1-18 | 610x220x235 | 29 | 810 |
| 一 | QD6-35 / 2-1.5J | 15 | 40 | 20~37 | 4*1-18 | 580x220x235 | 27 | 900 | |||
| 一 | QD10-26/2-1.5J | 20 | 29 | 0~30 | 4*1-18 | 535x220x235 | 28 | 900 | |||
| 一 | QD10-30/3-1.5J | 20 | 38 | 20~36 | 4*1-18 | 610x220x235 | 30 | 810 | |||
| 一 | Qd10-30 / 3-1.5p | 20 | 38 | 20~36 | 4*1-18 | 610x220x235 | 26 | 810 | |||
| 一 | QD15-20/2-1.5J | 23 | 28 | 0~28 | 4*1-18 | 525x220x215 | 26 | 1000 | |||
| 一 | QD3-82 / 5-1.8J | 1.8 | 2.5 | 4.3 | 8 | 85 | 50~88 | 4*1-15 | 705x220x273 | 37 | 640 |
| 一 | QD12-36/3-1.8 | 21 | 43 | 10~40 | 4*1-15 | 640x205x278 | 36 | 720 | |||
| 一 | QD12-36/3-1.8p | 21 | 43 | 10~40 | 4*1-15 | 640x205x278 | 32 | 720 | |||
| 一 | QD3-96/6-2.2j | 2.2 | 3 | 5.1 | 8 | 104 | 55~104 | 4*1-15 | 705x220x273 | 40 | 640 |
| 一 | QD10-40 / 3-2.2J | 22 | 44 | 0~43 | 4*1-15 | 640x205x278 | 36 | 720 | |||
| 一 | QD3-112/7-3J | 3 | 4 | 6.7 | 9 | 122 | 60~120 | 3*1.5+1*1-15 | 770x220x273 | 46 | 560 |
| 一 | QD12.5-80/4-5.5L1 | 5.5 | 7.5 | 12.6 | 31 | 89 | 52~85 | 3*1.5+1*1☆ | 1050x295x335 | 91 | 245 |
| 一 | QD14-100/5-7.5L1 | 7.5 | 10 | 16.8 | 31 | 109 | 66~108 | 3*2.5+1*1.5-30 | 1190x295x320 | 105 | 196 |
Centrifugal pumps are not recommended to be used below the lifting range.
