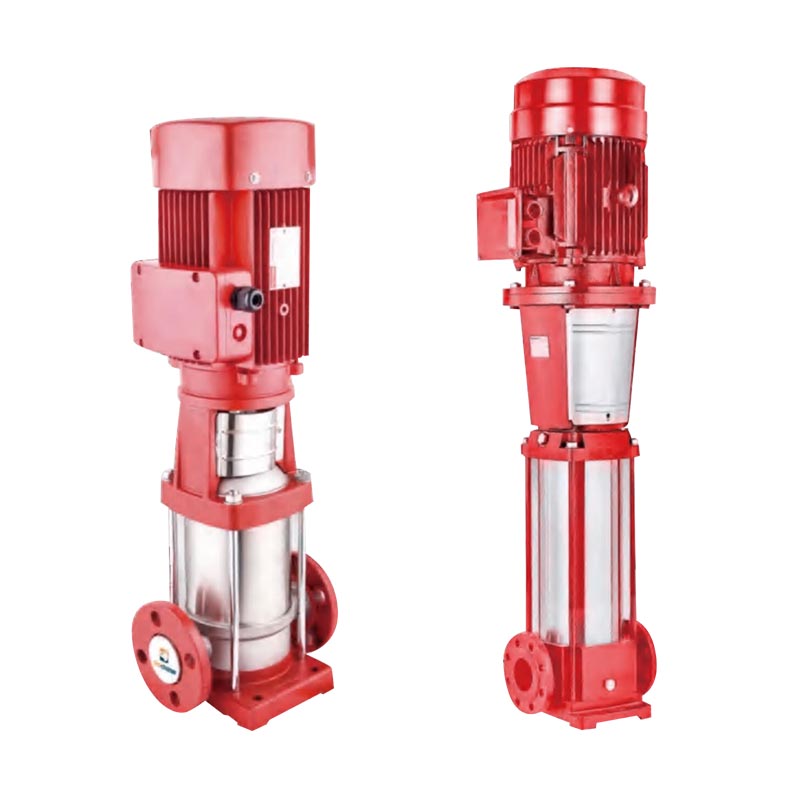

Вертикальный многоступенчатый центробежный насос CDL/CDLF S.S 304

Высококачественный и прочный насос ZEN Вертикальный многоступенчатый центробежный насос CDL/CDLF S.S 304 имеет вертикальную многоступенчатую конструкцию с входным и выходным отверстиями, расположенными на одной горизонтальной линии, что обеспечивает компактность и экономию места. Мы предлагаем два основных варианта исполнения: головка и основание насоса CDL изготовлены из чугуна, а рабочее колесо и вал – из нержавеющей стали; в то время как у насоса CDLF все детали, контактирующие с перекачиваемой средой, изготовлены из нержавеющей стали. Все модели оснащены высокоэффективными двигателями YE3 (степень защиты IP55, класс изоляции F), высококачественными подшипниками и износостойкими механическими уплотнениями, обеспечивающими стабильную работу. Они способны перекачивать жидкости при температуре от -10°C до +120°C. Выбирая ZEN, вы выбираете долговечную и надежную эксплуатацию.

Send Inquiry

Product Description

AREA OF APPLICATION

High Quality ZEN Pump CDL/CDLF Vertical Multistage Centrifugal Pump S.S 304, also called stainless steel multistage pump, is suitable for industrial process systems, washing and cleaning systems, acid and alkali pumping, filtration systems, water boosting, water treatment, HVAC, irrigation, fire protection systems, etc.

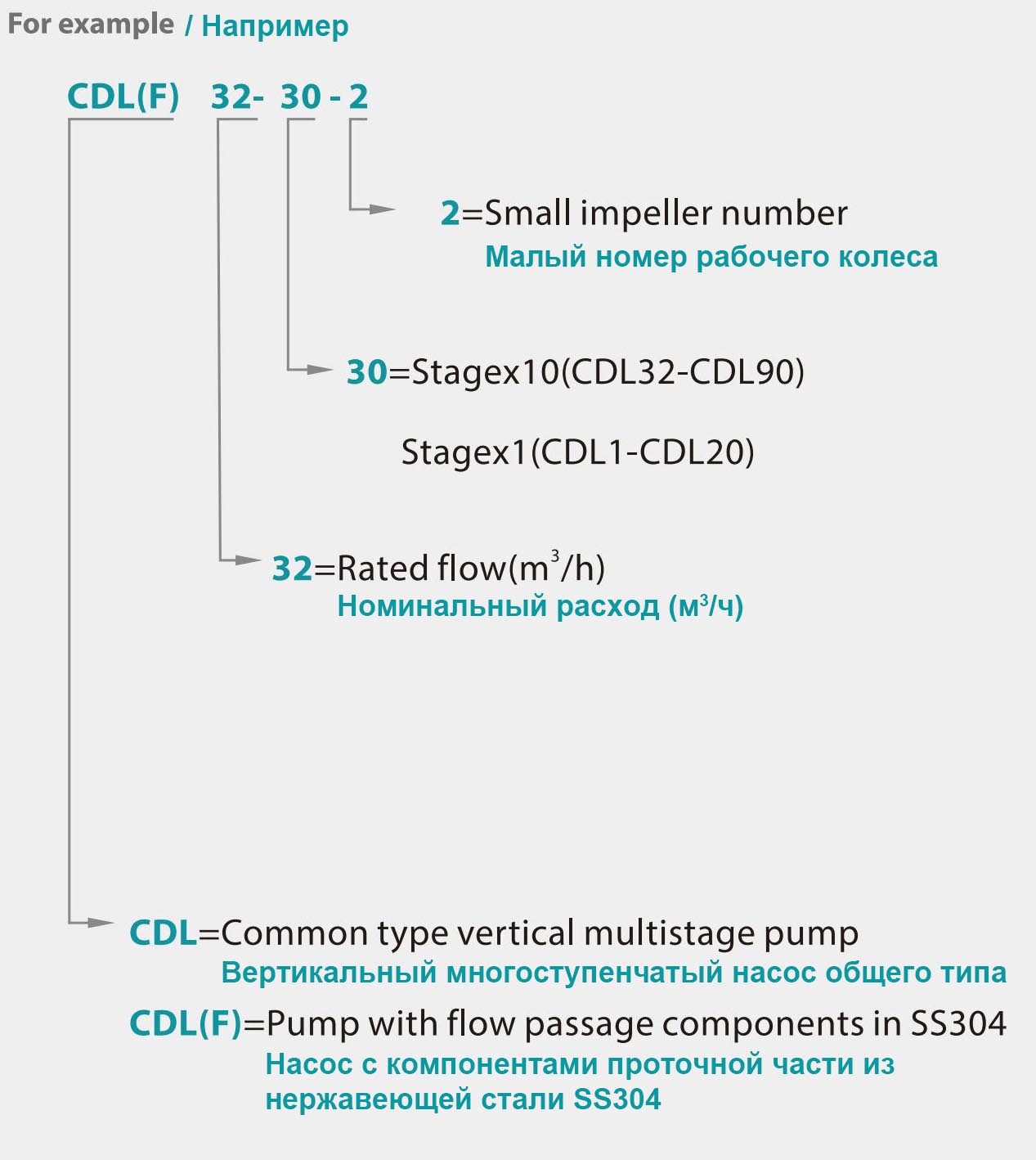

CODE MODELS

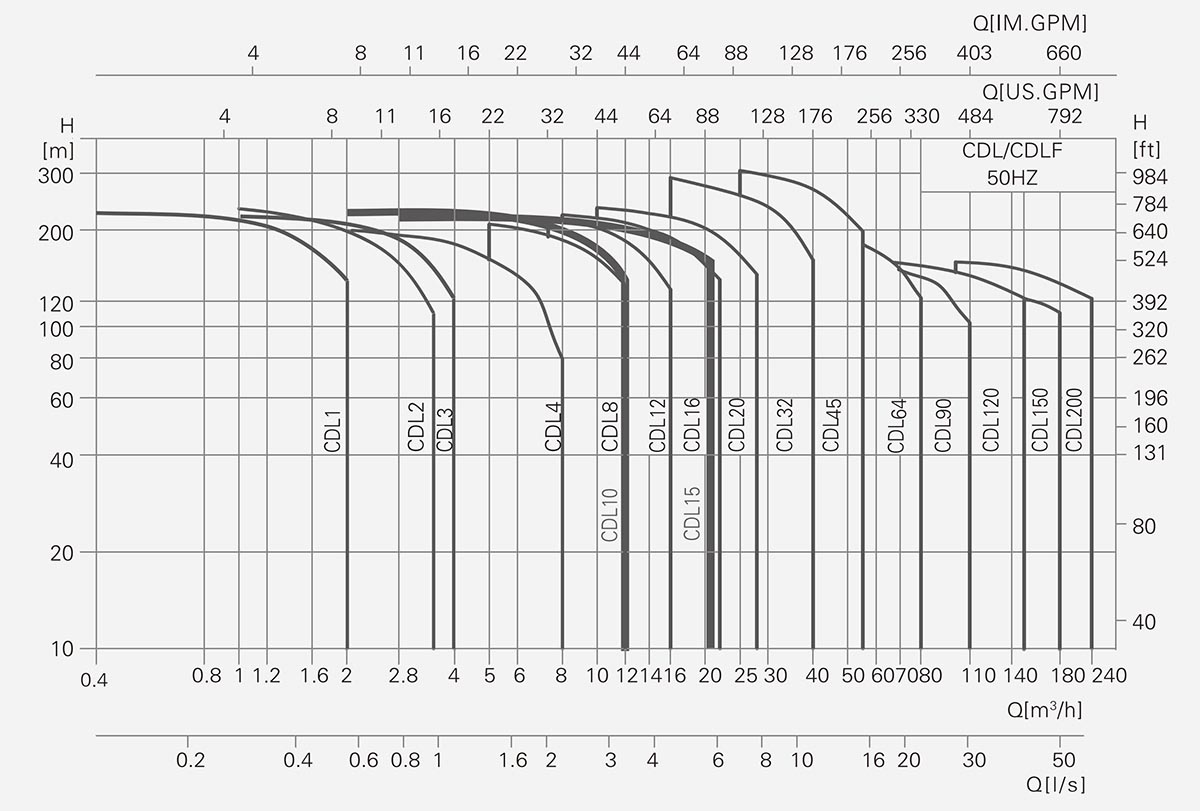

Диапазон производительности

Ассортимент продукции

Ключевой параметр	CDL1	CDL2	CDL3	CDL4	CDL8	CDL12	CDL16	CDL20	CDL32	CDL45	CDL64	CDL90	CDL120	CDL150	CDL200
Номинальный расход(m³/h)	1	2	3	4	8	12	16	20	32	42	65	85	120	150	200
Номинальный расход(l/s)	028	0.56	083	1.1	2.2	3.3	4.4	56	8.9	12.5	178	25	33	41.6	55.6
Диапазон расхода(m³/h)	0.7-24	1-35	1.2-4.4	15-7	5-12	7-16	8-22	10-28	16-40	25-55	30-80	50-110	60-150	80-180	100-240
Flow range(l/s)	0.19-067	028-0.97	033-122	042-19	14-33	1.9-4.4	2.2-6.1	28-7.8	4.4-11.1	6.9-15.3	8.3-22.2	138-305	16.7-41.7	22-50	27.8-66.7
Maximum pressure (bar)	22	23	22	21	21	22	22	23	29	30	22	17	16	16	16
Power двигателя(kw)	0.37-22	0.37-3	0.37-3.0	0.37-4	0.75-7.5	1.5-11	2.2-15	1.1-18.5	1.5-30	30-45	4.0-45	5.5-45	11-75	11-75	18.5-110
Диапазон температур (℃)	-15~+120
Maximum efficiency (%)	44	46	57	57	62	63	66	69	73	75	76	77	74	73	79
Фланец	DN25	DN25	DN 32	DN32	Tn40	DN50	DN50	DN50	DN65	DN80	DN100	DN100	DN125	DN125	DN150
Тип
CDL	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
CDLF	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●

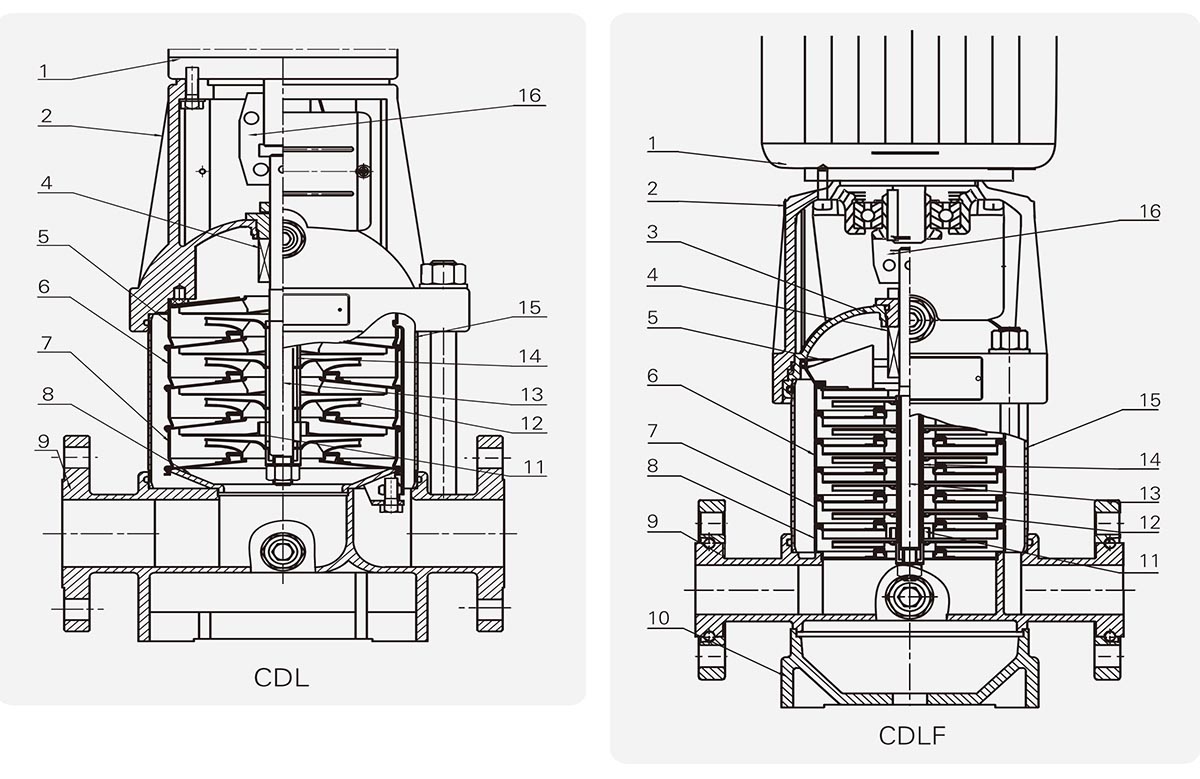

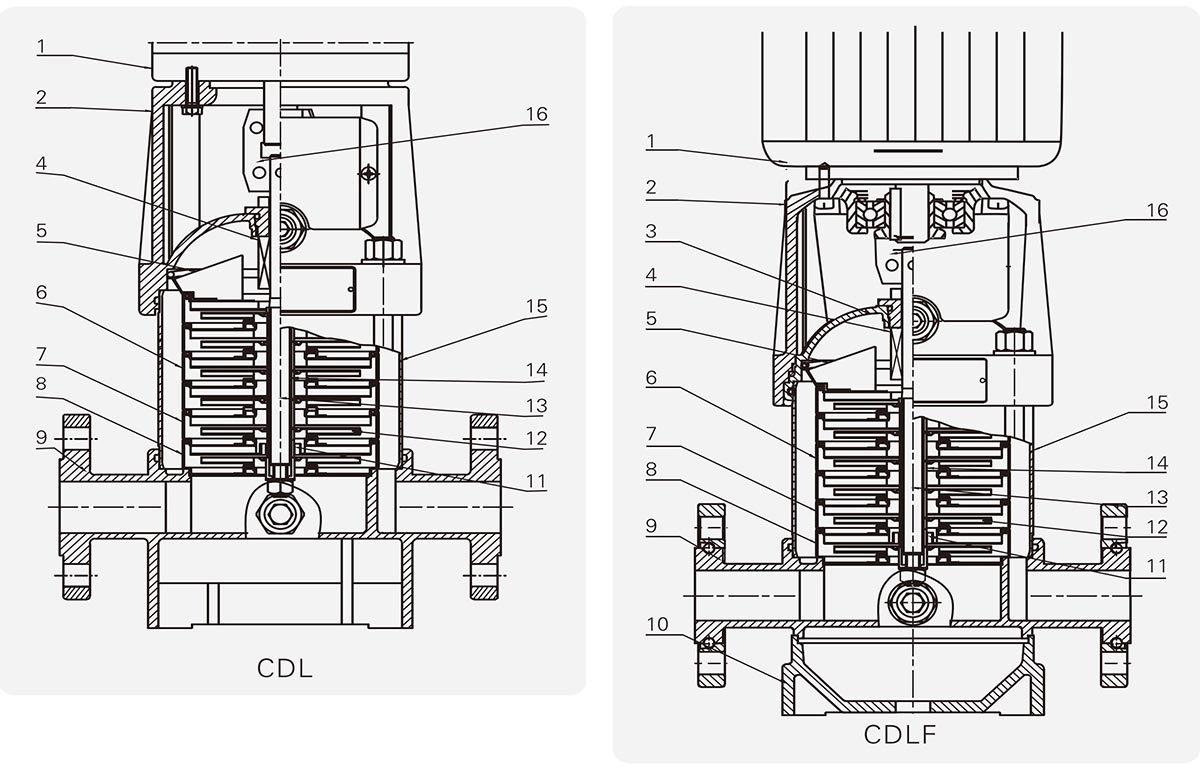

Section CDL,CDLF1,2,3,4.5

Материал CDL.CDLF 1,2,3.4,5

NO.	Name	Material	AISI/ASTM
1	engine	moletron
3	support	cast iron/ductile iron
4	mechanical seal	moletron
5	выходной направляющий аппарат	stainless steel	AISI304
6	guide vane	stainless steel	AISI304
7	support guide vane	stainless steel	AISI304
8	Natural gas removal	stainless steel	AISI304
11	pump bearing	tungsten carbide/alloy
12	impeller	stainless steel	AISI304
13	вал	stainless steel	AISI304, AISI316L
14	корпус рабочего колеса	stainless steel	AISI304
15	pressure cylinder	stainless steel	AISI304
CDLF
16	муфта	steel/metal powder
3	седло уплотнения	stainless steel	AISI304
9	inlet and outlet section	stainless steel	AISI304
10	base	cast iron
CDL
9	inlet and outlet section	cast iron
16	муфта	steel/metal powder

Section figure CDL, CDLF8, 10, 12, 15, 16, 20

Материал CDL, CDLF 8, 10, 12, 15, 16, 20

NO.	Name	Material	AISI/ASTM
1	engine	moletron
3	support	cast iron/ductile iron
4	mechanical seal	moletron
5	выходной направляющий аппарат	stainless steel	AISI304
6	guide vane	stainless steel	AISI304
7	support guide vane	stainless steel	AISI304
8	Natural gas removal	stainless steel	AISI304
11	pump bearing	tungsten carbide/alloy
12	impeller	stainless steel	AISI304
13	вал	stainless steel	AISI304, AISI316L
14	корпус рабочего колеса	stainless steel	AISI304
15	pressure cylinder	stainless steel	AISI304
CDLF
16	муфта	steel/metal powder
3	седло уплотнения	stainless steel	AISI304
9	inlet and outlet section	stainless steel	AISI304
10	base	cast iron
CDL
9	inlet and outlet section	cast iron
16	муфта	steel/metal powder

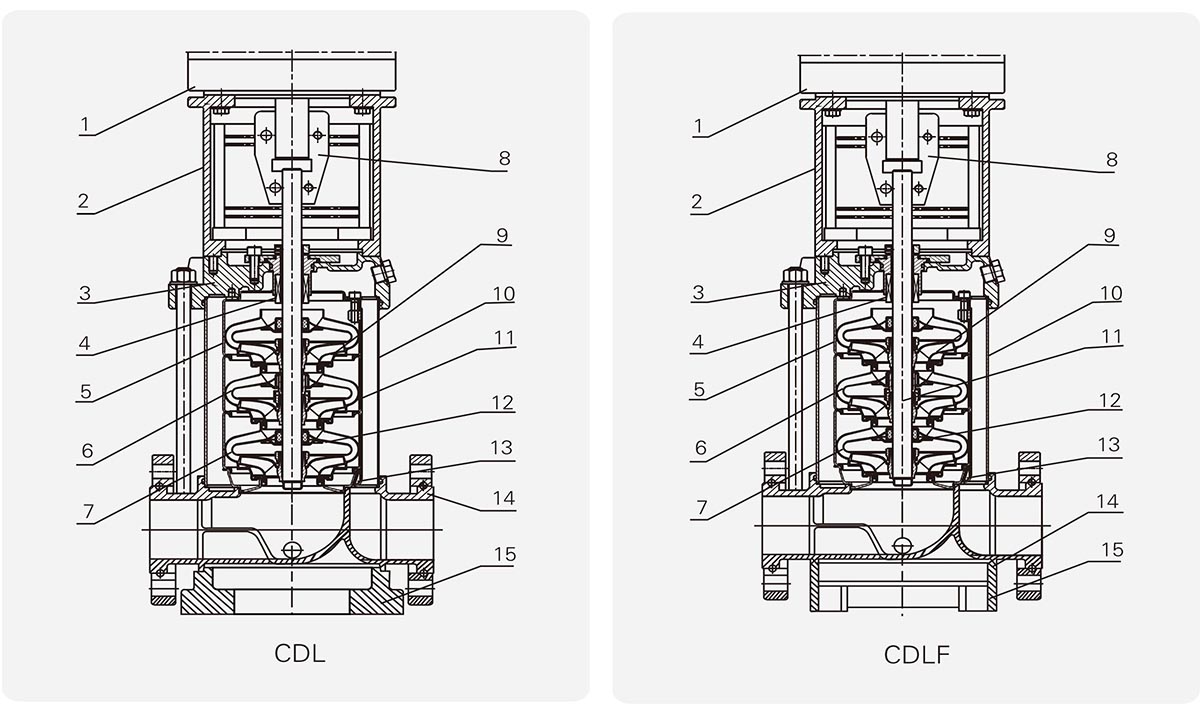

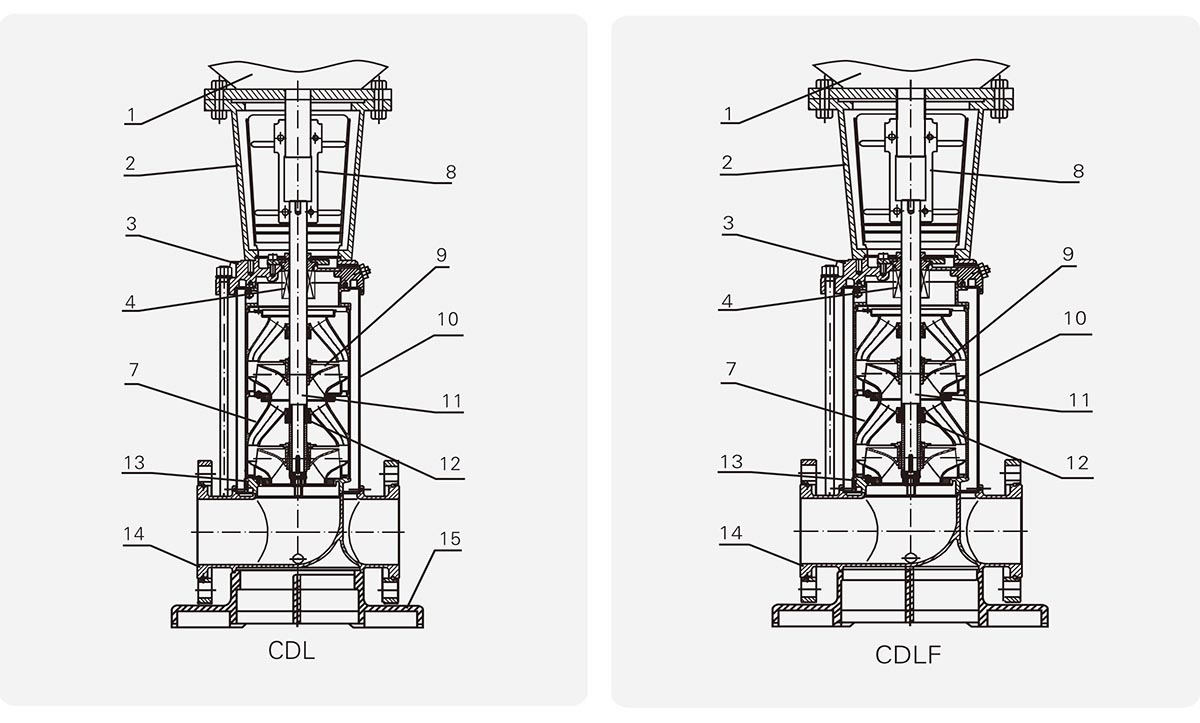

Фигура сечения CDL,CDLF32 .45, 64,90

Материал CDL,CDLF32,45,64,90

NO.	Name	Material	AISI/ASTM
1	engine	moletron
2	support	cast iron/ductile iron	ASTM25B
4	mechanical seal	moletron
5	выходной направляющий аппарат	stainless steel	AISI304
6	guide vane	stainless steel	AISI304
7	support guide vane	stainless steel	AISI304
8	муфта	steel/metal powder
9	impeller	stainless steel	AISI304
10	pump housing	stainless steel	AISI304
11	pump shaft	stainless steel	AISI304 AISI316L AISI431
12	pump bearing	tungsten carbide/alloy
13	inlet guide vane	stainless steel	AISI304
CDLF
3	тюленьсиденье	stainless steelsteel	AISI304
14	allow and exit separately	stainless steel	AISI304
15	base	cast iron	ASTM25B
CDL
3	тюленьсиденье	ковкий чугун	ASTM25B ASTM70-50-05
14	inlet and outlet section	cast iron/ductile iron	ASTM25B ASTM70-50-05

Фигура сечения CDL, CDLF 120, 150, 200

Material CDL, CDLF 120, 150, 200

NO.	Name	Material	AISIASTM
1	engine	moletron
2	support	throw iron/malleable iron	ASTM25B ASTM70-50-05
4	mechanical seal	moletron
7	support guide vane	stainless steelsteel	AISI304
8	муфта	steel/metal powder
9	impeller	stainless steelsteel	AISI304
10	pump housing	stainless steelsteel	AISI304
11	pump shaft	stainless steelsteel	AISI304 AISI316L AISI431
12	pump-bearing	tungsten carbide/copolymer
13	yavhodgidflüger	stainless steelsteel	AISI304
CDLF
3	тюленьсиденье	stainless steelsteel	AISI304
14	inlet and outlet section	stainless steelsteel	AISI304
15	base	throw iron	ASTM70-50-05
CDL
3	тюленьсиденье	пластичныйжелезо	ASTM70-50-05
14	Yanivnevoda	throw iron/malleable iron	ASTM25B ASTM7-50-05

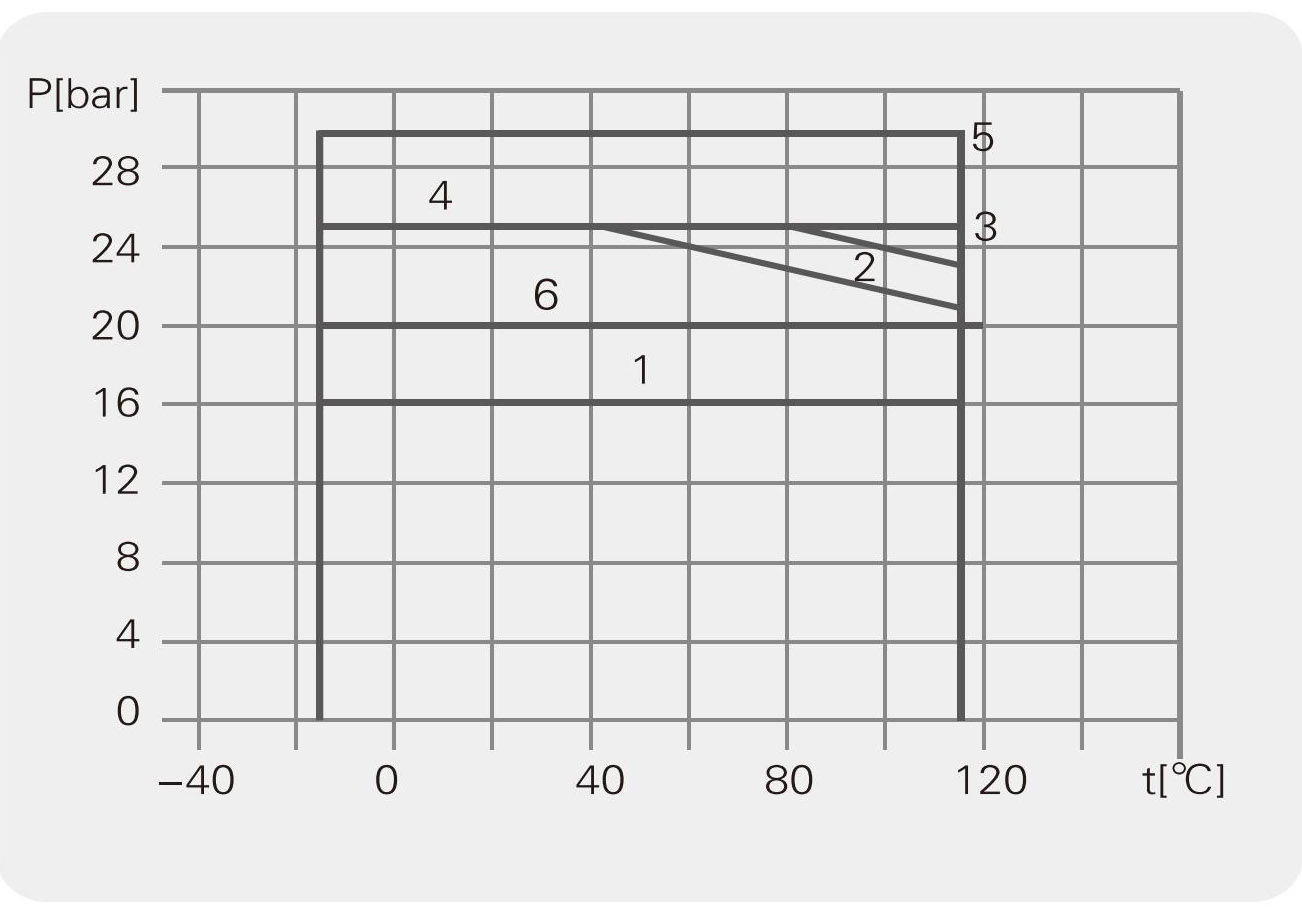

На рисунке ниже показаны пределы давления и температуры, давление и температура находятся в пределах указанного диапазона.

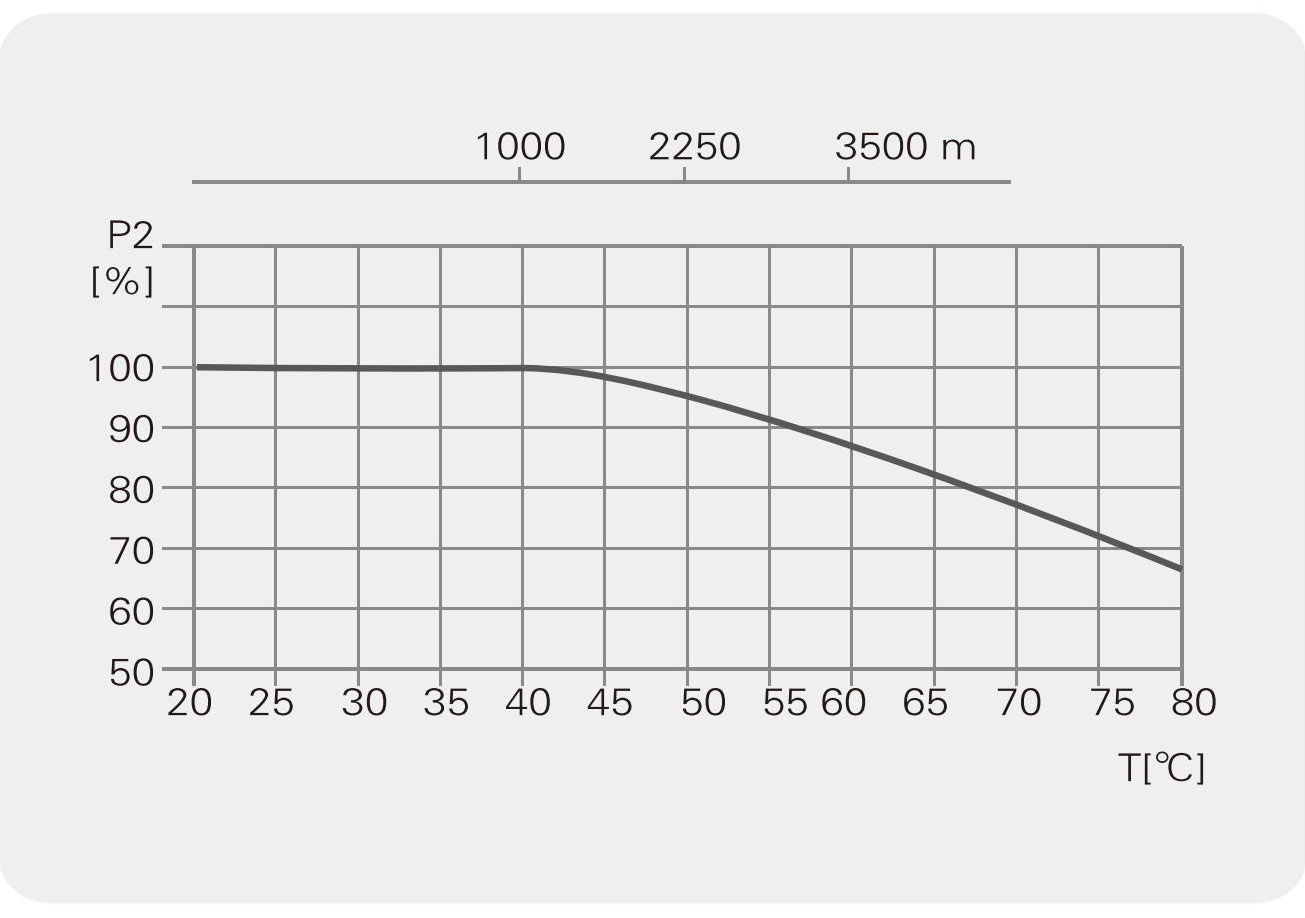

Maximum ambient temperature

When the pump runs in the environmental temperature is more than 40 C, or at an . altitude of more than 1 000 meters, due tothe low density of air and cooling effec is poor, the motor output power P2 willl be reduced. Pump’ running motor power required to be big in the above case.

Maximum working pressure

type		№
CDL,CDLF 1,2,3,4,5		2
CDL,CDLF8,10,12,15,16,20		3
CDL,CDLF 32	32-10-1~32-70	1
	32-80-2~32-120	4
	32-130-2~32-160	5
CDL,CDLF45	45-10-1~45-60	1
	45-70-2~45-90	4
	45-100-2~45-130-2	5
CDL,CDLF64	64-10-1~64-50	1
CDL,CDLF64	64-60-2~64-80-1	4
CDL,CDLF90	90-10-1~90-50-2	1
CDL,CDLF90	85-50~85-60	4
CDL,CDLF 120/150/200		6

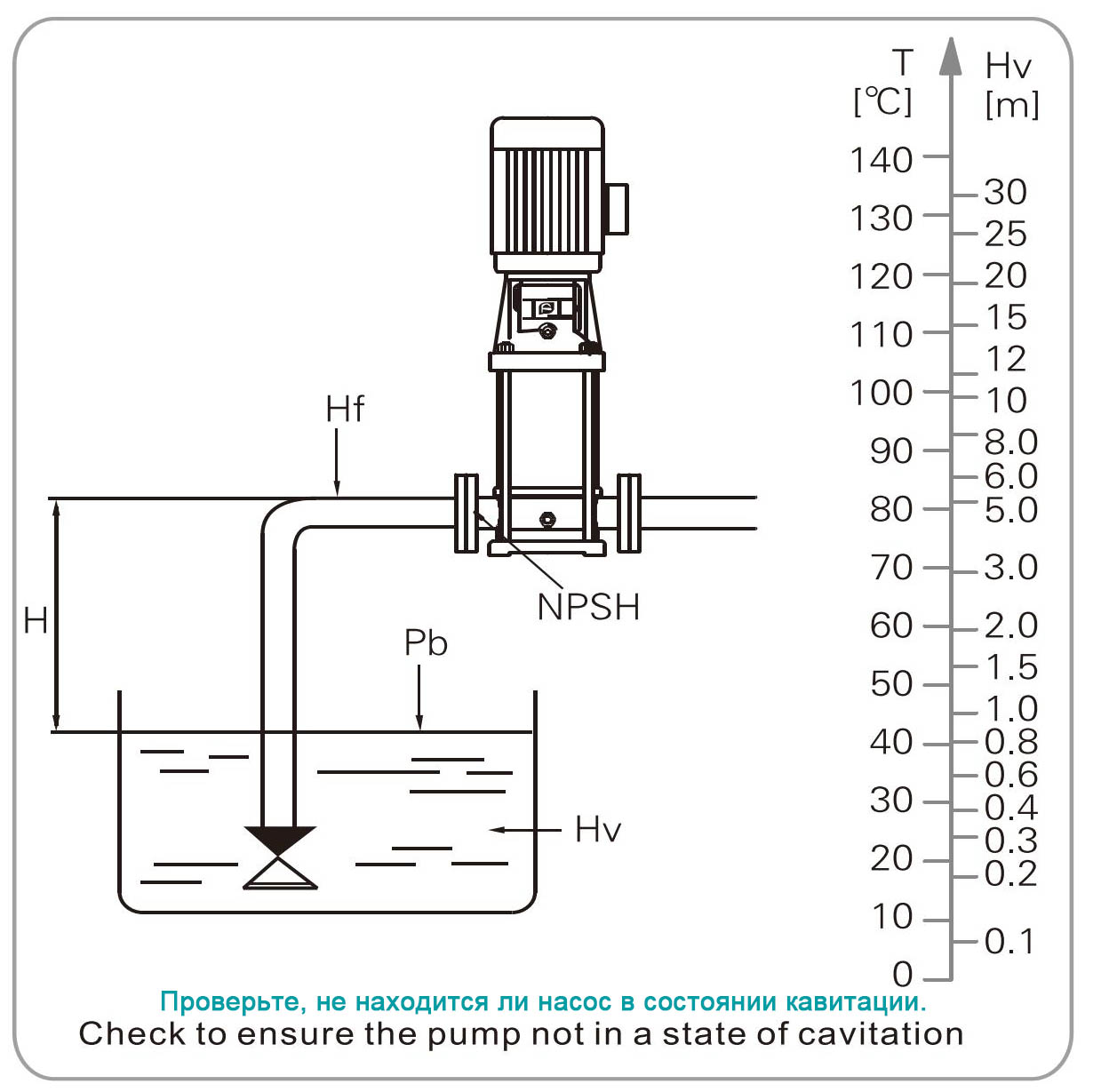

Минимальное давление на впуске (NPSH)

If the pressure in the pump is lower than the evaporation pressure of the pumped liquid, cavitation may occur. To avoid cavitation, ensure that the suction side of the pump is maintained at a minimum pressure. The maximum value of H[m] can be calculated using the formula below.

H=Pb*10.2-NPSH-Hf-Hv-Hs

Pb = атмосферное давление (бар)

Can set atmospheric pressure (bar)

In a closed system, Pb is the system pressure (bar)

NPSH = чистый положительный напор всасывания [м] (считывается с кривой NPSH насоса при максимально возможном расходе)

Ht = потери на входе в линию [м]

Hv = evaporation pressure [m]

Hs = запас прочности = минимум 0,5 м напора

Если H рассчитывается как положительный, насос может работать при условии максимального всасывания H.

If H is calculated as a negative value, the minimum inlet head must be H

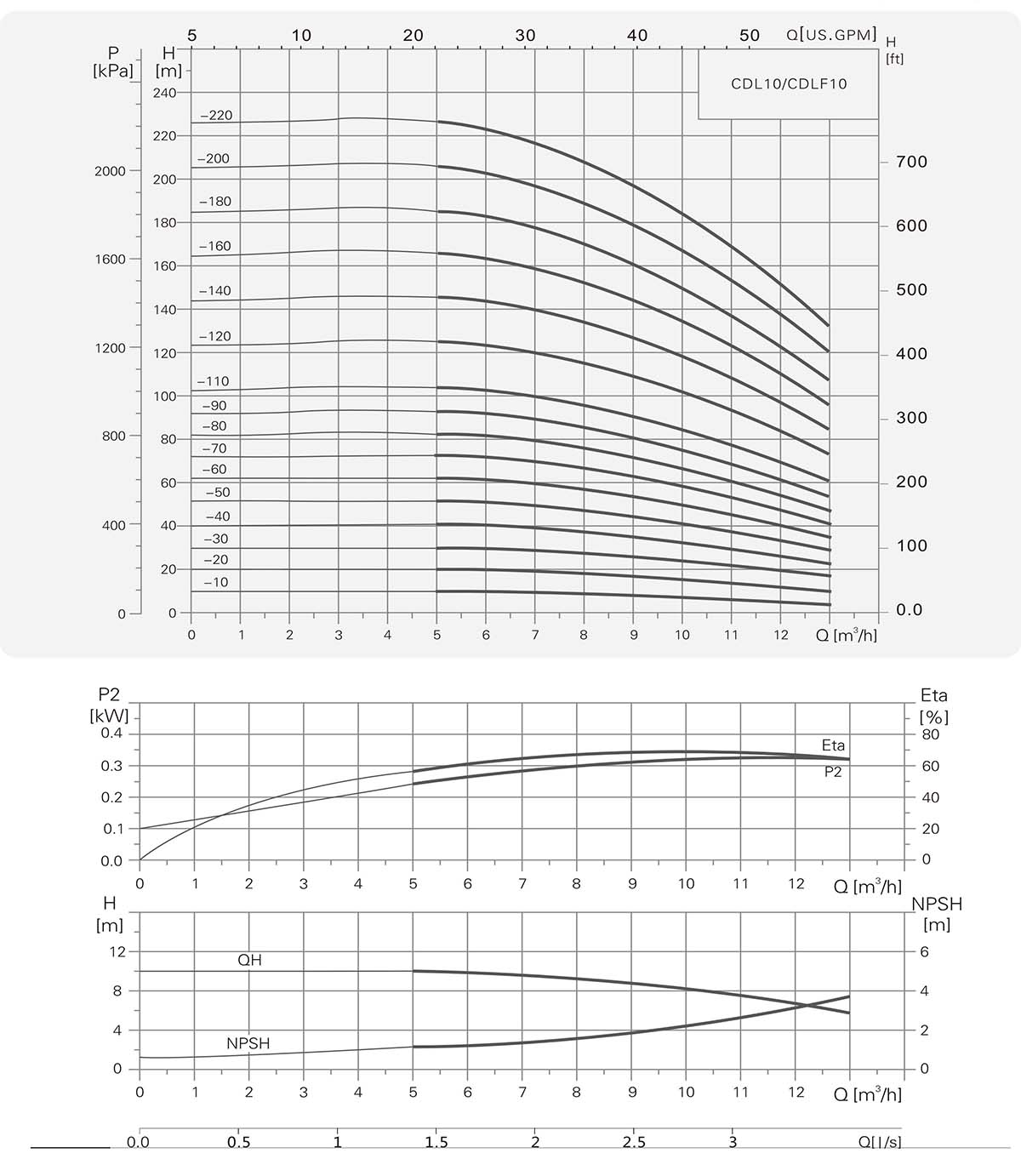

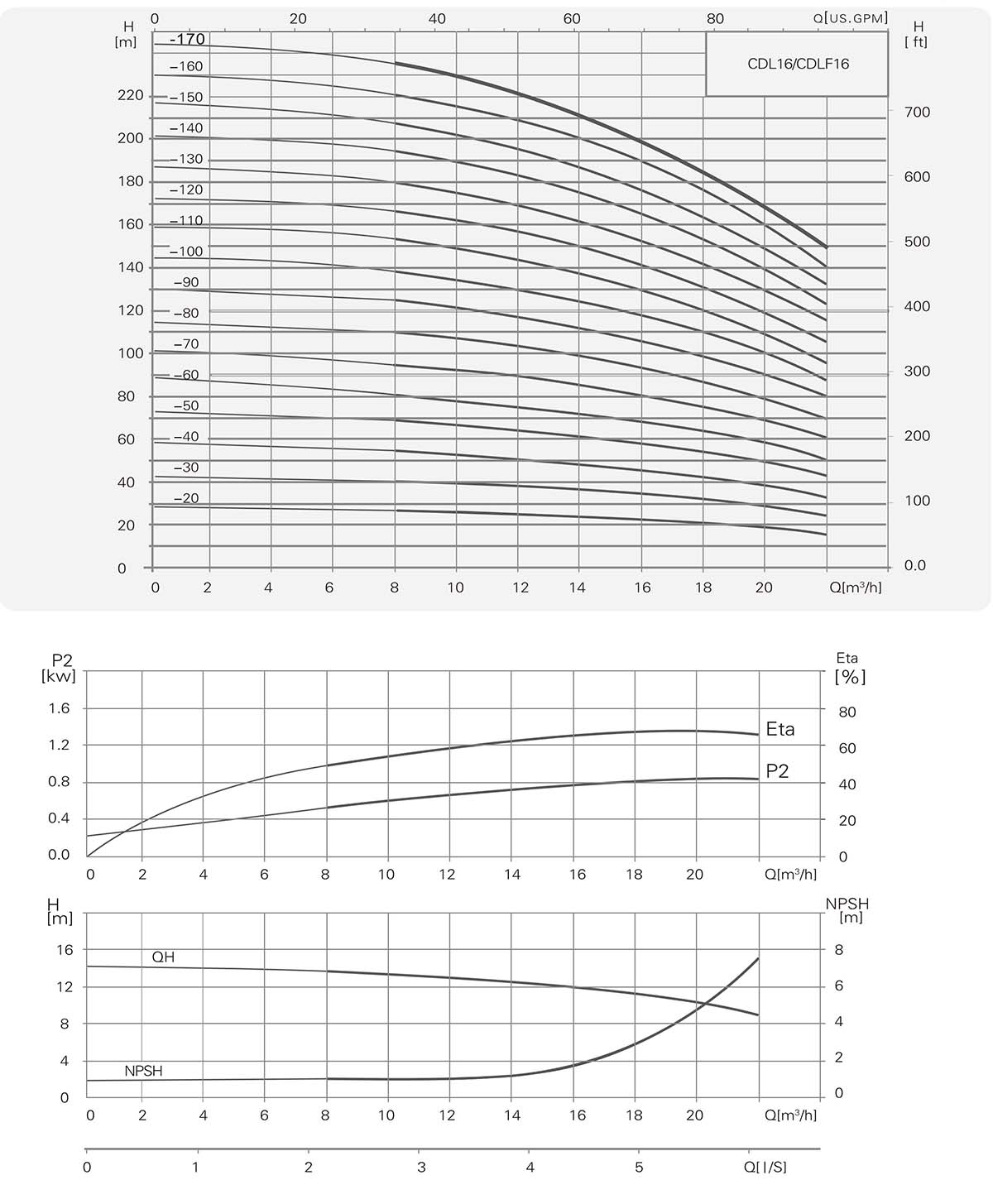

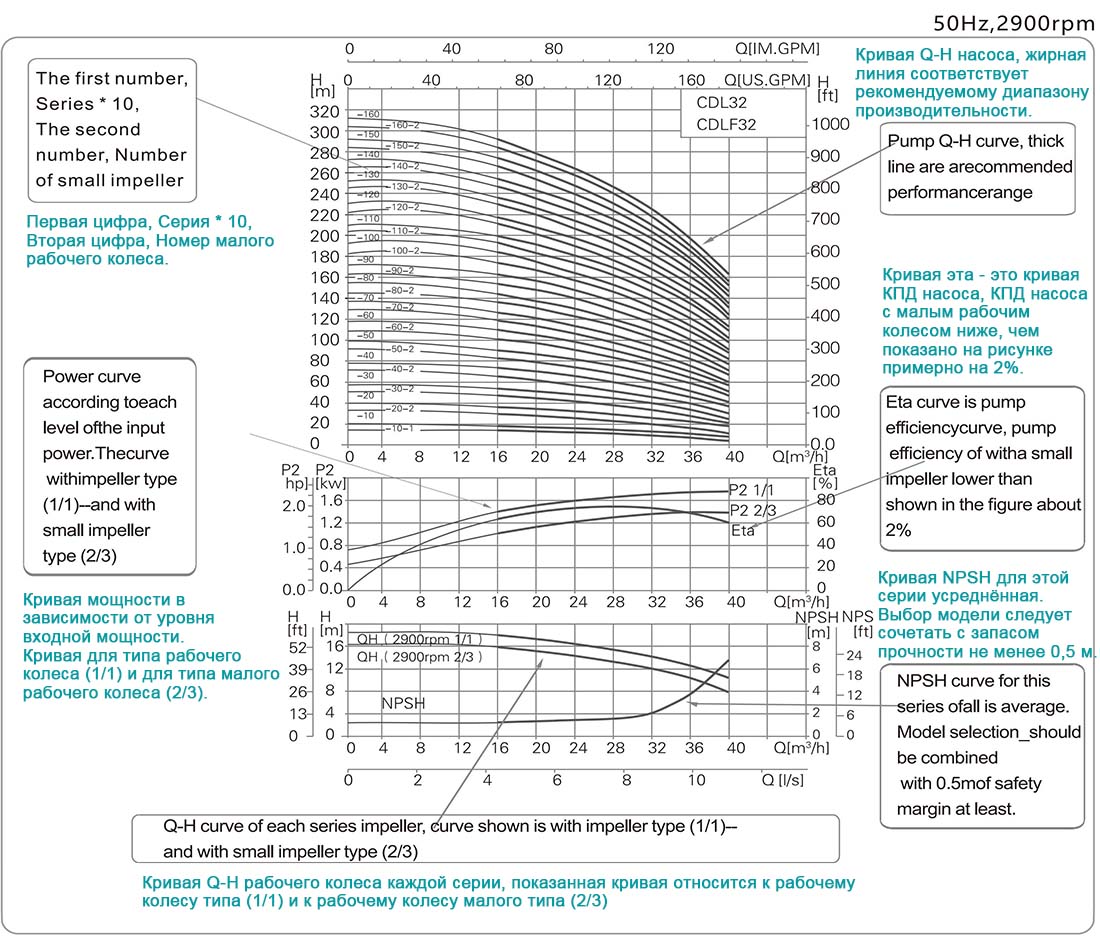

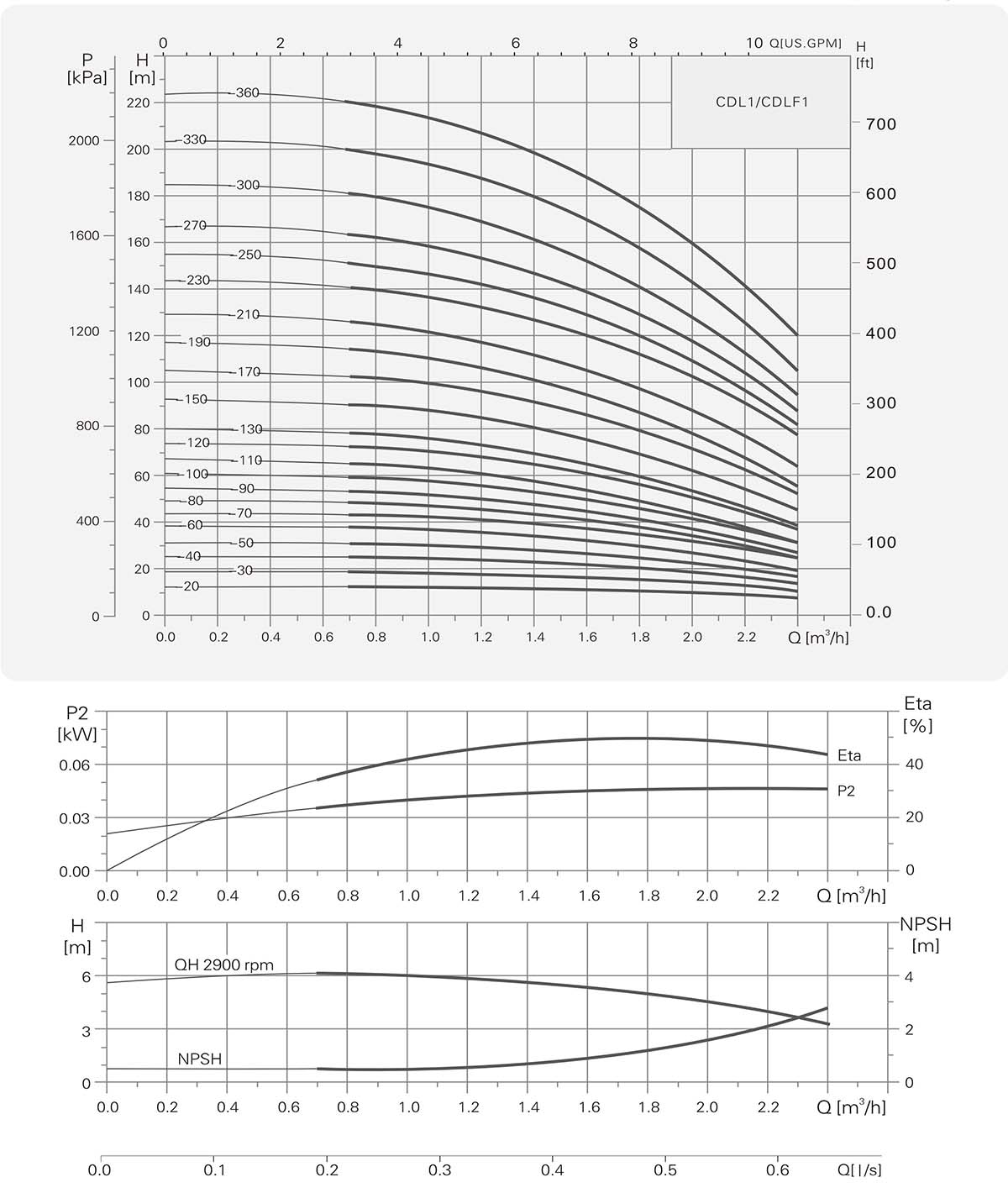

Кривая производительности 50 Гц, 2900 об/мин

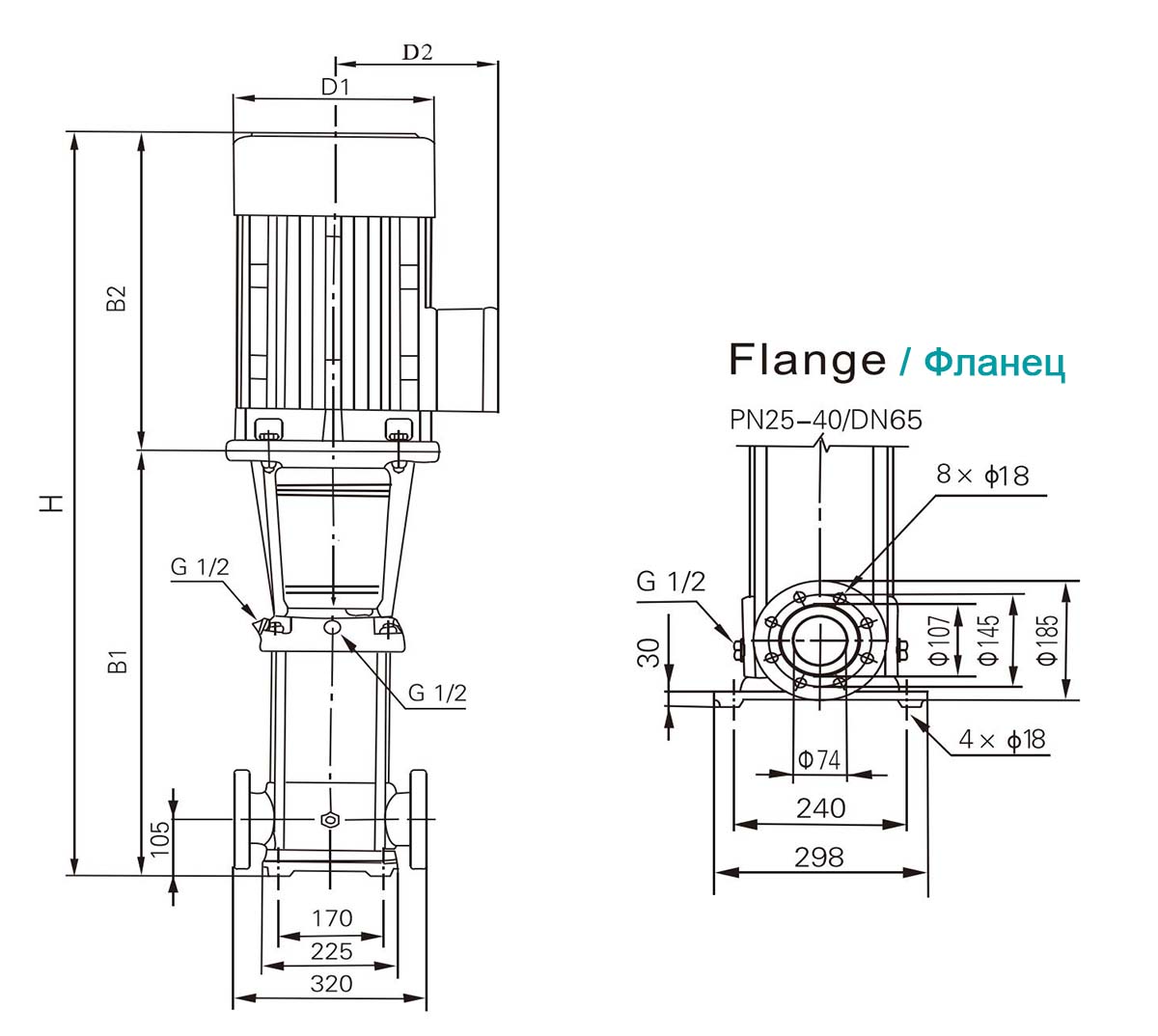

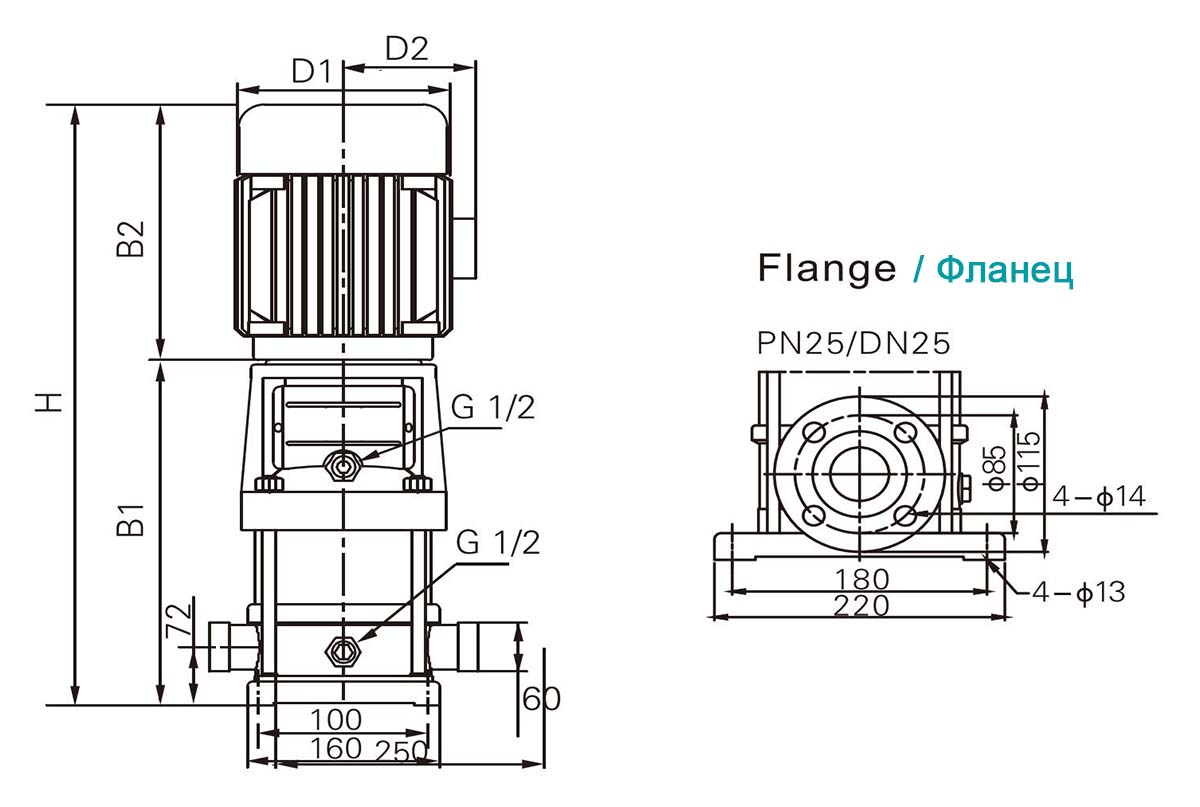

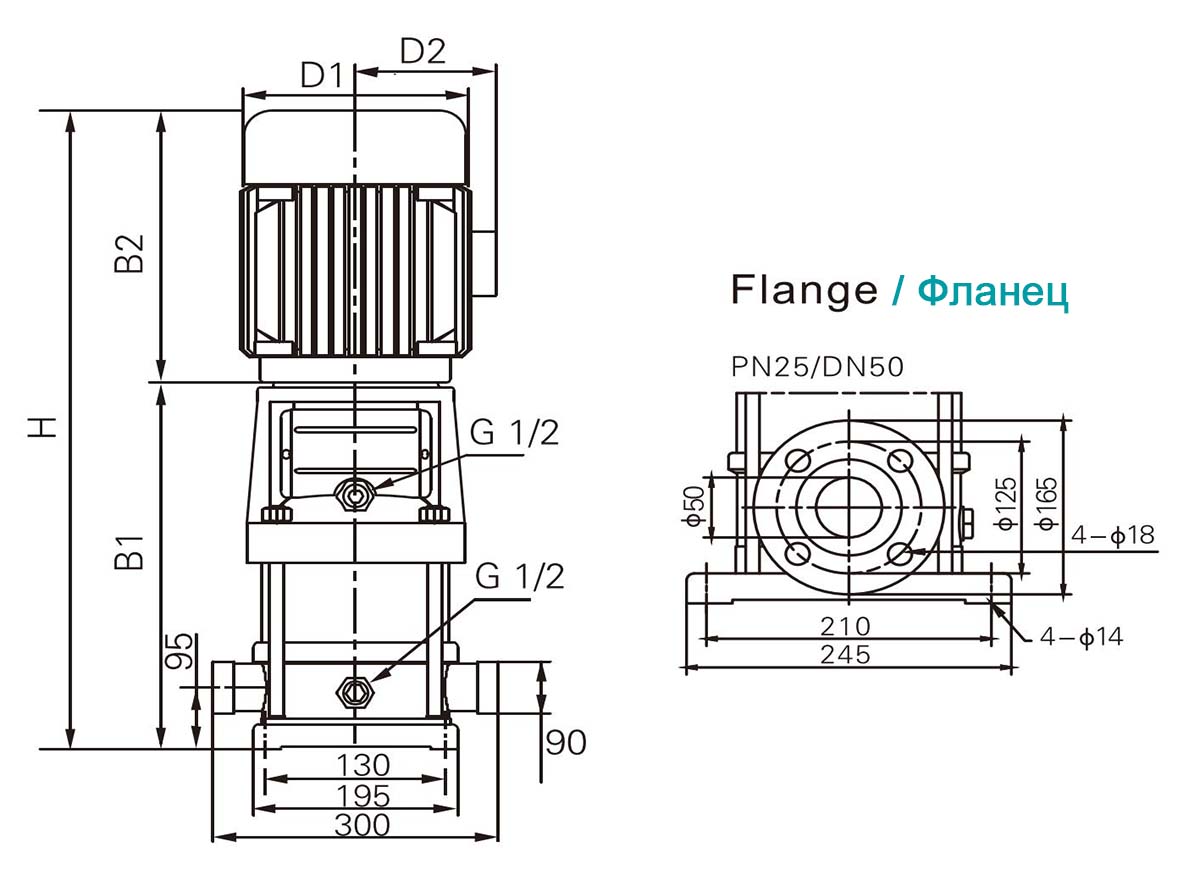

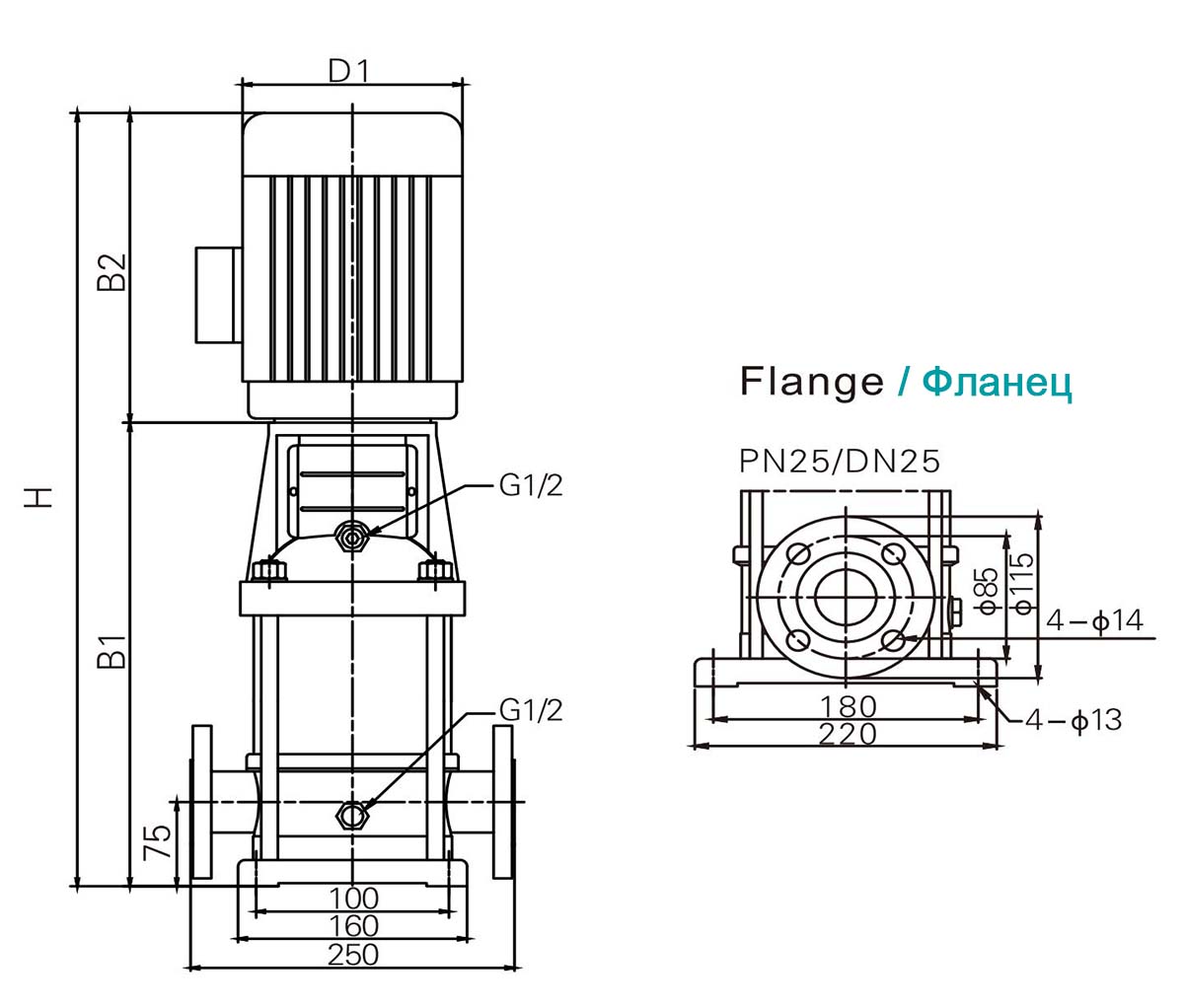

Installation drawing

Changing the overall dimensions of a single-phase motor, explosion-proof motor. For details please contact our company.

Таблица производительности

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³h	0.4	0.6	0.8	1.2	1.4	1.6	1.8	2.0
MODEL	Power (KW)	Flow 1m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³h	0.4	0.6	0.8	1.2	1.4	1.6	1.8	2.0
CDL(F)1-20	0.37	11.5	279	225	504	148	117	23	Effort (m)	13	12.5	12	11	10.5	10	9.5	9
CDL(F)1-30	0.37	17	297	225	522	148	117	23		19	18	17.5	16.5	16	15	14	12
CDL(F)1-40	0.37	22.5	315	225	540	148	117	24		24	23.5	23	21.5	21	19	18	16
CDL(F)1-50	0.37	28	333	225	558	148	117	24		30	29.6	29	27	26	24	22	20
CDL(F)1-60	0.37	33.5	351	225	576	148	117	25		36	35.5	35	33	31	28	26	23
CDL(F)1-70	0.37	39	369	225	594	148	117	25		42	41	40.5	38	36	33	30	27
CDL(F)1-80	0.55	45	387	265	652	170	142	28		48	47	46	43	41	38	34	30
CDL(F)1-90	0.55	51	405	265	670	170	142	28		54	53	52	49	46	43	39	33
CDL(F)1-100	0.55	57	423	265	688	170	142	29		60	59	58	54	51	48	43	36
CDL(F)1-110	0.55	61	441	265	706	170	142	30		66	65	63	59	56	52	47	40
CDL(F)1-120	0.75	67	459	265	724	170	142	33		72	71	69	64	61	57	51	44
CDL(F)1-130	0.75	73	477	265	742	170	142	34		78	77	75	69	66	62	55	47
CDL(F)1-140	0.75	78	495	265	760	170	142	34		83	82	80	74	71	66	59	51
CDL(F)1-150	0.75	84	513	265	778	170	142	35		89	88	86	79	76	71	63	55
CDL(F)1-160	1.1	89	531	265	796	170	142	35		95	93	91	84	81	75	67	58
CDL(F)1-170	1.1	95	549	265	814	170	142	36		101	99	97	89	86	80	71	62
CDL(F)1-180	1.1	100	567	265	832	170	142	36		107	104	102	94	91	84	75	65
CDL(F)1-190	1.1	106	585	265	850	170	142	37		113	110	108	99	96	89	79	69
CDL(F)1-200	1.1	111	603	265	868	170	142	37		118	116	114	94	101	93	83	72
CDL(F)1-210	1.1	117	621	265	886	170	142	38		124	122	120	110	106	98	87	75
CDL(F)1-220	1.1	122	639	265	904	170	142	38		130	127	125	115	111	102	91	78
CDL(F)1-230	1.1	128	657	265	922	170	142	38		137	133	131	121	116	107	96	82
CDL(F)1-240	1.5	133	685	305	990	190	155	38		143	139	137	126	121	111	100	85
CDL(F)1-250	1.5	139	713	305	1018	190	155	44		149	145	143	131	126	116	104	89
CDL(F)1-260	1.5	144	741	305	1046	190	155	45		155	151	149	136	131	120	108	92
CDL(F)1-270	1.5	150	769	305	1074	190	155	45		161	157	155	141	136	125	112	95
CDL(F)1-280	1.5	155	797	305	1102	190	155	45		166	163	160	146	140	129	116	98
CDL(F)1-290	1.5	160	825	305	1130	190	155	45		172	169	165	151	144	134	120	102
CDL(F)1-300	1.5	166	853	305	1158	190	155	46		178	175	171	157	150	139	124	106
CDL(F)1-310	2.2	172	871	305	1176	190	155	46		184	180	176	162	155	144	128	110
CDL(F)1-320	2.2	177	889	305	1194	190	155	48		190	186	182	167	160	149	132	114
CDL(F)1-330	2.2	183	907	305	1212	190	155	48		196	192	188	173	165	154	137	118
CDL(F)1-340	2.2	188	925	305	1230	190	155	48		202	198	193	178	170	159	141	122
CDL(F)1-350	2.2	194	943	305	1248	190	155	48		208	204	199	184	175	164	146	126
CDL(F)1-360	2.2	200	961	305	1266	190	155	49		214	210	205	190	181	169	151	130

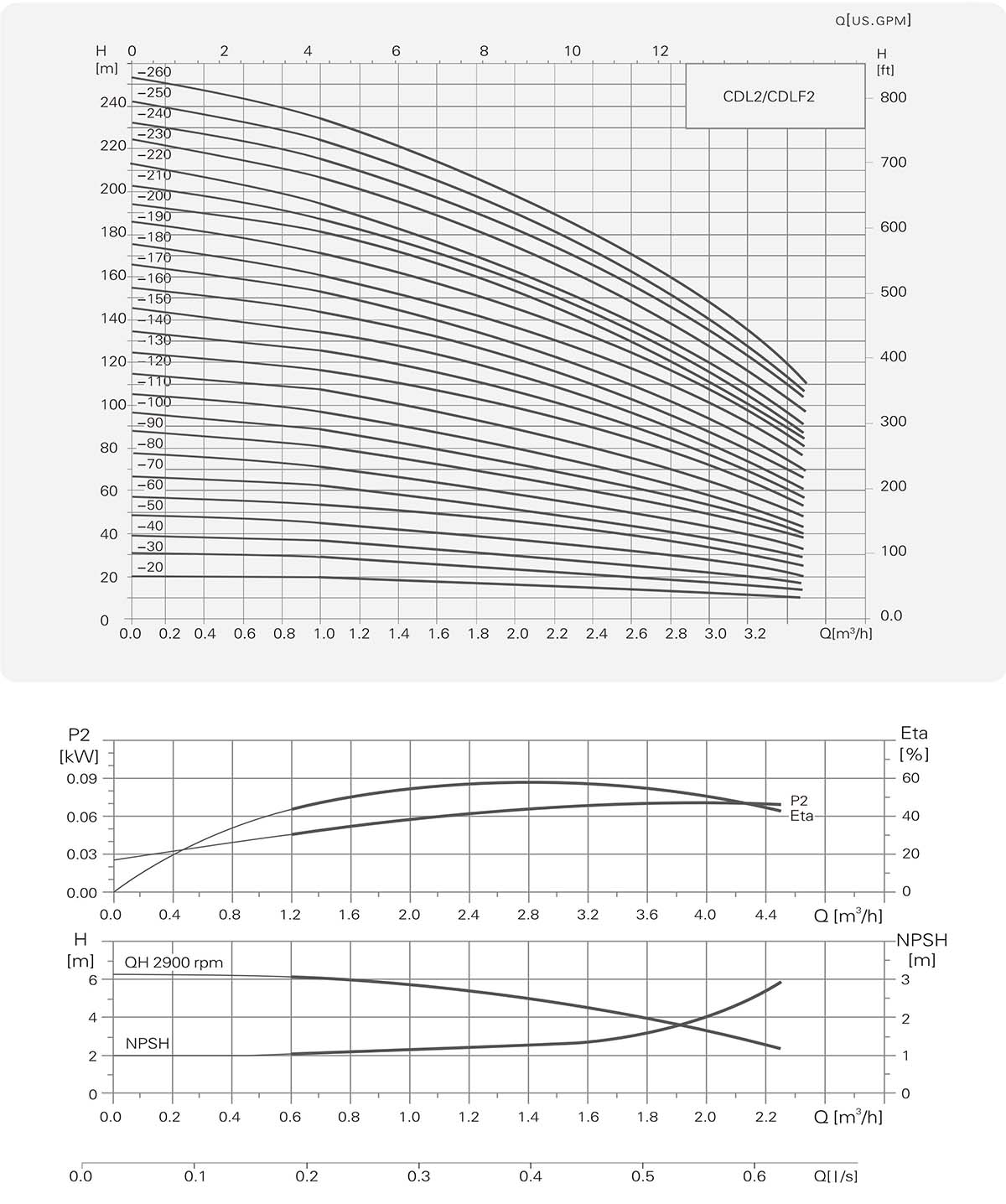

Characteristics 50 Hz, 2900 rpm

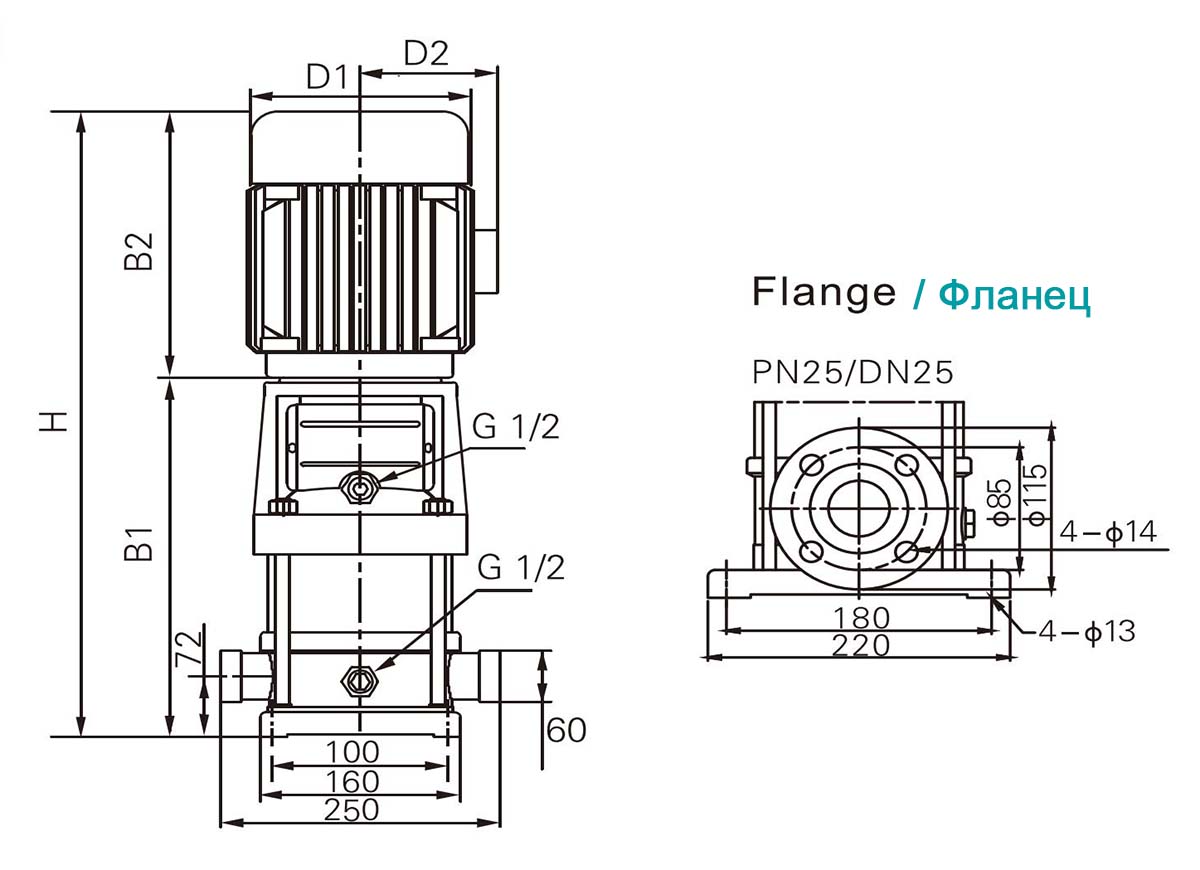

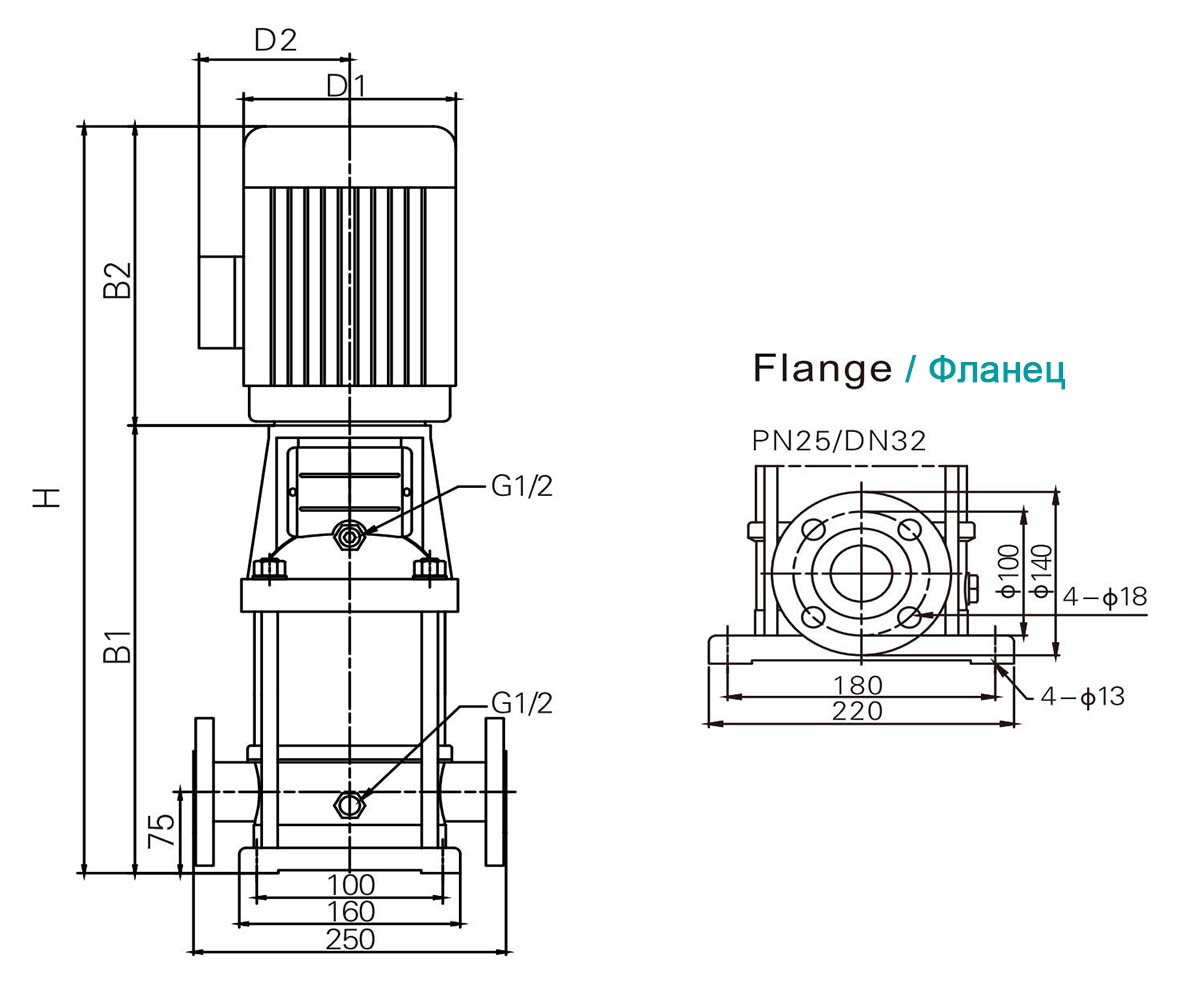

Installation drawing

Однофазный двигатель, взрывозащищенный двигатель. Изменение габаритных размеров. За подробностями обращайтесь в нашу компанию.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³/h)	1	1.2	1.6	2.4	2.8	3.2
MODEL	Power (KW)	Flow 2m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	1	1.2	1.6	2.4	2.8	3.2
CDL(F)2-20	0.37	15	279	225	504	148	117	24	Effort (m)	18	17	16	13	12	10
CDL(F)2-30	0.37	22	297	225	522	148	117	24		27	26	24	20	18	15
CDL(F)2-40	0.55	30	315	265	580	170	142	25		36	35	33	26	24	20
CDL(F)2-50	0.55	37	333	265	598	170	142	26		45	43	40	33	30	24
CDL(F)2-60	0.75	45	351	265	616	170	142	30		54	52	50	40	36	30
CDL(F)2-70	0.75	52	369	265	634	170	142	30		63	61	57	47	41	35
CDL(F)2-80	1.1	60	387	265	652	170	142	33		72	70	65	54	48	40
CDL(F)2-90	1.1	67	405	265	670	170	142	33		80	78	73	61	54	45
CDL(F)2-100	1.1	75	423	265	688	170	142	33		90	87	81	67	59	50
CDL(F)2-110	1.1	82	441	265	706	170	142	34		98	95	89	73	64	54
CDL(F)2-120	1.5	90	469	305	774	190	155	35		108	104	98	81	71	60
CDL(F)2-130	1.5	98	487	305	792	190	155	35		116	114	106	89	78	65
CDL(F)2-140	1.5	105	505	305	810	190	155	36		126	122	115	95	84	70
CDL(F)2-150	1.5	112	523	305	828	190	155	36		134	130	123	100	90	73
CDL(F)2-160	2.2	120	541	305	846	190	155	45		144	139	132	107	96	80
CDL(F)2-170	2.2	128	559	305	864	190	155	45		153	148	140	114	102	85
CDL(F)2-180	2.2	136	577	305	882	190	155	46		161	157	148	121	108	91
CDL(F)2-190	2.2	144	595	305	900	190	155	46		170	166	156	128	114	95
CDL(F)2-200	2.2	151	613	305	918	190	155	47		179	175	164	135	120	100
CDL(F)2-210	2.2	158	631	305	936	190	155	47		188	184	172	142	126	105
CDL(F)2-220	2.2	165	649	305	954	190	155	47		197	192	180	148	130	110
CDL(F)2-230	3	174	675	335	1010	197	165	51		206	201	189	156	139	115
CDL(F)2-240	3	182	693	335	1028	197	165	51		215	210	197	163	146	120
CDL(F)2-250	3	190	711	335	1046	197	165	52		224	219	206	171	152	125
CDL(F)2-260	3	198	729	335	1064	197	165	53		232	228	214	179	158	130

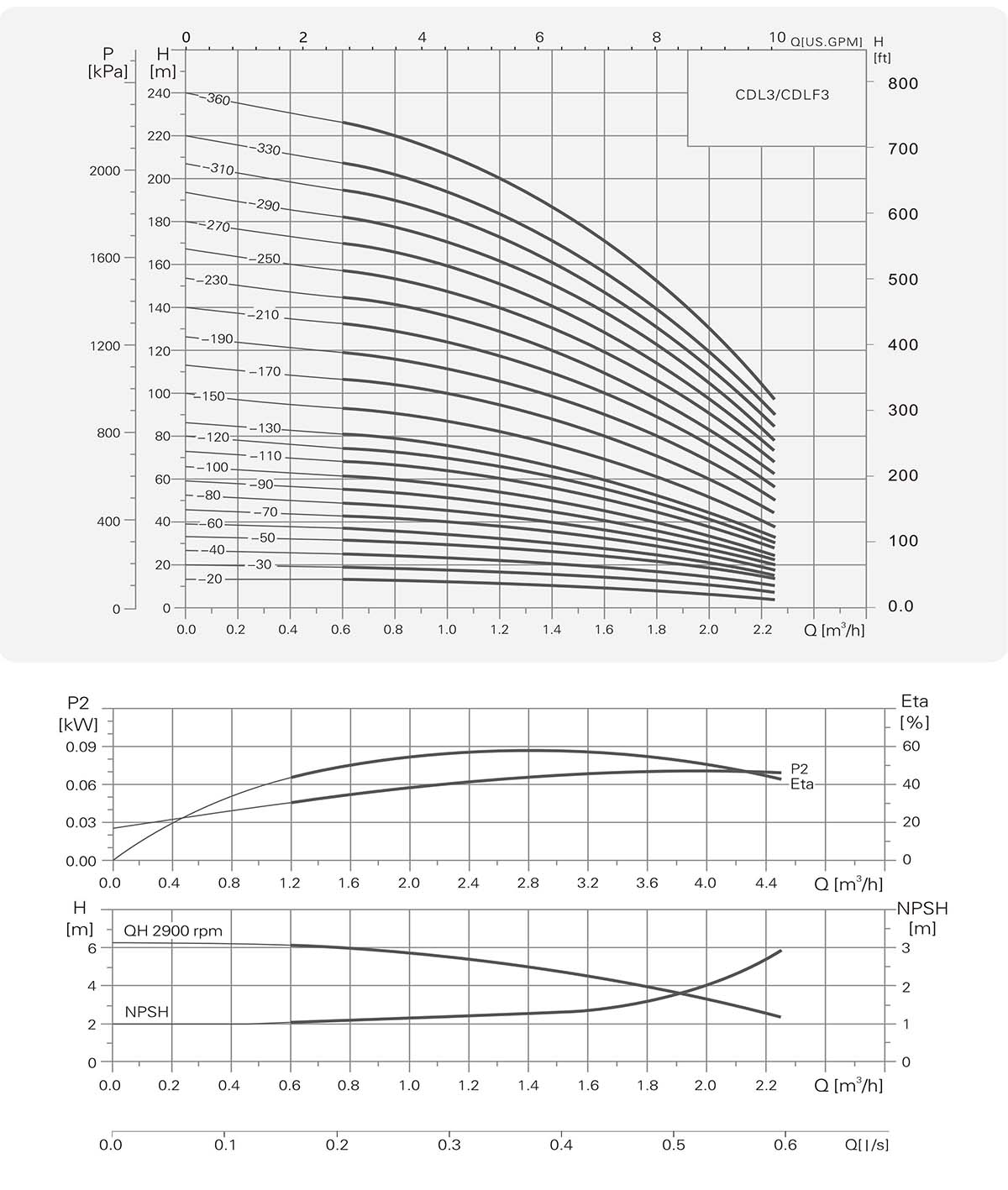

Performance curve: 50 Hz, 2900 rpm

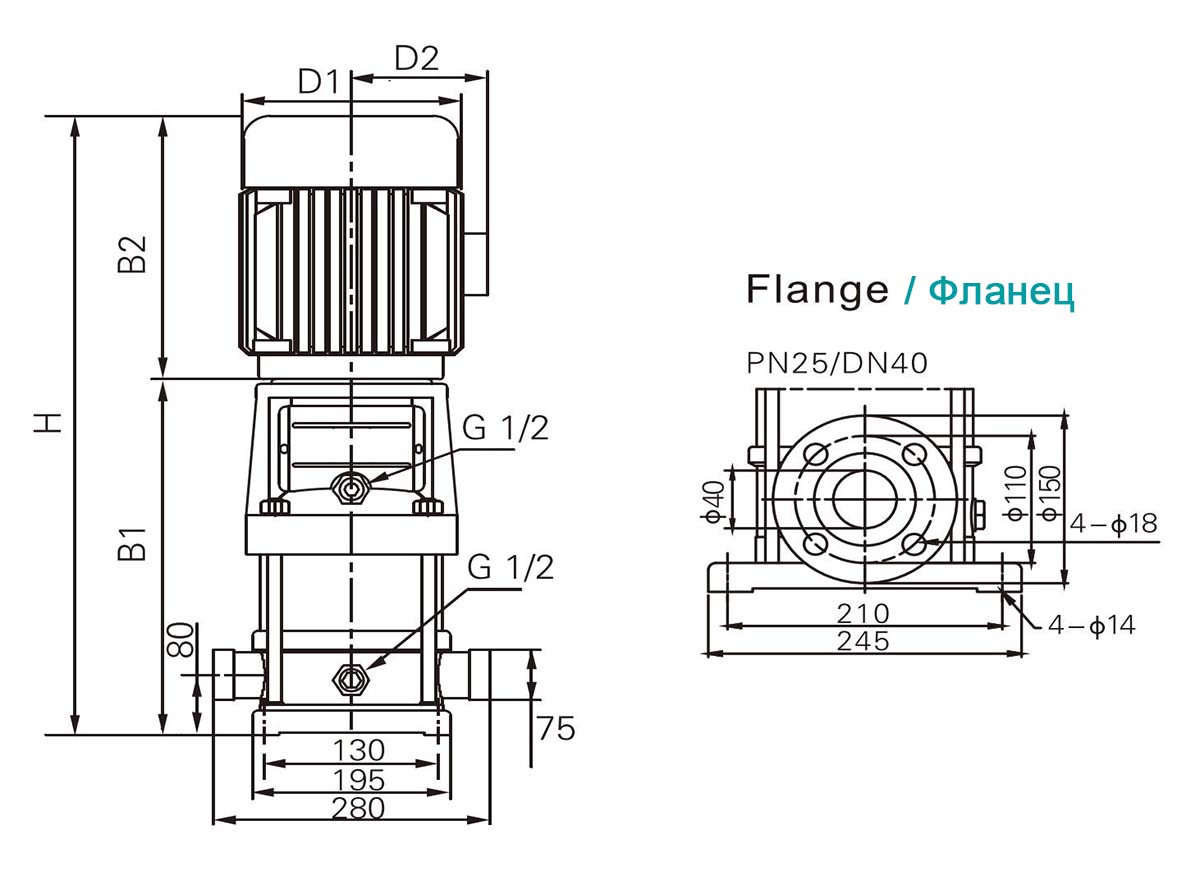

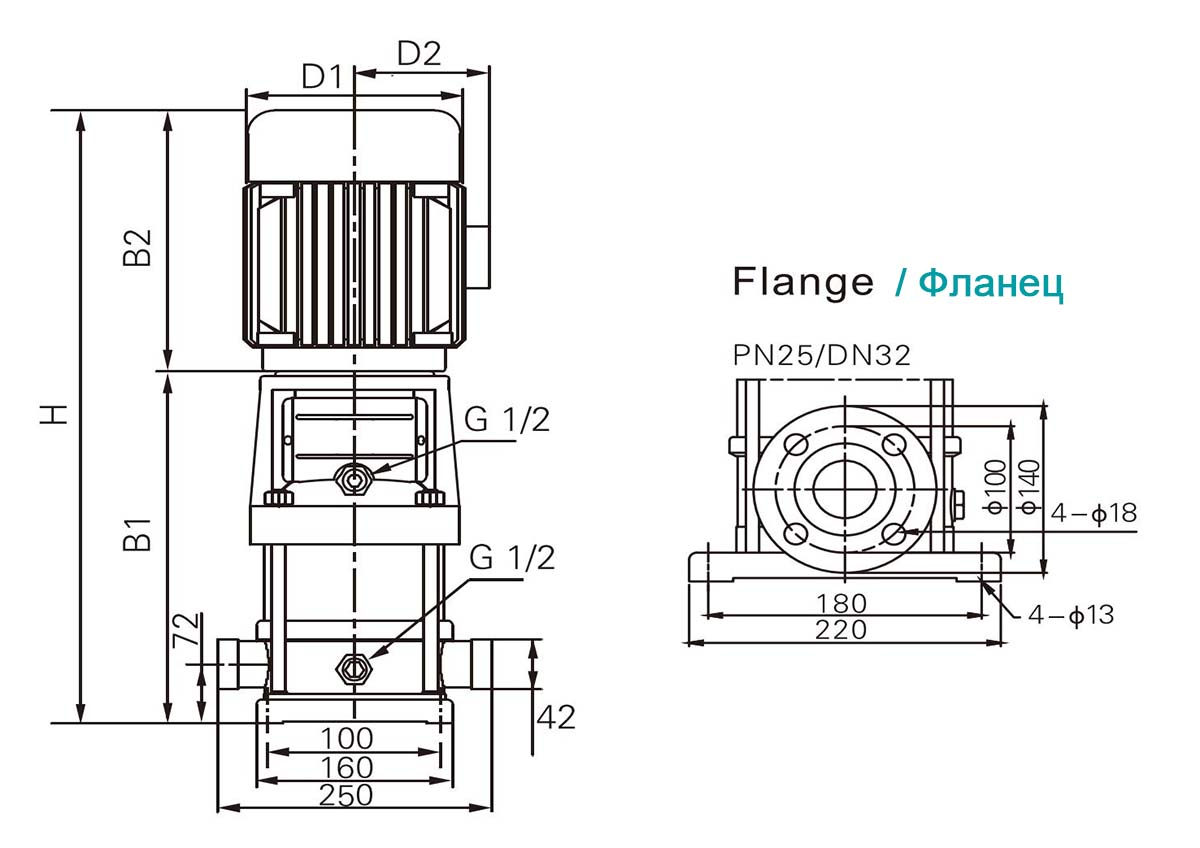

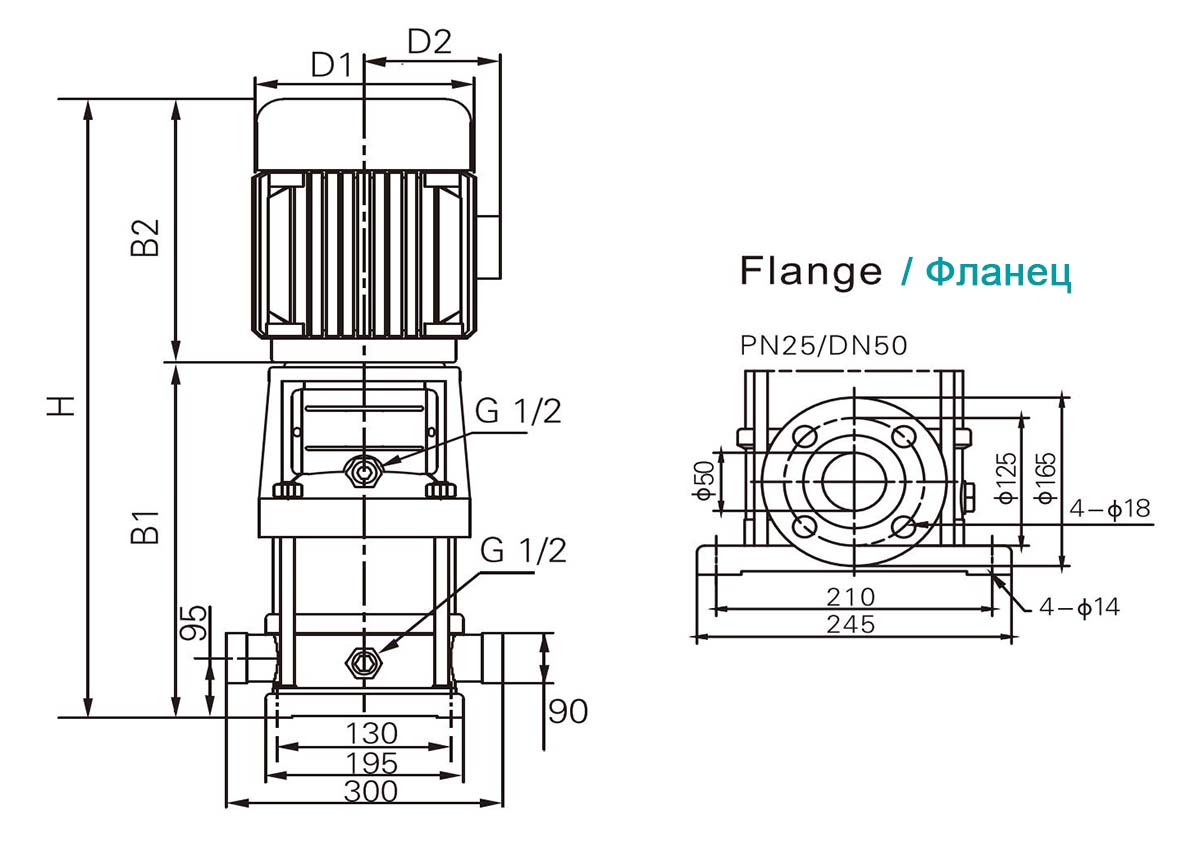

Installation drawing

Однофазный двигатель, взрывозащищенный двигатель. Для получения подробной информации свяжитесь с нашей компанией.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³h)	0.4	0.6	0.8	1.2	1.4	1.6	1.8	2.0
MODEL	Power (KW)	Flow 1m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³h)	0.4	0.6	0.8	1.2	1.4	1.6	1.8	2.0
CDL(F)3-20	0.37	9	297	225	522	148	117	23	Effort(m)	12.5	11.5	11	10.5	10	8	7	6
CDL(F)3-30	0.37	14	324	225	549	148	117	23		19	18.5	17.5	16.5	15	13	11	9
CDL(F)3-40	0.37	19	351	225	576	148	117	24		25	24	23	21.5	20	18	15	12
CDL(F)3-40	0.37	19	351	225	576	148	117	24		25	24	23	21.5	20	18	15	12
CDL(F)3-50	0.37	23	378	225	603	148	117	24		31	30	29	27	25	22	19	16
CDL(F)3-60	0.55	28	405	265	670	148	117	25		36	35	34	32	30	27	23	19
CDL(F)3-70	0.55	32	432	265	697	148	117	26		43	41	39	37	34	31	27	22
CDL(F)3-80	0.75	37	459	265	724	170	142	30		49	47	45	43	39	35	31	25
CDL(F)3-90	0.75	42	486	265	751	170	142	31		55	53	51	48	45	40	35	28
CDL(F)3-100	0.75	47	513	265	778	170	142	32		61	59	57	54	50	45	39	31
CDL(F)3-110	1.1	51	540	265	805	170	142	32		67	64	61	58	54	49	42	34
CDL(F)3-120	1.1	55	567	265	832	170	142	33		73	70	67	63	58	52	45	37
CDL(F)3-130	1.1	60	594	265	859	170	142	34		78	76	73	69	64	57	49	40
CDL(F)3-140	1.1	65	621	265	886	170	142	34		84	82	78	74	68	61	53	43
CDL(F)3-150	1.1	69	648	265	913	170	142	35		90	88	84	79	73	66	57	46
CDL(F)3-160	1.5	74	685	305	990	170	142	35		96	94	90	84	78	70	60	49
CDL(F)3-170	1.5	79	712	305	1017	190	155	41		103	100	96	90	83	75	64	52
CDL(F)3-180	1.5	84	739	305	1044	190	155	41		109	106	100	95	87	79	68	55
CDL(F)3-190	1.5	88	766	305	1071	190	155	42		115	112	107	100	92	83	72	58
CDL(F)3-190	1.5	88	766	305	1071	190	155	42		115	112	107	100	92	83	72	58
CDL(F)3-200	1.5	93	793	305	1098	190	155	43		121	118	113	106	97	87	75	61
CDL(F)3-210	2.2	98	820	305	1125	190	155	45		128	124	119	112	102	91	79	64
CDL(F)3-220	2.2	103	847	305	1152	190	155	45		134	129	124	117	107	95	82	67
CDL(F)3-230	2.2	107	874	305	1179	190	155	46		140	135	130	122	112	100	86	70
CDL(F)3-240	2.2	112	901	305	1206	190	155	46		145	141	135	127	117	104	90	73
CDL(F)3-250	2.2	116	928	305	1233	190	155	47		151	147	141	131	122	109	94	76
CDL(F)3-260	2.2	120	955	305	1260	190	155	47		157	153	146	137	127	103	97	79
CDL(F)3-270	2.2	124	982	305	1287	190	155	48		164	159	152	143	132	117	101	82
CDL(F)3-280	2.2	129	1009	305	1314	190	155	48		169	164	157	148	137	121	105	85
CDL(F)3-290	2.2	133	1036	305	1341	190	155	49		175	170	163	153	142	126	109	88
CDL(F)3-300	2.2	138	1063	305	1368	190	155	51		181	176	169	159	147	130	112	91
CDL(F)3-310	3.0	142	1100	335	1435	197	165	57		187	182	175	165	153	135	116	94
CDL(F)3-320	3.0	147	1127	335	1462	197	165	57		193	188	181	170	158	140	120	97
CDL(F)3-330	3.0	151	1154	335	1489	197	165	58		199	194	187	176	163	145	125	100
CDL(F)3-340	3.0	156	1181	335	1516	197	165	58		205	200	192	181	168	148	129	103
CDL(F)3-350	3.0	162	1208	335	1543	197	165	59		211	206	198	186	173	152	133	106
CDL(F)3-360	3.0	168	1235	335	1570	197	165	60		218	212	204	192	178	159	137	109

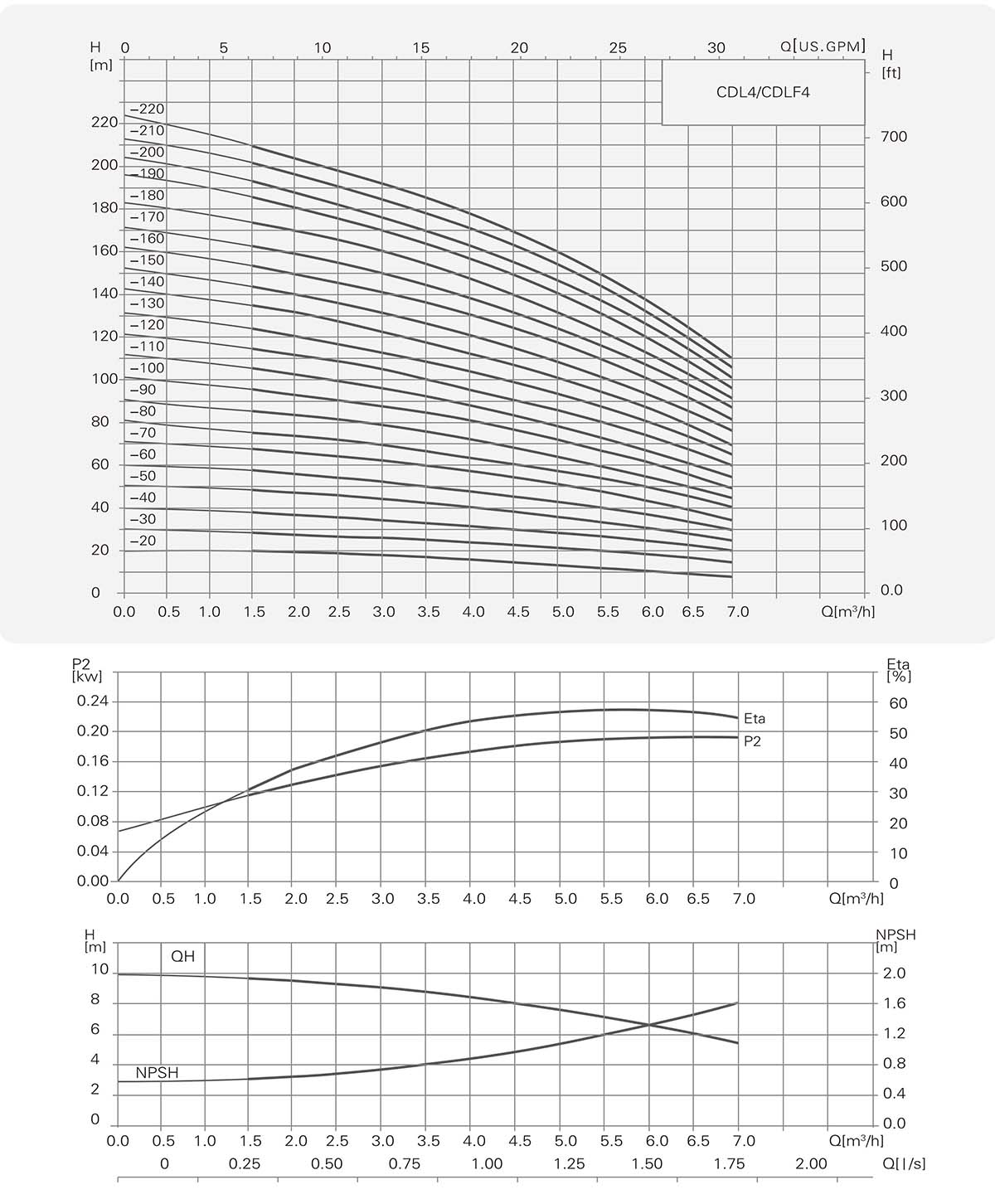

Characteristics 50 Hz, 2900 rpm

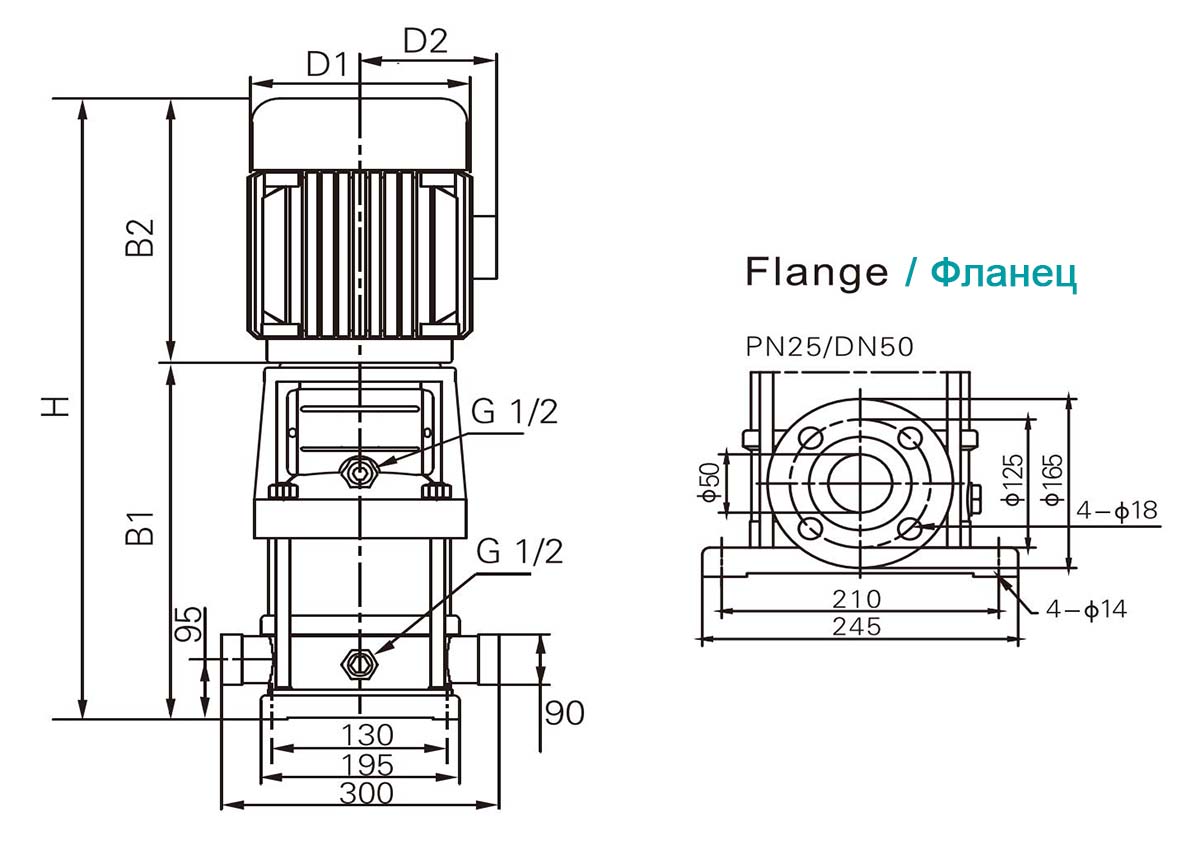

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight	Consumption (m³/h)	2	3	5	6	7
MODEL	Power (KW)	Flow 4m³/h	B1	B2	H	D1	D2	Weight	Consumption (m³/h)	2	3	5	6	7
CDL(F)4-20	0.37	15	297	225	522	148	117	22	Effort (m)	18	17	13	10	8
CDL(F)4-30	0.55	24	324	265	589	170	142	24		27	26	20	18	13
CDL(F)4-40	0.75	32	351	265	616	170	142	30		36	34	27	24	19
CDL(F)4-50	1.1	40	378	265	643	170	142	32		45	43	34	31	23
CDL(F)4-60	1.1	48	405	265	670	170	142	33		54	52	41	37	28
CDL(F)4-70	1.5	56	442	305	747	190	155	39		63	61	48	43	33
CDL(F)4-80	1.5	64	469	305	774	190	155	40		72	70	55	50	38
CDL(F)4-90	2.2	72	496	305	801	190	155	43		81	80	62	56	43
CDL(F)4-100	2.2	81	523	305	828	190	155	43		90	87	71	62	48
CDL(F)4-110	2.2	88	550	305	855	190	155	44		99	98	76	69	53
CDL(F)4-120	2.2	95	577	305	882	190	155	44		108	104	85	75	58
CDL(F)4-130	3	104	614	335	949	197	165	49		117	106	90	82	63
CDL(F)4-140	3	112	641	335	985	197	165	50		126	122	97	89	68
CDL(F)4-150	3	121	668	335	1003	197	165	51		135	134	101	95	73
CDL(F)4-160	3	129	695	335	1030	197	165	52		144	140	111	101	78
CDL(F)4-170	4	137	722	365	1087	230	188	56		153	152	115	108	83
CDL(F)4-180	4	145	749	365	1114	230	188	56		162	161	125	115	88
CDL(F)4-190	4	153	776	365	1141	230	188	56		171	168	137	122	93
CDL(F)4-200	4	162	803	365	1168	230	188	58		180	179	139	128	98
CDL(F)4-210	4	170	830	365	1195	230	188	58		189	188	146	133	103
CDL(F)4-220	4	178	857	365	1222	230	188	59		200	192	160	138	108

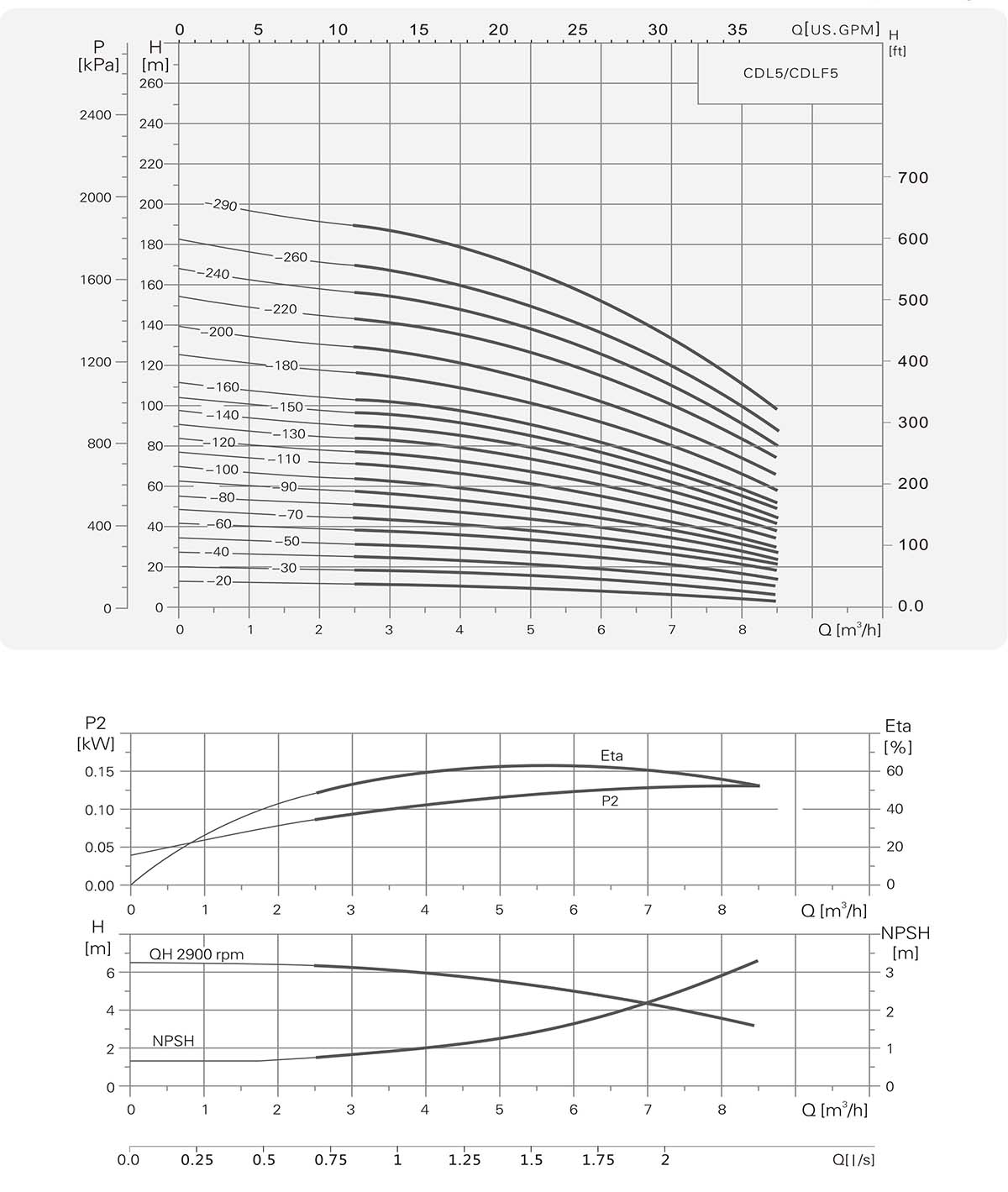

Characteristics 50 Hz, 2900 rpm

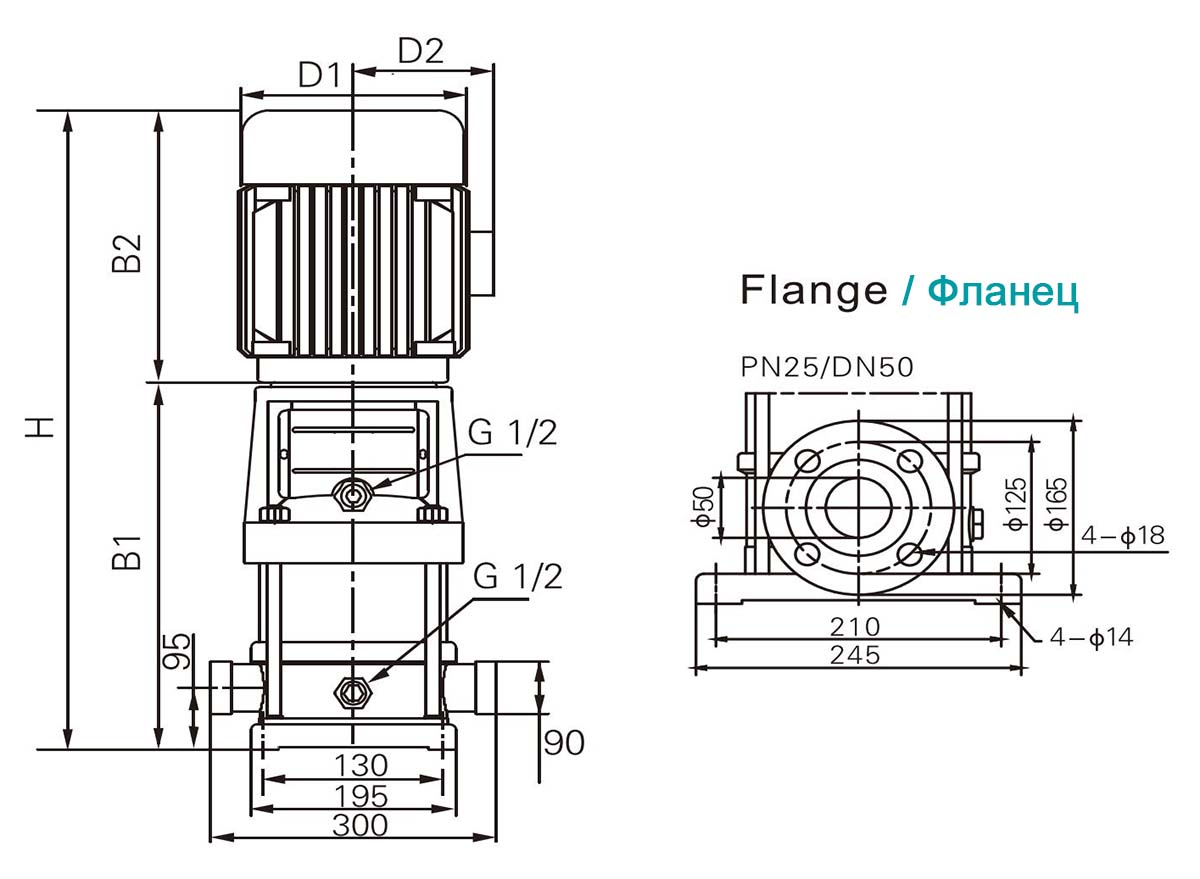

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

Model	Power (KW)	Effort (m)	Size(mm)					Weight	Consumption (m³/h)	1	2	3	4	6	7
Model	Power (KW)	Flow 5m³h	B1	B2	H	D1	D2	Weight	Consumption (m³/h)	1	2	3	4	6	7
CDL(F)5-20	0.37	9	297	225	522	148	117	21	Effort (m)	13	12	11	10	7	6
CDL(F)5-30	0.55	14	324	265	589	170	142	22		19	19	17	16	12	10
CDL(F)5-40	0.55	21	351	265	616	170	142	23		26	25	23	22	16	14
CDL(F)5-50	0.75	27	378	265	643	170	142	25		33	32	29	28	22	18
CDL(F)5-60	1.1	32	405	265	670	170	142	27		40	38	38	34	27	23
CDL(F)5-70	1.1	38	432	265	697	170	142	27		46	45	44	40	32	27
CDL(F)5-80	1.1	44	459	265	724	170	142	27		53	51	50	46	36	31
CDL(F)5-90	1.5	50	496	305	801	190	155	33		60	59	56	53	44	37
CDL(F)5-100	1.5	56	523	305	828	190	155	33		67	65	64	59	48	41
CDL(F)5-110	2.2	62	550	305	855	190	155	37		74	73	70	66	54	47
CDL(F)5-120	2.2	68	577	305	882	190	155	37		81	79	76	72	59	51
CDL(F)5-130	2.2	74	604	305	909	190	155	38		88	85	82	78	64	55
CDL(F)5-140	2.2	80	631	305	936	190	155	38		95	92	89	84	69	60
CDL(F)5-150	2.2	86	658	305	963	190	155	39		101	99	95	90	74	63
CDL(F)5-160	2.2	92	685	305	990	190	155	39		108	105	101	96	78	68
CDL(F)5-170	3.0	98	722	335	1057	197	165	46		115	112	108	102	85	75
CDL(F)5-180	3.0	102	749	335	1084	197	165	46		122	119	115	109	90	78
CDL(F)5-190	3.0	108	776	335	1111	197	165	47		129	126	121	116	97	85
CDL(F)5-200	3.0	114	803	335	1138	197	165	48		135	132	127	122	100	87
CDL(F)5-210	4.0	121	830	365	1195	230	188	56		142	139	134	128	107	96
CDL(F)5-220	4.0	127	857	365	1222	230	188	57		150	147	142	134	112	97
CDL(F)5-230	4.0	133	884	365	1249	230	188	57		156	153	148	140	120	105
CDL(F)5-240	4.0	139	911	365	1276	230	188	58		163	160	154	146	122	106
CDL(F)5-250	4.0	145	938	365	1303	230	188	58		169	166	160	152	128	114
CDL(F)5-260	4.0	151	965	365	1330	230	188	59		176	173	166	160	132	115
CDL(F)5-270	4.0	157	992	365	1357	230	188	59		184	180	172	166	139	122
CDL(F)5-280	4.0	163	1019	365	1384	230	188	60		191	187	179	172	146	129
CDL(F)5-290	4.0	169	1046	365	1411	230	188	60		198	194	188	178	149	131

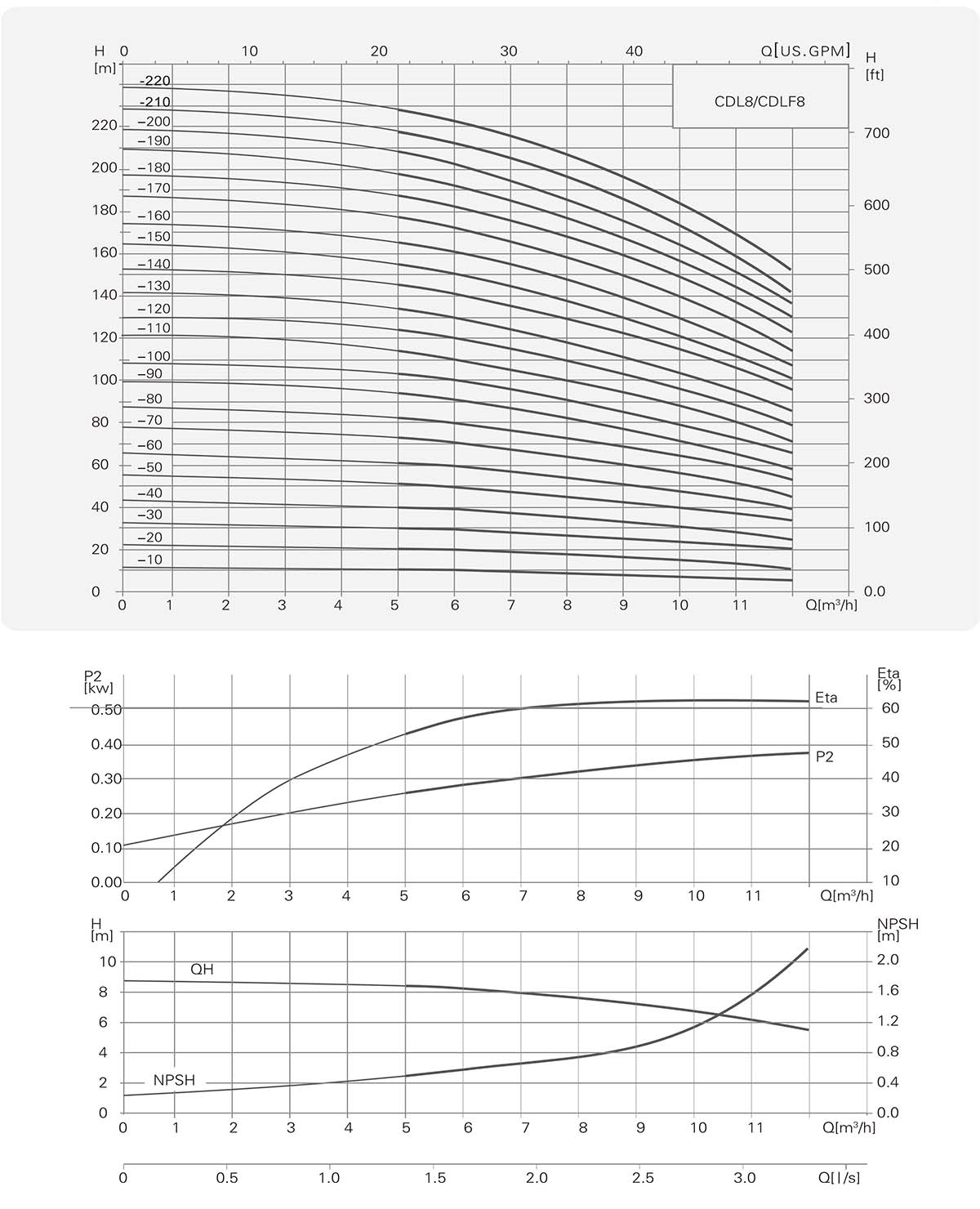

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³/h)	5	6	7	9	10	11	12
MODEL	Power (KW)	Flow 8m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	5	6	7	9	10	11	12
CDL(F)8-20	0.75	18	350	265	615	170	142	33	Effort (m)	20	19.5	19	17	16	14	13
CDL(F)8-30	1.1	27	380	265	645	170	142	35		30	29.5	28.5	25	24	21	19
CDL(F)8-40	1.5	36	415	305	720	190	155	42		41	39.5	38	34	32	28	26
CDL(F)8-50	2.2	45	445	305	750	190	155	46		52	50	48	42	40	36	32
CDL(F)8-60	2.2	54	475	305	780	190	155	47		62	60	57	51	48	43	39
CDL(F)8-70	3	64	520	335	873	197	165	52		72	70	67	60	57	51	45
CDL(F)8-80	3	73	573	335	903	197	165	55		83	80	77	69	65	58	52
CDL(F)8-90	4	83	603	365	948	230	188	64		93	90	87	78	73	66	58
CDL(F)8-100	4	92	633	365	978	230	188	65		104	100	97	87	81	73	65
CDL(F)8-110	4	102	663	365	1008	230	188	66		114	110	107	96	87	80	71
CDL(F)8-120	4	111	693	365	1038	230	188	67		124	120	116	104	92	87	78
CDL(F)8-130	5.5	121	725	425	1150	260	208	84		134	131	126	113	98	95	85
CDL(F)8-140	5.5	130	755	425	1180	260	208	85		145	141	136	122	113	102	92
CDL(F)8-150	5.5	139	785	425	1210	260	208	87		155	151	146	131	122	110	99
CDL(F)8-160	5.5	148	815	425	1240	260	208	88		166	161	156	139	130	118	106
CDL(F)8-170	7.5	158	845	425	1270	260	208	92		177	171	166	148	138	126	113
CDL(F)8-180	7.5	167	875	425	1300	260	208	98		187	182	175	157	146	134	120
CDL(F)8-190	7.5	177	905	425	1330	260	208	99		197	192	185	166	155	142	127
CDL(F)8-200	7.5	186	935	425	1360	260	208	99		208	202	195	175	163	150	135
CDL(F)8-210	7.5	195	965	425	1390	260	208	99		218	212	205	184	171	158	143
CDL(F)8-220	7.5	205	995	425	1420	260	208	100		228	222	215	193	179	166	151

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³/h)	5	6	7	8	9	11
MODEL	Power (KW)	Flow 10m³h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	5	6	7	8	9	11
CDL(F)10-20	0.75	16	380	265	645	170	142	32	Effort (m)	20	19.5	19	18	17	14
CDL(F)10-30	1.1	24	410	265	675	170	142	34		30	29.5	28.5	27	25	21
CDL(F)10-40	1.5	32	440	305	745	190	155	40		41	39.5	38	36	34	28
CDL(F)10-50	2.2	40	470	305	775	190	155	44		52	50	48	45	42	36
CDL(F)10-60	2.2	48	500	305	805	190	165	45		62	60	57	54	51	43
CDL(F)10-70	3.0	57	545	335	880	197	165	52		72	70	67	64	60	51
CDL(F)10-80	3.0	65	575	335	910	197	165	53		83	80	77	73	69	58
CDL(F)10-90	3.0	73	605	365	970	197	165	54		93	90	87	83	78	66
CDL(F)10-100	4.0	81	635	365	1000	230	188	64		104	100	97	92	87	73
CDL(F)10-110	4.0	87	665	365	1030	230	188	65		114	110	107	102	96	80
CDL(F)10-120	4.0	92	750	365	1115	230	188	66		124	120	116	111	104	87
CDL(F)10-130	5.5	98	780	425	1205	260	208	80		134	131	126	121	113	95
CDL(F)10-140	5.5	113	810	425	1235	260	208	81		145	141	136	130	122	102
CDL(F)10-150	5.5	122	840	425	1265	260	208	82		155	151	146	139	131	110
CDL(F)10-160	5.5	130	870	425	1295	260	208	83		166	161	156	148	139	118
CDL(F)10-170	7.5	138	900	425	1325	260	208	92		177	171	166	158	148	126
CDL(F)10-180	7.5	146	930	425	1355	260	208	93		187	182	175	167	157	134
CDL(F)10-190	7.5	155	960	425	1385	260	208	94		197	192	185	177	166	142
CDL(F)10-200	7.5	163	990	425	1415	260	208	95		208	202	195	186	175	150
CDL(F)10-210	7.5	171	1020	425	1445	260	208	96		218	212	205	195	184	158
CDL(F)10-220	7.5	179	1050	425	1475	260	208	97		228	222	215	205	193	166

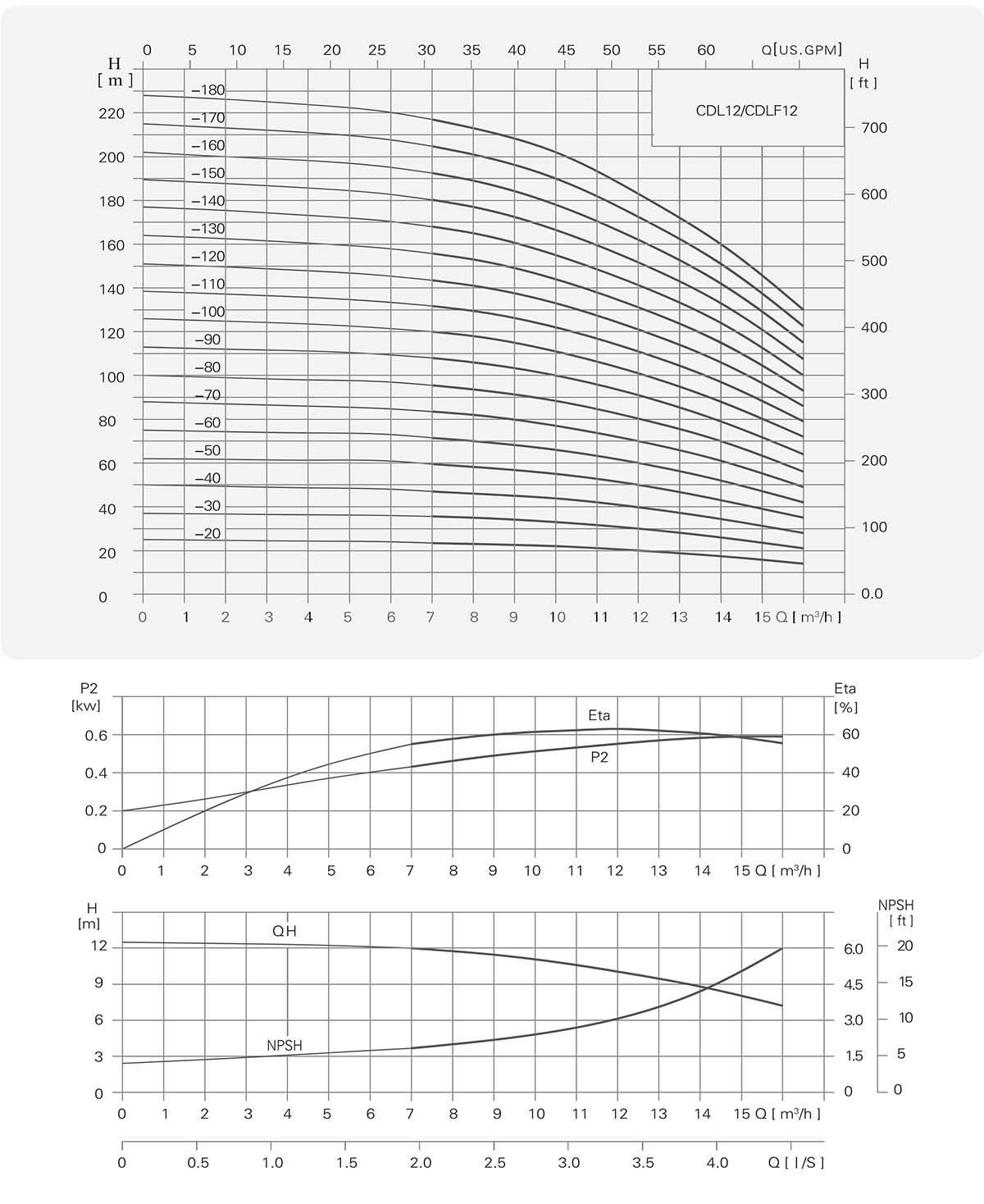

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³/h)	7	8	9	10	11	13	14	15	16
MODEL	Power (KW)	Flow 12m³h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	7	8	9	10	11	13	14	15	16
CDL(F)12-20	1.5	20	384	295	679	190	155	39	Effort (m)	23	23	22	22	21	18	17	15	14
CDL(F)12-30	2.2	30	416	295	711	190	155	43		35	35	34	33	31	28	26	23	21
CDL(F)12-40	3	40	461	330	791	197	165	51		47	46	45	44	42	37	34	31	28
CDL(F)12-50	3	50	493	330	823	197	165	53		49	58	56	55	52	46	43	39	35
CDL(F)12-60	4	60	525	345	870	230	188	61		71.5	70	68	66	63	56	52	47	42
CDL(F)12-70	5.5	70	579	390	969	260	208	72		83	82	79	77	73	65	61	55	49
CDL(F)12-80	5.5	80	611	390	1001	260	208	74		95	94	91	88	84	75	70	63	56
CDL(F)12-90	5.5	91	643	390	1033	260	208	76		108	106	103	10	95	85	79	71	64
CDL(F)12-100	7.5	101	675	390	1065	260	208	83		120	118	114	111	106	94	88	80	72
CDL(F)12-110	7.5	111	707	390	1097	260	208	84		132	130	126	122	117	104	97	88	79
CDL(F)12-120	7.5	121	739	390	1129	260	208	87		143	141	137	133	127	113	106	96	86
CDL(F)12-130	11	131	858	500	1358	330	255	155		155	153	149	144	138	124	118	104	93
CDL(F)12-140	11	141	890	500	1390	330	255	157		168	165	160	155	148	132	124	112	100
CDL(F)12-150	11	151	922	500	1422	330	255	159		180	177	172	166	159	142.5	133	120	107
CDL(F)12-160	11	162	954	500	1454	330	255	161		192	189	183	178	170	152	142	128	115
CDL(F)12-170	11	171	986	500	1486	330	255	163		204	201	195	190	181	162	151	137	122
CDL(F)12-180	11	183	1018	500	1518	330	255	165		217	213	207	202	192	171	160	145	130

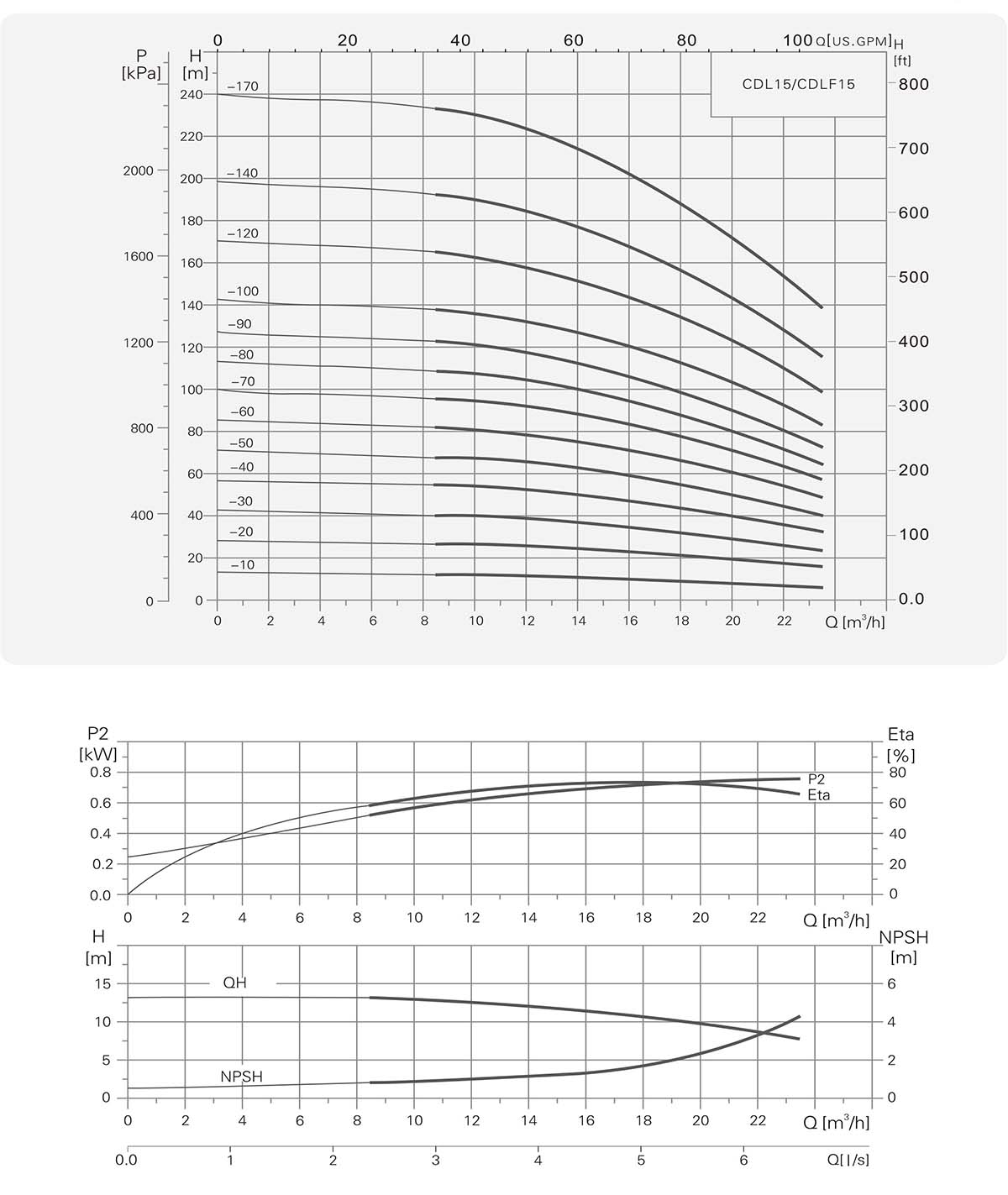

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³/h)	3	6	9	12	16	18	21
MODEL	Power (KW)	Flow 15m³h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	3	6	9	12	16	18	21
CDL(F)15-10	1.1	11	400	265	665	170	142	34	Effort (m)	15	13	13	12	11	10	9
CDL(F)15-20	2.2	23	460	305	765	190	155	42		28	27	26	25	23	21	18
CDL(F)15-30	3.0	35	520	335	855	197	165	50		42	41	40	38	35	32	28
CDL(F)15-40	4.0	47	580	365	945	230	188	59		58	55	55	51	47	43	38
CDL(F)15-50	4.0	58	640	365	1005	230	188	60		70	68	66	64	58	53	48
CDL(F)15-60	5.5	71	700	390	1090	260	208	76		83	82	80	77	71	64	58
CDL(F)15-70	5.5	83	745	390	1135	260	208	77		98	96	94	89	83	75	65
CDL(F)15-80	7.5	96	790	390	1180	260	208	84		112	110	108	103	96	86	75
CDL(F)15-90	7.5	108	835	390	1225	260	208	86		125	123	120	115	108	97	84
CDL(F)15-100	11	120	903	500	1403	330	255	155		140	138	136	129	120	109	95
CDL(F)15-110	11	131	948	500	1448	330	255	157		154	152	149	142	131	120	105
CDL(F)15-120	11	142	993	500	1493	330	255	159		168	165	162	155	142	130	114
CDL(F)15-130	11	154	1038	500	1538	330	255	161		181	178	175	168	154	142	122
CDL(F)15-140	11	166	1083	500	1583	330	255	163		194	192	188	180	166	151	130
CDL(F)15-150	15	179	1128	500	1628	330	255	172		209	206	202	193	179	163	140
CDL(F)15-160	15	192	1173	500	1673	330	255	174		224	220	216	206	192	175	150
CDL(F)15-170	15	205	1218	500	1718	330	255	176		237	234	230	219	205	185	160

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Размер (mm)					Weight (kg)	Consumption (m³/h)	8	10	12	14	18	20	22
MODEL	Power (KW)	Flow 16m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	8	10	12	14	18	20	22
CDL(F)16-20	2.2	22	400	305	705	190	155	42	Effort (m)	27	26	25	24	21	19	16
CDL(F)16-30	3	34	460	335	795	197	165	50		41	40	38	37	32	29	25
CDL(F)16-40	4	46	510	365	885	230	188	59		54	53	52	49	43	38	34
CDL(F)16-50	5.5	58	580	390	970	260	208	76		68	67	65	62	54	48	43
CDL(F)16-60	5.5	70	625	390	1015	260	208	77		82	80	78	74	64	58	52
CDL(F)16-70	7.5	82	670	390	1060	260	208	84		96	95	91	87	76	68	61
CDL(F)16-80	7.5	94	715	390	1105	260	208	86		110	108	104	99	86	77	70
CDL(F)16-90	11	106	783	500	1283	330	255	155		124	122	118	112	98	87	78
CDL(F)16-100	11	118	828	500	1328	330	255	157		138	136	131	125	109	97	87
CDL(F)16-110	11	130	873	500	1373	330	255	159		152	149	144	138	120	106	96
CDL(F)16-120	11	141	918	500	1418	330	255	161		166	162	157	150	130	116	105
CDL(F)16-130	15	154	963	500	1463	330	255	172		180	176	171	163	141	126	114
CDL(F)16-140	15	166	1008	500	1508	330	255	174		194	190	184	175	152	136	122
CDL(F)16-150	15	178	1053	500	1553	330	255	176		208	203	197	188	163	146	131
CDL(F)16-160	15	189	1098	500	1598	330	255	178		222	217	210	200	174	156	140
CDL(F)16-170	15	200	1143	500	1643	330	255	180		236	230	223	212	185	165	149

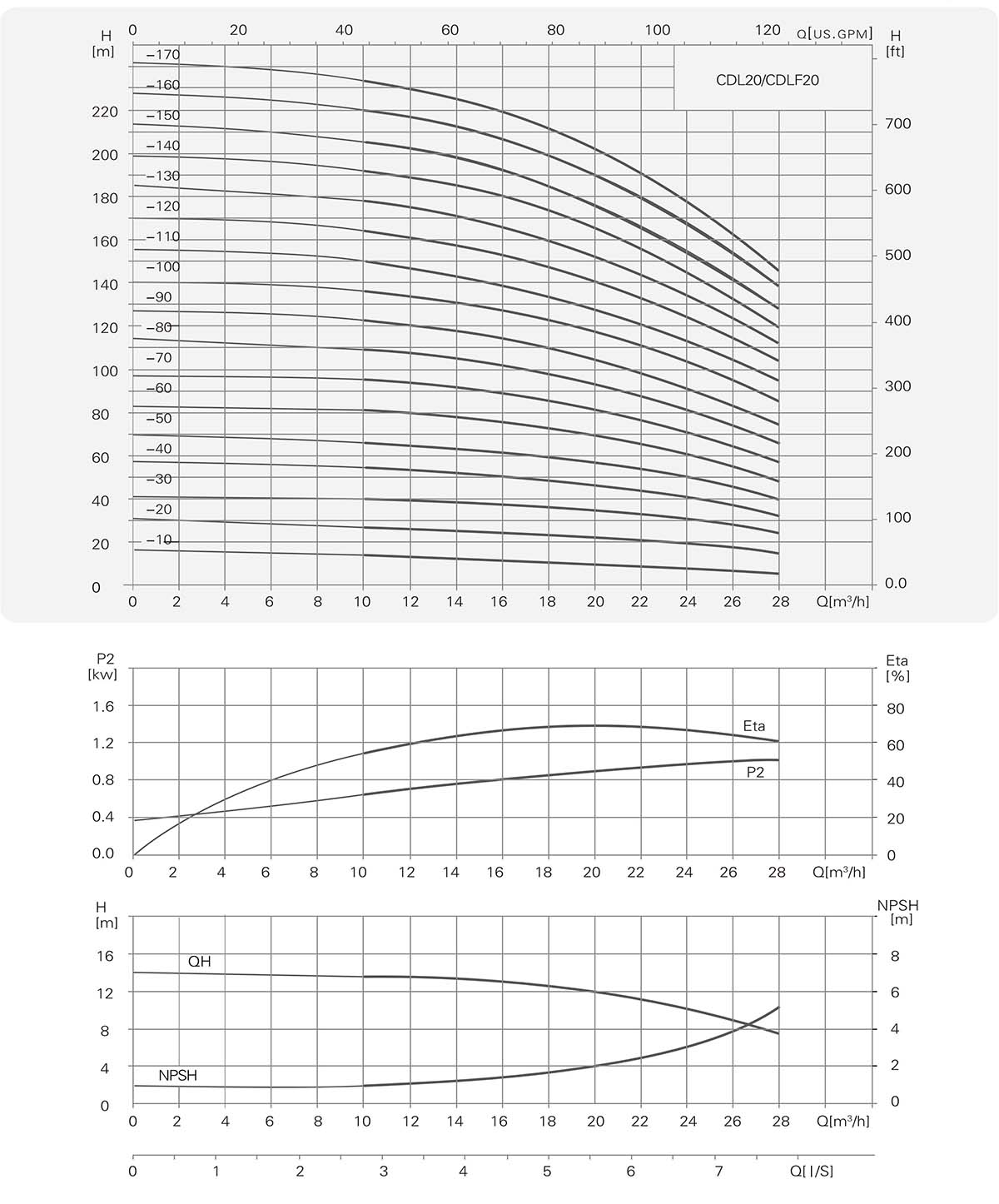

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort (m)	Size(mm)					Weight (kg)	Consumption (m³/h)	10	12	14	16	18	22	24	26	28
MODEL	Power (KW)	Flow 20m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	10	12	14	16	18	22	24	26	28
CDL(F)20-10	1.1	11	360	245	605	170	142	33	Effort (m)	13	13	12	12	11	9	8	7	6
CDL(F)20-20	2.2	23	400	295	695	190	155	42		27	26	26	25	24	22	20	18	15
CDL(F)20-30	4	35	460	345	805	230	188	58		40	39	39	38	37	33	30	27	24
CDL(F)20-40	5.5	47	535	390	925	260	208	74		54	53	52	51	49	44	41	37	33
CDL(F)20-50	5.5	58	580	390	970	260	208	76		67	66	64	62	60	55	50	45	40
CDL(F)20-60	7.5	70	625	390	1015	260	208	82		81	79	77	75	73	66	61	55	49
CDL(F)20-70	7.5	82	670	390	1060	260	208	84		95	93	91	89	86	77	71	65	58
CDL(F)20-80	11	94	738	500	1238	330	255	153		109	107	105	102	99	89	82	75	67
CDL(F)20-90	11	106	783	500	1283	330	255	155		122	120	118	115	112	100	93	85	76
CDL(F)20-100	11	118	828	500	1328	330	255	157		136	134	131	128	124	111	103	95	85
CDL(F)20-110	15	130	873	500	1373	330	255	168		150	148	145	141	137	122	114	105	94
CDL(F)20-120	15	142	918	500	1418	330	255	170		164	162	158	154	149	133	124	114	102
CDL(F)20-130	15	154	963	500	1463	330	255	172		178	175	171	167	162	145	135	124	111
CDL(F)20-140	15	166	1008	500	1508	330	255	174		192	189	185	180	174	156	145	133	119
CDL(F)20-150	18.5	178	1053	550	1603	330	255	191		206	203	198	193	187	168	156	143	128
CDL(F)20-160	18.5	190	1098	550	1648	330	255	193		220	216	212	206	200	179	167	153	137
CDL(F)20-170	18.5	202	1143	550	1693	330	255	195		234	230	225	219	212	190	177	162	145

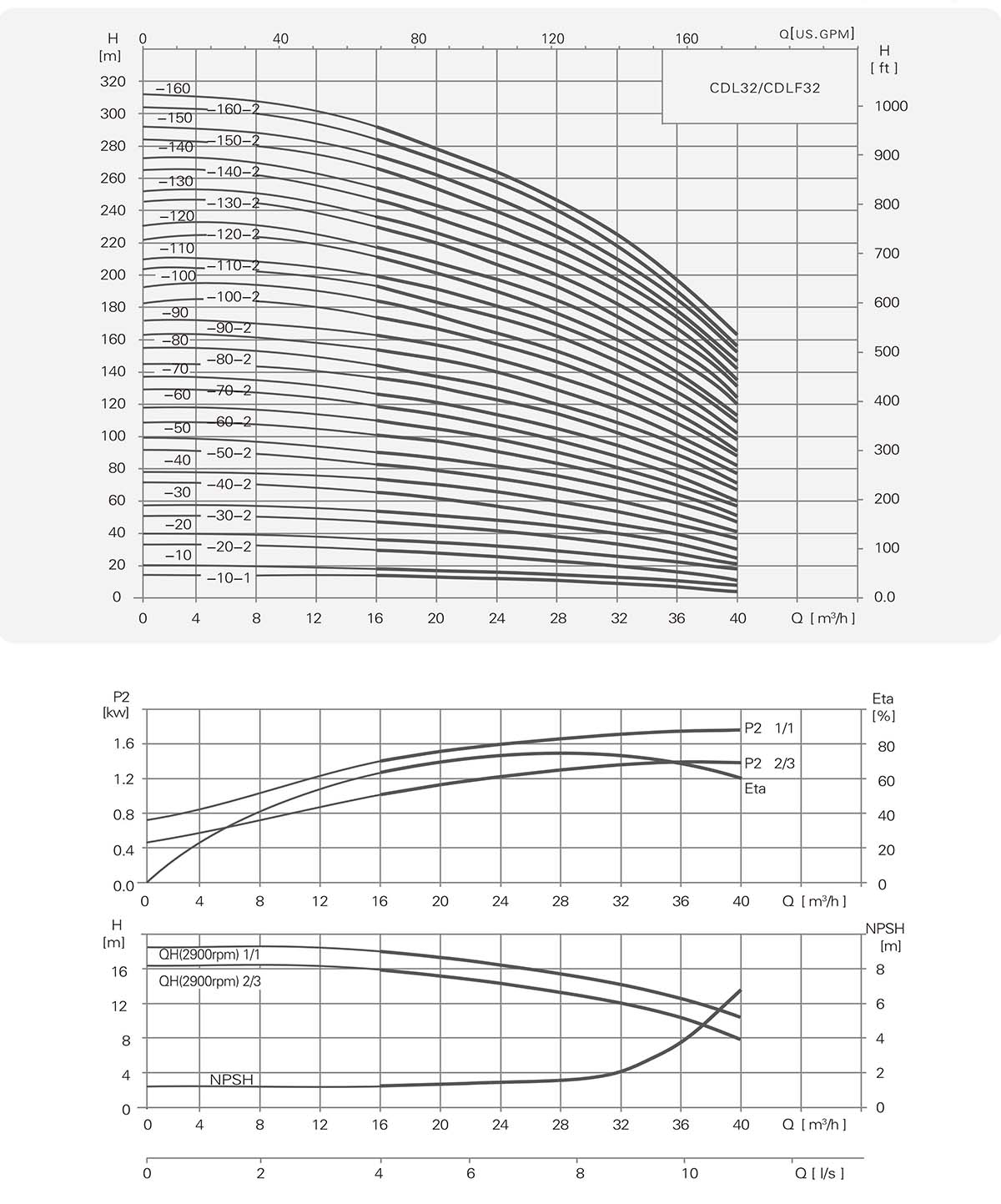

Characteristics 50 Hz, 2900 rpm

Installation drawing

Single phase motor, explosion-proof motor. Overall dimensions are subject to change. For details please contact our company.

Characteristics table

MODEL	Power (KW)	Effort	Size(mm)					Weight (kg)	Consumption (m³/h)	16	20	24	28	36	40
MODEL	Power (KW)	Flow 32m³/h	B1	B2	H	D1	D2	Weight (kg)	Consumption (m³/h)	16	20	24	28	36	40
CDL(F)32-10-1	1.5	9	510	305	795	190	155	64	Effort (m)	14	13	12	11	7	4
CDL(F)32-10	2.2	13	510	305	795	190	155	68		18	17	15	14	11	8
CDL(F)32-20-2	3.0	20	580	330	920	197	165	77		29	28	26	23	16	11
CDL(F)32-20	4.0	27	580	365	930	230	180	85		36	34	32	29	23	18
CDL(F)32-30-2	5.5	33	650	425	1035	260	208	100		47	44	41	38	28	21
CDL(F)32-30	5.5	40	650	425	1035	260	208	100		54	51	48	44	35	27
CDL(F)32-40-2	7.5	46	720	425	1105	260	208	109		65	62	58	53	40	30
CDL(F)32-40	7.5	53	720	425	1105	260	208	109		72	69	65	59	47	37
CDL(F)32-50-2	11	60	900	500	1460	260	208	125		83	79	74	68	52	41
CDL(F)32-50	11	67	900	500	1460	260	208	125		90	86	81	74	59	47
CDL(F)32-60-2	11	74	970	500	1460	330	255	185		101	97	90	83	65	51
CDL(F)32-60	11	81	970	500	1460	330	255	185		108	104	97	90	72	57
CDL(F)32-70-2	15	88	1040	500	1530	330	255	199		119	114	107	98	78	60
CDL(F)32-70	15	95	1040	500	1530	330	255	199		126	121	113	105	85	67
CDL(F)32-80-2	15	102	1110	500	1600	330	255	203		136	131	123	114	90	71
CDL(F)32-80	15	109	1110	500	1600	330	255	203		144	138	130	120	97	77
CDL(F)32-90-2	18.5	117	1180	550	1720	330	255	222		154	148	140	129	102	82
CDL(F)32-90	18.5	124	1180	550	1720	330	255	222		162	156	147	136	109	88
CDL(F)32-100-2	18.5	131	1250	550	1790	330	255	227		175	166	157	146	115	91
CDL(F)32-100	18.5	138	1250	550	1790	330	255	227		182	173	164	152	122	98
CDL(F)32-110-2	22	146	1320	575	1885	360	285	272		193	184	173	164	128	102
CDL(F)32-110	22	153	1320	575	1885	360	285	272		200	191	180	168	135	109
CDL(F)32-120-2	22	160	1400	575	1955	360	285	276		211	201	189	178	140	113
CDL(F)32-120	22	167	1400	575	1955	360	285	276		218	208	196	184	147	120
CDL(F)32-130-2	30	174	1470	650	2100	360	285	293		230	218	206	193	153	124
CDL(F)32-130	30	181	1470	650	2100	360	285	293		237	225	213	200	160	131
CDL(F)32-140-2	30	189	1540	650	2170	360	285	298		247	235	222	210	165	135
CDL(F)32-140	30	196	1540	650	2170	400	310	341		255	242	229	216	172	142
CDL(F)32-150-2	30	203	1610	650	2240	400	310	345		266	253	239	224	178	145
CDL(F)32-150	30	210	1610	650	2240	400	310	345		274	260	246	231	185	152
CDL(F)32-160-2	30	218	1680	650	2330	400	310	350		284	270	255	240	190	156
CDL(F)32-160	30	225	1680	650	2330	400	310	350		292	277	262	246	197	163

Hot Tags: Вертикальный многоступенчатый центробежный насос CDL/CDLF S.S 304, Китай, Производитель, Поставщик, Фабрика, Индивидуальные, Качество, Последние продажи, В наличии, Бренды, CE, Тайчжоу

Product Tag

Send Inquiry

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Products

New Products

Вертикальный многоступенчатый центробежный насос CDL/CDLF S.S 304

Product Description

AREA OF APPLICATION

CODE MODELS

Диапазон производительности

Ассортимент продукции

Section CDL,CDLF1,2,3,4.5

Материал CDL.CDLF 1,2,3.4,5

Section figure CDL, CDLF8, 10, 12, 15, 16, 20

Материал CDL, CDLF 8, 10, 12, 15, 16, 20

Фигура сечения CDL,CDLF32 .45, 64,90

Материал CDL,CDLF32,45,64,90

Фигура сечения CDL, CDLF 120, 150, 200

Material CDL, CDLF 120, 150, 200

Maximum ambient temperature

Maximum working pressure

Минимальное давление на впуске (NPSH)

Кривая производительности 50 Гц, 2900 об/мин

Installation drawing

Таблица производительности

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Performance curve: 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Characteristics 50 Hz, 2900 rpm

Installation drawing

Characteristics table

Product Tag

Related Category

Send Inquiry

Related Products
