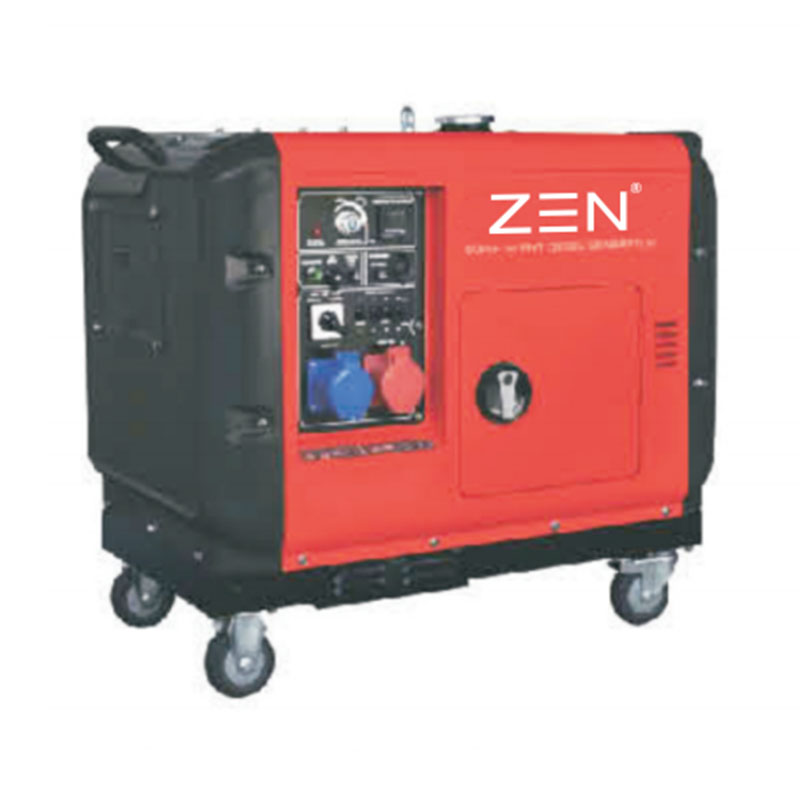

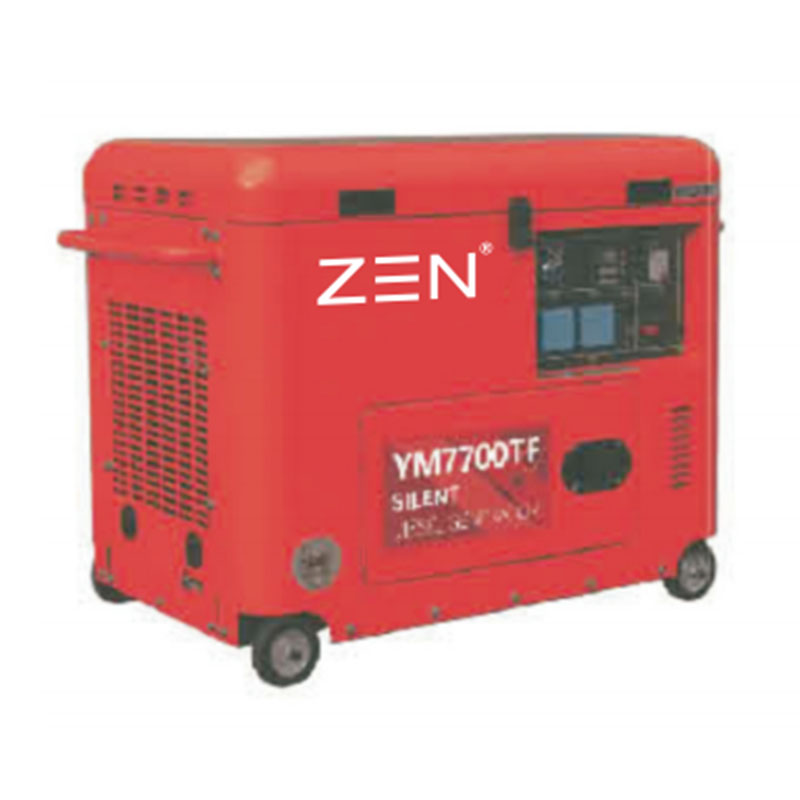

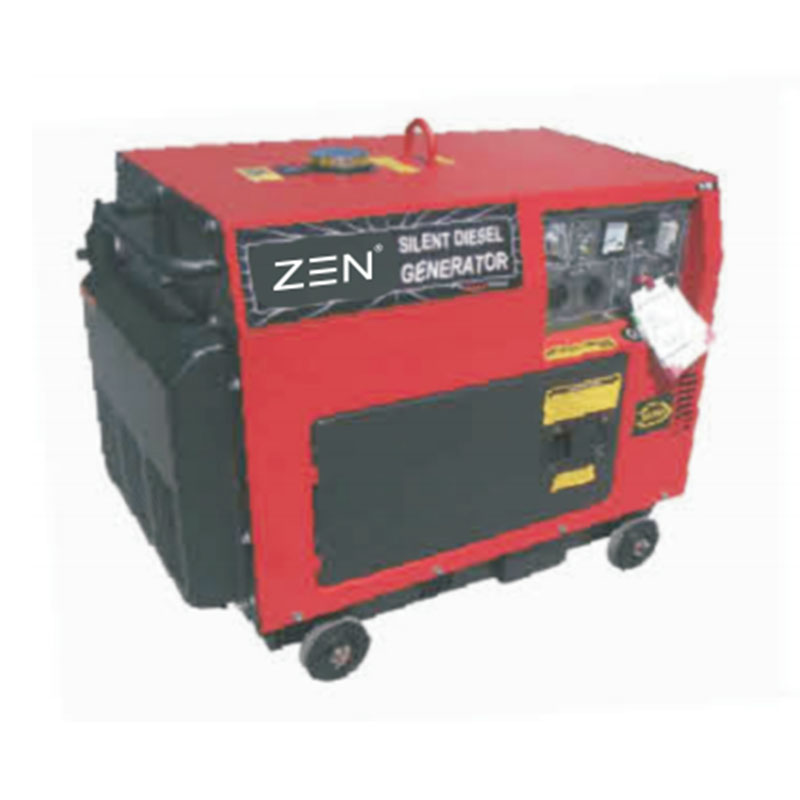

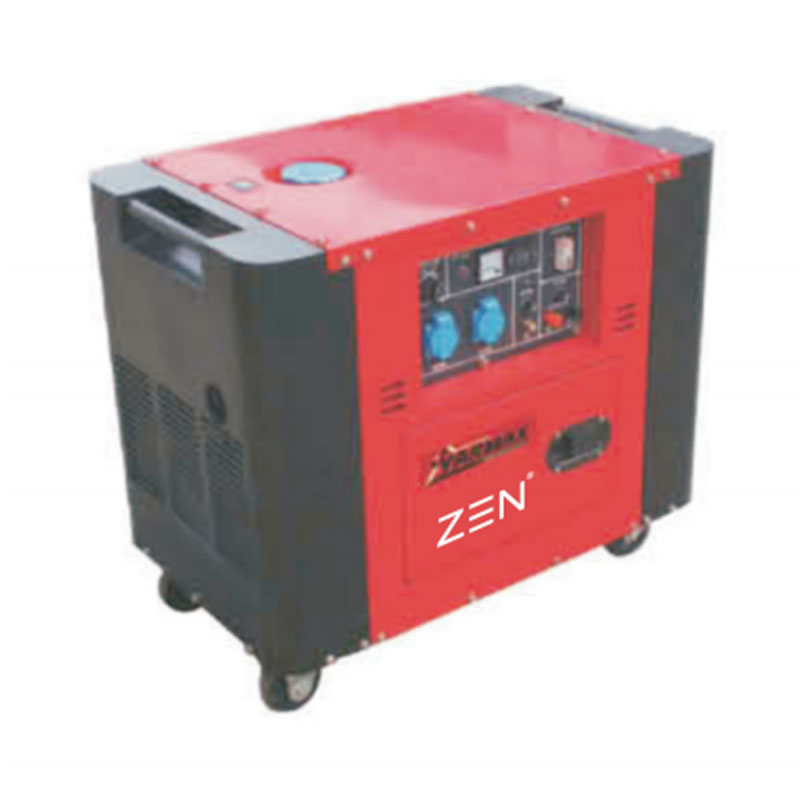

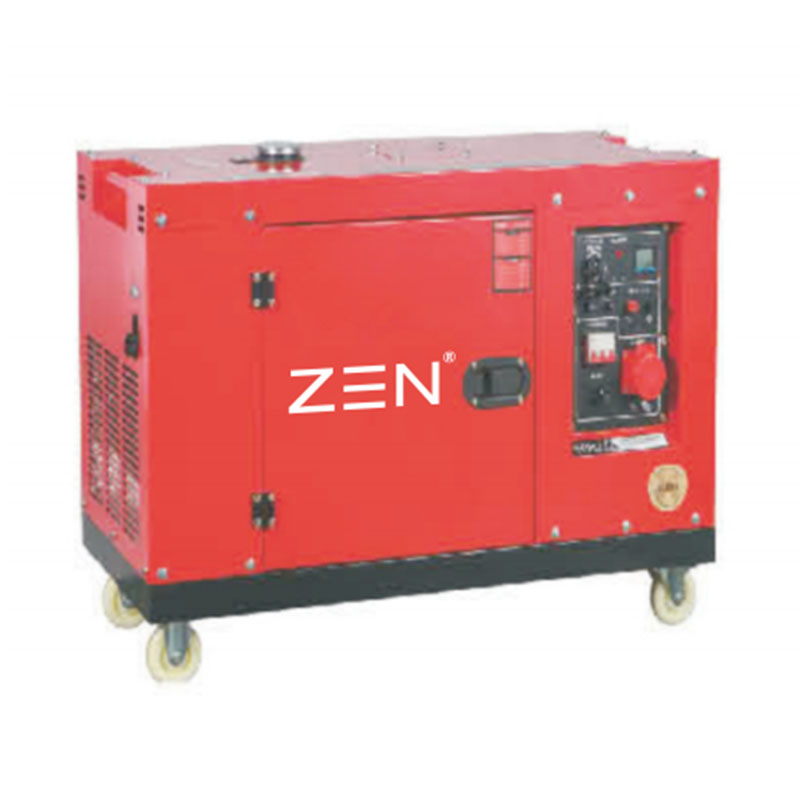

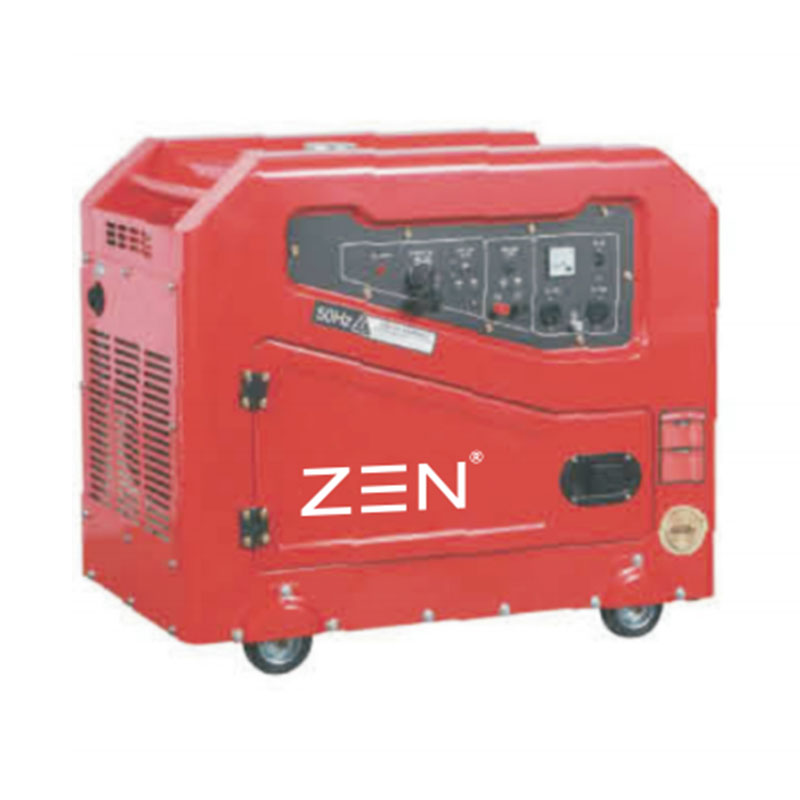

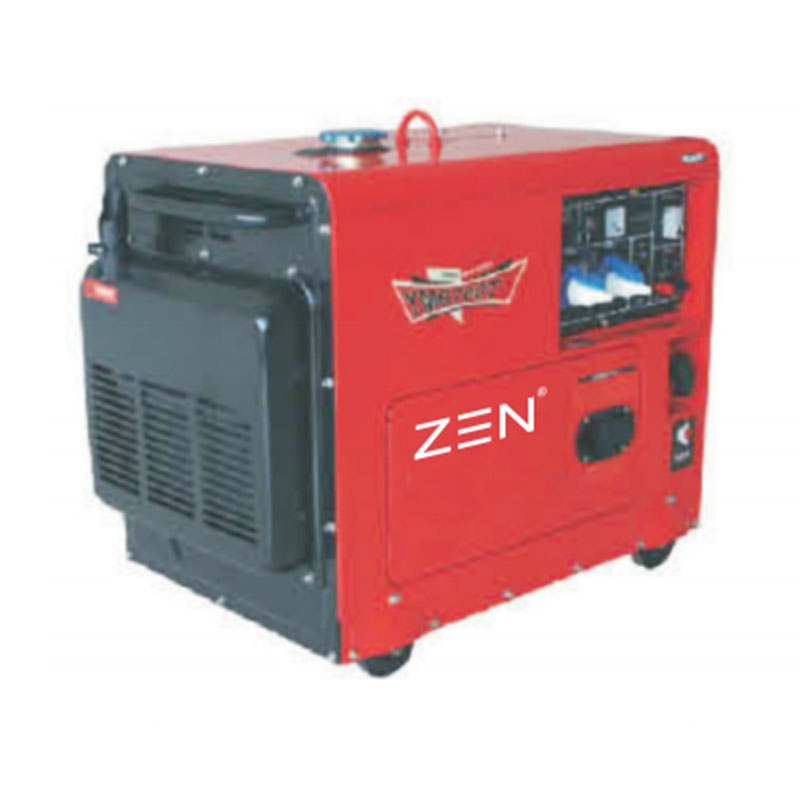

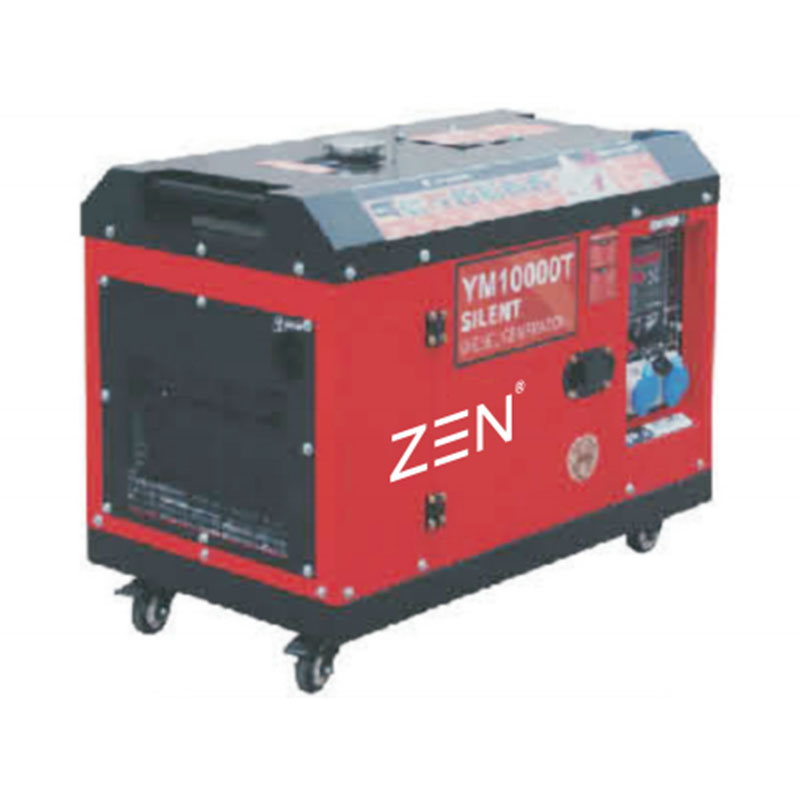

Высококачественный одноцилиндровый генератор ZEN одноцилиндровый бесшумный дизельный генератор сочетает в себе эффективность и бесшумность работы, снижая уровень шума и не создавая помех окружающим помещениям — будь то использование дома, на небольшой стройплощадке или во время мероприятий на открытом воздухе.
As a professional manufacturer, ZEN offers you a high-quality single cylinder silent diesel generator that provides high power and torque, as well as stable power output, allowing you to smoothly handle a variety of loads, from powering small household appliances to light construction tools.
1.Portable and compact design of the single cylinder silent diesel generator is easily suitable for mobile tasks, you can carry it between jobsites or store it without taking up much space.
2.Special configurations allow the single cylinder silent diesel generator to be tailored to specific requirements, such as adjusting voltage for different devices or adding additional ports.
3.Powered by high-performance YARMAX engines, the single-cylinder silent diesel generator remains reliable even during long-term operation.
All these features make this range of diesel generators a practical and reliable choice for a wide range of applications, be it emergency backup power or power supply for small sites.
| Model | ZD3700T | XD6700T | ZD7700T | ZD87700T | ZD97700T | |
| Rated frequency(Hz) | 5060 | |||||
| Rated power(kW) | 2.52.8 | 4.54.8 | 5.05.2 | 6.06.3 | 6.56.8 | |
| Maximum performance(kw) | 3.03.3 | 5.05.2 | 5.55.7 | 6.57.2 | 7.07.7 | |
| Rated Voltage(V) | 110V/220V/230V/240V/380V/400V | |||||
| Rated current(A) |
11.3127 | 20.421.8 | 22.723.6 | 27.228.6 | 29.530.9 | |
| Rated rotation speed(r/min) | 30003600 | |||||
| Number of phases | Single-phase/Three-phase/Three-phase with equal power | |||||
| Power Factor(Cos) | 1 | |||||
| Insulation class | F | |||||
| Number of poles | 2 | |||||
| Excitation mode | Self-excited constant voltage (AVR) | |||||
| Dimensions (L×W×H)(mm) | 945*555*700 | 945*555*700 | 945*555*700 | 945*555*700 | 945*555*700 | |
| Gross weight(kg) | 120 | 150 | 152 | 155 | 160 | |
| Sorting work by weight(kg) | 130 | 160 | 162 | 165 | 170 | |
| Noise level/7m [dB(A)] |
72 | 72 | 72 | 72 | 72 | |
| Construction type | silent type | |||||
| Engine model | YM178F | YM186FA | In188f | YM192F | YM195F | |
| Engine type | Single-cylinder, vertical, four-stroke, direct injection, air-cooled engine | |||||
| cylinder No. - diameter * piston stroke (mm) | 1-7862 | 1-78*62 | 1-88*75 | 1-92*75 | 1-95*75 | |
| Offset(ml) | 296 | 418 | 456 | 498 | 532 | |
| Rated power[kW(r/min)] | 3.7/30004.0/3600 | 5.7/30006.3/3600 | 6.5/30007.2/3600 | 7.6/30008.2/3600 | 8.1/30008.7/3600 | |
| Fuel type |
diesel fuel 0# (summer) - 10# (winter) - 35# (frost-resistant) diesel fuel | |||||
| Lube oil grade |
Class CD or SAE10W-30, 15W-40 | |||||
| Battery capacity(V-Ah) | 12V 30Ah | |||||
| Fuel consumption(glkw"h) |
≤280 | ≤280 | ≤280 | ≤280 | ≤280 | |
| Fuel tank capacity(L) | 15 | 15 | 15 | 15 | 15 | |
| continuous working time(h) | 11 | 7.5 | 6.5 | 5.5 | 5 | |
