As a professional manufacturer, ZEN brings you a high-quality single-cylinder diesel engine that consumes less fuel than many similar engines, thanks in part to its miniature fuel injection system: this system delivers fuel more accurately, reducing waste and lowering daily operating costs.

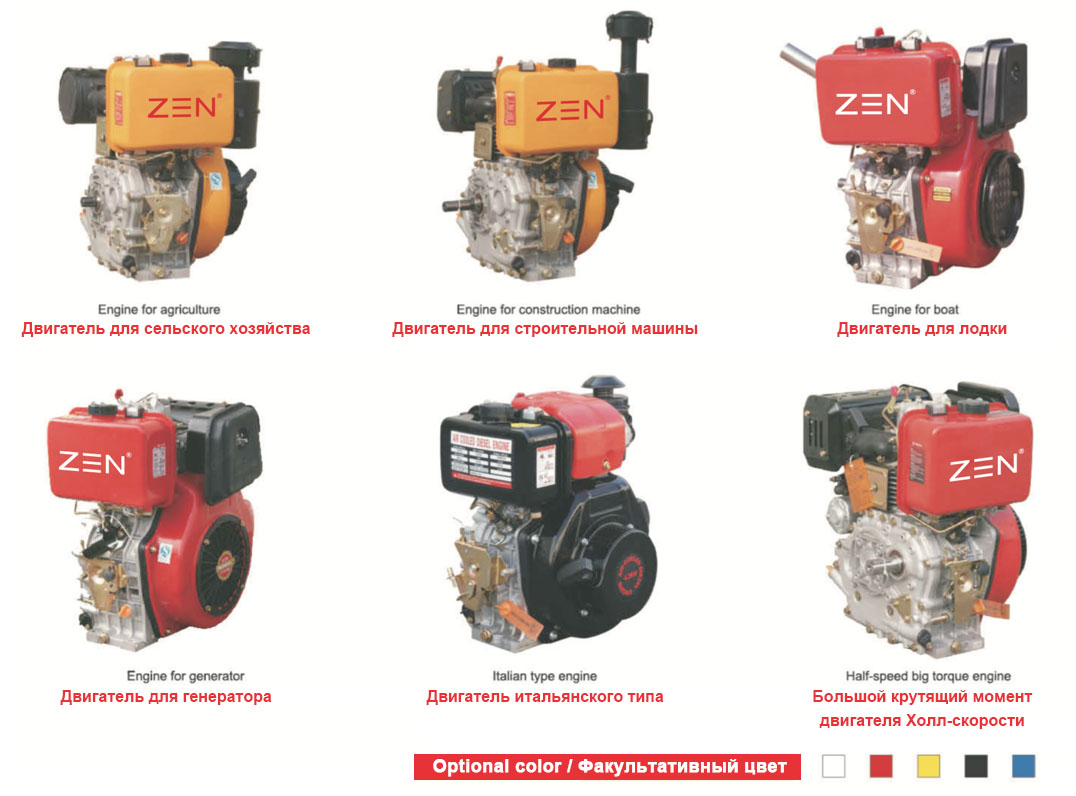

With many years of experience in producing Single Cylinder Diesel Engine, ZEN can supply a wide range of Single Cylinder Diesel Engines, including six different models: Agriculture Engine, Construction Machinery Engine, Boat Engine, Generator Engine, Italian Type Engine and Low Speed High Torque Engine.

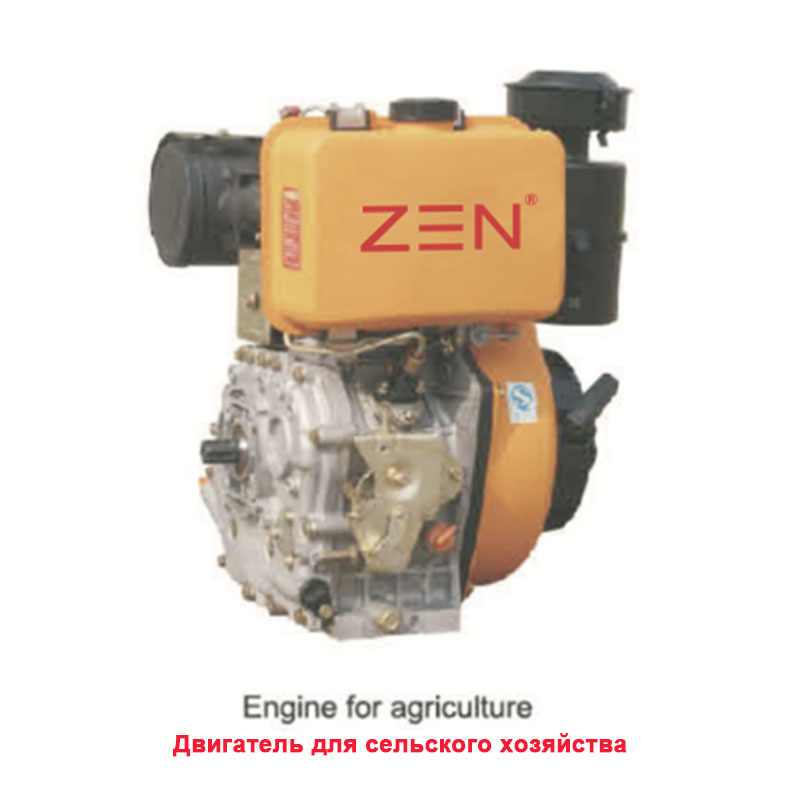

1. In agriculture, this single-cylinder diesel engine drives small and medium-sized equipment such as cultivators and mini-harvesters;

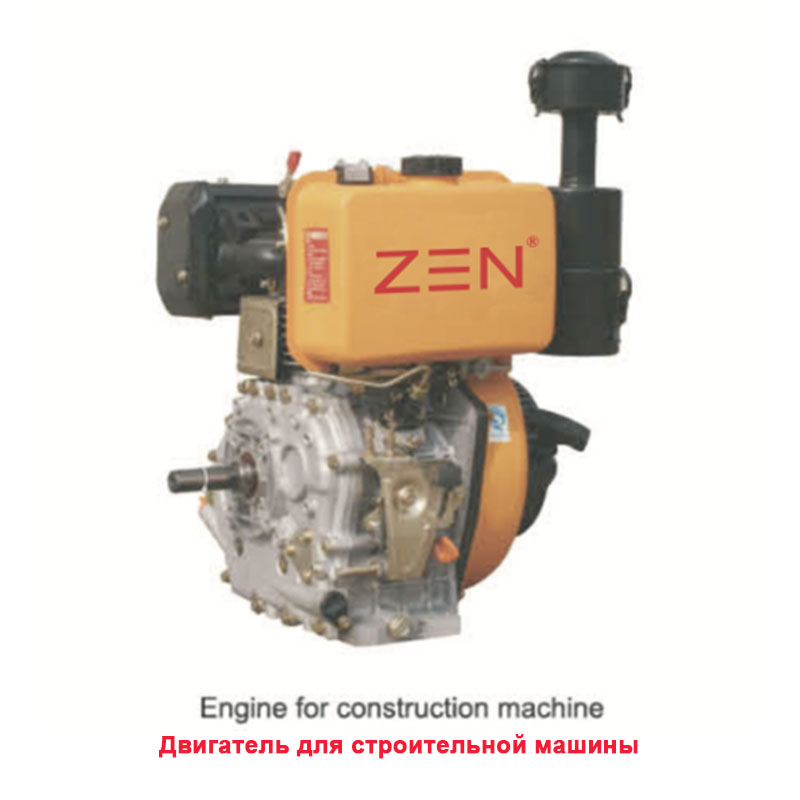

2. In construction, it powers compact tools such as small compactors and mixers;

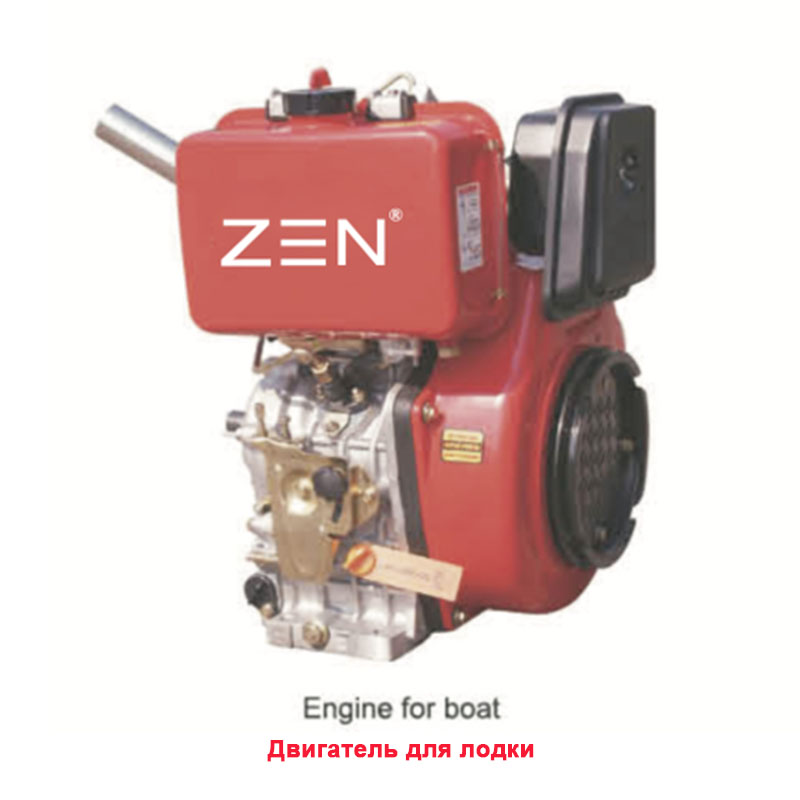

3. On boats, it provides stable propulsion for small vessels;

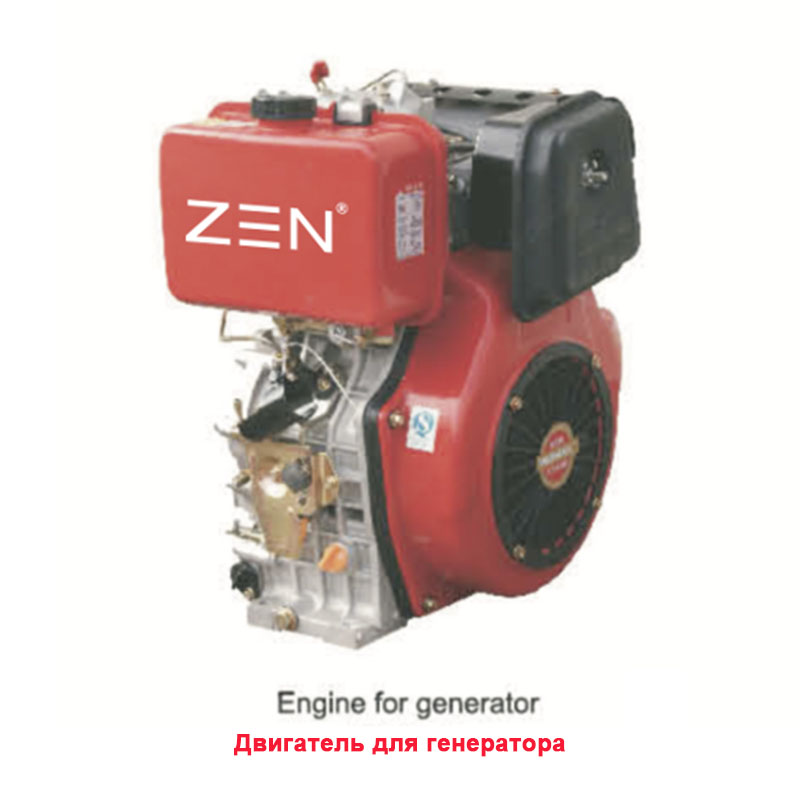

4. Thanks to generators, it provides stable power output when working off-grid.

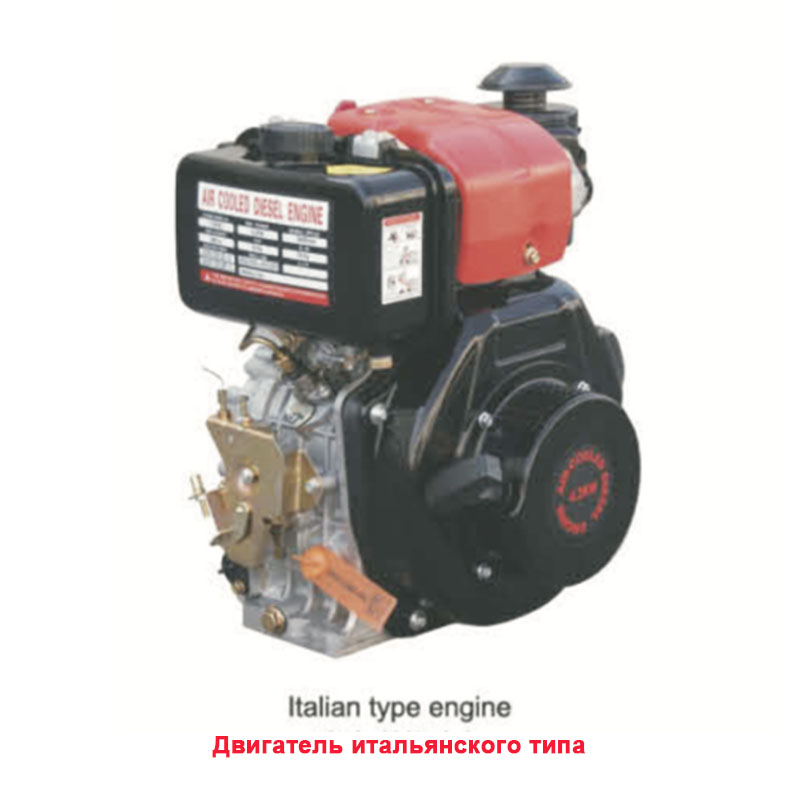

5. The Italian type model is suitable for European type specialized equipment.

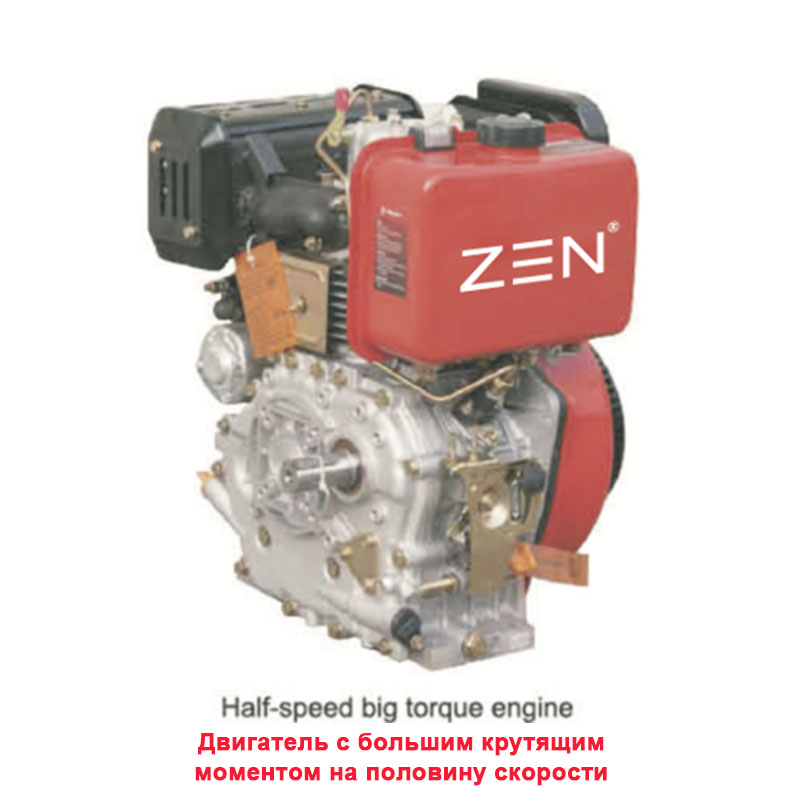

6. The half speed high torque model is great for heavy duty applications that require slow and powerful force.
Proven production technologies make the Single-cylinder diesel engine model reliable for long-term use.
1. Single cylinder diesel engine models are made of proven parts that are easy to connect, reducing the likelihood of breakdowns.
2. This single cylinder diesel engine also has practical and user-friendly features.
Easy and fast launch
Low fuel consumption
Miniature fuel injection system
Modern production technologies
Support for intensive use
Wide range of applications
Agricultural machinery: cultivators, combines, ditch diggers, wood chippers, rice mills, water pumps, etc.
Construction equipment: vibrating plates, road rollers, road milling machines, generators, etc.
Vehicles: walk-behind tractors, boats, etc.
| Air cooled diesel engine | |||||
| Model | Rated power (kW/rpm) |
Maximum power (kW/rpm) |
Weight (kg) |
Fuel consumption (kW/rpm) |
Horsepower (HP) |
| 178F | 4.0/3600 | 4.4/3600 | 32 | ≤285.6 | 5.44 |
| 186FA | 6.3/3600 | 6.9/3600 | 42 | ≤281.5 | 8.568 |
| 188F | 7.2/3600 | 7.7/3600 | 48 | ≤281.5 | 9.792 |
| 192F | 8.1/3600 | 8.9/3600 | 50 | ≤300 | 11.2 |
| 195F | 8.7/3600 | 9.4/3600 | 53 | ≤300 | 11.832 |
| 1100F | 10.5/3600 | 11.5/3600 | 62 | ≤300 | 14.28 |
| Water cooled diesel engine | |||||
| Model | Rated power (kW/rpm) |
Maximum power (kW/rpm) |
Weight (kg) |
Fuel consumption (kW/rpm) |
Horsepower (HP) |
| R175A | 4.41/2600 | 4.85/2600 | 65 | ≤277.4 | 5.998 |
| R180 | 5.15/2600 | 5.67/2600 | 72 | ≤278.8 | 7.004 |
| R185 | 5.88/2200 | 6.47/2200 | 95 | ≤281 | 7.997 |
| S195 | 8.82/2200 | 9.7/2200 | 102 | ≤245 | 11.995 |
| S1100 | 11/2200 | 12.1/2200 | 150 | ≤246.2 | 14.96 |
| Model | ZD170F | ZD173F | ZD178F | ZD186F | ZD186FA | ZD188F | ZD190F | ZD192F | ZD195F | ZD1100FE | ZD1105FE | ZD1115FE | |
| Type | Single-cylinder, vertical, four-stroke, direct injection, air-cooled | ||||||||||||
| Cylinder diameter*piston stroke | mm | 70*59 | 73*59 | 78*62 | 86*70 | 86*72 | 88*75 | 90*75 | 92*75 | 95*75 | 100*85 | 105*85 | 115*88 |
| Bias | mL | 227 | 247 | 296 | 406 | 418 | 456 | 477 | 498 | 532 | 667 | 736 | 914 |
| Compression ratio | 95*75 | 95*75 | 95*75 | 19:01 | 19:01 | 19:01 | 19:01 | 19:01 | 19:01 | 19:01 | 19:01 | 18:01 | |
| Rated power | KW/rpm | 2.7/3000 3.0/3600 |
3.5/3000 3.8/3600 |
3.7/3000 4.0/3600 |
Applicazione del prodotto 6.0/3600 |
5.7/3000 6.3/3600 |
6.5/3000 7.2/3600 |
6.7/3000 7.3/3600 |
7.6/3000 8.2/3600 |
8.1/3000 8.7/3600 |
10.5/3000 11.0/3600 |
12.0/3000 12.5/3600 |
13.5/3000 14.5/3600 |
| Maximum power | KW/rpm | 3.0/3000 3.5/3600 |
3.8/3000 4.0/3600 |
4.0/3000 4.4/3600 |
6.0/3000 6.5/3600 |
6.3/3000 6.9/3600 |
7.2/3000 7.9/3600 |
7.4/3000 8.0/3600 |
5.88/2200 9.0/3600 |
8.7/3000 9.5/3600 |
11.0/3000 11.5/3600 |
13.0/3000 13.5/3600 |
4.1/3600 14.5/3600 |
| Rated power | HP/rpm | 3.6/3000 4.1/3600 |
4.8/3000 5.2/3600 |
5.0/3000 5.4/3600 |
7.5/3000 8.2/3600 |
7.8/3000 8.6/3600 |
8.8/3000 9.8/3600 |
9.1/3000 10.0/3600 |
10.3/3000 11.2/3600 |
11/3000 11.8/3600 |
14.3/3000 15.0/3600 |
16.3/3000 17.0/3600 |
18.3/3000 19.8/3600 |
| Rated speed | rpm | 3000 / 3600 | |||||||||||
| Minimum idle speed | rpm | ≤1300 | |||||||||||
| Lubrication system | Pressure and splash lubrication | ||||||||||||
| Starting system | Recoil Starter/Electric Starter | Electric starter | |||||||||||
| Direction of rotation (output shaft side) | Counterclockwise | ||||||||||||
| Fuel type | Diesel fuel 0# (summer) - 10# (winter) - 35# (low temperatures) | ||||||||||||
| Fuel tank capacity | L | 2.5 | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 6.5 | 9.0 |
| Fuel consumption/corresponding speed(g/kW.h/r/min) | 280.2/3000 288.3/3600 |
276.1/3000 285.6/3600 |
275.1/3000 281.5/3600 |
260/3000 280/3600 |
|||||||||
| Engine oil type | Class CD or SAE 10W-30, 15W-40 | ||||||||||||
| Engine oil volume | L | 0.75 | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2.0 | 2.0 | 2.5 |
| Starter parameters | V、KW | 12V1.0KW | 12V1.2KW | 12V1.6KW | |||||||||
| Generator parameters | V、A | 12V 8.3A | |||||||||||
| Battery capacity | V、Ah | 12V 22Ah | 12V 30Ah | 12V 36Ah | |||||||||
| Overall package dimensions(L×W×H) |
mm | 420*400*455 | 480*460*510 | 500*460*545 | 560*528*650 | 670*750*750 | |||||||
| Gross weight | kg | 24.0 | 25.0 | 35.0 | 48.0 | 48.0 | 48.5 | 49.0 | 50.0 | 53.0 | 65.0 | 68.0 | 83.0 |
