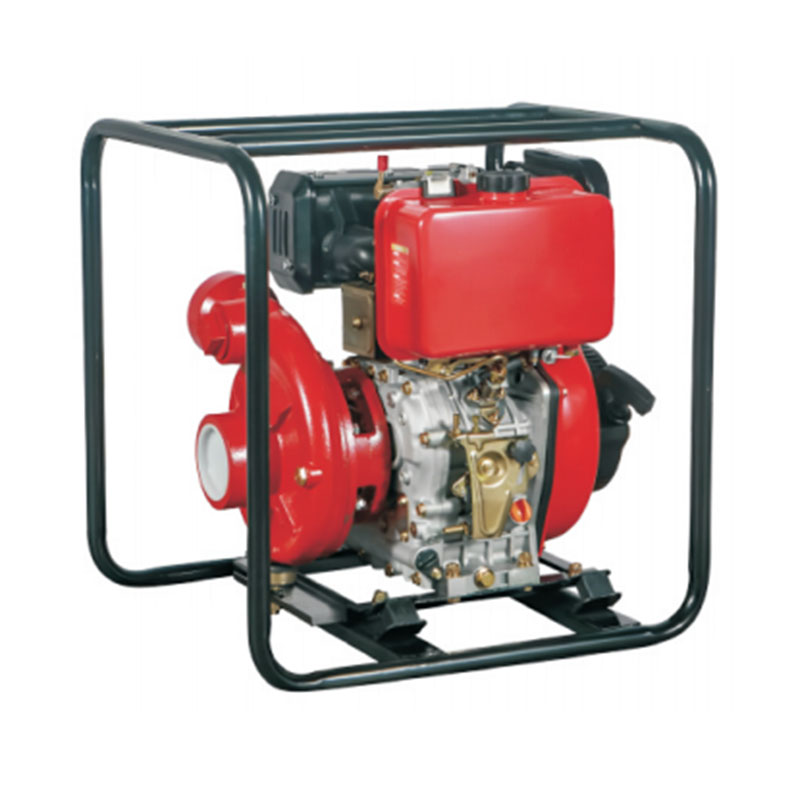

The ZEN model high pressure aluminum water pump is powered by durable YARMAX diesel engines.
1. Easy to start.
2. The body of the aluminum high pressure water pump is incredibly durable - it is made of thick, high-quality aluminum that can withstand intense use, such as moving through construction sites or exposure to dust and moisture from chemical liquids.
1. Municipal construction work, where it increases pressure to repair pipelines or clean urban wastewater;
2. Pumping of chemical liquids, since the pump ensures safe operation with corrosive liquids;
3. Sand mining in mines where a high pressure stream cuts through the thick slurry to move the sand efficiently.
Whether you use it for industrial or utility applications, this pump model aluminum high pressure water pump will provide the reliable and strong pressure you need.
| Model | ZDDP15H | ZDDP20H | ZDDP30H | |
| Type | Aluminum High Pressure Water Pump | |||
| Suction/discharge port diameter | mm(in) | 40(1.5") | 50(2") | 80(3") |
| Max. | m³/h | 20 | 36 | 40 |
| Max. | m | 70 | 70 | 78 |
| Self-start time | s/4m | 120 | 180 | 220 |
| Max suction head | m | 8 | ||
| Rotation speed | rpm | 3600 | ||
| Noise level | dB(A)/7m) | 85 | ||
| General measurement | mm | 570*465*670 | 660*480*610 | |
| Dry weight | kg | 46 | 69 | 80 |
| Engine model | YM178F | YM186F | YM192F | |
| Rated power | kW | 4 | 6.3 | 8.2 |
| Fuel consumption | g/kWh | 285 | 288 | 310 |
| Moving | cm3 | 296 | 418 | 498 |
| Starting system | Recoil Starter | Electric Starter/Recoil |
||
| Fuel tank capacity | L | 3.5 | 5.5 | |
| Continuous working period |
H | 2.5 | 3 | 2 |
| Model | ZDDP15I | ZDDP20I | ZDDP30I |
ZDDP40I | |
| Type | Iron water pump | ||||
| Suction/discharge port diameter |
mm(in) | 40(1.5") | 50(2") | 80(3") | 100(4") |
| Max. | m³/h | 24 | 32 | 44 | 108 |
| Max. | m | 70 | 90 | 40 | |
| Max suction head | m | 8 | |||
| Rotation speed | rpm | 3600 | |||
| Noise level | dB(A)/7m) | 85 | |||
| General measurement | mm | 585*500*580 | 610*530*630 | 610*530*630 | 600*530*735 840*600*745 |
| Dry weight | kg | 65 | 70 | 80 | 92 |
| Engine model | YM178F | YM186F | YM192F | YM192/YM292 | |
| Rated power | kW | 4 | 6.3 | 8.2 | 8 |
| Fuel consumption | g/kWh | 285 | 281 | 310 | 300 |
| Moving | cm3 | 296 | 418 | 498 | 667 |
| Starting system | Recoil Starter | Electric Starter/Recoil | Electric starter | ||
| Fuel tank capacity | L | 3.5 | 5.5 | ||
| Continuous working period | H | 2.6 | 3 | 2 | 2.6 |
